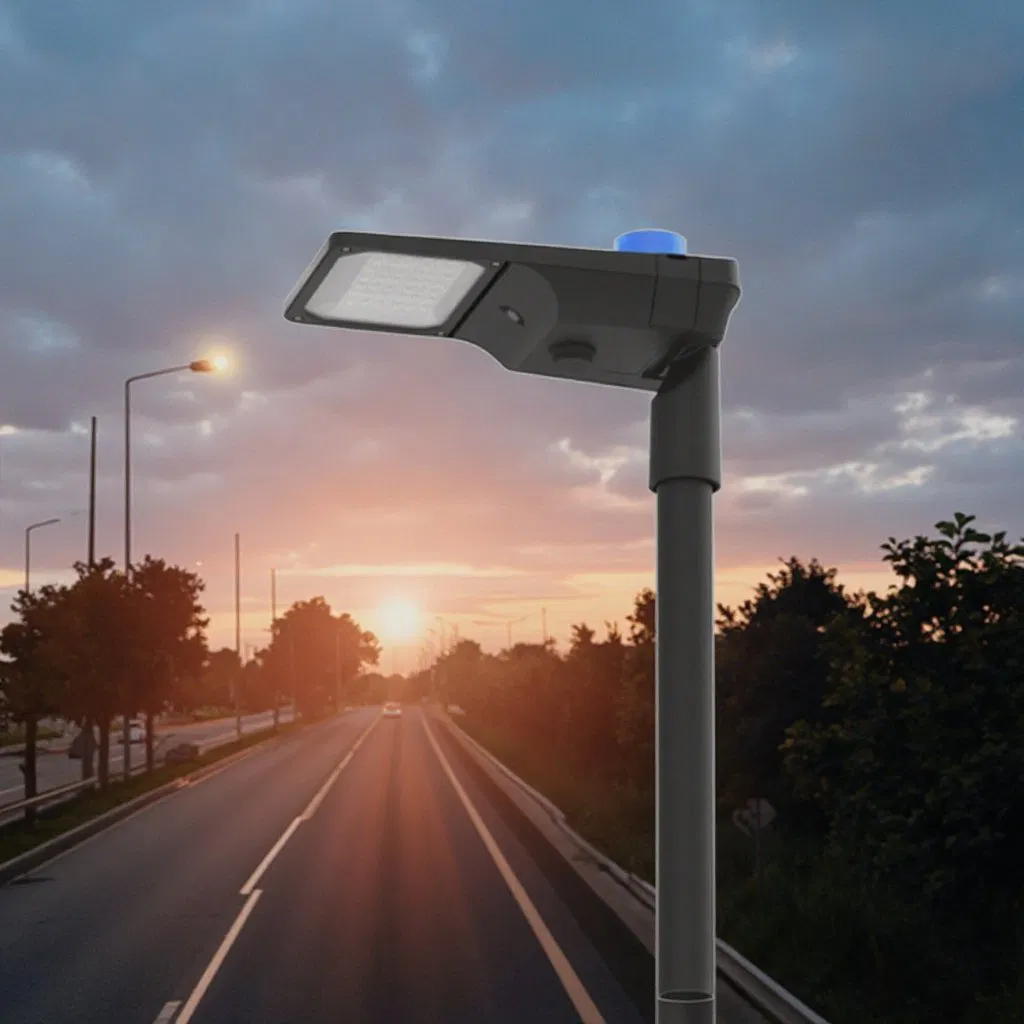

50W 100W 150W SMD Integrated Modern Smart IP65 Public Outdoor Light 50W 60W LED Street Light Die Casting Aluminum LED Street Lamp
Product Description
i
Basic Specifications
Model NO.:SLR29-60W
Lamp Body Material:Aluminum
Lamp Power:60W

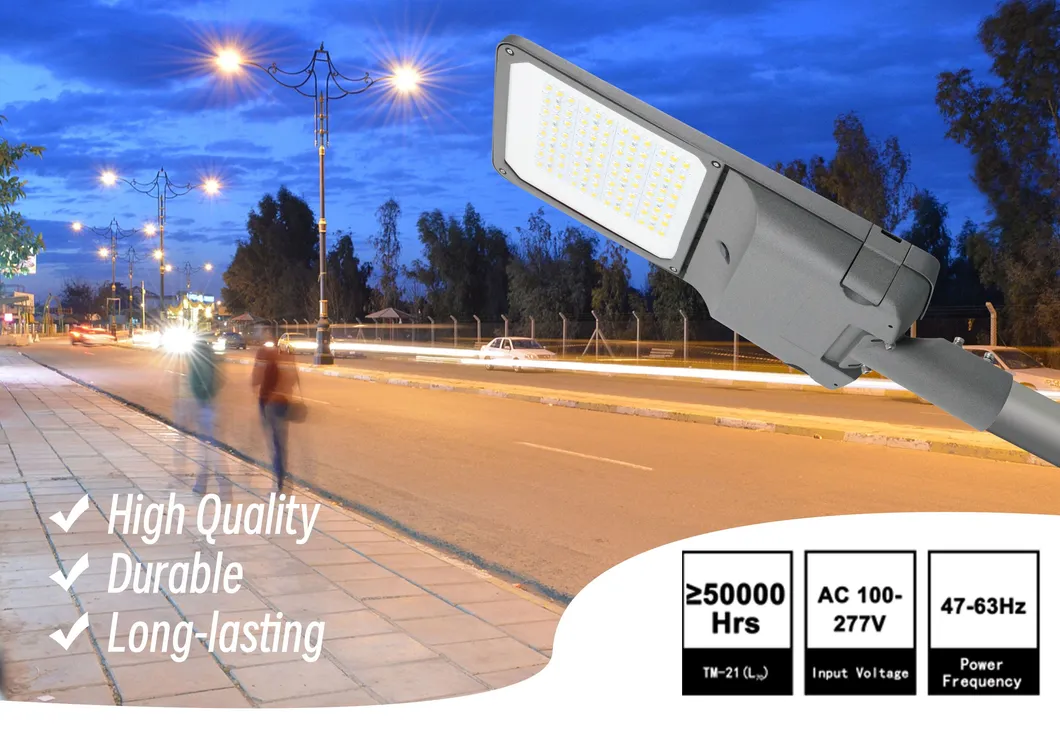

Power Supply:AC (100-277V)
Average Life:>50000h
IP Rating:IP66
Certification:CE, RoHS
Color Temperature:4000K
Warranty:5 Years
Lumen:130-160lm/W
CRI:>70
Dimensions:60*27*9cm
T

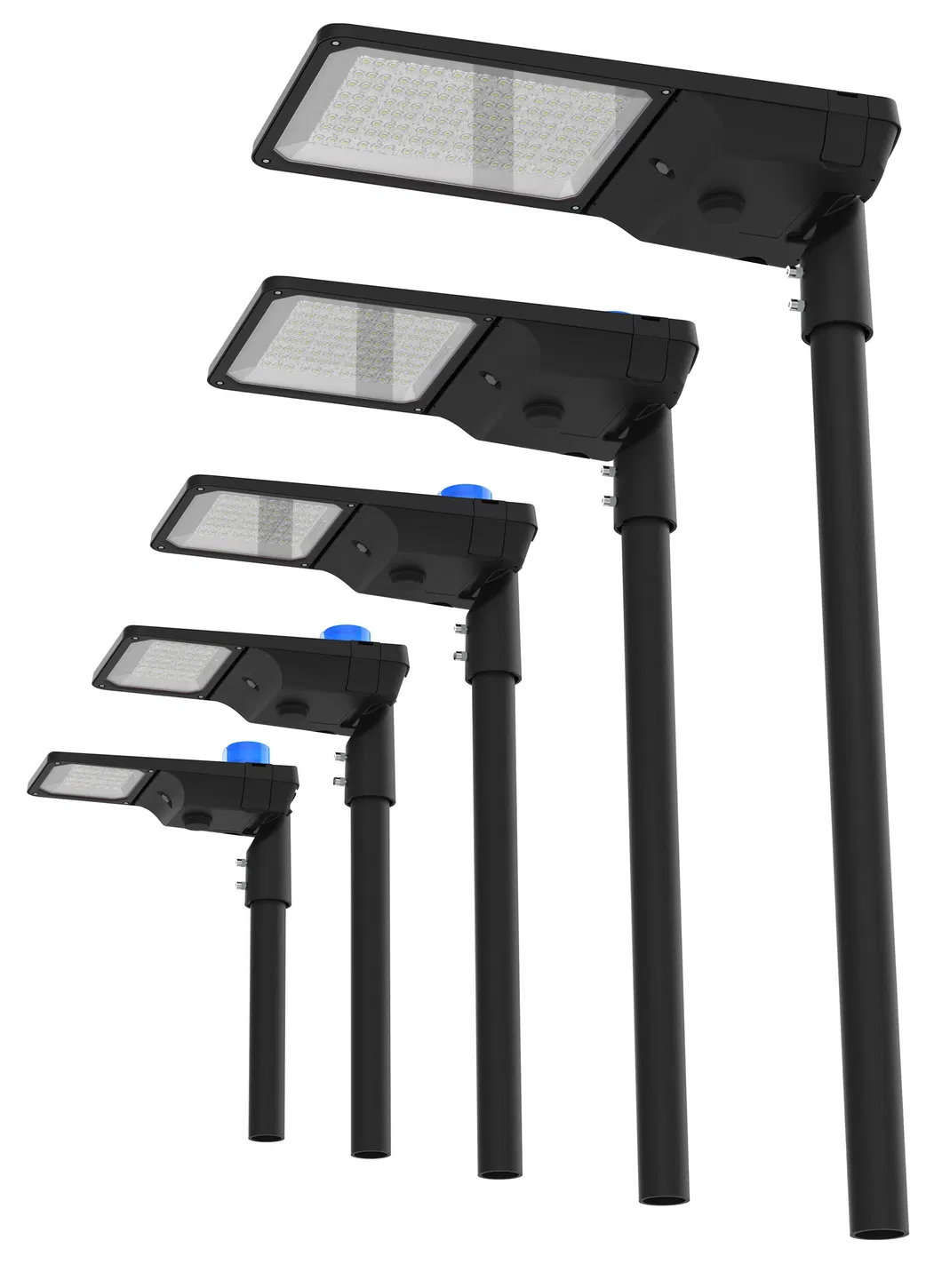

Product Series Parameters
| Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen (lm/W) | CRI |
|---|---|---|---|---|---|---|---|
| R29-13-30W | 30 | 3030/5050 | 64/24 | 4 | 4000k | 130/160 | >70 |
| R29-13-40W | 40 | 3030/5050 | 64/24 | 4 | 4000k | 130/150 | >70 |
| R29-15-50W | 50 | 3030/5050 | 96/36 | 6 | 4000k | 130/160 | >70 |
| R29-15-60W | 60 | 3030/5050 | 96/36 | 6 | 4000k | 130/150 | >70 |
| R29-110-80W | 80 | 3030/5050 | 144/54 | 9 | 4000k | 130/160 | >70 |
| R29-110-100W | 100 | 3030/5050 | 144/54 | 9 | 4000k | 130/160 | >70 |
| R29-110-120W | 120 | 3030/5050 | 144/72 | 9 | 4000k | 130/160 | >70 |
| R29-115-150W | 150 | 3030/5050 | 256/96 | 16 | 4000k | 130/160 | >70 |
| R29-115-200W | 200 | 3030/5050 | 256/96 | 16 | 4000k | 130/160 | >70 |
| R29-125-240W | 240 | 3030/5050 | 384/144 | 24 | 4000k | 130/160 | >70 |
★
Key Features & Applications
Applications
- City roads and tunnel lighting
- Commercial lighting control systems
- Solar street smart lighting control
- Highways, Squares, and Gardens

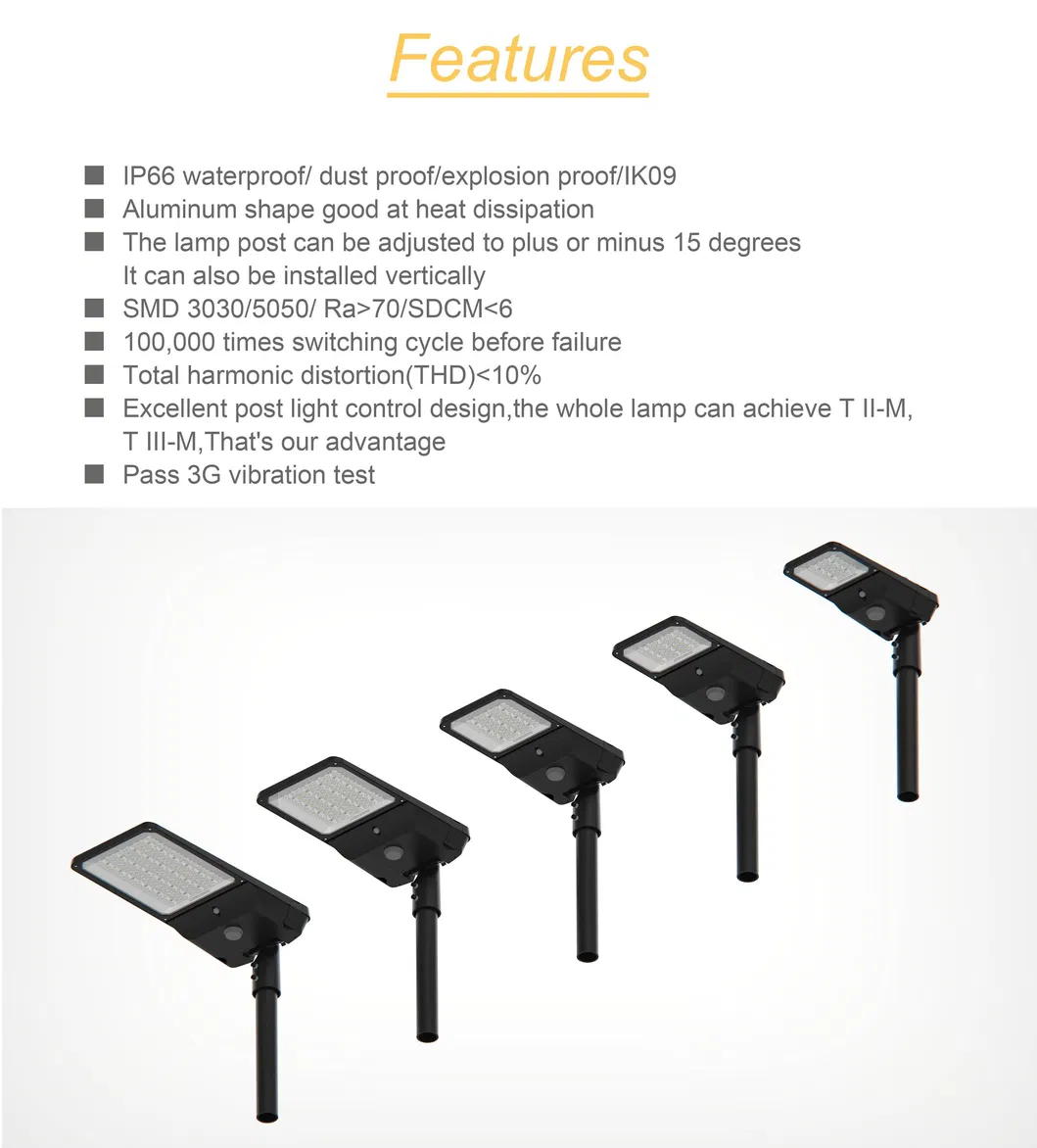

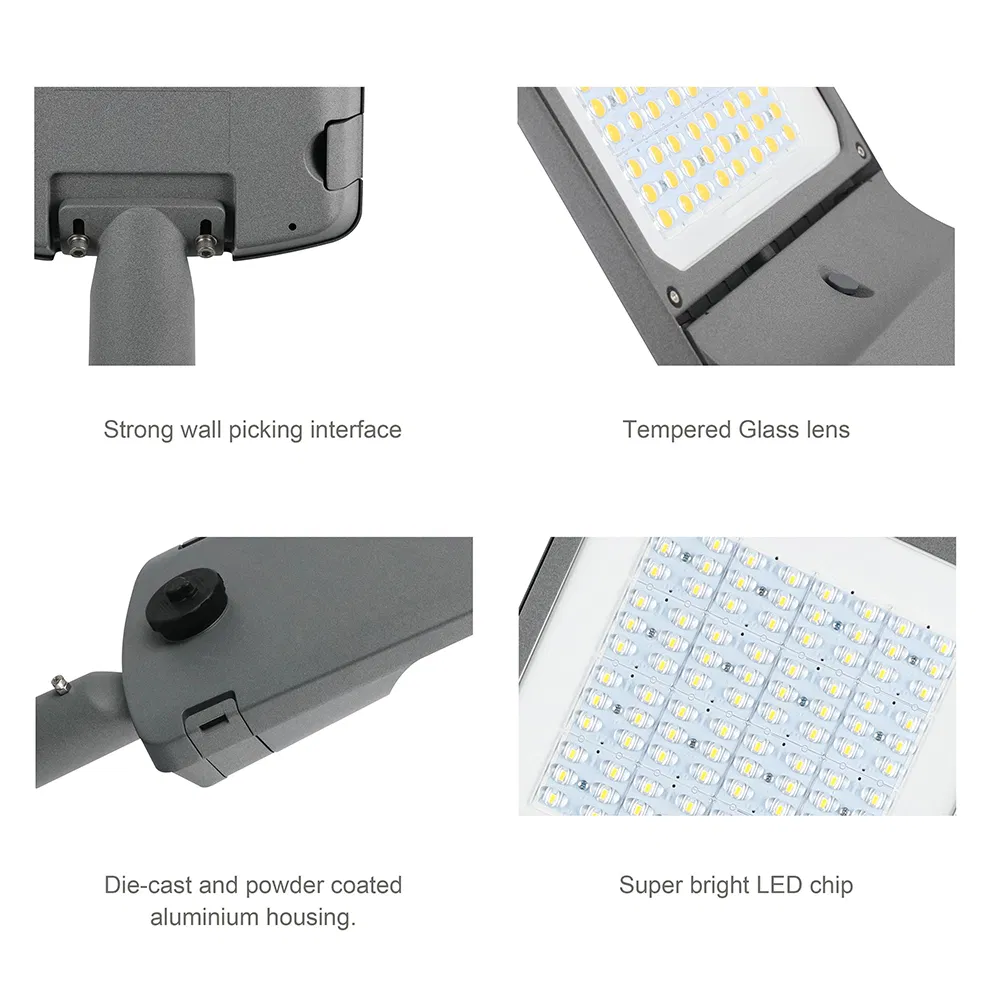

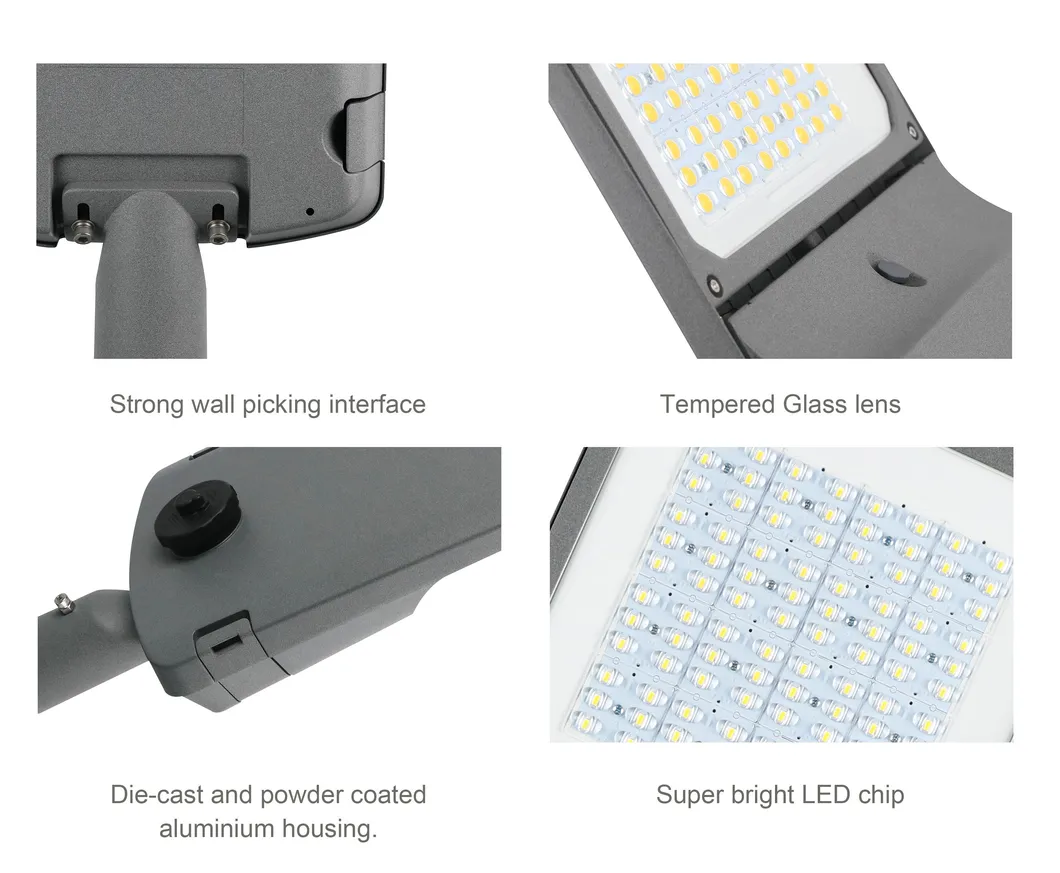

Technical Advantages

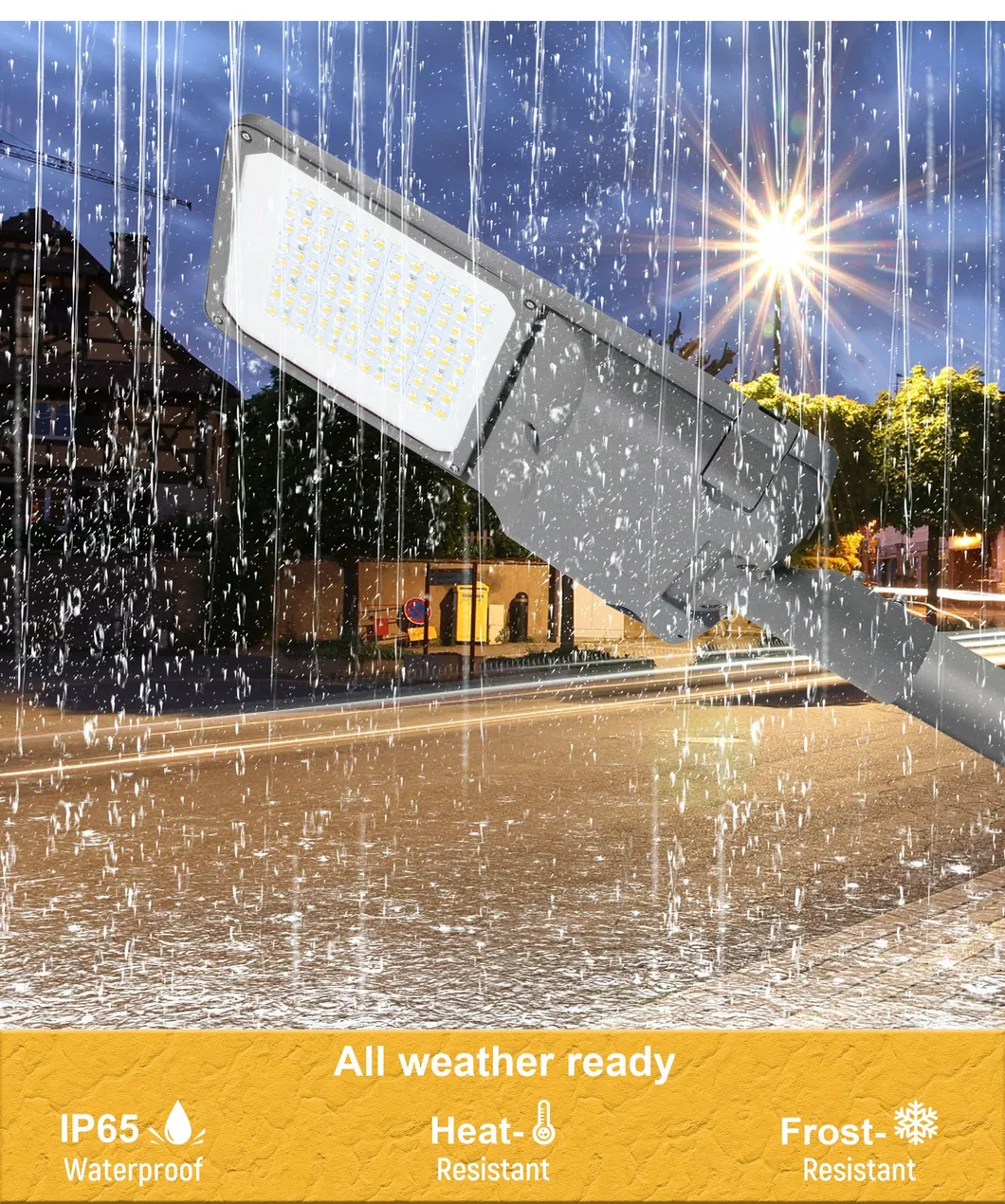

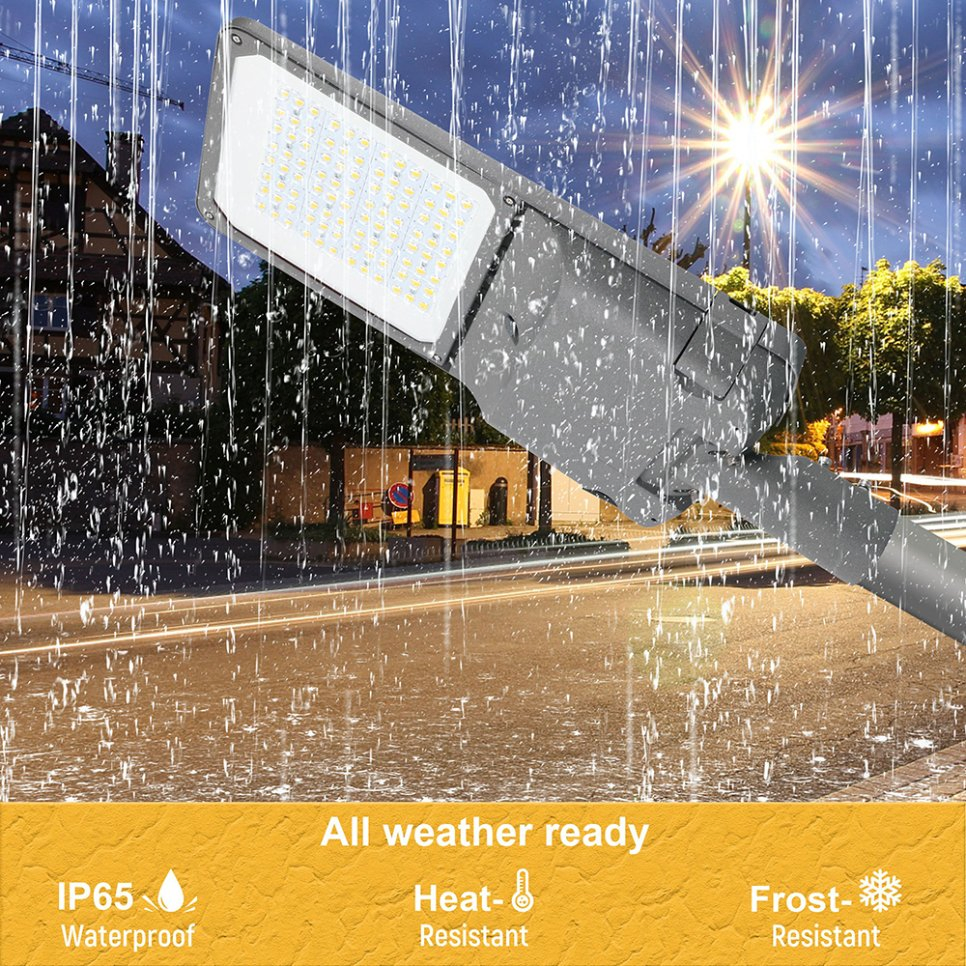

- IP66 Waterproof / Dust proof / IK09
- Die-casting Aluminum for superior heat dissipation
- Adjustable lamp post (±15 degrees)
- Supports vertical installation
- Passes 3G vibration test
P
Packaging & Delivery
Package Size:60.00cm * 27.00cm * 10.00cm
Gross Weight:2.800kg
Lead Time:30 days (1 - 10 Pieces) / Negotiable (> 10 Pieces)
?
Frequently Asked Questions
Q1: What is the protection rating of this LED street light?
A1: This product features an IP66 rating, making it completely waterproof, dust-proof, and suitable for harsh outdoor environments. It also has an IK09 impact resistance rating.
Q2: Can the installation angle be adjusted?
A2: Yes, the lamp post attachment can be adjusted by plus or minus 15 degrees, allowing for flexible light distribution. It can also be installed vertically.
Q3: What kind of warranty is provided?
A3: We provide a comprehensive 5-year warranty on this series, ensuring long-term reliability and performance.
Q4: What are the main materials used in the construction?
A4: The lamp body is made of high-quality die-casting aluminum, which is excellent for heat dissipation and ensures a lifespan of over 50,000 hours.
Q5: Is it compatible with international voltage standards?
A5: Yes, the power supply supports a wide voltage range of AC 100-277V, making it suitable for most global power grids.
Q6: Has the product passed any durability tests?
A6: Yes, the light has passed a 3G vibration test and is designed to handle up to 100,000 switching cycles before potential failure.
