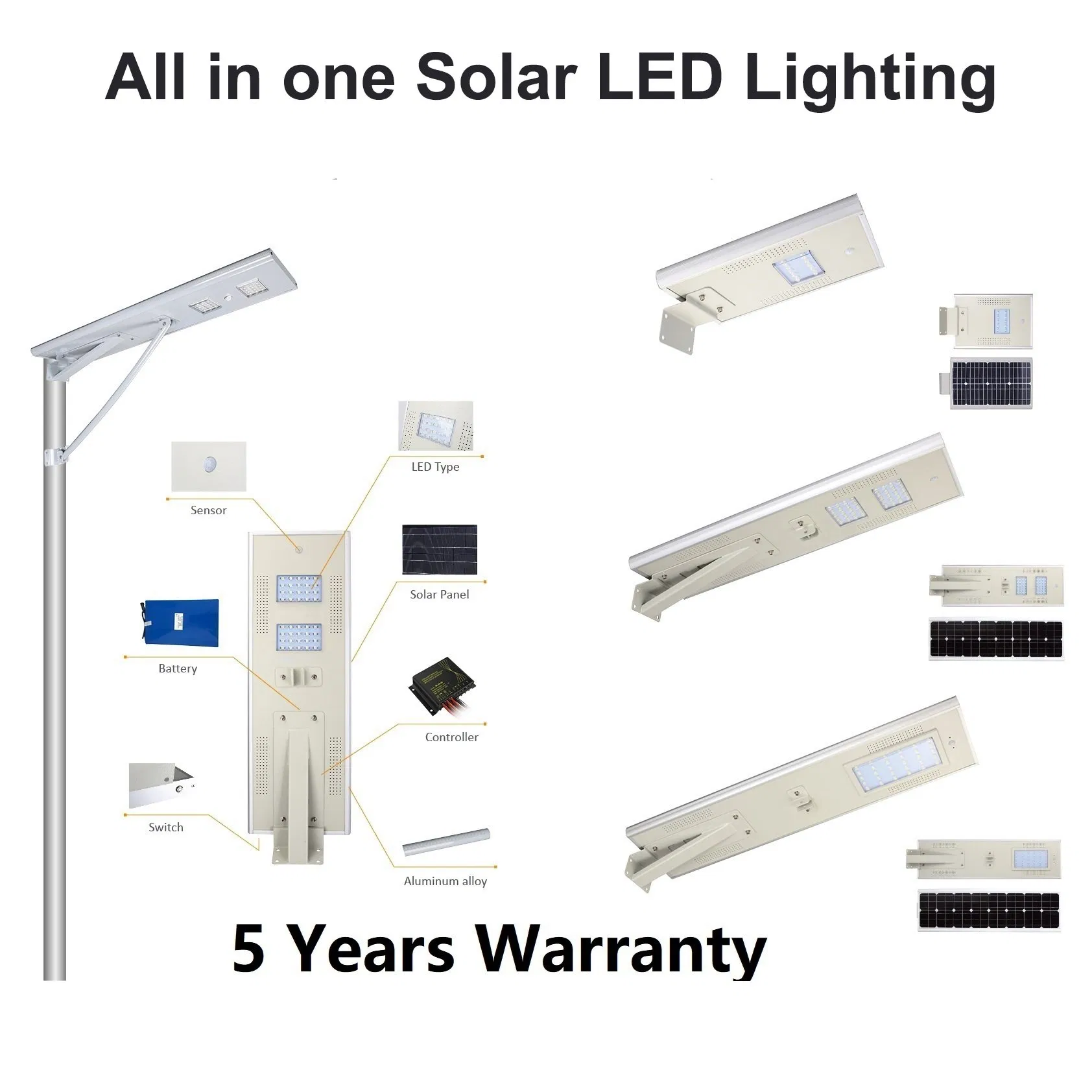

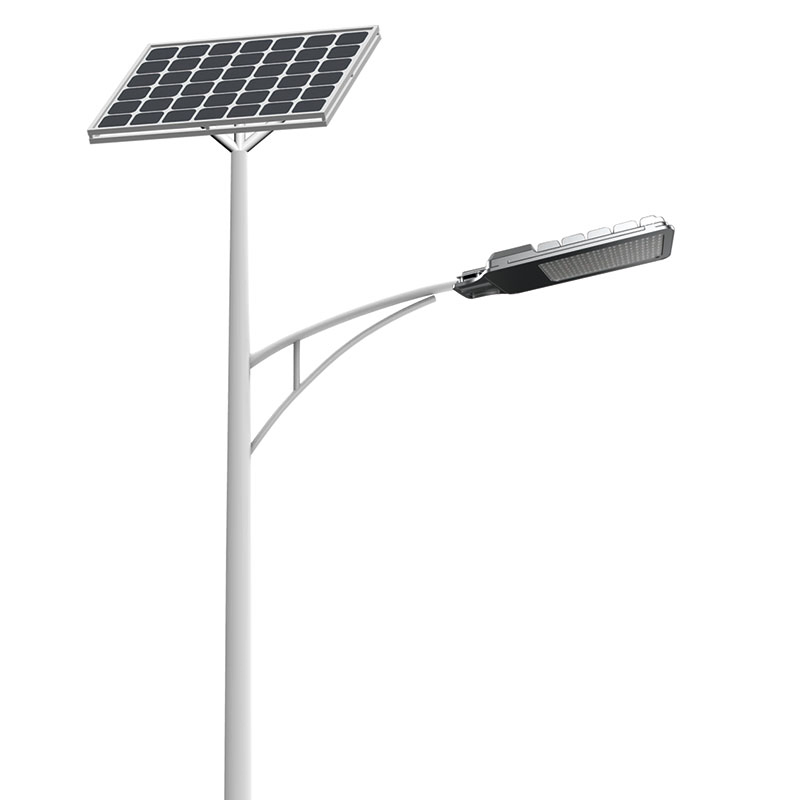

All in One Smart 120W LED Street Panel Battery Integrated Solar Lighting
Product Description
📋 Basic Specifications
Model NO.
RA009
Light Source
LED Lamp
Material
Aluminum
Light Type
Solar
Color Temp
5000K/3000K
Power Range
60W - 300W
Illumination Time
8h
Battery Type
Lithium Battery
Charging Time
6 Hours
IP Rating
IP65 / IP67
LED Chips
CREE / SMD3030
Lumen Efficiency
140lm/W
📦 Packaging & Delivery
Package Size
70.00cm * 30.00cm * 25.00cm
Gross Weight
5.000kg
💡 Product Description

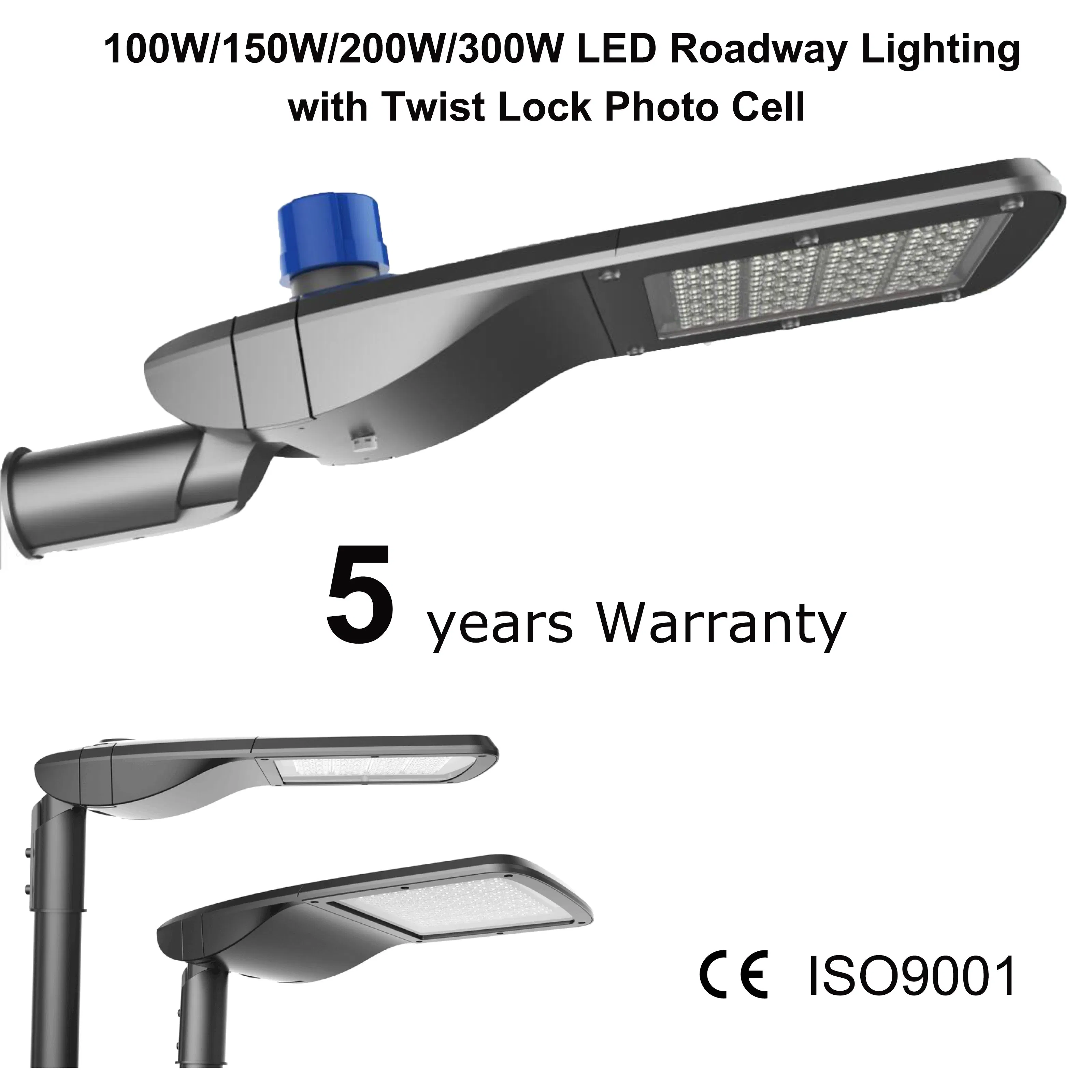

Solar LED Street Lighting Fixture with Twist Lock Photo Cell
- Heavy duty cast aluminum housing and removable door 3G vibration rated to ensure strength of construction and longevity in application.
- Housing is completely sealed against moisture and environmental contaminants.
- Available in IES Type 2, 3 distributions with type 3 standard.

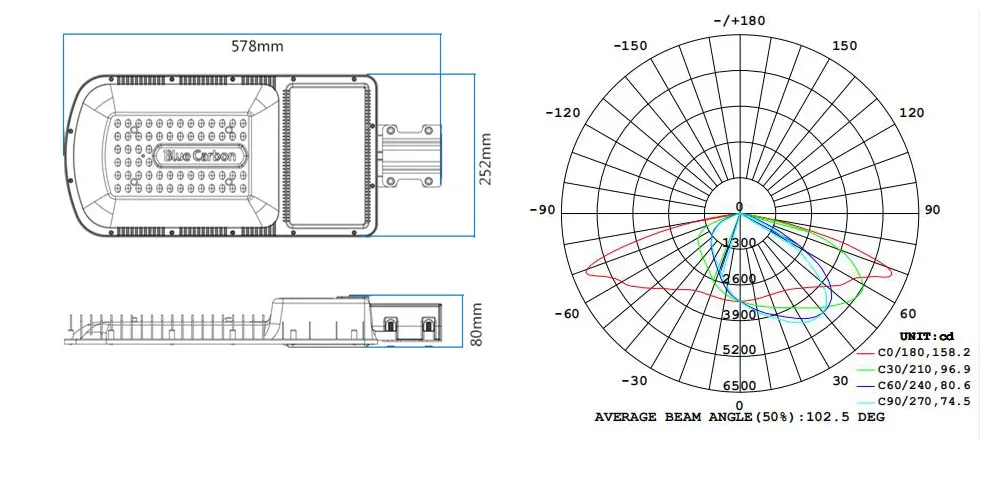

- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
- Standard drivers feature electronic universal voltage; special orders available for other operations.
- Greater than 0.9 power factor, less than 20% harmonic distortion, suitable for -40ºC to 45ºC ambient environments.
- LED drivers mount to die-cast aluminum back housing for optimal heat sinking and prolonged life.
- Adjustable clamp for use with 48 and 60mm diameter pipe.
- Five-year warranty for peace of mind.
Technical Data:
Wattage: 30W-200W | Voltage: 220-240V / 120-277V | Lumens: 40800lm | CCT: 5000K (3000K/4000K available) | CRI: >70 | Dimmable: 0-10V | Lifespan: 50,000 Hours
📊 Model Comparison Table
| Type | LED Power | IP Class | Body Dimension | Design Altitude | Photo Controller | Spigot Mounting |
|---|---|---|---|---|---|---|
| SLA | 100w | IP66 | 490*330*193mm | 6M-8M | without | 42/48/60mm |
| SLA | 150w | IP66 | 576*330*193mm | 8M-10M | without | 42/48/60mm |
| SLA | 200w | IP66 | 661*330*193mm | 8M-10M | without | 42/48/60mm |
| SLA | 300w | IP66 | 831*330*193mm | 8M-10M | without | 42/48/60mm |
| DLA | 120w | IP66 | 740*340*150mm | 8M-10M | with | 42/48/60mm |
| HLA | 60w | IP66 | 638*270*80mm | 6M-8M | without | 42/48/60mm |
| HLA | 120w | IP66 | 780*300*85mm | 8M-10M | without | 42/48/60mm |
❓ Frequently Asked Questions
1. What is the expected lifespan of these solar street lights?
The LED source is designed to last up to 50,000 hours, ensuring long-term reliability and minimal maintenance.
2. How long does the battery take to charge fully?
Under standard sunlight conditions, the high-capacity lithium battery requires approximately 6 hours to reach a full charge.
3. Are these lights suitable for harsh environmental conditions?
Yes, with IP65 to IP67 ratings and a heavy-duty cast aluminum housing, these fixtures are completely sealed against moisture and contaminants.
4. What is the warranty period for the RA009 model?
We provide a comprehensive five-year warranty covering the fixture's performance and construction.
5. Can the brightness of the light be adjusted?
Yes, the units support 0-10V or 1-10V dimming protocols, allowing for flexible lighting control and energy saving.

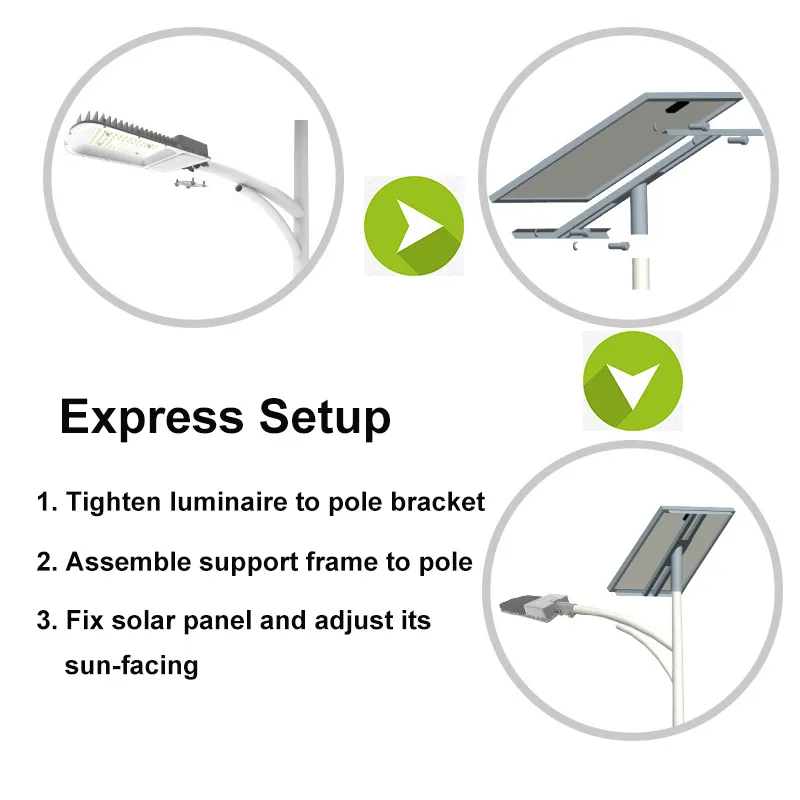

6. What mounting options are available?
The fixtures feature an adjustable clamp suitable for 42mm, 48mm, and 60mm diameter poles or spigots.
