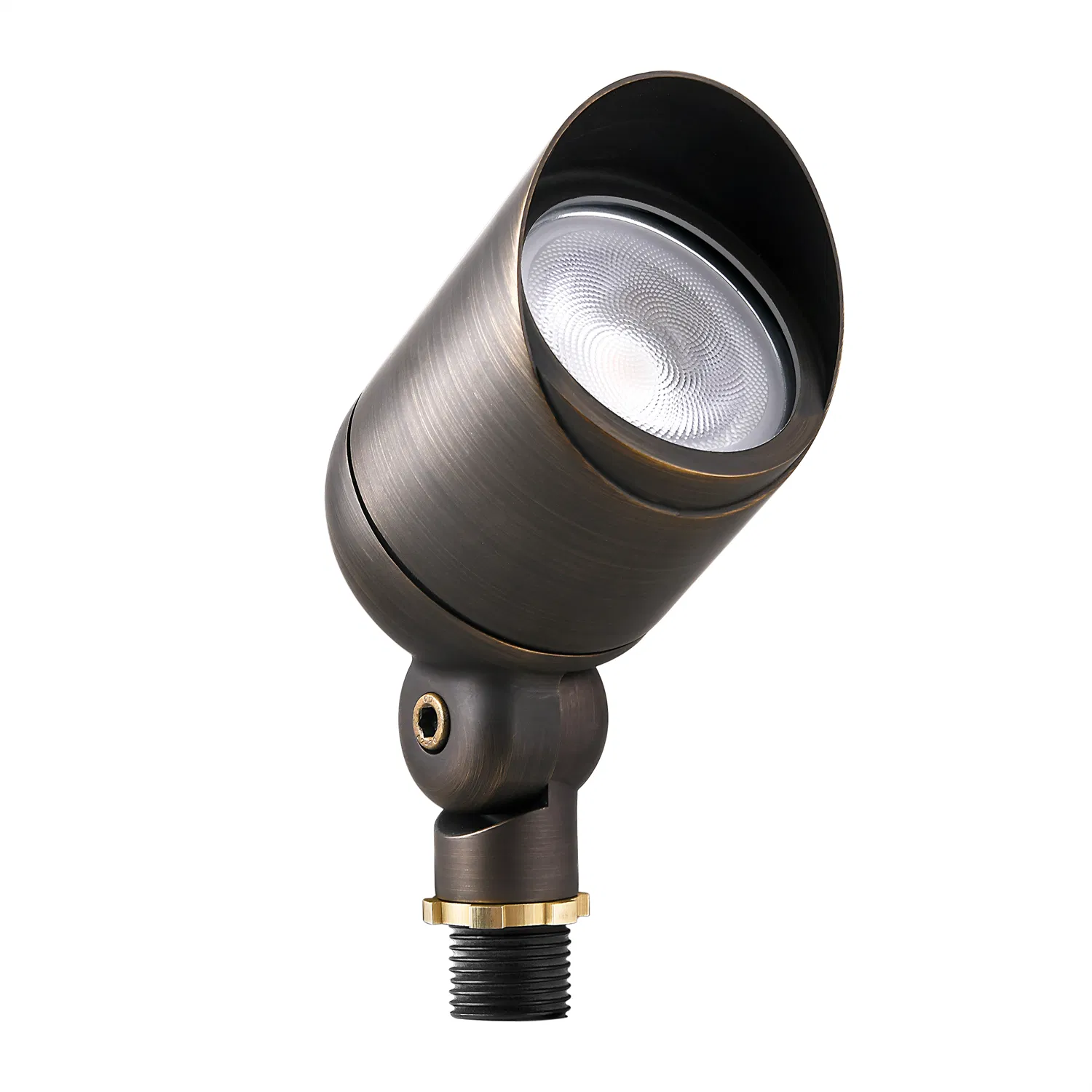

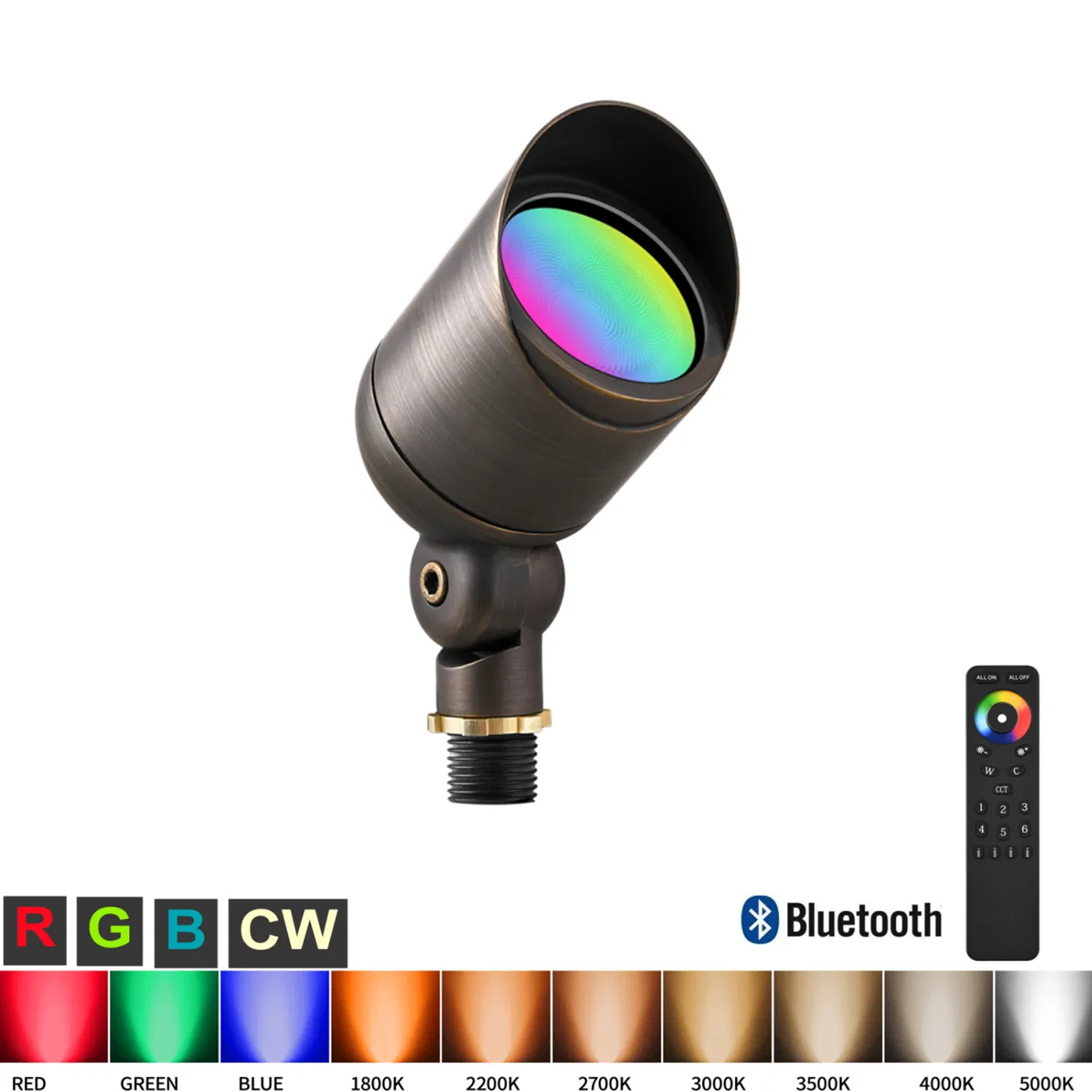

Integrated RGBW Smart LED Outdoor Landscape Lighting APP Remote Control Garden Accent Lighting
Product Description
Basic Information
Model NO.
K22-BL3-RGBCW2250G-AT13-D60
Material
Solid Cast Brass
Lighting Area
1-3m^2
Power
10-30W (13W Rated)
Warranty
5 years
IP Rating
IP67
Voltage
8-16VAC
Dimming
APP & Remote Control
Color
RGBCW (2200K-5000K)
Finish
Antique Bronze
Product Description
RGBCW integrated LED landscape light is designed exclusively using cast brass material and double seal technology to prevent water intrusion and corrosion. Featuring 2.4G and Bluetooth 5.0 dual-enabled signal, lights can be dimmed via both remote and APP. It offers RGBW color changing and CCT 2200K to 5000K tunable effects. The system supports grouping and star mesh functions without signal amplifiers, specifically optimized for high-end landscape lighting applications.
✦

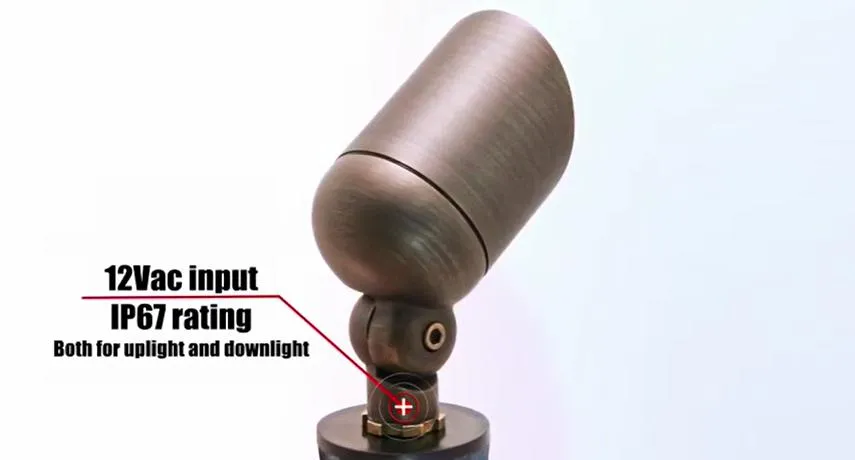

Durability: Cast brass construction with antique bronze finish for lifetime use.
✦
Protection: Thick O-ring and silicone plugs (IP67) to prevent moisture and corrosion.
✦

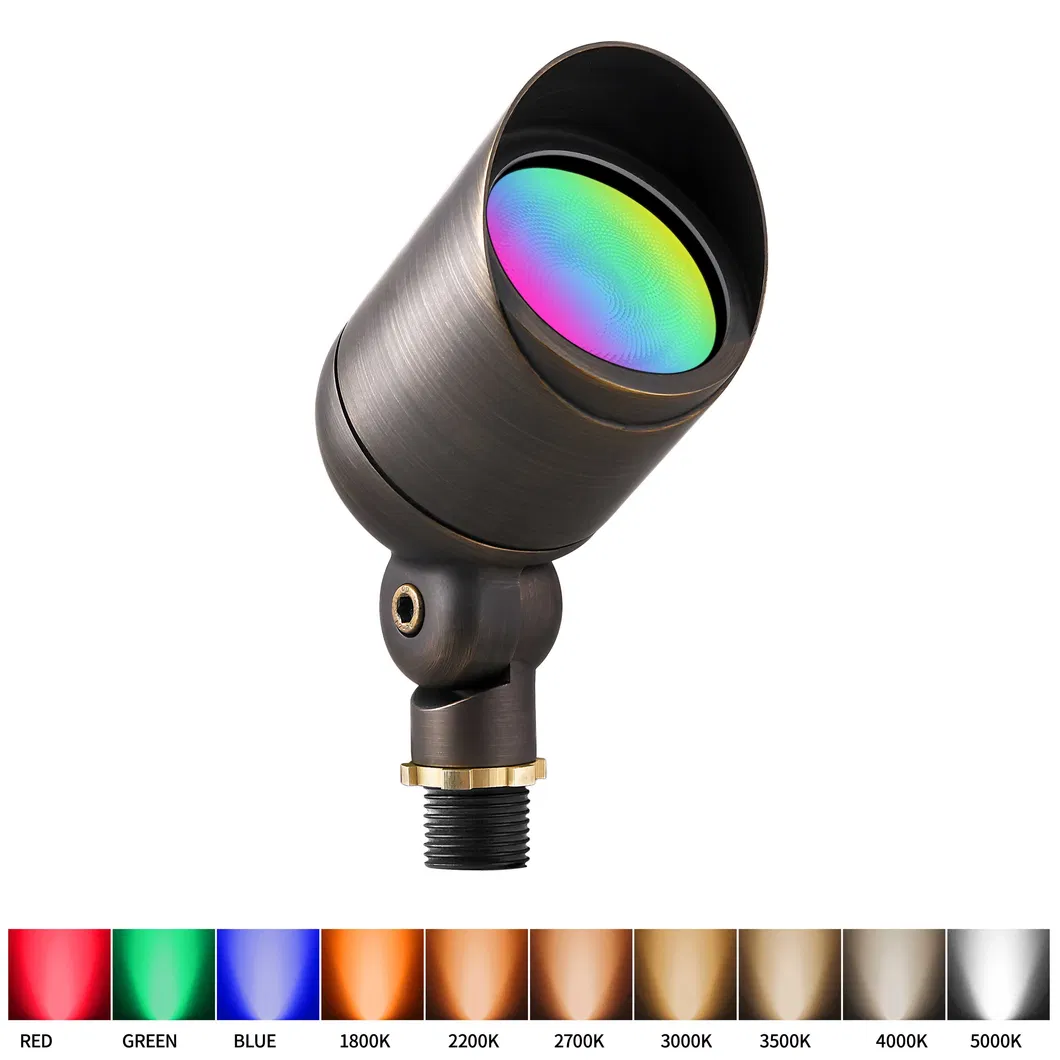

Integrated Source: True-to-color LEDs for vivid RGB effects and CCT tuning from amber to 5000K.
✦
Smart Mesh: Bluetooth 5.0 dual-enabled signal allows grouping without extra amplifiers.
✦
Heat Dissipation: Brass material and thermal fold-back LED driver for overheating protection.
Technical Specifications
| Parameter | Details |
|---|---|
| Item No. | K22-BL3-RGBCW2250G-AT13-D60 |
| Light Source | Integrated LED (RGBCW) |
| Wattage | 13W |
| Input Voltage | 12-15VAC |
| Color Temp | RGB Color Changing & Tunable White (2200K - 5000K) |
| CRI | RA > 90 |
| Optic Beam Angle | 60° |

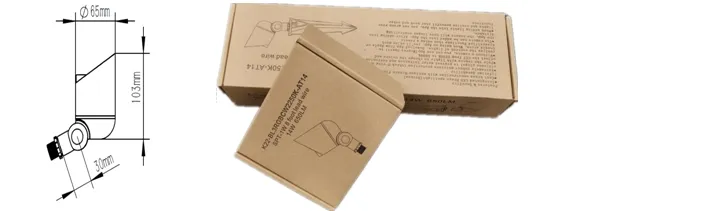

| Dimensions | D65 * H103mm |
| Waterproof Rating | IP67 |
| Lifespan | 50,000 Hours |

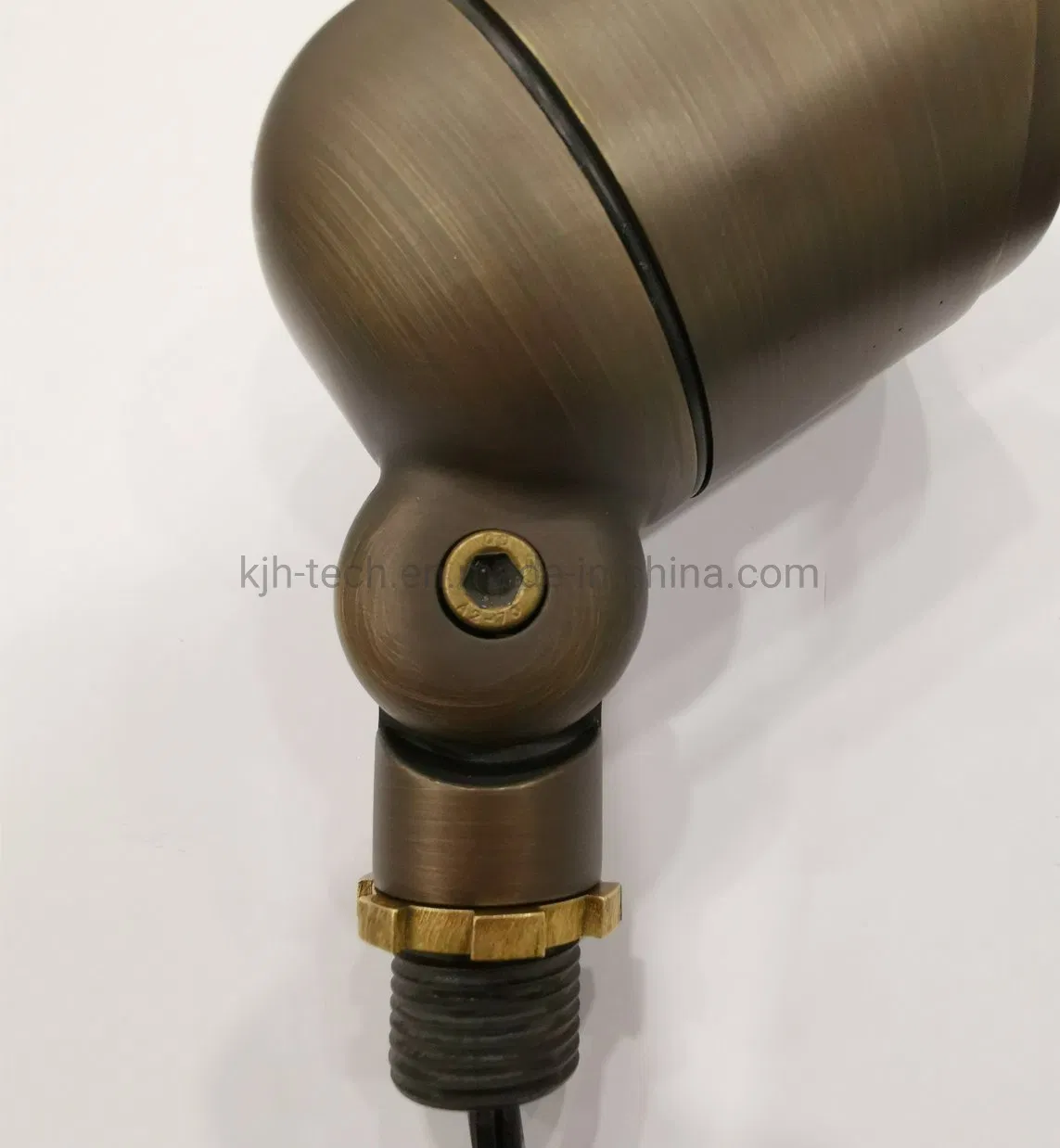

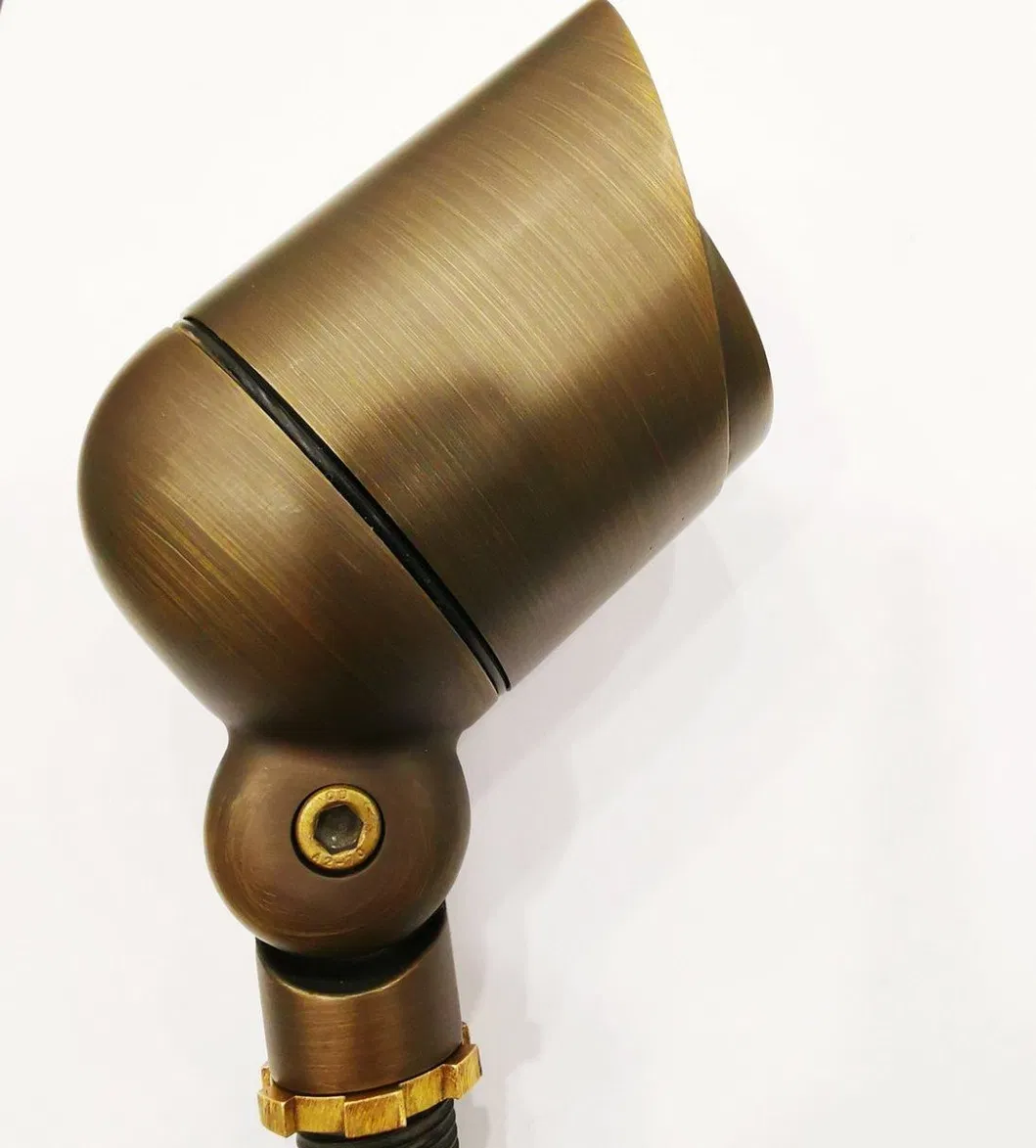

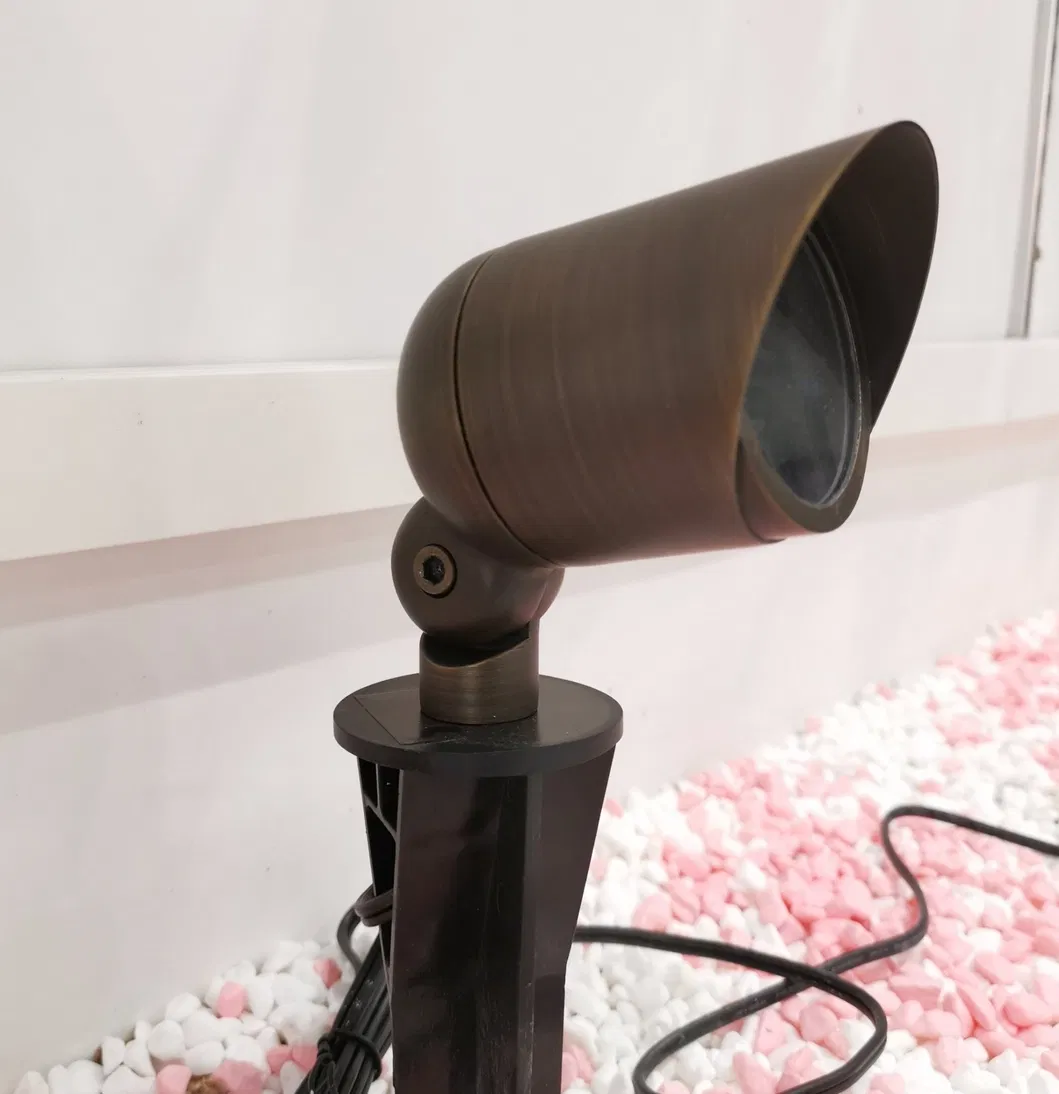

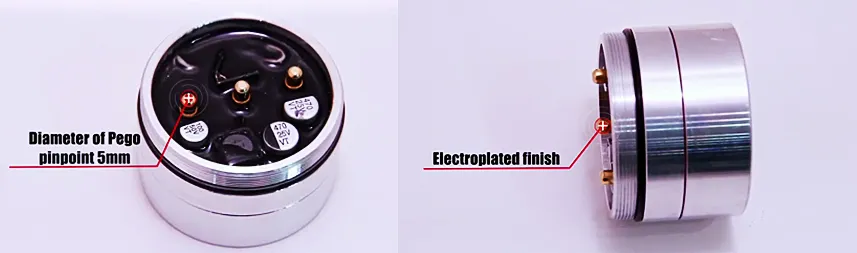

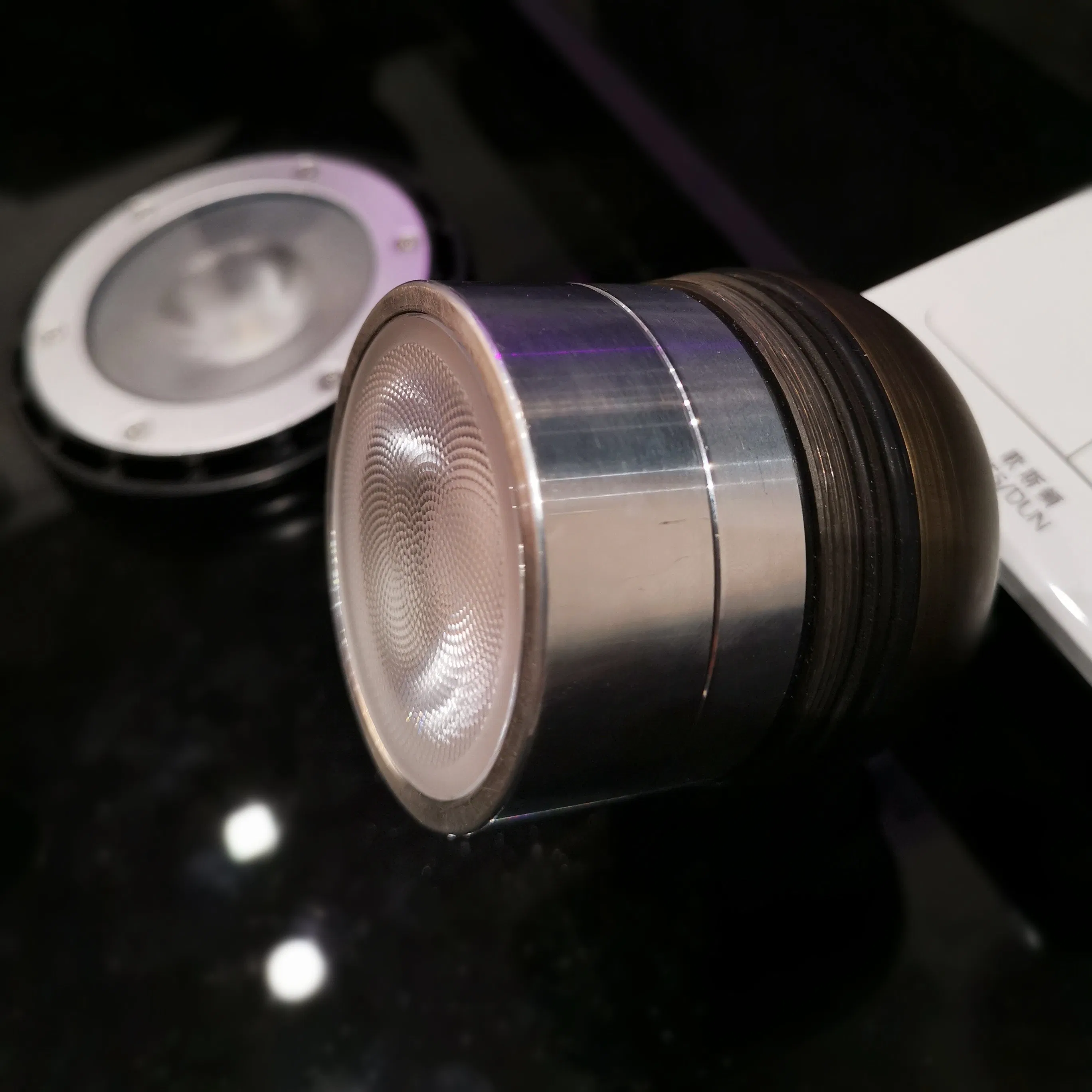

Detailed Photos

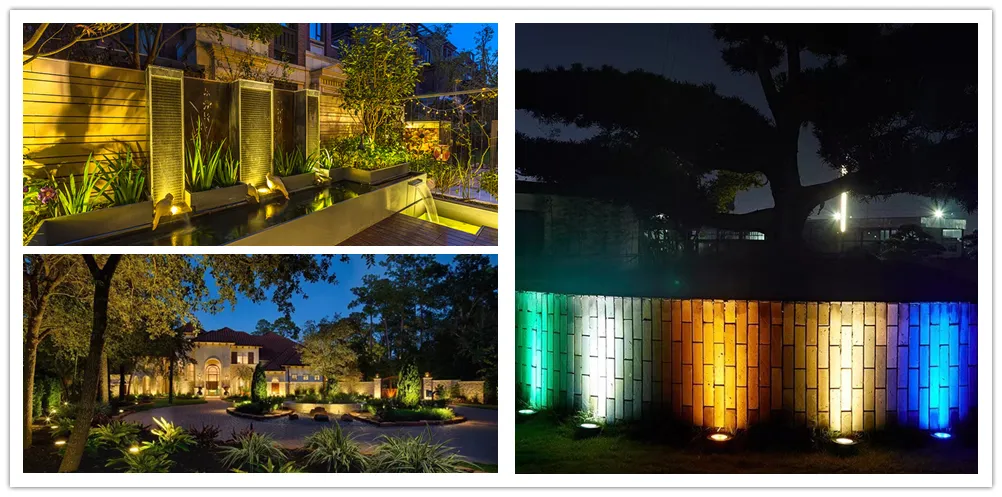

Application
Important Notes:
- Do not use for underwater applications.
- Suitable for damp and outdoor locations.
- Do not use with traditional triac dimmers.
Packaging & Shipping
Hard cardbox packaging ensures safety for long-distance international transportation. Options include express, sea, air, or land logistics.
Manufacturing Excellence

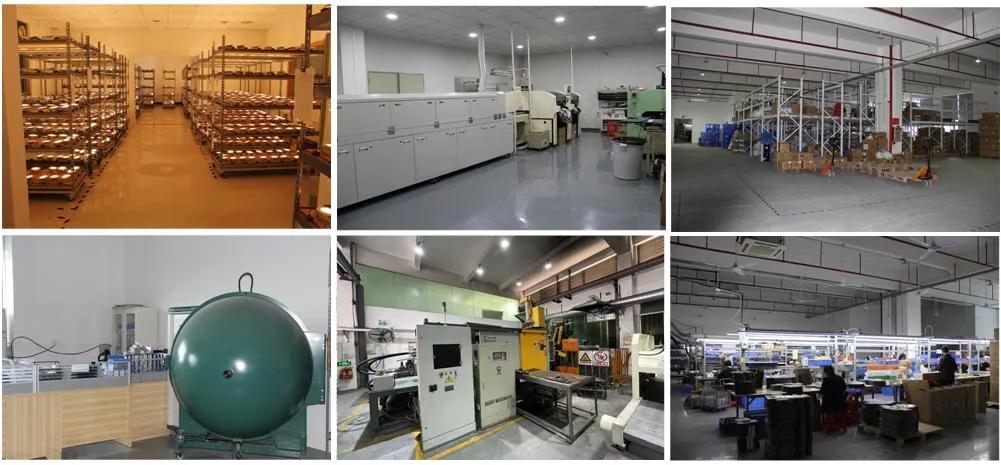

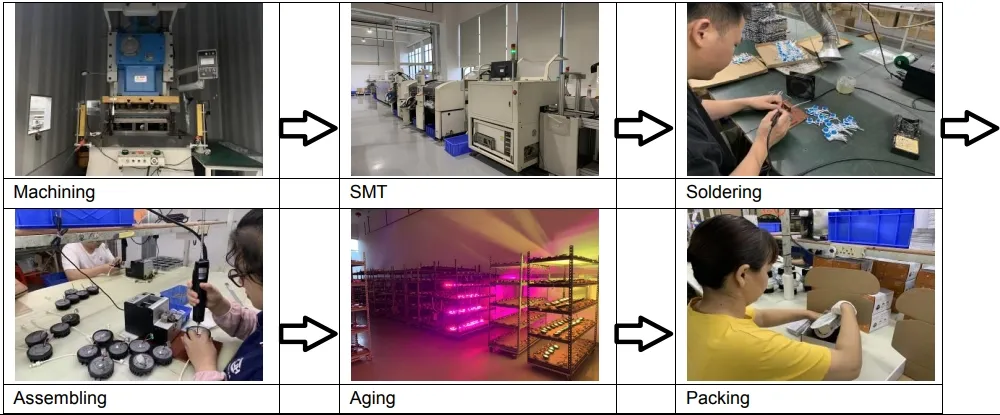

Advanced manufacturing facilities include auto soldering, SMT, die casting, and CNC laser machines. We utilize integrating spheres and distribution photometers for precision electric testing. A monthly capacity of 500,000 units is supported by over 10 low-voltage aging lines.
Frequently Asked Questions
1. Can I request samples?
Yes, sample orders are welcome to test product quality before placing bulk orders.
2. What is the typical production lead time?
For small quantities, production usually takes 5-7 days. Bulk order times are determined based on the total quantity.
3. Are products tested before shipment?
Yes, every product undergoes a minimum of 48 hours of aging and testing under strict quality control to ensure a low failure rate.
4. How is the product packaged for international transit?
We use neutral, reinforced cartons suitable for international shipping. Fragile items can be packed in wooden cases upon request.
5. What is the after-sales resolution process?
Simply provide a photo of the issue. We will review and provide a satisfactory solution within 24 hours of confirmation.
6. Is OEM customization available?
Yes, we provide comprehensive OEM services, including custom labels and color boxes based on your specific requirements.
