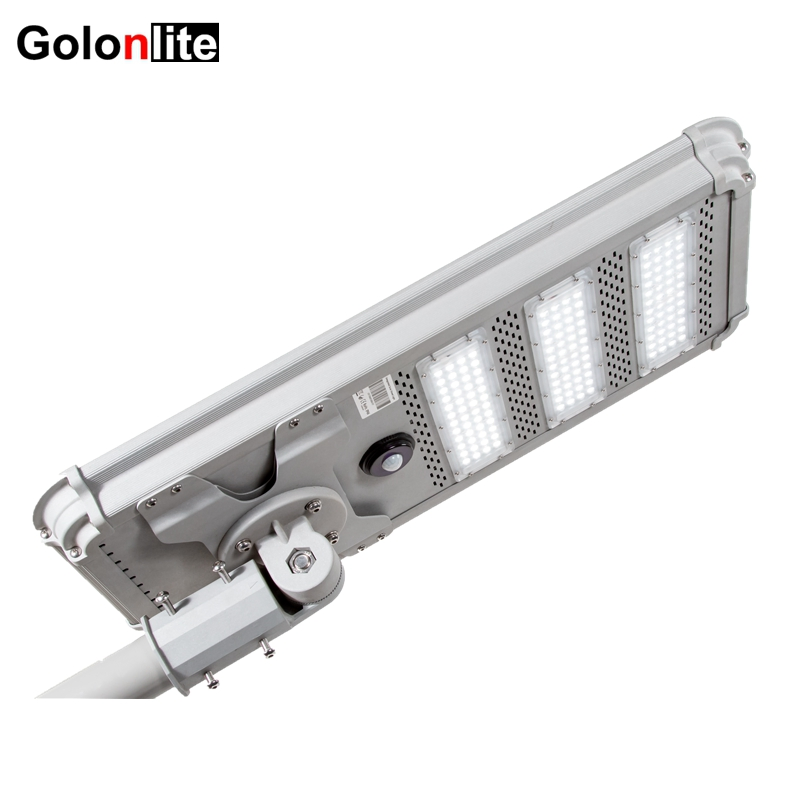

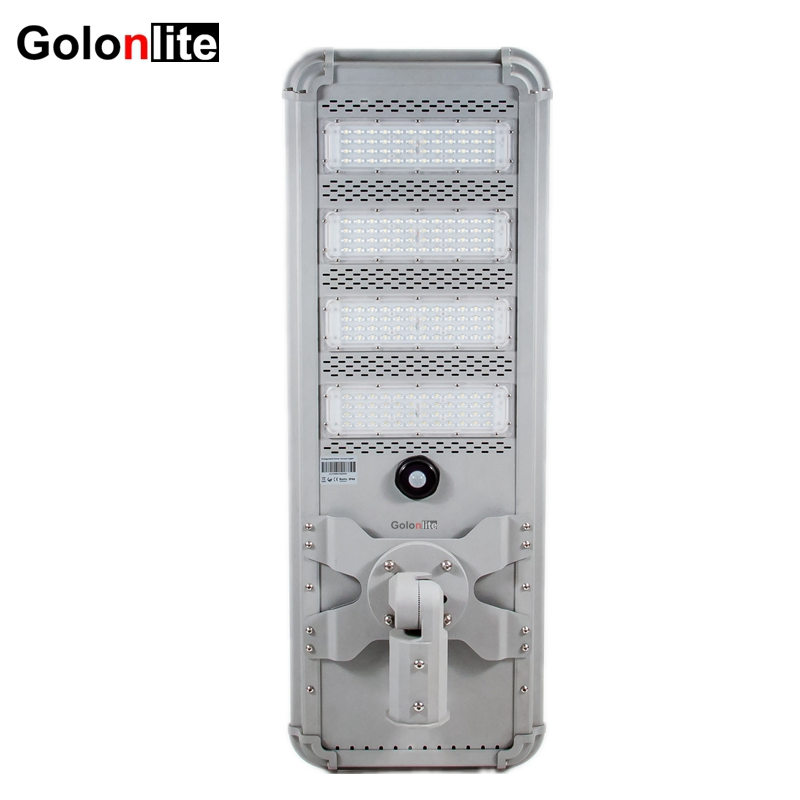

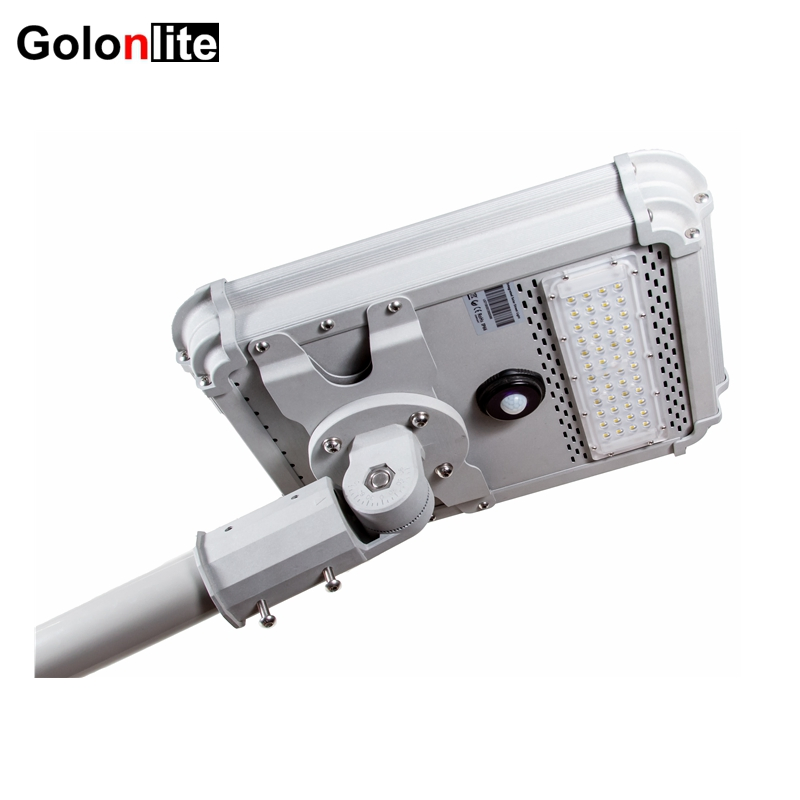

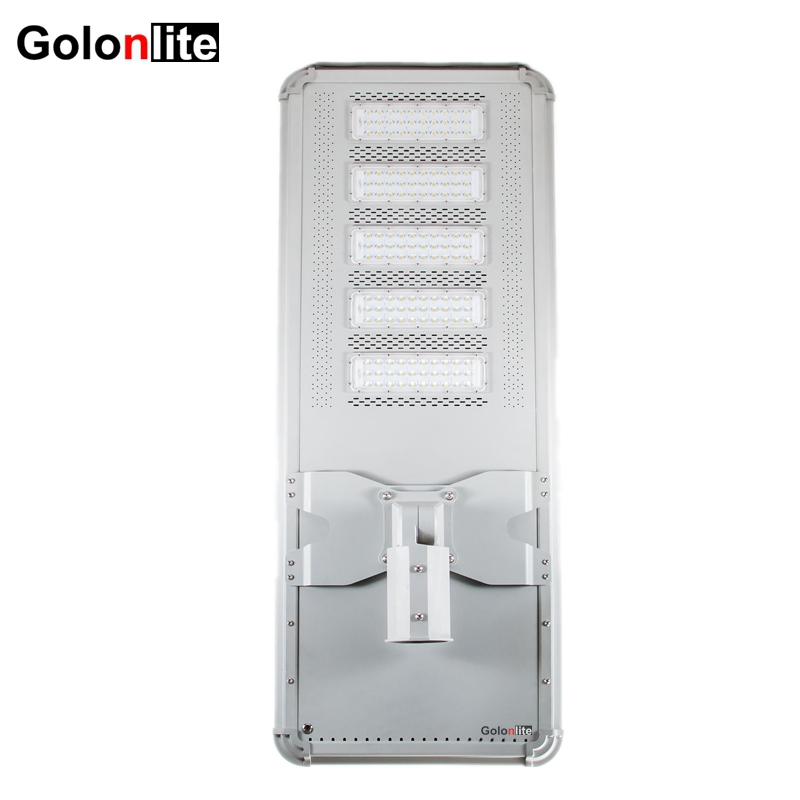

High Quality Integrated All in One Solar LED Street Light Lamp for Public Lighting
Product Description
📊
Basic Specifications
Model NO.
GL-SSL-100WH
Body Material
Aluminum
Light Type
Solar Powered
Color Temp
2700K - 6500K
Luminous Efficiency
180-200lm/W
Power Range
12W to 100W Options
IP Rating
IP67 Waterproof
Cell Type
Lithium Battery
Solar Panel
Monocrystalline Mono
Charging Time
6-7 Hours
Sensor Type
PIR Motion Sensor
Mounting Height
4-10 Meters
💡

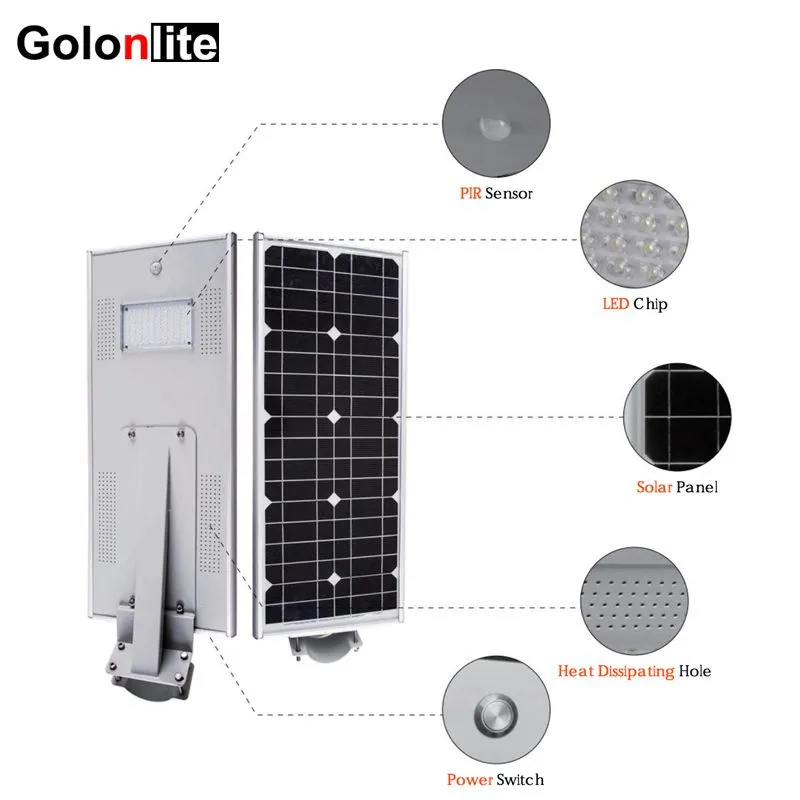

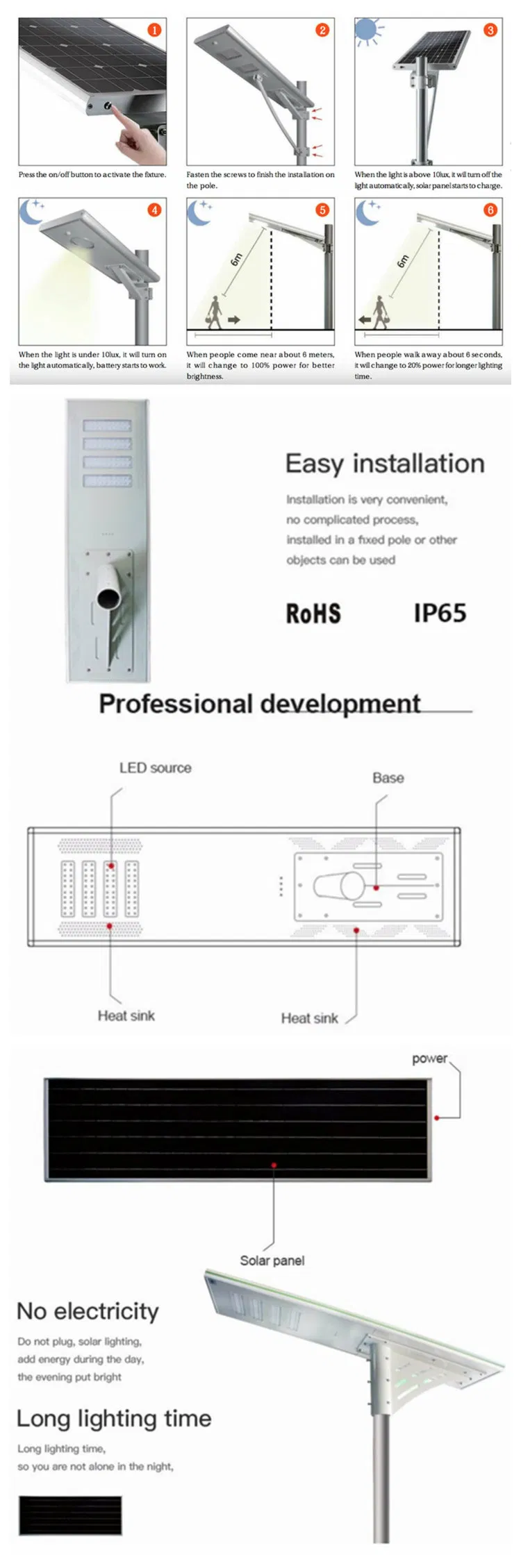

Integrated All-in-One Features
High quality integrated all-in-one Solar LED street light lamp for public lighting
✔Aluminum lamp body for superior heat dissipation
✔Super bright 180-200Lm/W high efficiency LEDs

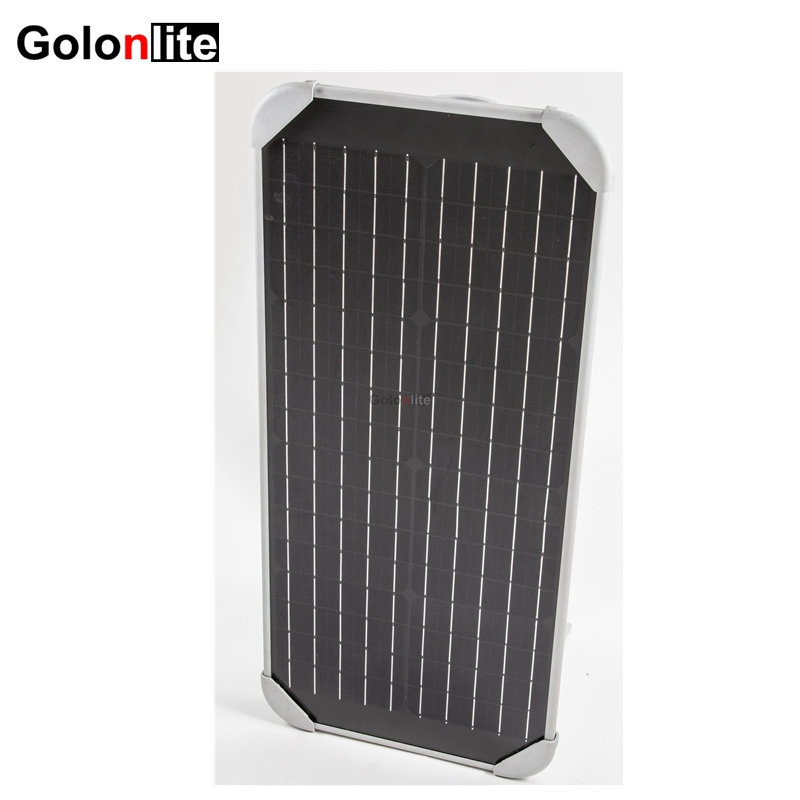

✔Imported Mono silicon solar panel for high conversion
✔LifePo4 lithium battery with long cycle life
✔Smart control + PIR sensor for energy saving
✔Lasts for 3-5 rainy days after full charge
✔Easy installation without any electrical wiring
🛠
Technical Parameters
| Category | Feature | Details |
|---|---|---|
| Light Source | LED Type | SMD3030 |
| Efficiency | 180-200Lm/W | |
| CRI | > Ra80 | |
| Lifespan | > 50,000 Hours | |
| Energy System | Battery | Grade A Lithium LifePo4 |
| Solar Panel | Monocrystalline | |
| Charging | 6-7 hours sunlight | |
| Discharging | 12 hours daily, up to 5 rainy days backup | |
| Structure | Material | High-grade Aluminum |
| Control | Time + Induction + PIR Motion Sensor |
📸

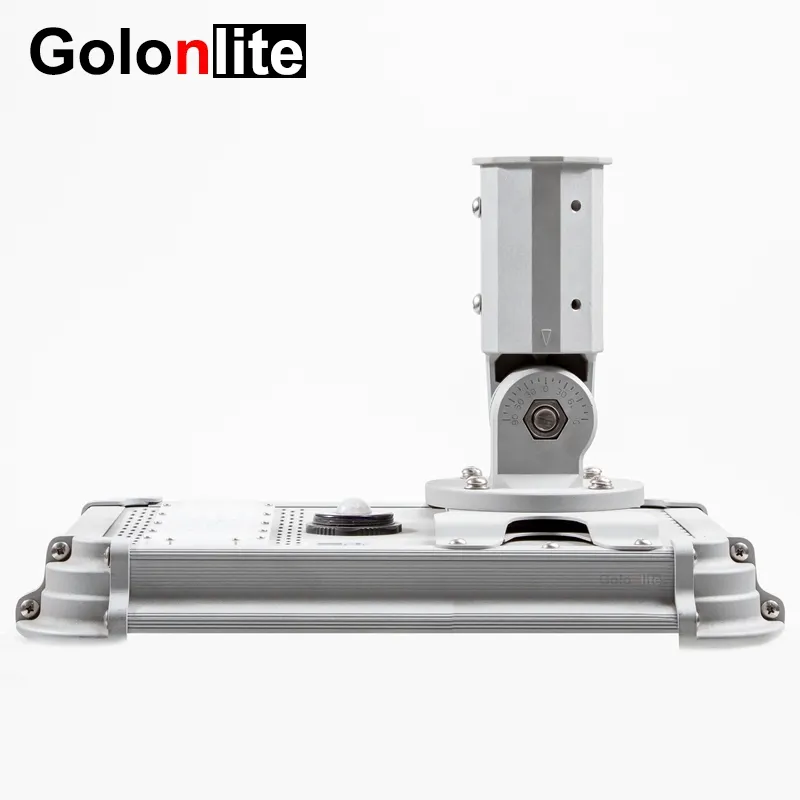

Product Gallery
🏗

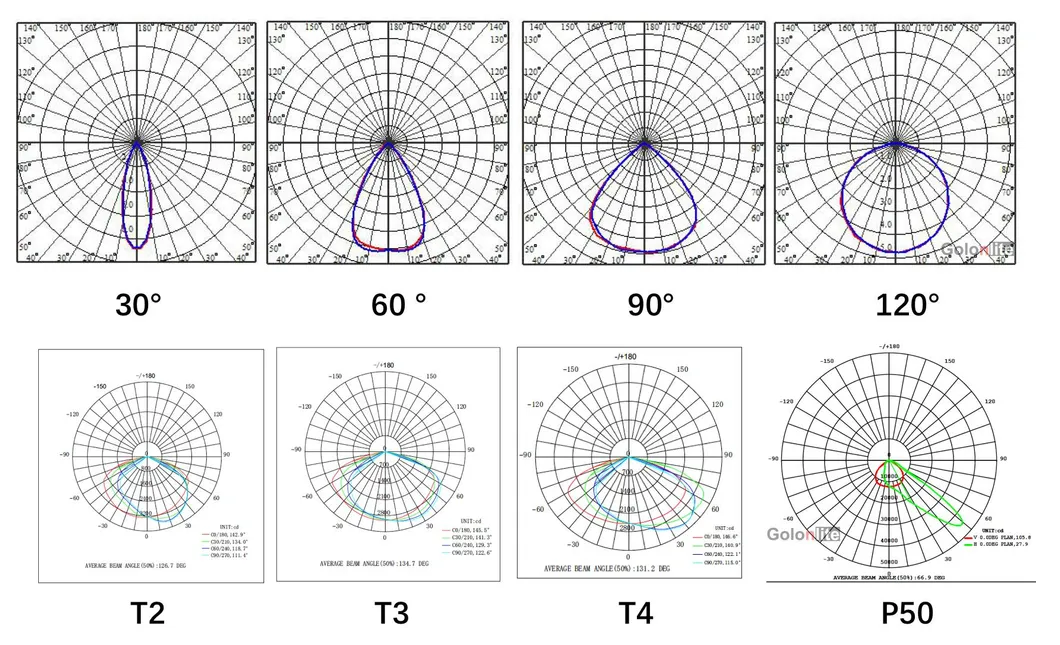

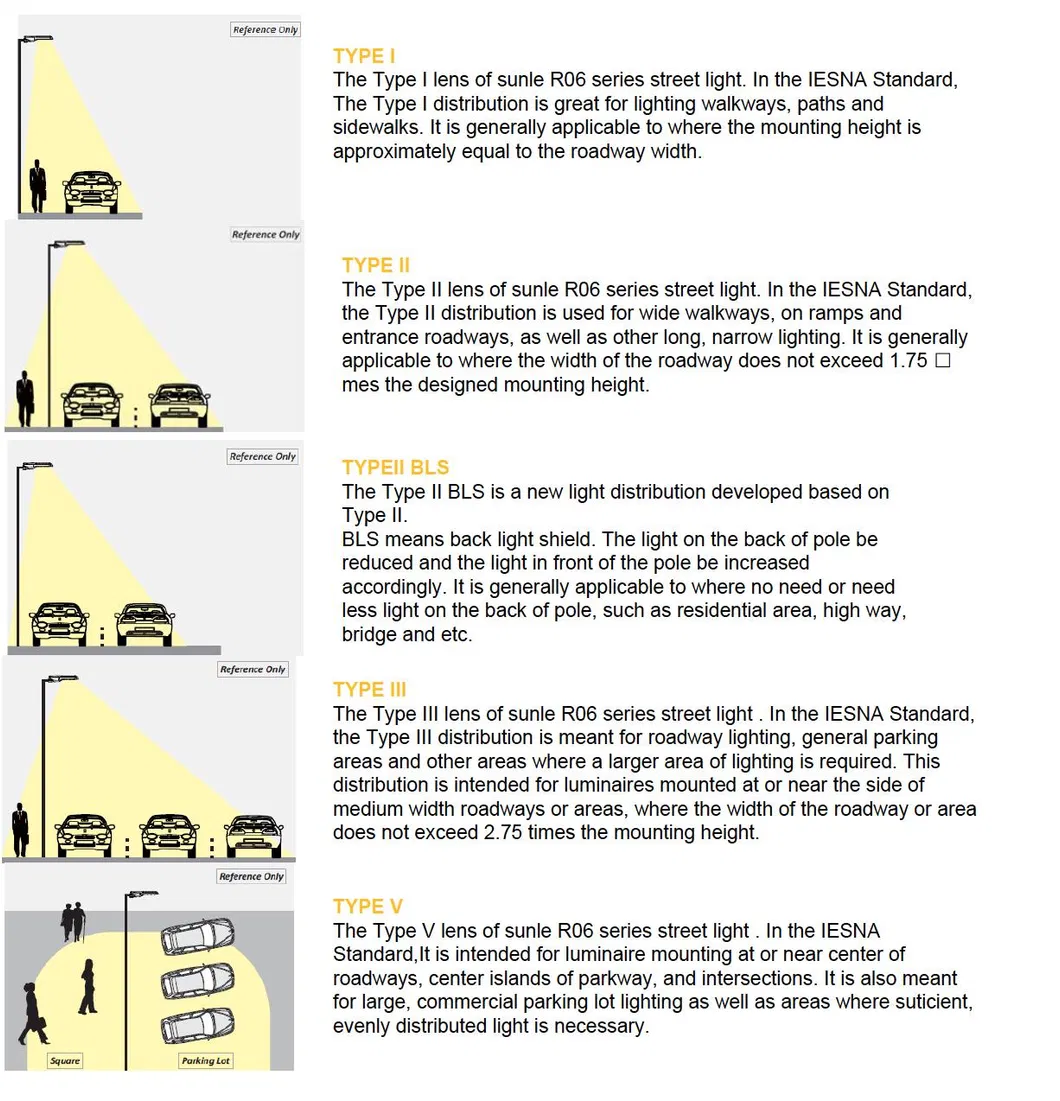

Applications & Photometrics
🤝
Professional Services
Fast Response
Inquiries replied within 24hrs
Inquiries replied within 24hrs
OEM/ODM
Custom designs welcomed
Custom designs welcomed
Warranty
Up to 5 years protection
Up to 5 years protection
Lighting Design
Free Dialux solutions & IES files
Free Dialux solutions & IES files
❓
Frequently Asked Questions
1. What is the luminous efficiency of this solar street light?
The light utilizes high-performance SMD3030 LEDs, providing a high luminous efficiency of 180-200 Lm/W for maximum energy saving.
2. How long does the battery last on rainy days?
Equipped with a high-capacity LiFePO4 lithium battery, the system can work for 12 hours a day and last for 3-5 consecutive rainy days after a full charge.
3. What are the main advantages of the integrated design?

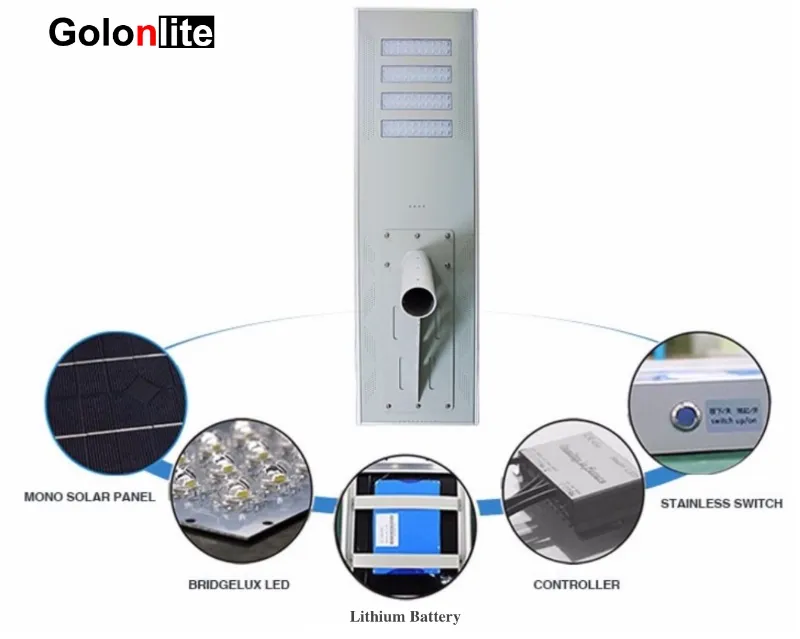

The all-in-one design combines the solar panel, LED light source, battery, and smart controller into a single unit, allowing for direct installation without any external wiring or electricity.
4. How does the PIR motion sensor work?
The PIR motion sensor detects movement to adjust brightness automatically, ensuring maximum illumination when needed and conserving energy when the area is vacant.
5. What is the recommended mounting height?
Depending on the power option (15W to 100W), the recommended mounting height for these solar street lights ranges from 4 to 10 meters.
6. Does the manufacturer provide lighting simulation services?
Yes, we provide free lighting design services, including Dialux lighting studies and IES files to help plan your project effectively.
