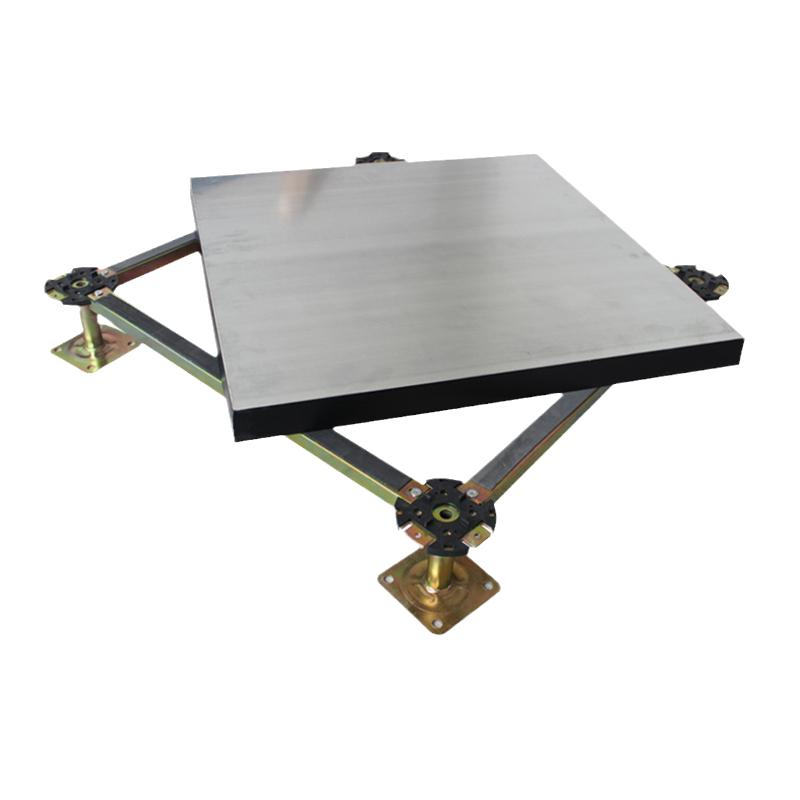

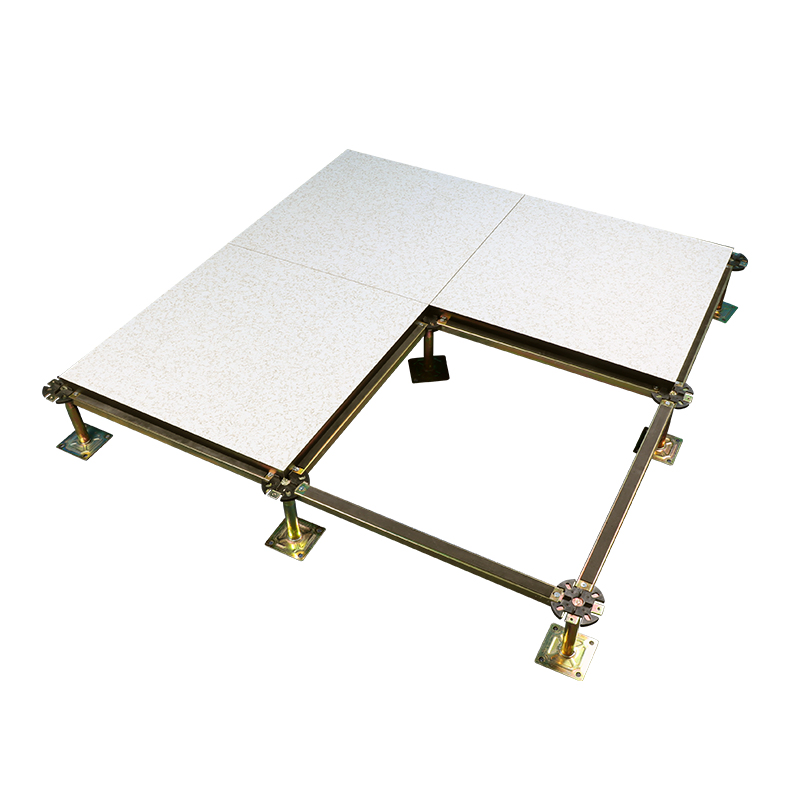

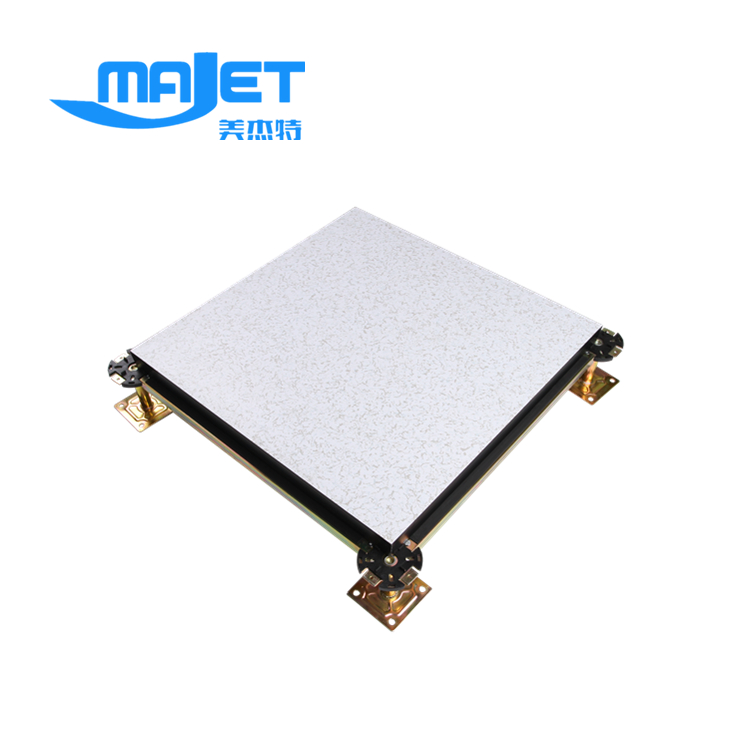

Wood Core Raised Floor / Heavy Duty Raised Floor System with Anti-Static PVC Vinyl Panel and Laminated/Datacenter / Office /Computer Room
Product Description
Basic Specifications
| Model NO. | 668 |
| Material | Engineered Wood Shaving Board |
| Size | 600*600mm |
| Function | Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static |
| Surface Treatment | Coating or Bare Steel |
| Certification | CE, ISO, ASTM, Cisca |
| Usage | Electrical Factory, Computer Room, Bank, Offices |
| Thickness | 28mm, 30mm, 32mm, 35mm, 40mm |
| Core Material | High Density Chipboard |
| Loading Capacity | 3500N ~ 11000N |
| Service Life | 15 ~ 20 Years |
Product Description

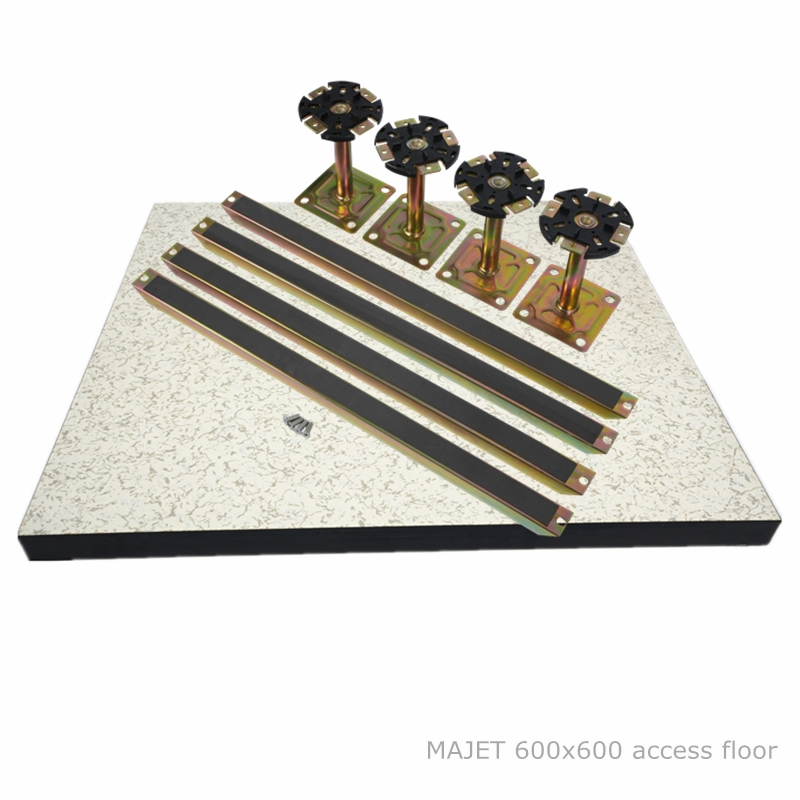

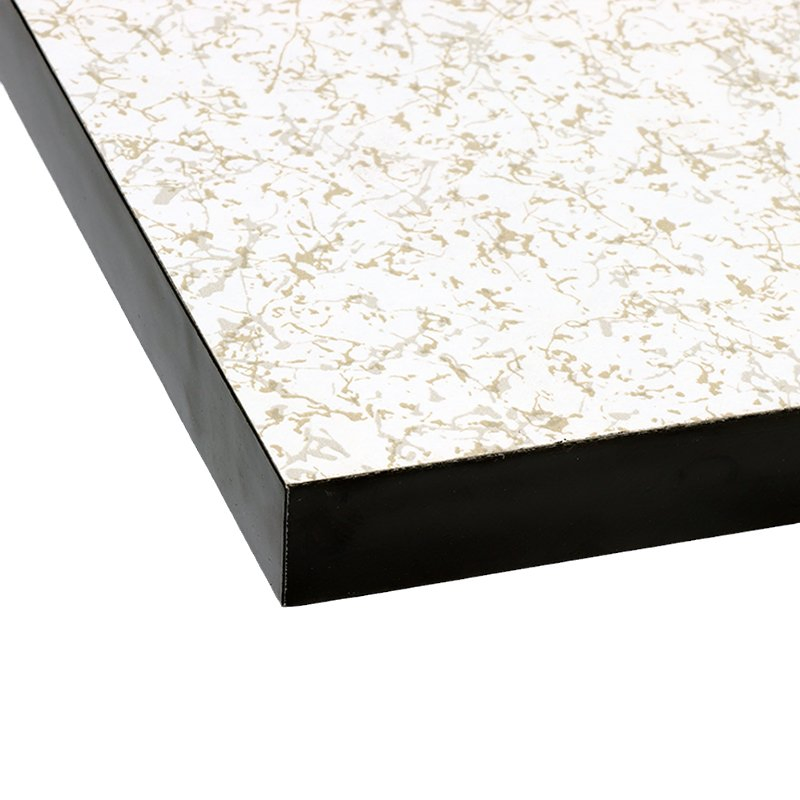

Woodcore / chipboard raised access floor: Anti-static wood core raised floor featuring HPL/PVC finishes.
Suitable for light duty, medium duty, and heavy duty (FS668 FS800 FS1000) applications in data centers, office server rooms, and commercial buildings.

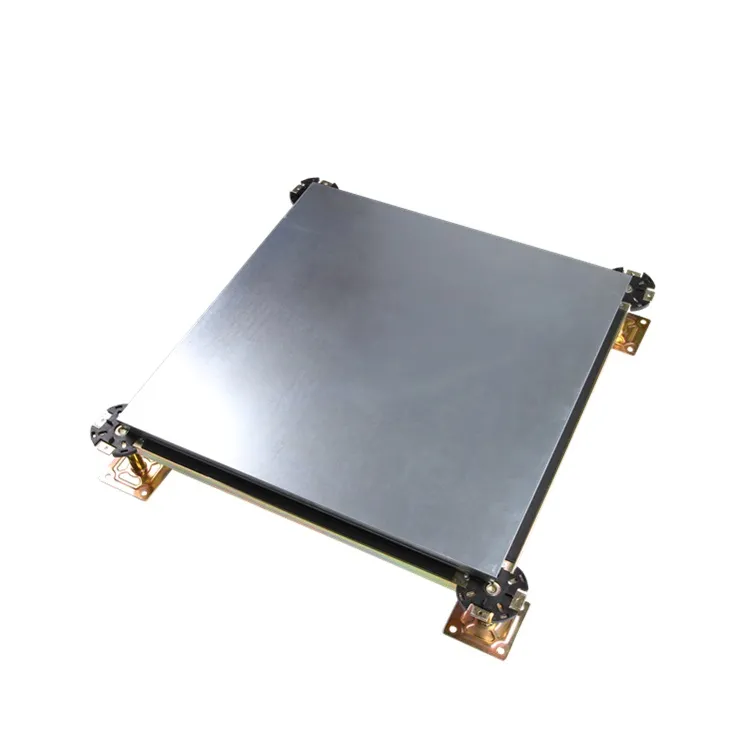

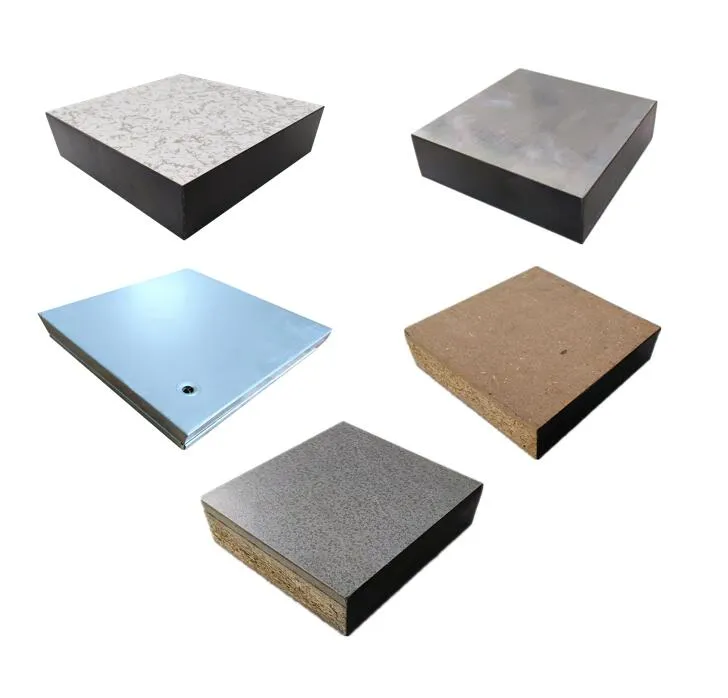

Encapsulated Woodcore Panel
- Full Steel Encasement with high density woodcore
- Excellent loading capacity and interchangeable parts
- Waterproof, Fireproof, and Sound Insulation

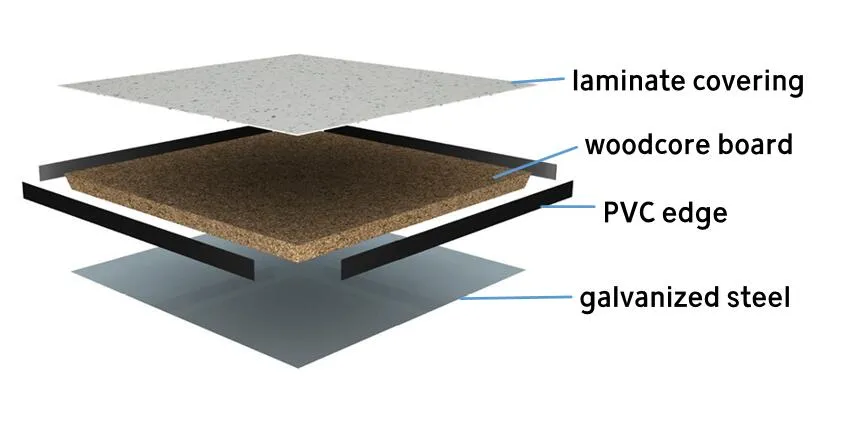

PVC Sealed Antistatic Flooring
- Options: HPL, PVC, Vinyl, Linoleum, Timber, Granite, Ceramic Tile
- Ideal for high humidity areas and smart offices
- High dimension accuracy and eco-friendly
Technical Solutions
Load Bearing Parameters (CISCA Standard)
| Model | Concentrated (N) | Impact (N) | Ultimate (N) | Uniform (N/m2) | Rolling (10k times) |
|---|---|---|---|---|---|
| SC668 | ≥2990 | 670 | ≥8890 | ≥12500 | 1548 |
| SC800 | ≥3590 | 670 | ≥10799 | ≥19796 | 2215 |
| SC1000 | ≥4498 | 670 | ≥13494 | ≥23294 | 2959 |
| SC1250 | ≥5595 | 670 | ≥16797 | ≥33084 | 3596 |
| SC2000 | ≥8898 | 670 | ≥26685 | ≥49784 | 5595 |

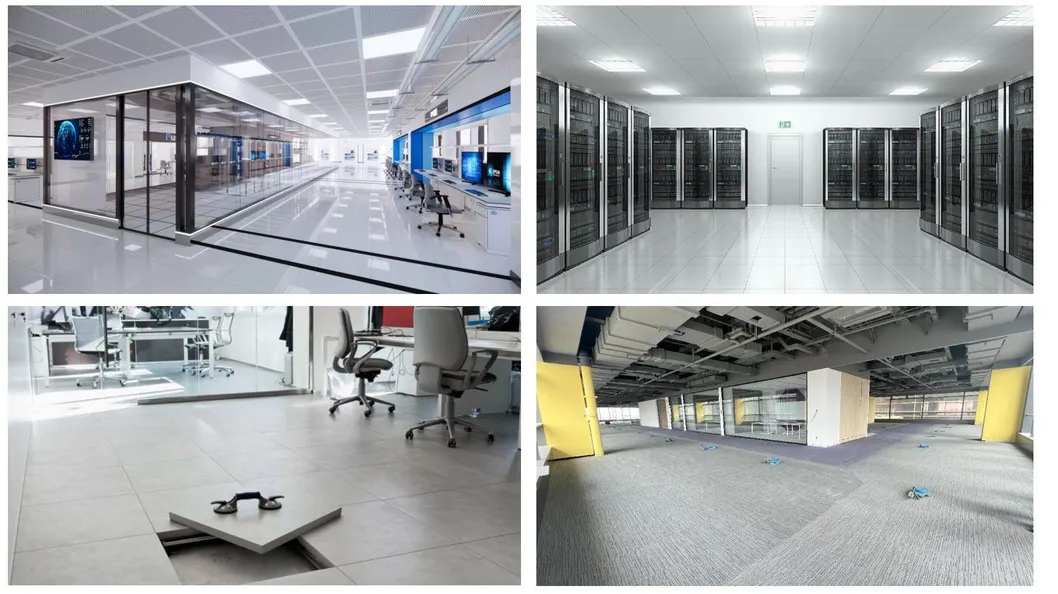

Application Areas
High load capacity for heavy cabinets with essential fire and anti-static resistance.
Used in subways and airports to manage complex cabling under high pedestals.
Designed to handle high foot traffic and furniture loads while maintaining quiet operation.
Resistant to chemicals and optimized for precision airflow management.

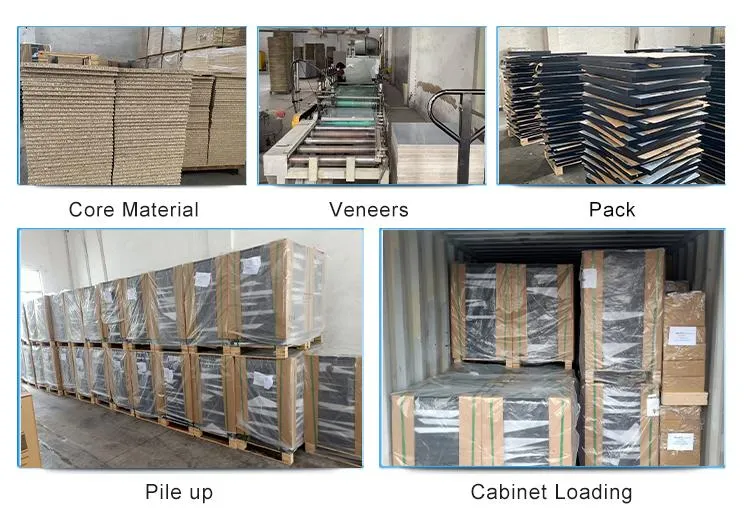

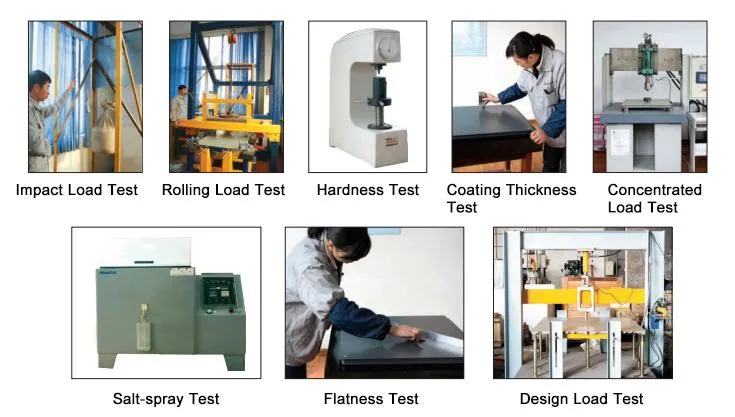

Product Process & Certifications
Manufacturing Excellence

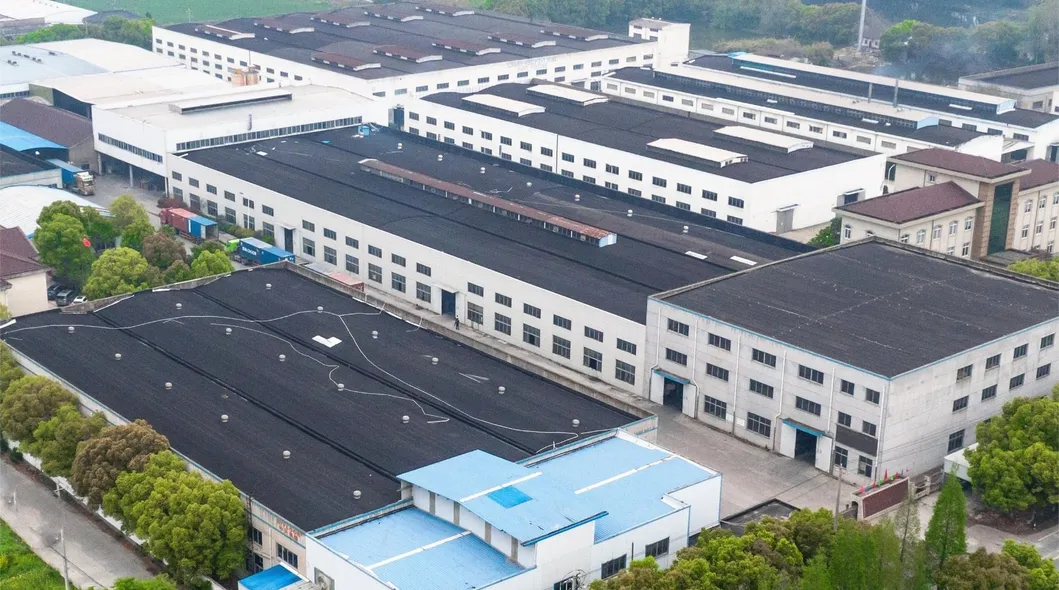

Operating over 60,000 square meters with automated production lines, the facility achieves high-precision output for steel, calcium sulfate, and aluminum flooring. With a daily capacity of 5,000 square meters, products meet international standards including ISO, KS, and CISCA.
Frequently Asked Questions
Wood core panels provide a superior walking feel and silent acoustic effect. They are lightweight, recyclable, and eco-friendly, making them a popular choice for modern commercial office spaces.
Common finishes include HPL (high pressure laminate) for wear resistance, conductive PVC for stable electrical conductivity, and ceramic tiles for long-lasting fire resistance and aesthetic durability.
It protects sensitive electronic components from static discharge, prevents dust accumulation, and ensures the stable operation of high-performance server equipment.
While woodcore is lighter and offers better acoustics, calcium sulfate provides higher load-bearing and corrosion resistance. Steel is often selected for its cost-effectiveness in standard office layouts.
The modular design allows for the integration of air diffusers, floor electrical boxes, cable grommets, and under-floor ventilation units designed specifically for standard grid dimensions.
The products are tested against CISCA, MOB, and ISO standards, with reports available for static control, VOC emissions, and load-bearing performance.
