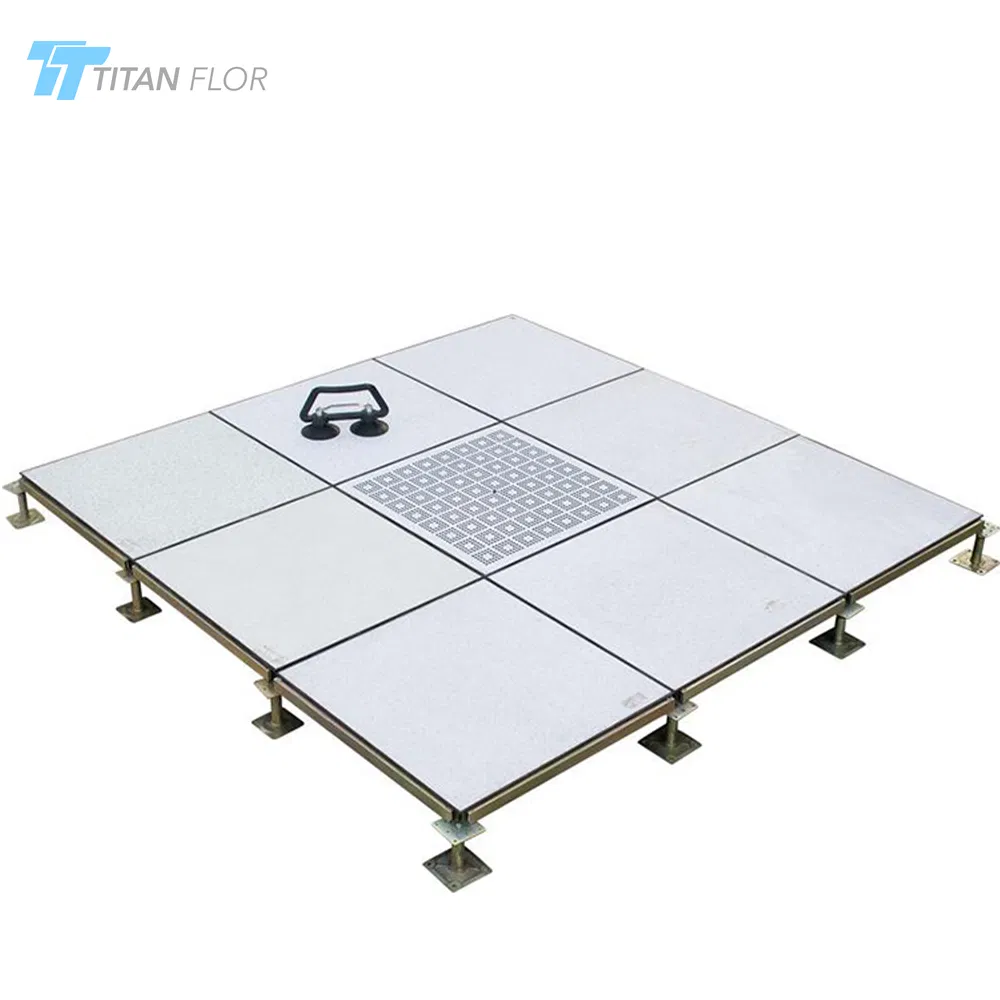

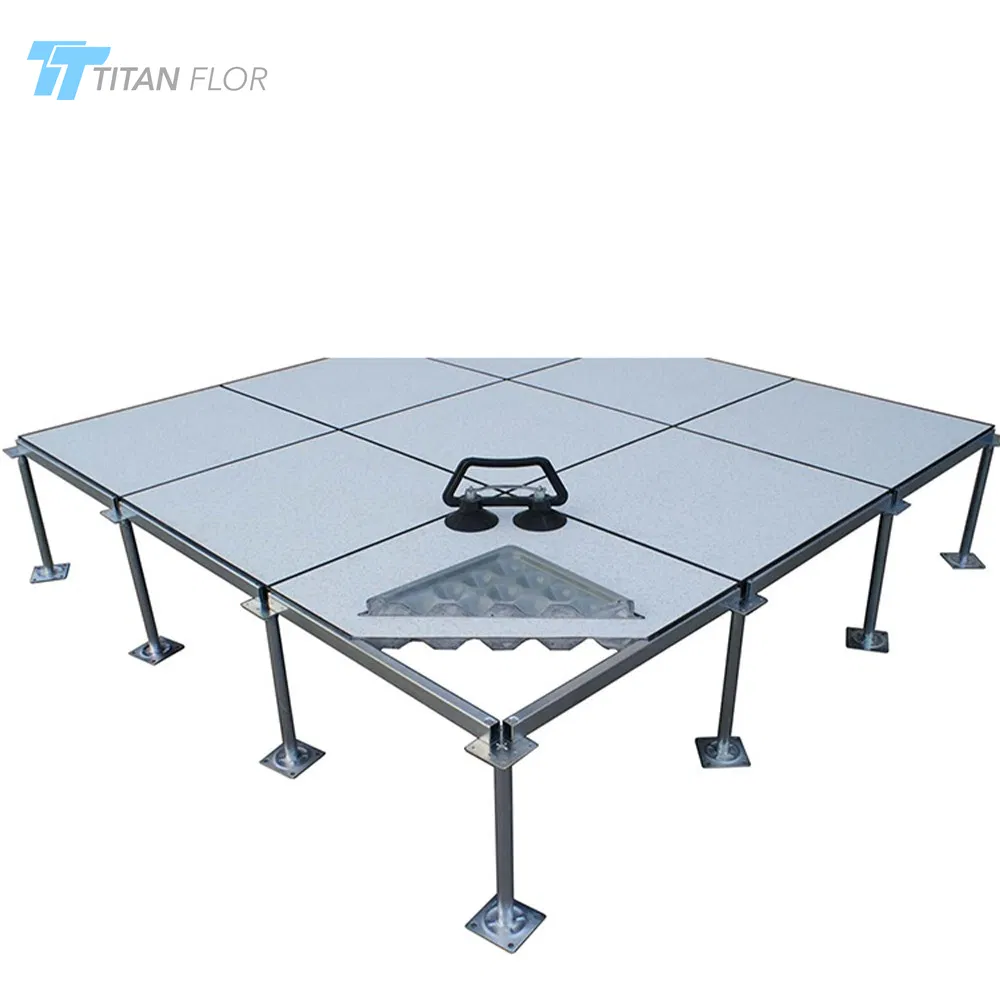

White Color High Pressure Laminate Covering Raised Floor System
Product Description
i
Basic Information
Model NO.
FS800-FS2500
Material
Metal / Steel
Size
600*600mm
Thickness
35mm
Infill
Cement
Surface
Powder Epoxy
Certification
CE, ISO, SGS, TUV
Function
Thermal Insulation, Fireproof, Anti-static
Usage
Data Center, Computer Room, Offices
Capacity
50,000 Sqm per Month
★
Product Description

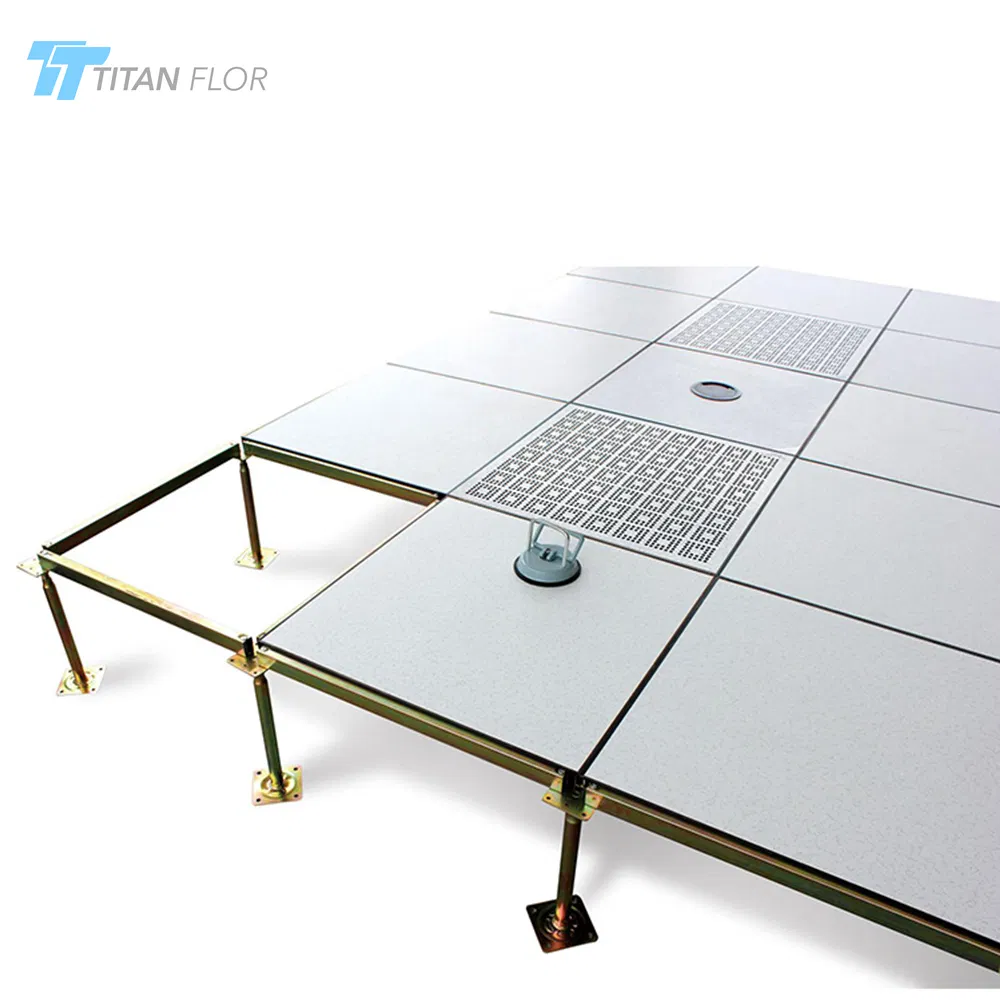

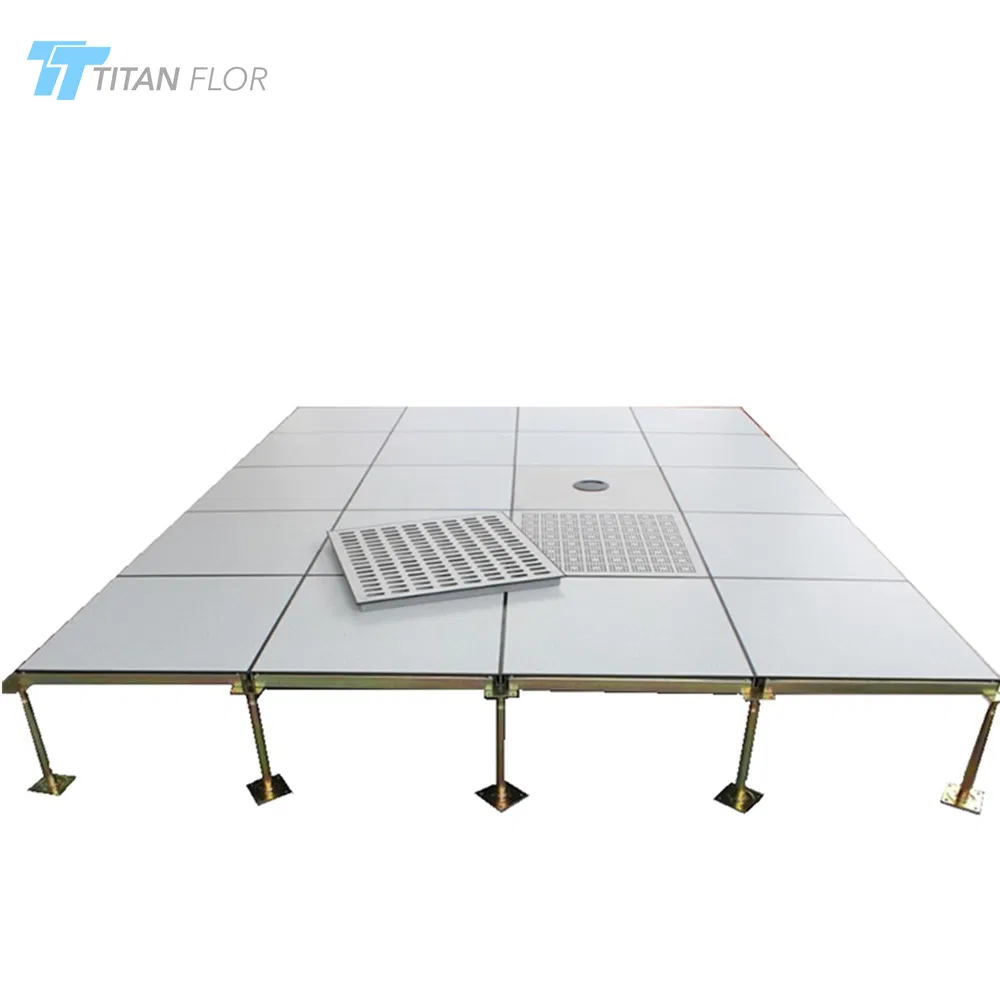

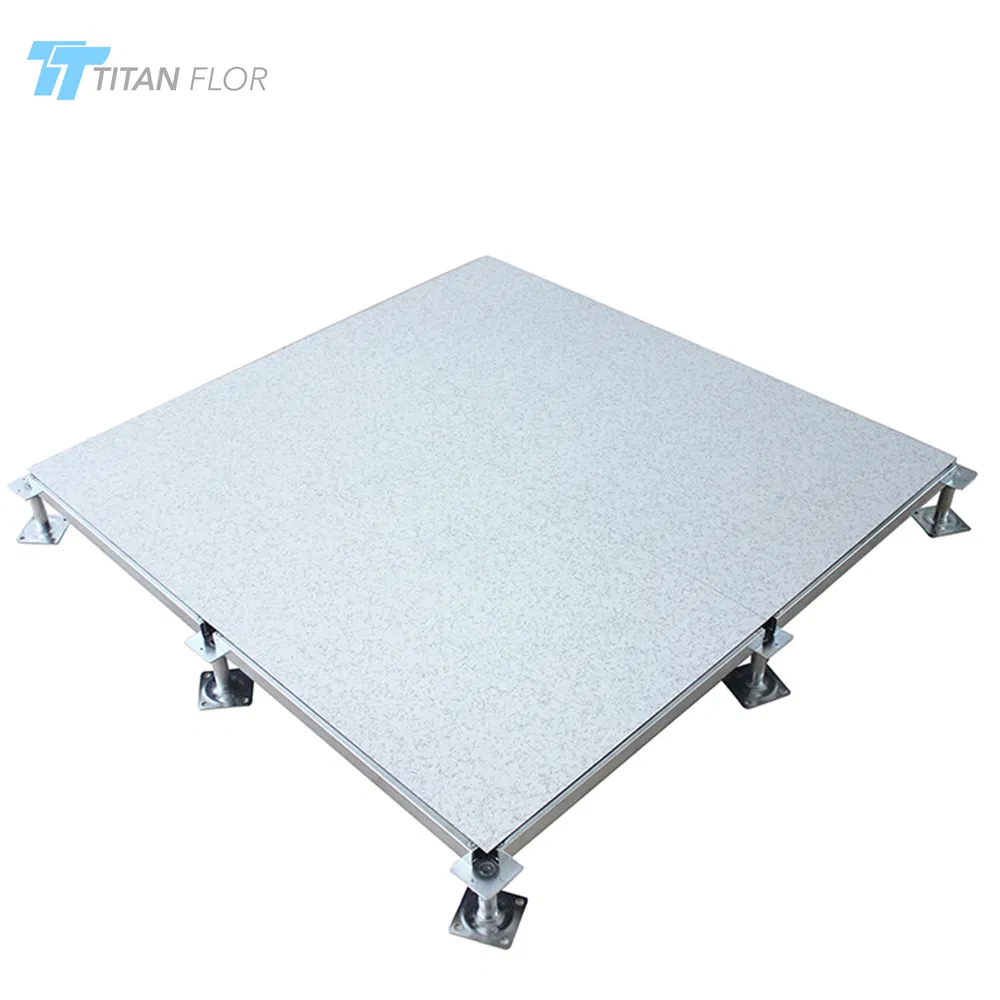

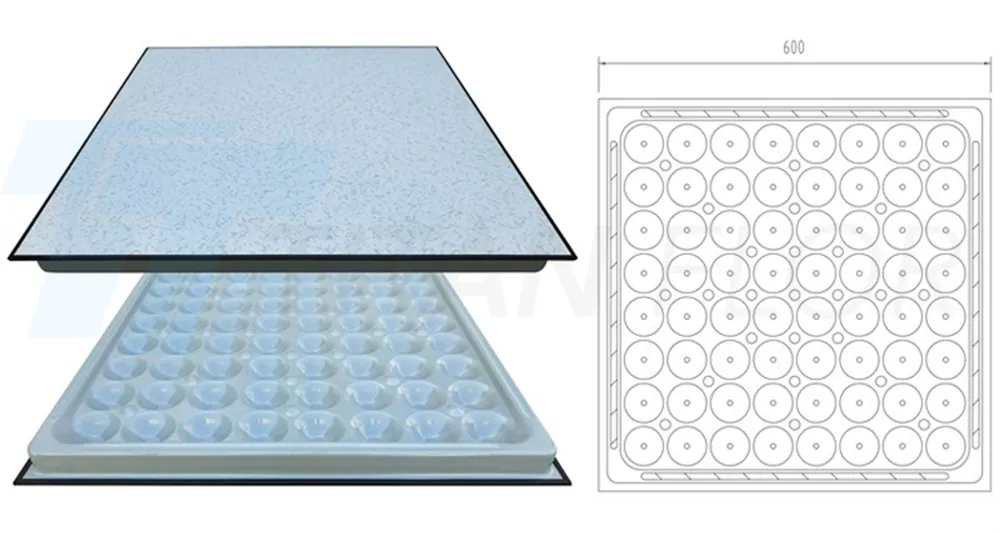

Anti static raised flooring is made of standard steel cementitious raised floor, with different kinds of anti-static coverings on top, such as high pressure laminate (HPL), conductive PVC tile. There are conductive rubber trims on edge to protect the panels. The whole system includes raised floor, pedestals, stringer and other accessories if necessary.
⚙

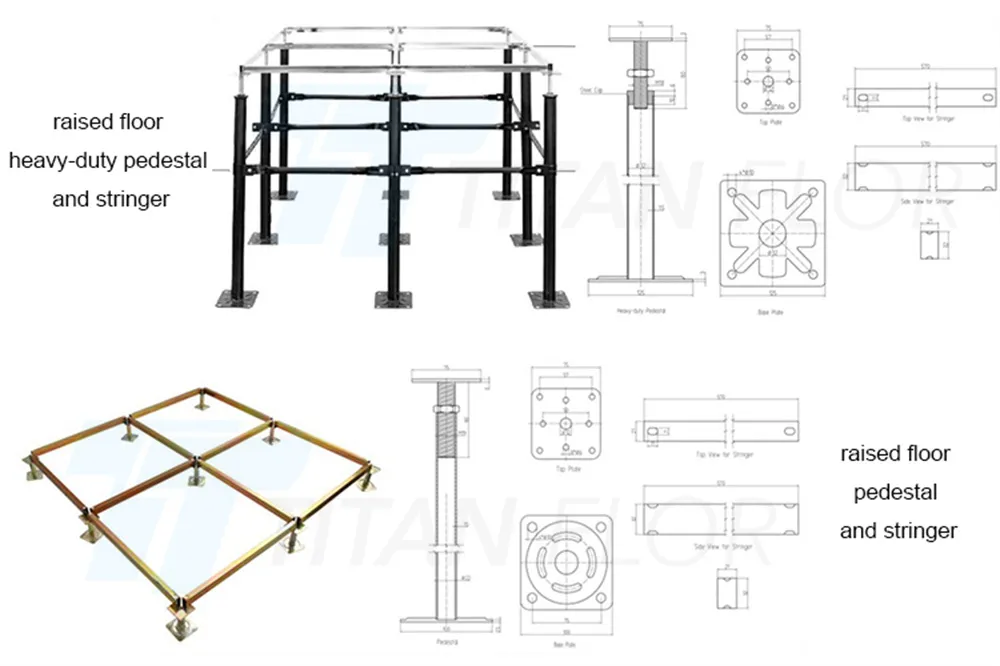

Understructure & Application

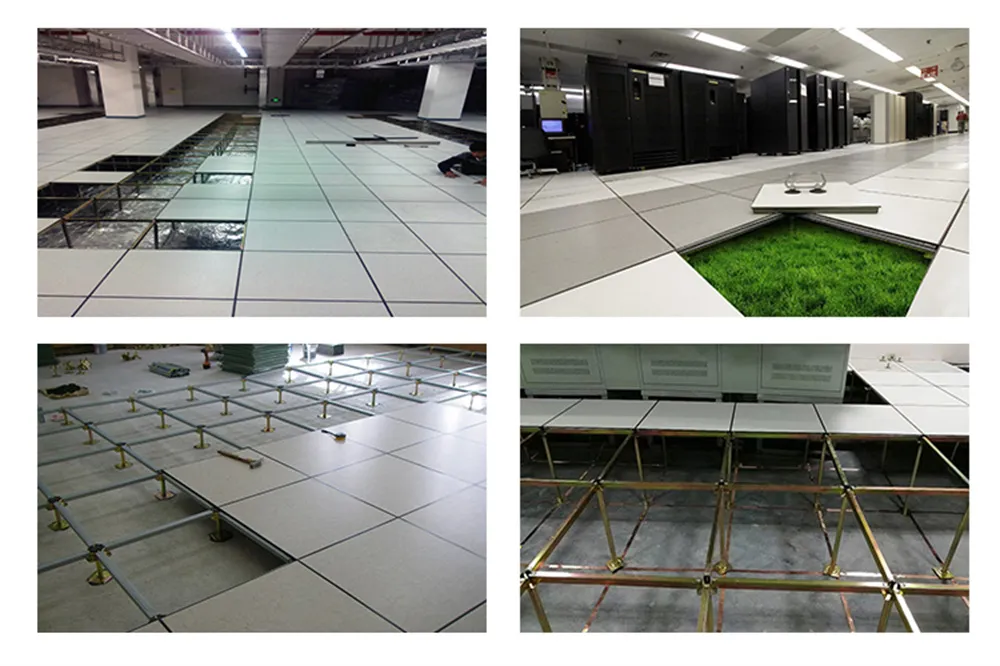

Ideal for office buildings, intelligent office environments, meeting rooms, commercial and industrial bureaus, government facilities, and places requiring dust-proof and water-proof solutions. It is widely used in fields with complex wiring requirements, usually combined with square carpets.
📊
Technical Parameters
| Type | Size | Rolling Load | Uniform Load | Ultimate Load | Concentrated Load | ||||
|---|---|---|---|---|---|---|---|---|---|
| 10PASS | 10K PASS | LB/m² | KN/m² | LB | KN | 2.5mm Deflection | KN | ||
| FS662 | 600*600*33mm | 2.45KN | 2.00KN | 3300 | 14.71 | 2000 | 8.85 | 662LB | 2.94 |
| FS800 | 600*600*33mm | 2.94KN | 2.45KN | 4000 | 17.78 | 2530 | 11.25 | 800LB | 3.56 |
| FS1000 | 600*600*33mm | 3.56KN | 2.67KN | 5000 | 22.22 | 3260 | 14.50 | 1000LB | 4.45 |
| FS1250 | 600*600*33mm | 4.45KN | 3.56KN | 6250 | 27.78 | 4130 | 18.36 | 1250LB | 5.56 |
| FS1500 | 600*600*33mm | 5.56KN | 4.45KN | 7500 | 33.34 | 5000 | 22.17 | 1500LB | 6.68 |
✔

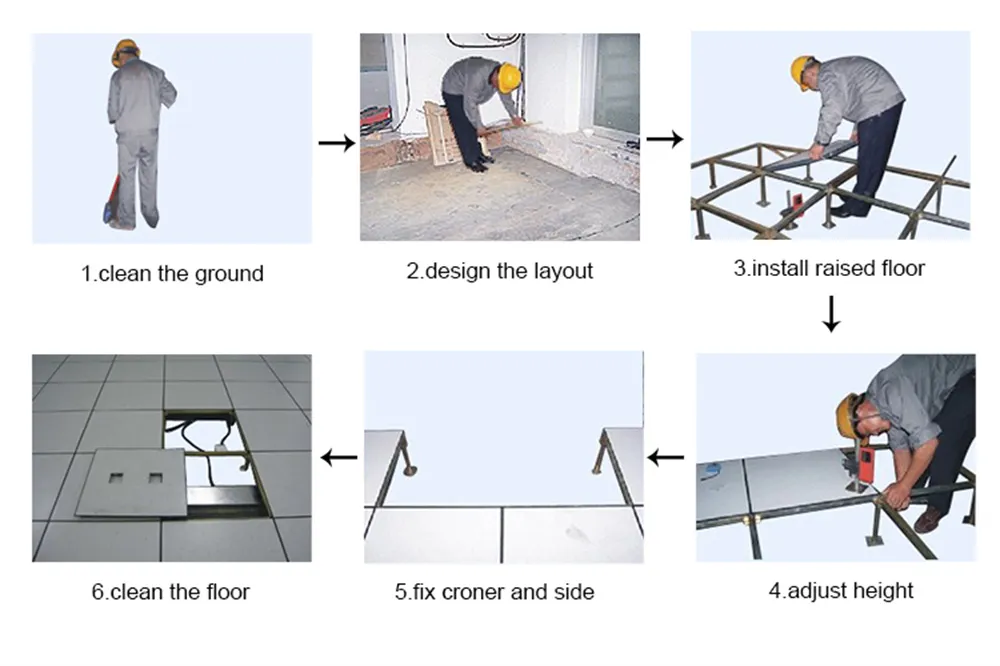

Advantages & Installation
?
Frequently Asked Questions
How is the quality guaranteed?
Each production step is strictly controlled by our QC team. All products come with a 5-year warranty to ensure long-term performance and reliability.
Are free samples available for testing?
Yes, we provide free samples, including cut corner panel samples and full panel samples, to meet your various evaluation needs.
What is the typical delivery time?
We maintain a stock of over 20,000 square meters for popular specifications. For customized or non-stock items, our production capacity is 5,000-10,000 square meters per week.
Do you provide technical installation support?
We offer local installation support in regions where we have partners. For other areas, we provide comprehensive online guidance and technical manuals.
What are the accepted payment terms?
Our standard terms are T/T 30% deposit, with the 70% balance paid against the copy of B/L. We also accept L/C, Paypal, and Western Union.
Can the flooring system be customized?
Yes, the load capacity, covering material (HPL/PVC), and pedestal height can be customized to suit specific project requirements.
