Spc Vinyl Plank Laminate Flooring Click Slotting Automated System
Product Description
📋
Basic Information
Product Type
Plastic Sheet
Screw
Double-Screw
Automation
Automatic
Computerized
Computerized
Certification
CE
Voltage
OEM
Capacity
Standard
Service Life
Long Service Life
Production
1000-1200kg/H
⚙️
Product Description

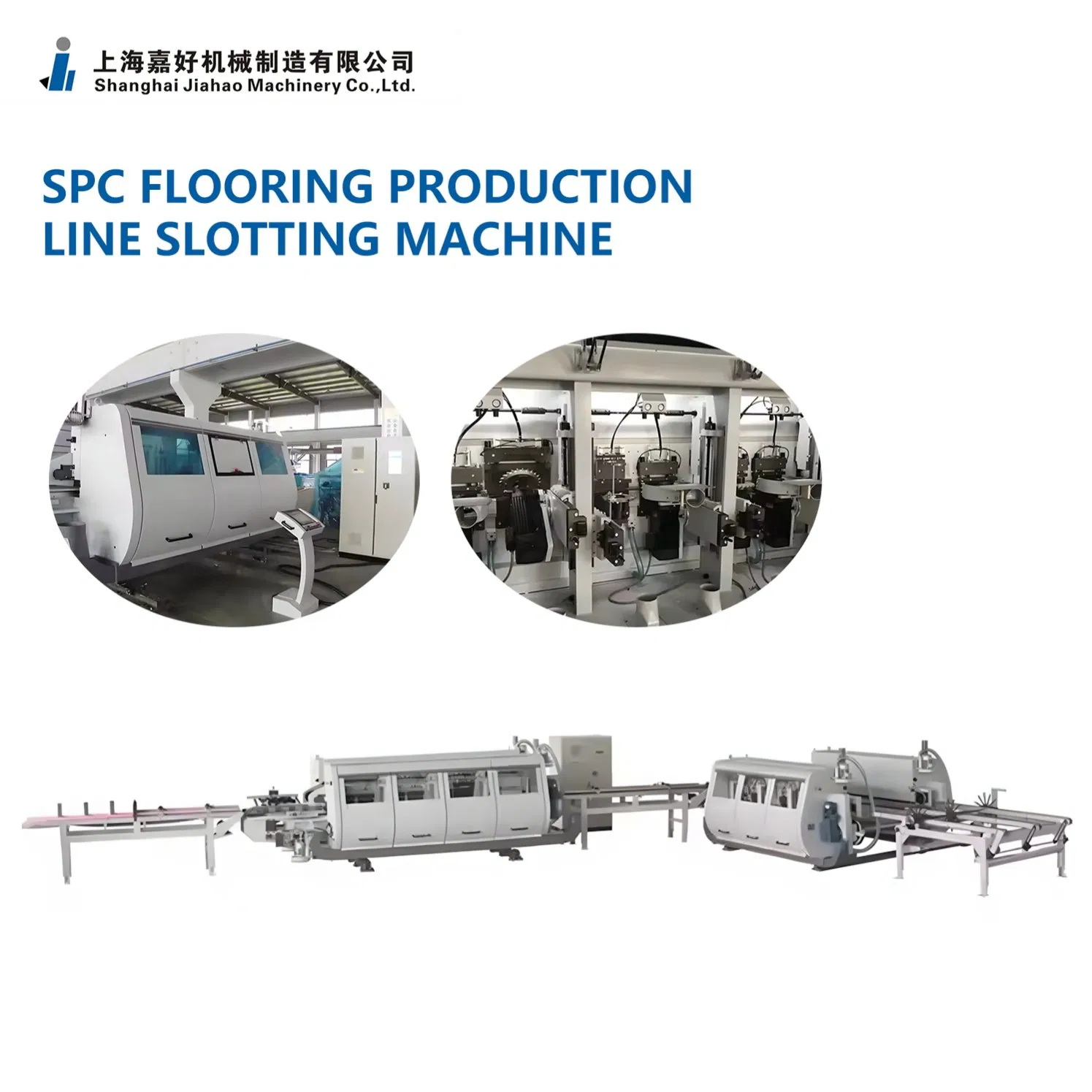

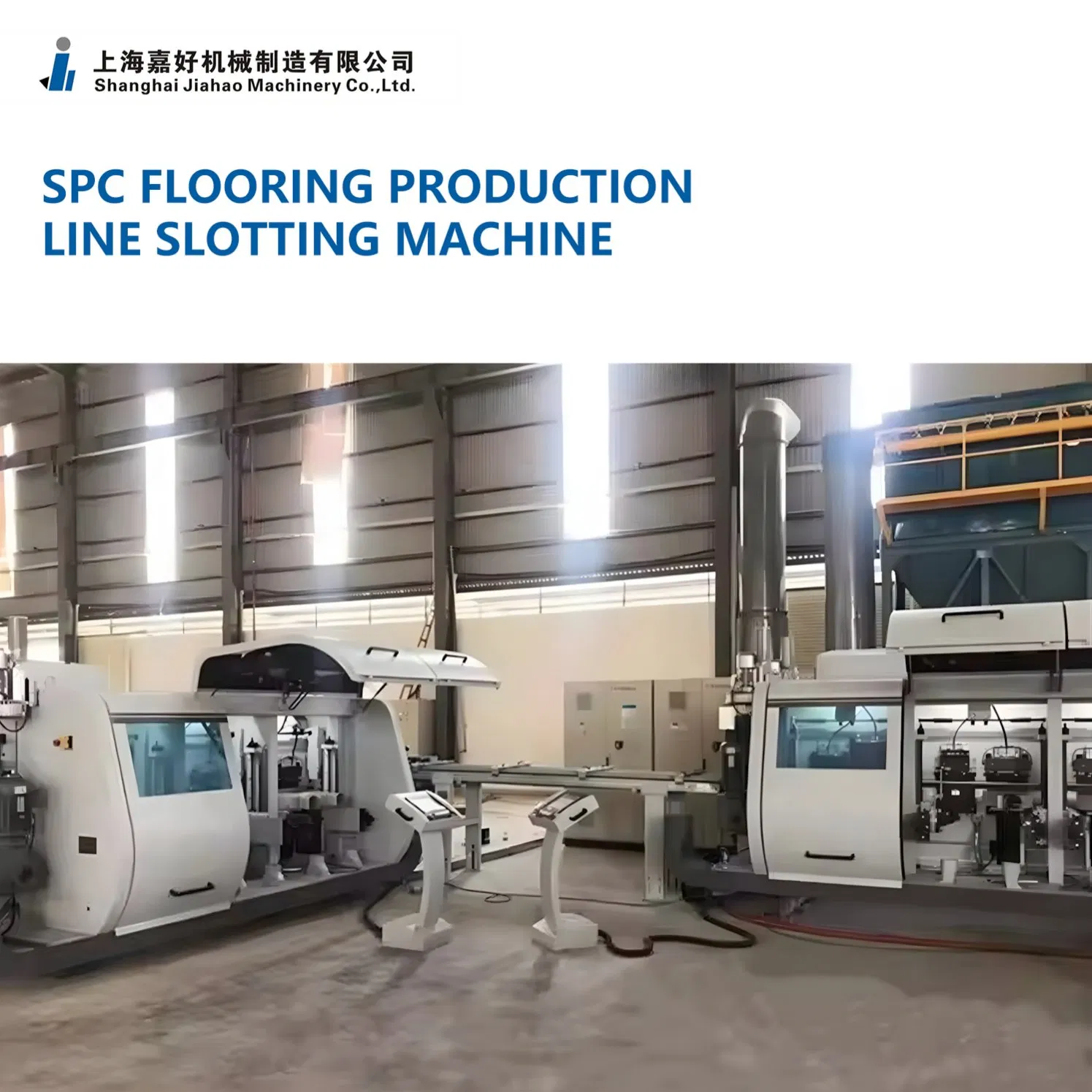

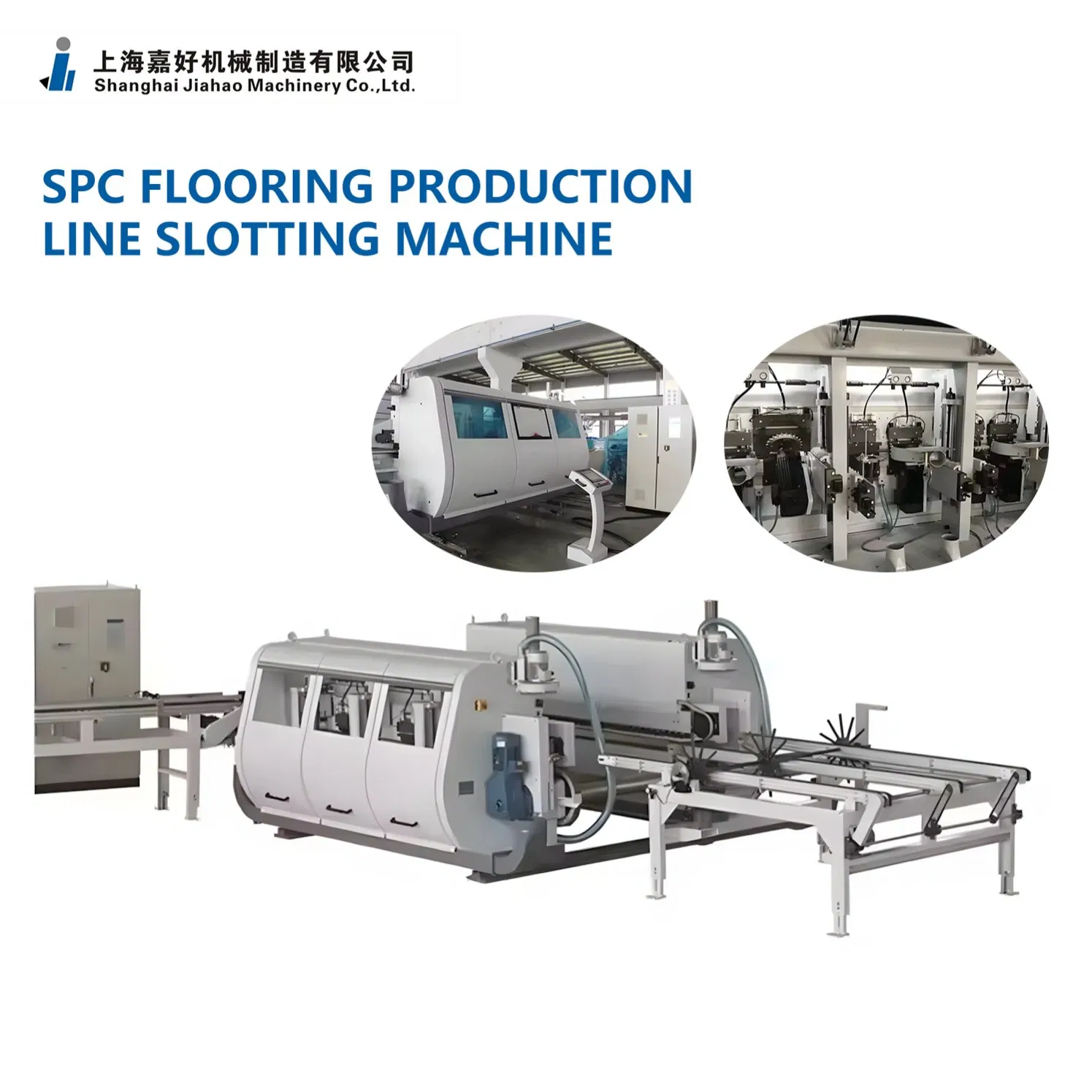

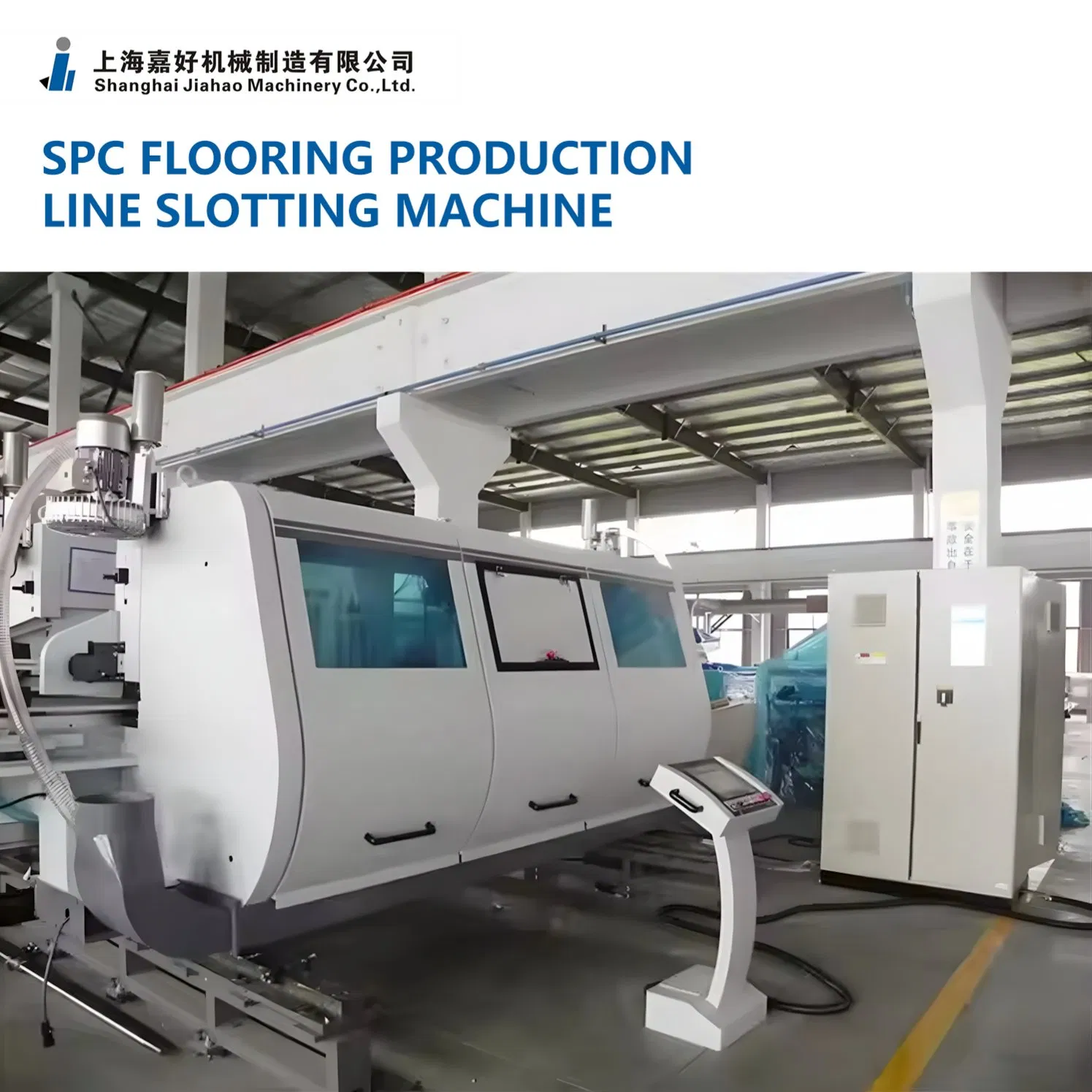

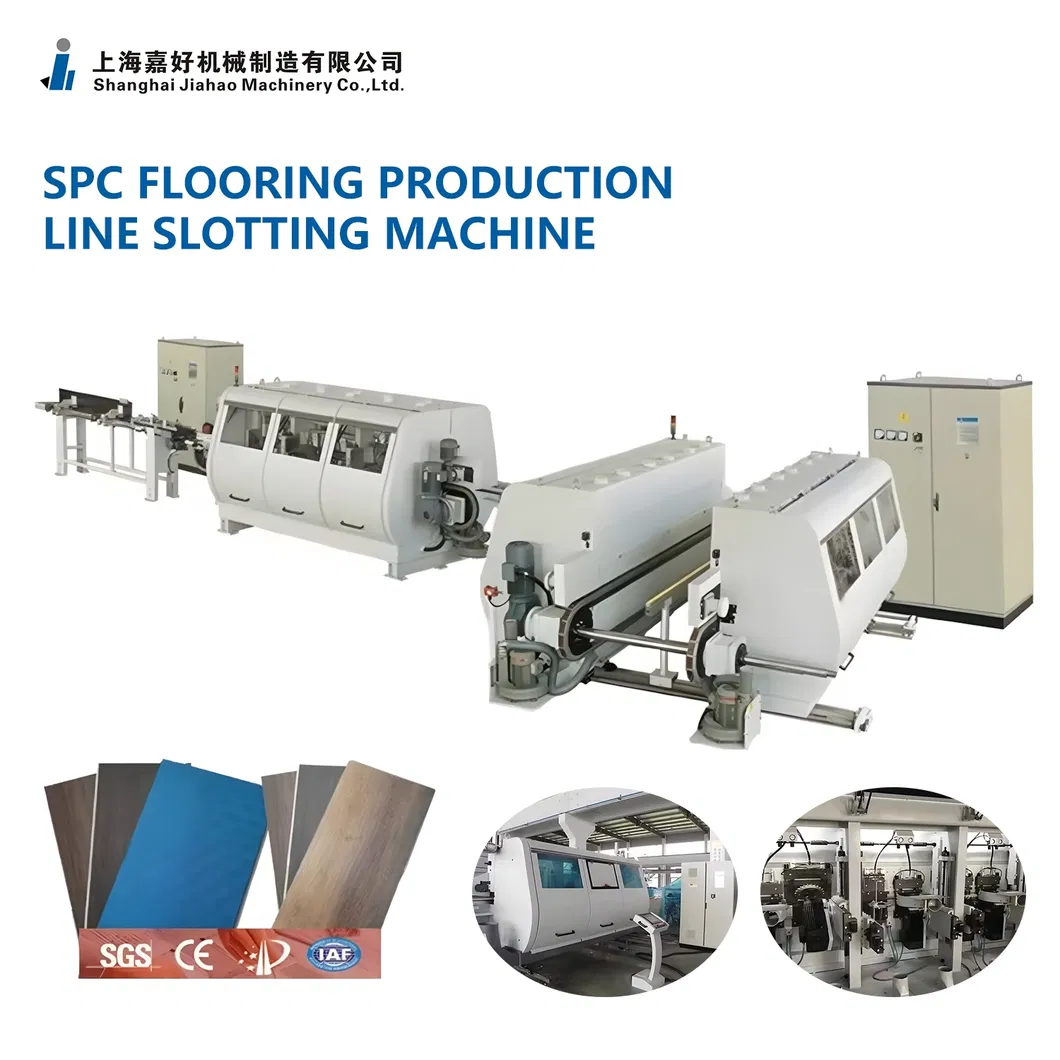

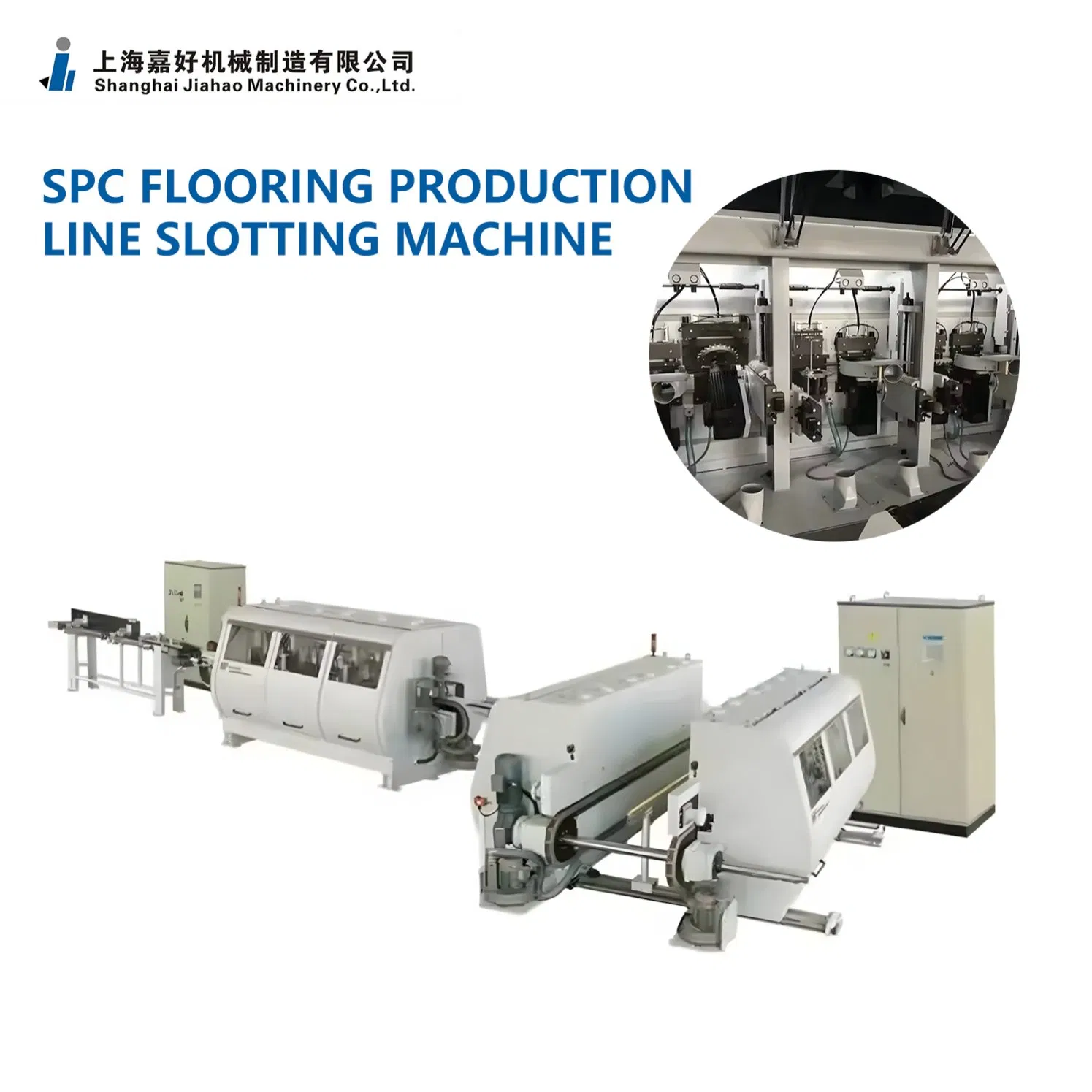

SPC Flooring Production Line Slotting Machine

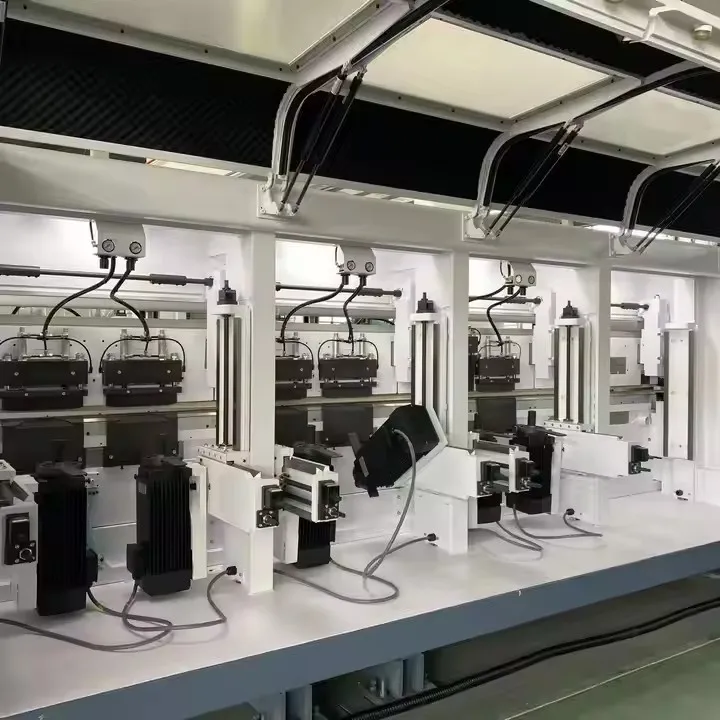

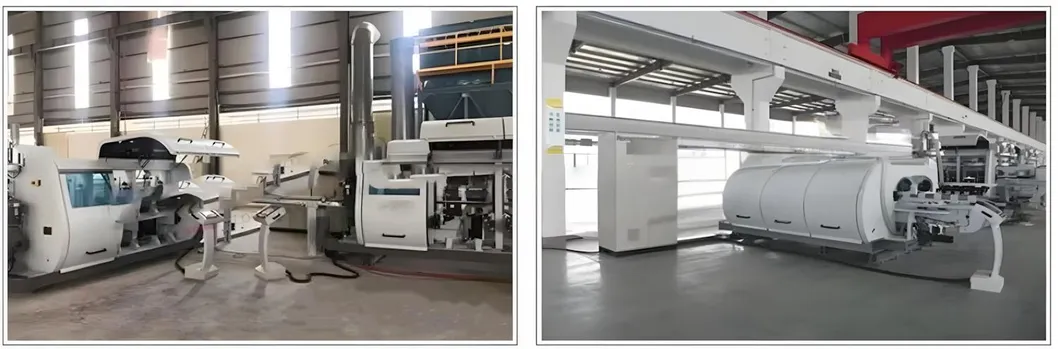

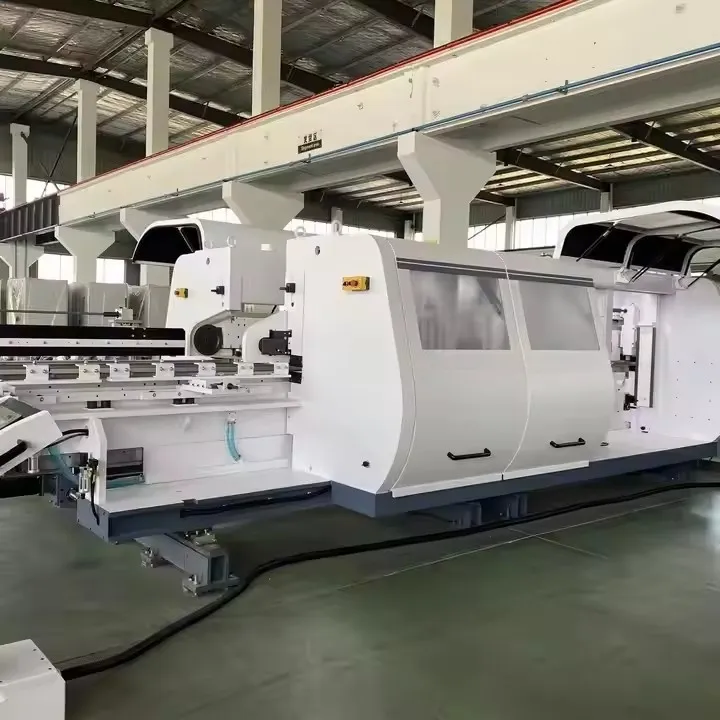

This Double End Tenoner (DET) slotting machine is designed with advanced technology and applied for SPC flooring, LVT flooring, and laminate flooring production lines. Available in 6+6 and 6+8 station configurations, it processes various click systems including Unilin, Valinge, and I4F. The machinery offers wide adaptability, simple regulation, and high precision.
🔍 Slotting Machine Information
📊
Product Parameters
| Floor Length | 600~1800MM |
| Floor Width | 125~300MM |
| Floor Thickness | 3~25MM |
| Speed | 40~120M / Min |
| Working Voltage | 380V / 50Hz |
| Control Voltage | 220V / 50Hz & 24V DC |
| Total Power | 200KW |
| Air Pressure | 0.6~0.8Mpa |
| Capacity | 200,000M2/month (two shifts) for 1220*180MM |
🏭

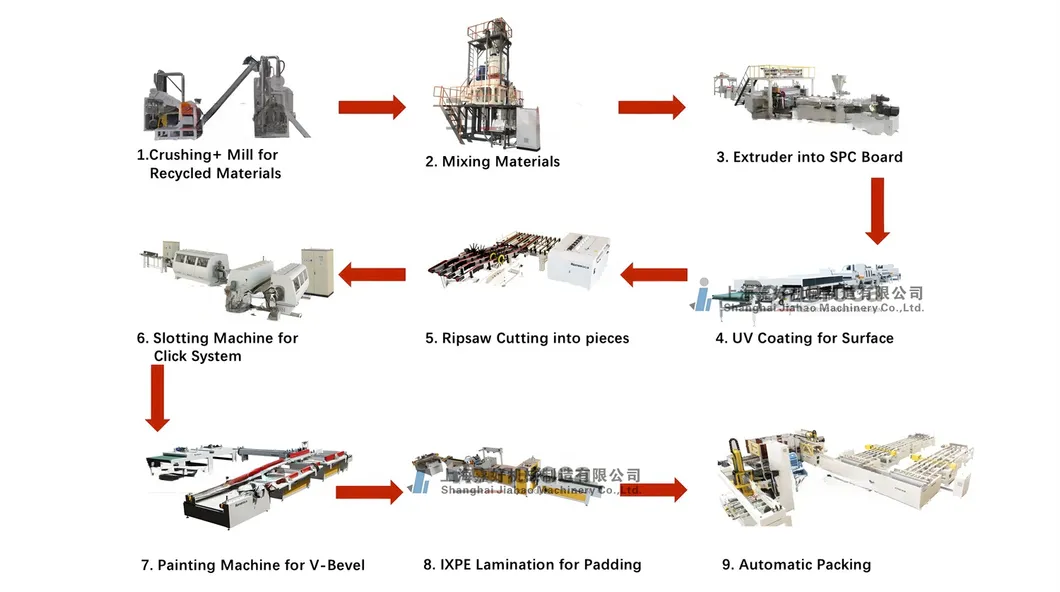

SPC Flooring Production Process
1Crushing + Milling: Recycling SPC waste into powder to be reused as raw material.
2Mixing: Uniformly mixing raw materials and removing moisture through high-speed mixers.
3Extrusion: Twin cone screw extrusion forming sheets, laminating wear-resistant and decor layers.
4UV Coating: Applying UV paint for dust/scratch prevention and uniform gloss.
5Cutting: Multi-ripsaw cutting big boards into specific plank sizes.
6Slotting: Processing edges into precision lock shapes (Unilin, Valinge, etc.).
7V-groove Painting: Optional process for painting plank edges for enhanced aesthetics.
8Underlay Laminating: Attaching IXPE/EVA backing for sound insulation and comfort.
9Packing: Automated or semi-automated packaging for final shipment.
🛠️
Full Production Services
Comprehensive solutions for SPC flooring projects including:
- Full Machinery Line: Extruders, Mixers, UV lines, Slotting and Packing machines.
- Raw Materials: PVC SG5, stabilizers, wear-resistant layers, decor films, and UV paint.
- Spare Parts: PCD cutters, saw blades, extruder moulds, and UV lamps.
- Test Equipment: Tensile testers, wear testers, and click projectors.
❓ Frequently Asked Questions
What exactly is SPC flooring?

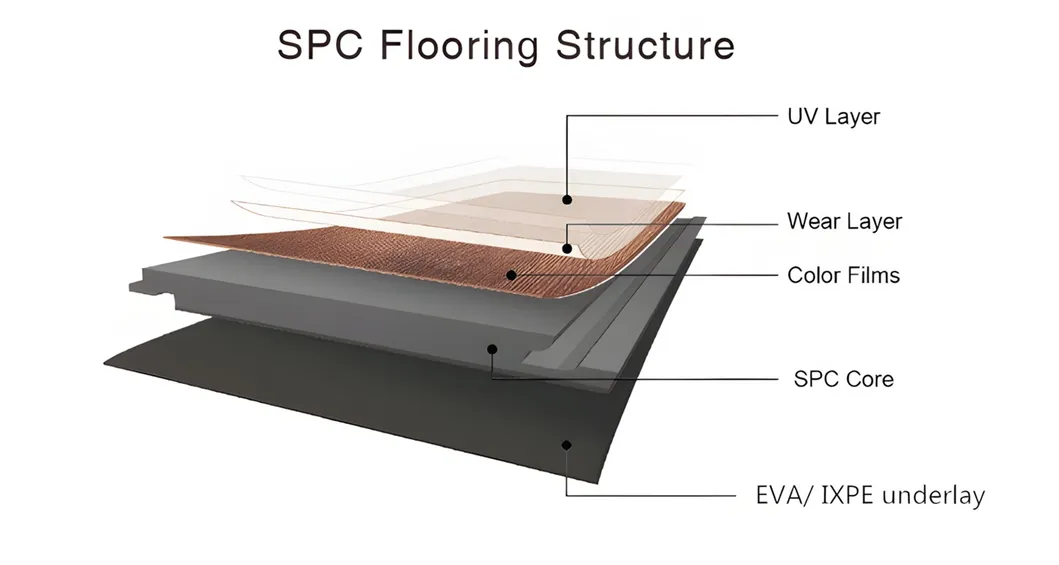

SPC stands for Stone Plastic Composite. It is a stable composite material made of limestone powder, polyvinyl chloride, and stabilizers, known for being waterproof and high-density.
What click systems can the slotting machine handle?
The slotting machine is compatible with major click profiles including Unilin, Valinge, and I4F, provided the correct PCD cutters are used.
Is the production line environmentally friendly?
Yes, the line includes crushing and milling machines that allow fragment waste to be recycled back into the production process, minimizing waste.
What is the purpose of the IXPE/EVA layer?
This underlay is laminated to the back of the SPC planks to provide superior sound insulation and a softer, more premium walking experience.
What kind of after-sales support is available for the machinery?
Services typically include a 12-month warranty, technical guidance, factory layout design, and prompt supply of spare parts.
Can the machine handle different floor thicknesses?
Yes, the machinery is designed to process flooring materials ranging from 3mm to 25mm in thickness.
