Spc Vinyl Plank Laminate Floor Click Slotting Auto System

Customization:	Available
After-sales Service:	Engineer for Oversea Is Avaliable
Warranty:	12months

📊

Basic Information

Product Type	Plastic Sheet	Screw	Double-Screw
Automation	Automatic	Computerized	Computerized
Certification	CE	Customized	Customized
Capacity	Standard	Key Selling Points	Long Service Life
Inspection	Video Outgoing-Inspection Provided	Test Report	Machinery Test Report Provided
Temperature Control	Omron Brand	Power	200kw
Production Capacity	1000-1200kg/H	HS Code	84778000

⚙️

Product Description

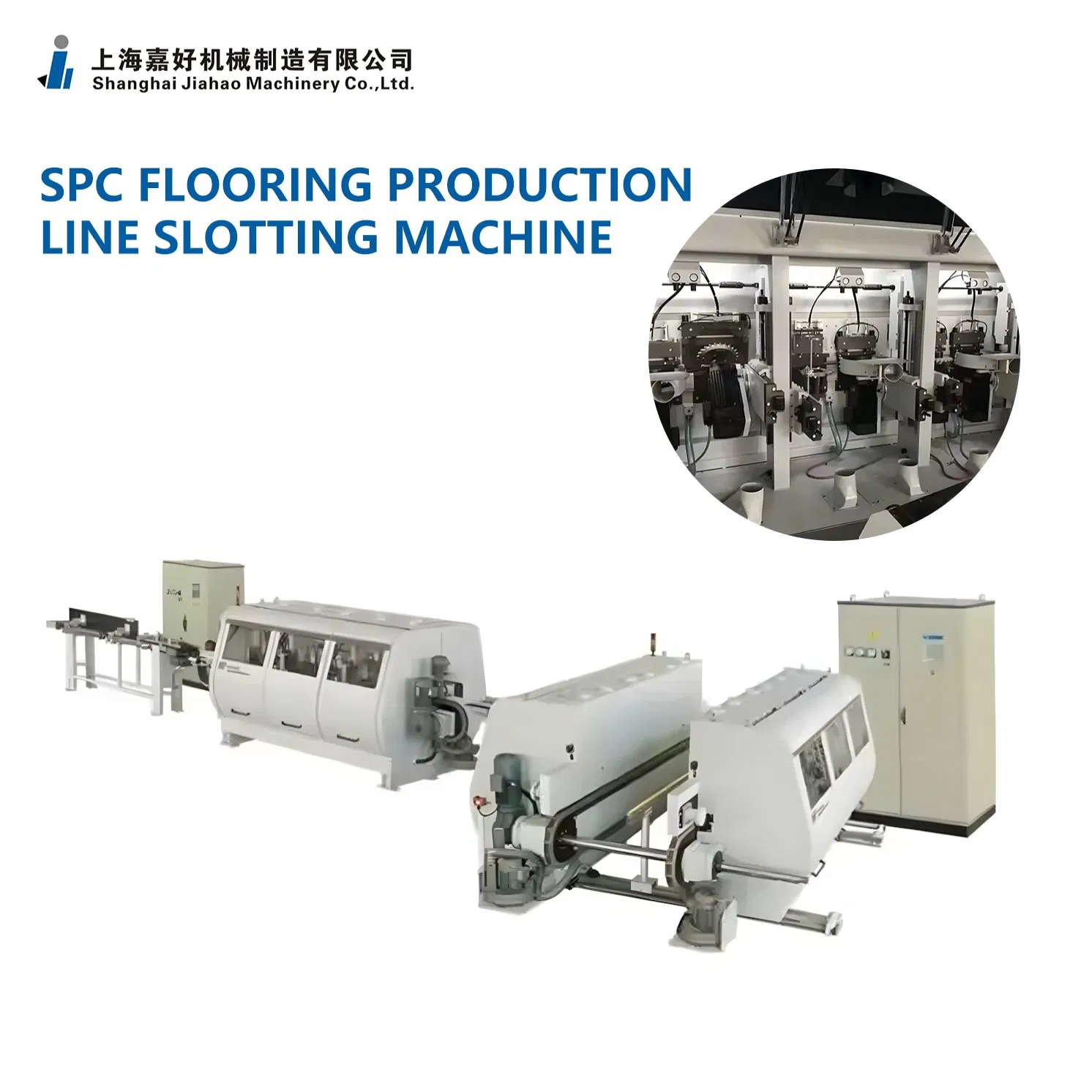

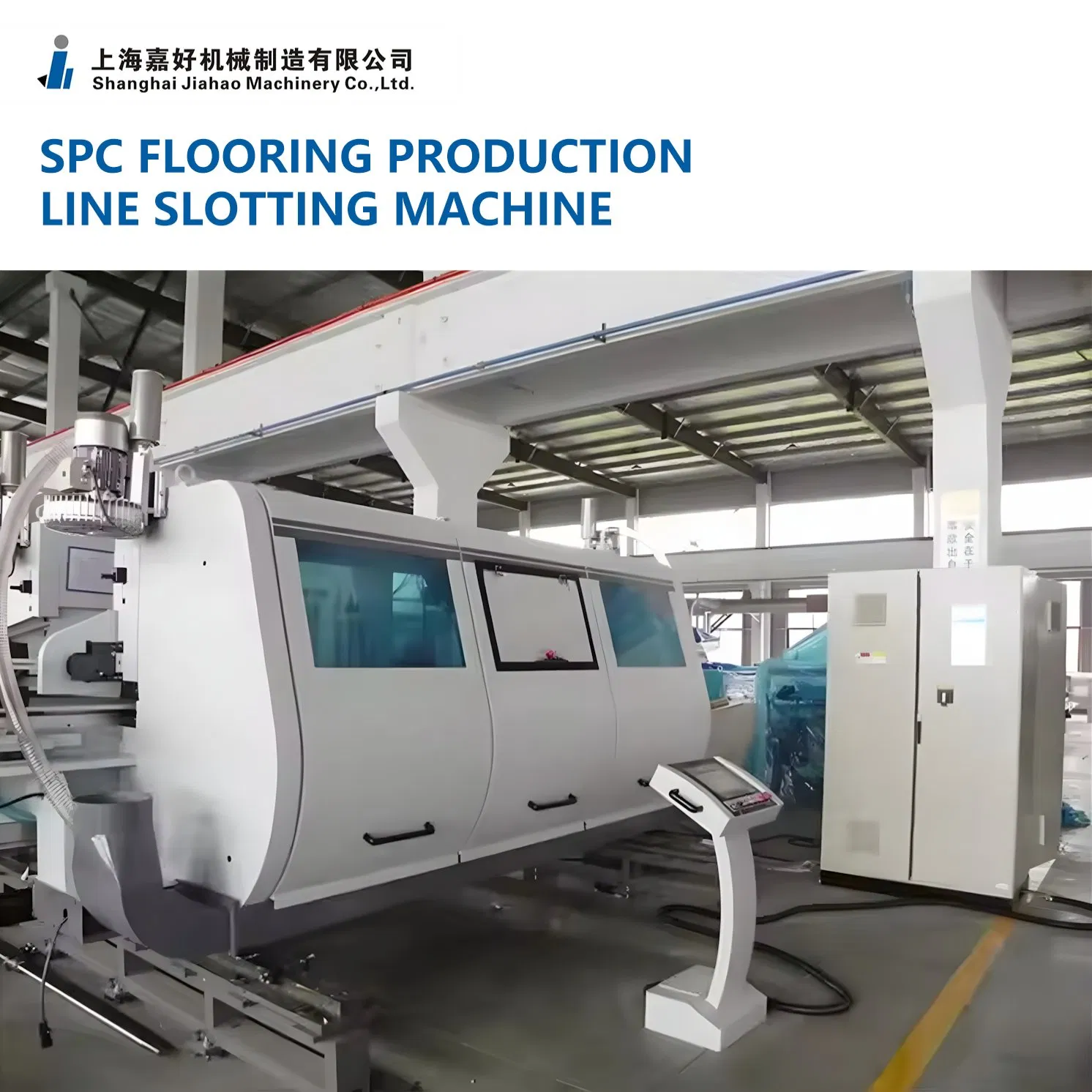

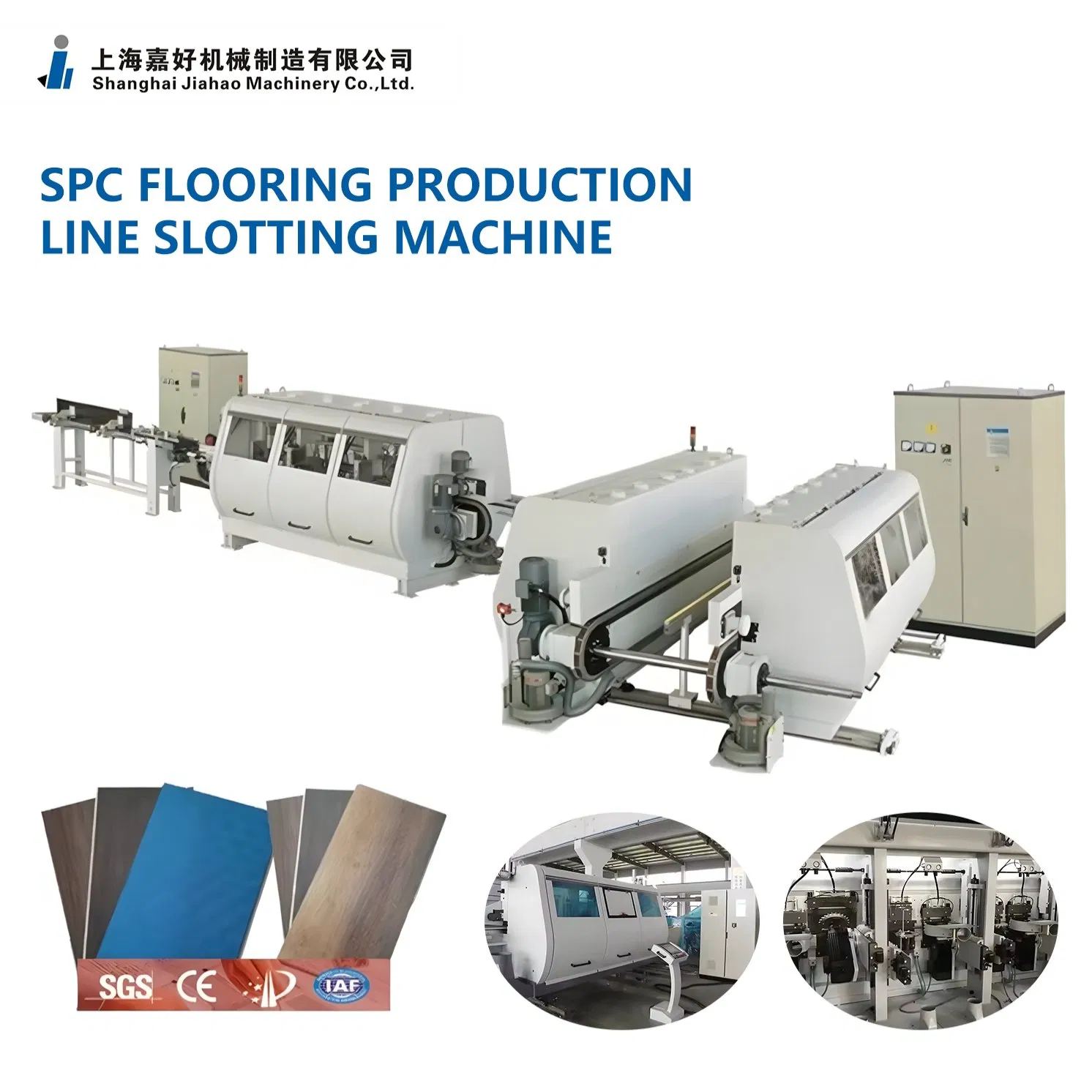

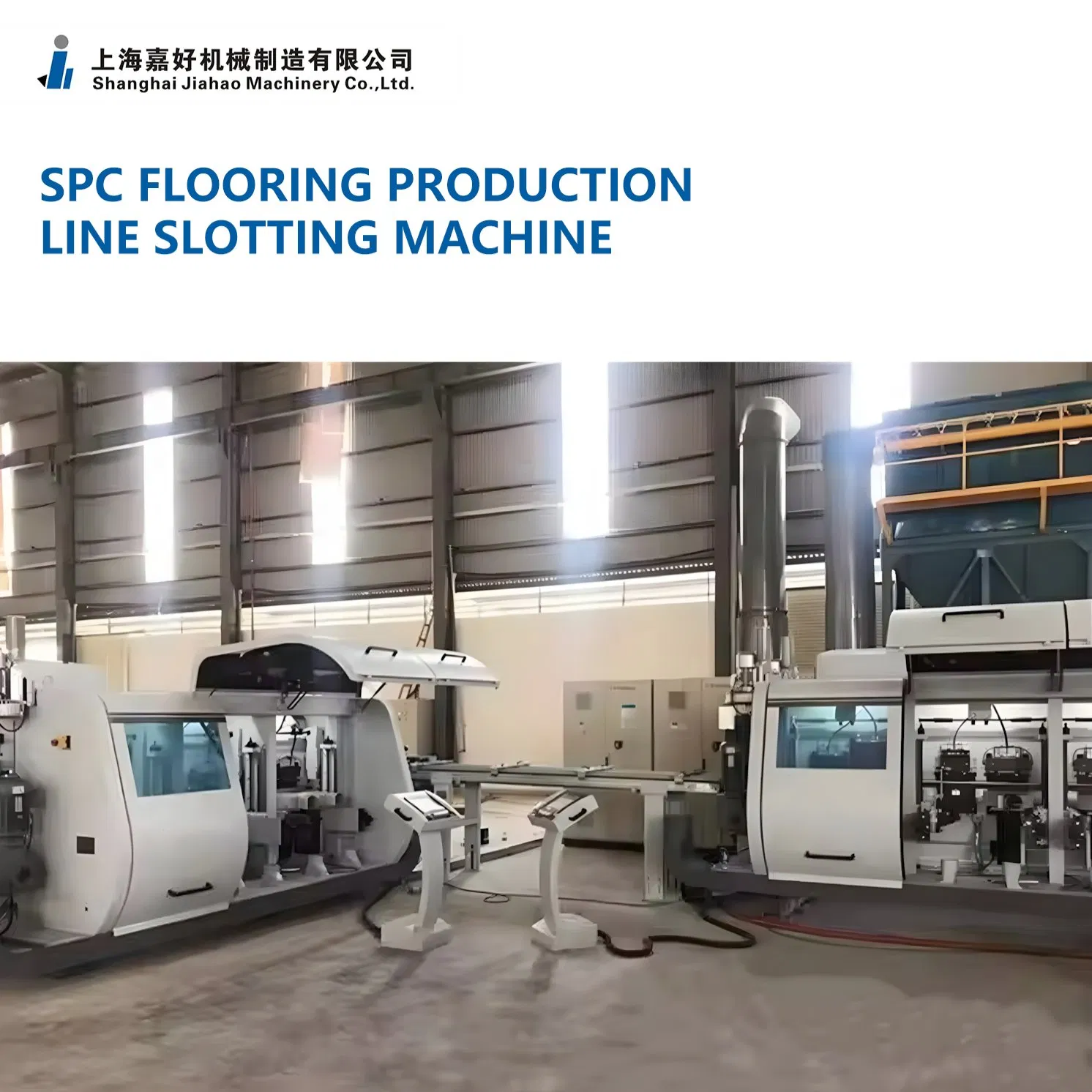

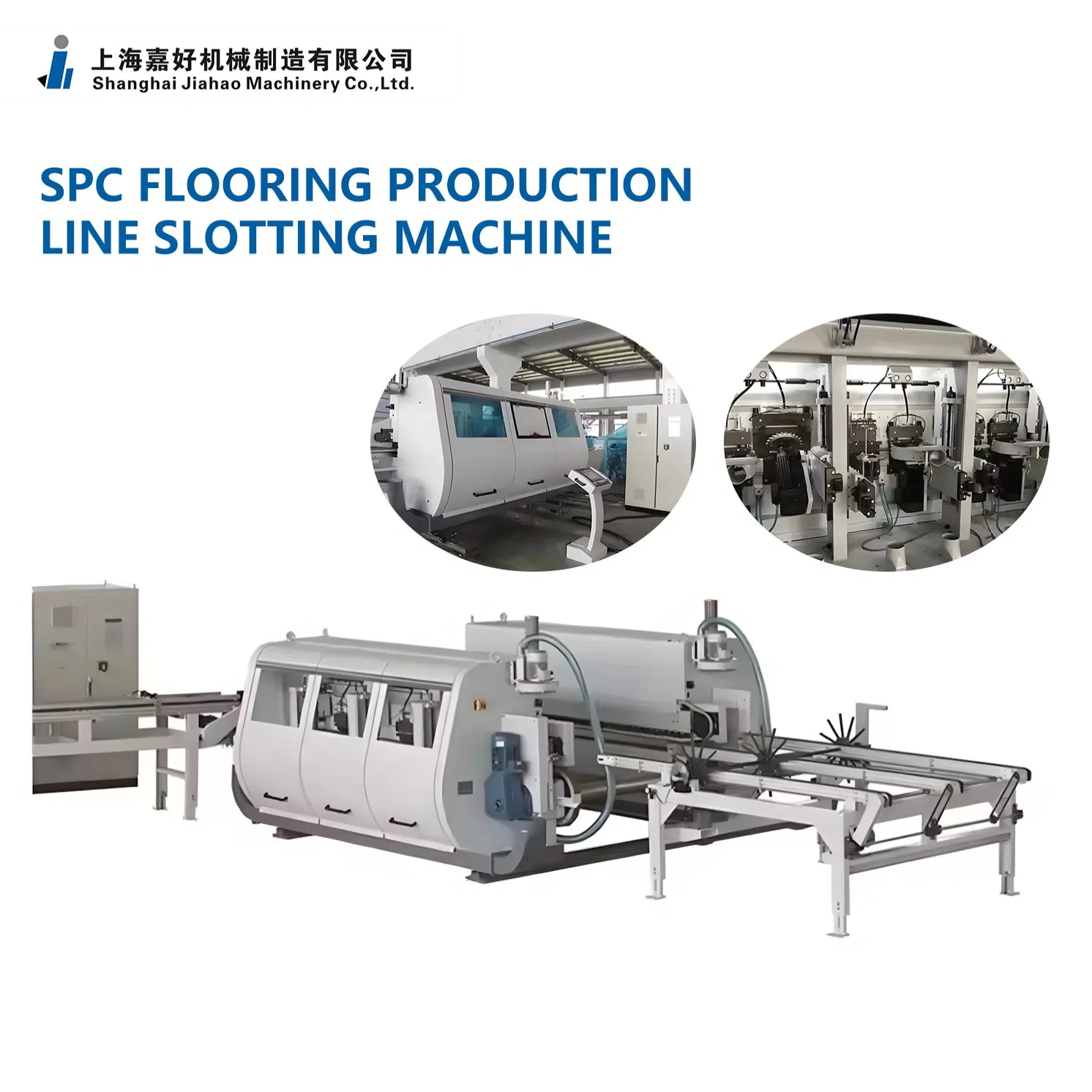

SPC Flooring Production Line Slotting Machine

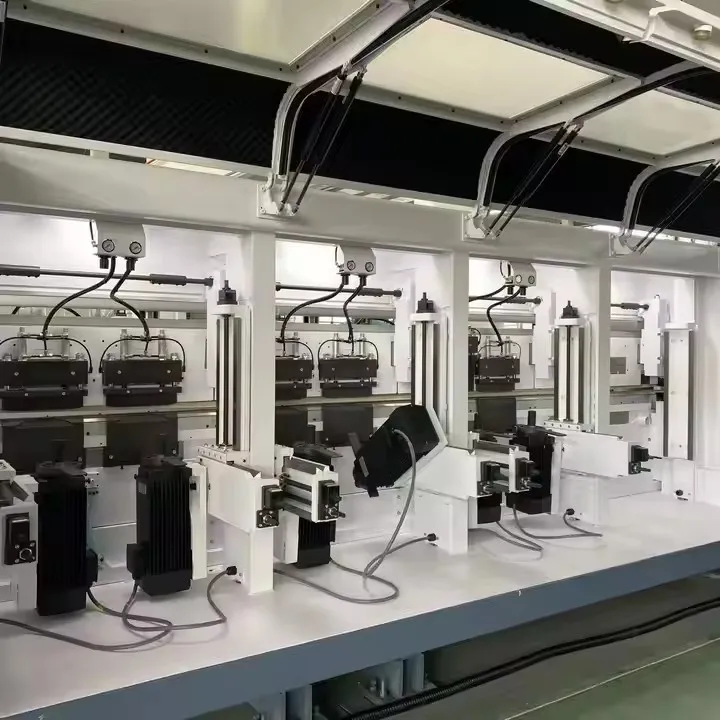

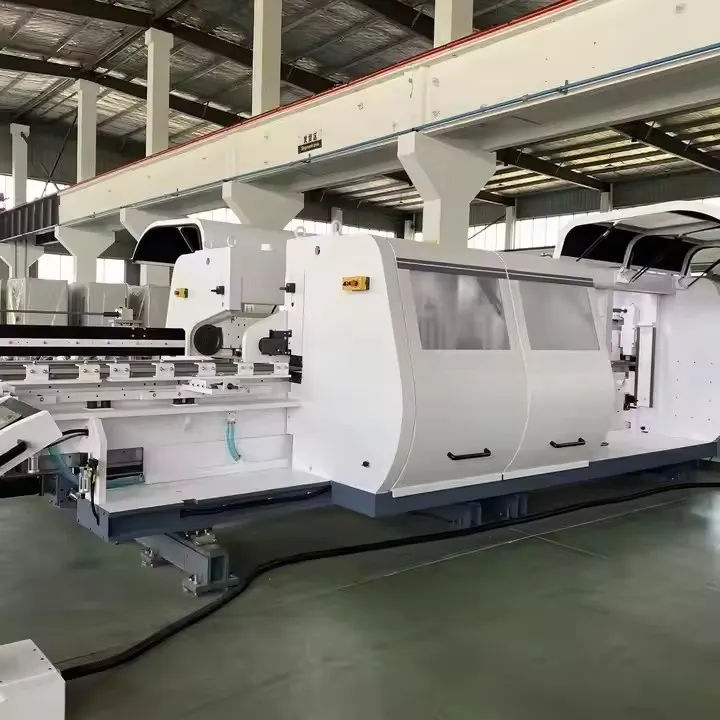

This Double End Tenoner (DET) slotting machine is designed with advanced technology and is applied for SPC flooring, LVT flooring, and laminate flooring production lines. Available in 6+6 stations or 6+8 stations (including scrape cutter). Using precision tools, the slotting line can process Unilin, Valinge, and I4F click systems. This flooring click profile machine offers wide adaptability, fast regulation, and high precision.

📋

Product Parameters

Parameter	Value
Floor Length	600~1800MM
Floor Width	125~300MM
Floor Thickness	3~25MM
Speed	40~120M / Min
Working Voltage	380V / 50Hz
Control Voltage	220V / 50Hz & 24V DC
Total Power	200KW
Air Pressure	0.6~0.8Mpa
Capacity	200,000M2/month (two shifts) for 1220*180MM

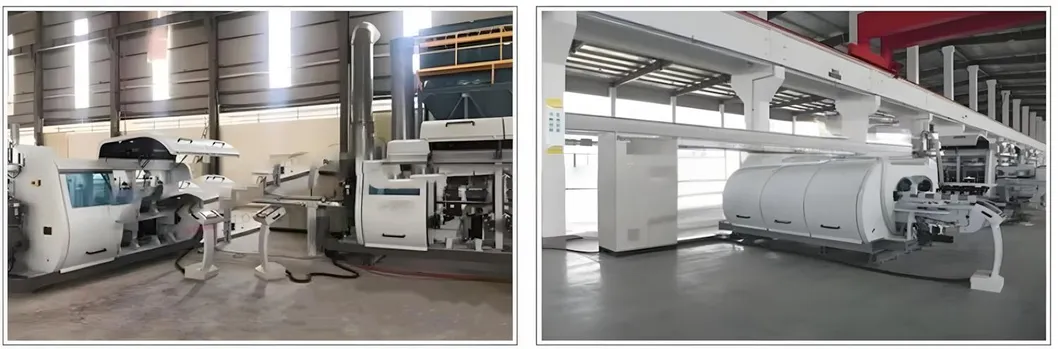

Production Line Components

1. Feeding Rolling Table (1 set)

2. Longwise Double End Tenoner Machine (1 set)

3. Turning Roller Conveyor (1 set)

4. Crosswise Double End Tenoner Machine (1 set)

💡

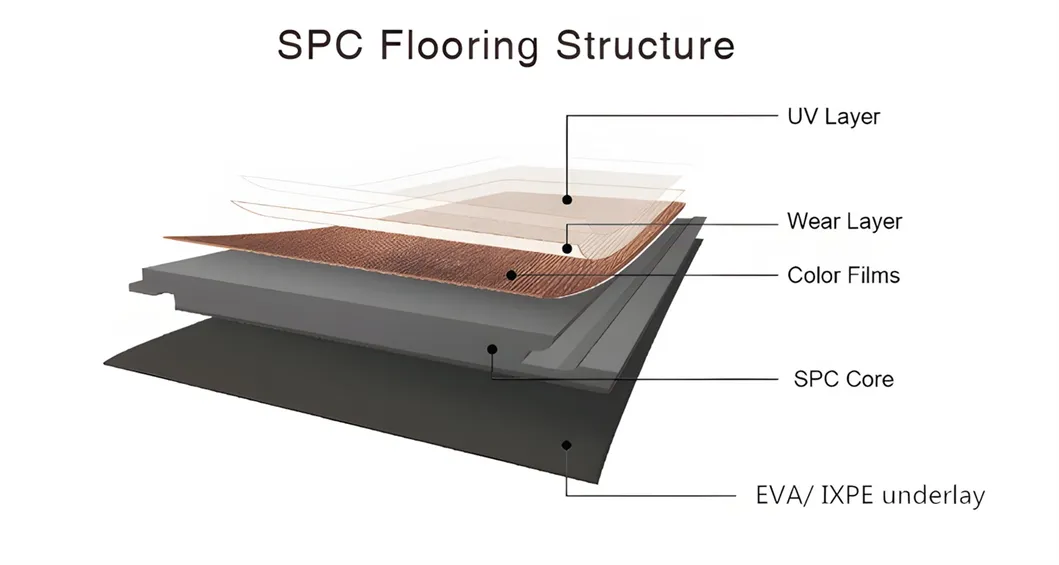

What is SPC Flooring?

SPC stands for Stone Plastic Composite. It is an upgrade of luxury vinyl tiles (LVT). Main contents are natural limestone powder, polyvinyl chloride, and stabilizers, providing a highly stable composite material. It is completely waterproof, high density, and indentation resistant.

🏭

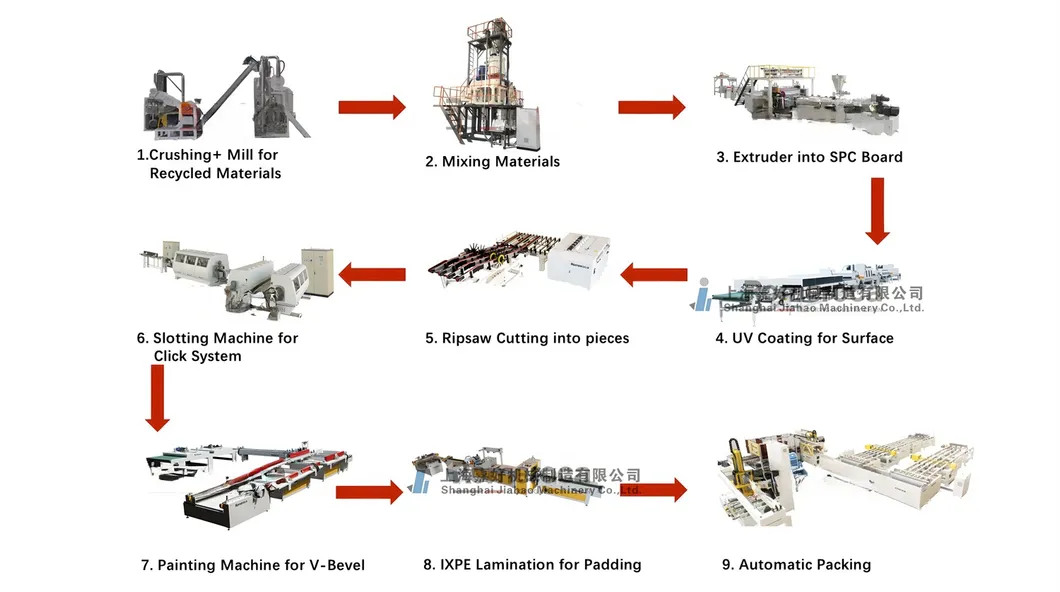

Full Production Process

1. Crushing + Milling: Recycles waste materials into powder for reuse.

2. Mixing: Uniformly combines raw materials and removes moisture.

3. Extrusion: Forms sheet shape and laminates wear-resistant layers and color film.

4. UV Coating: Protects the surface from dust and scratches.

5. Cutting: Rips the big board into required plank sizes.

6. Slotting: Processes the four sides into specific lock shapes (Click System).

7. V-groove Painting: Optional process for aesthetic edge painting.

8. IXPE/EVA Underlay Laminating: Adds sound insulation backing.

9. Packing: Fully automatic or semi-automatic packing.

🛠️

Project Solutions & Support

We offer full-scale solutions for rigid core PVC flooring production including:

Full production line machinery (Extruders, Mixers, UV, Slotting).
Raw materials (PVC SG5, Stabilizers, Decor Films, UV Paint).
Spare parts (PCD cutters, Saw blades, Moulds, Rollers).
Test equipment (Drying ovens, Tensile testers, Scratch testers).

🚢

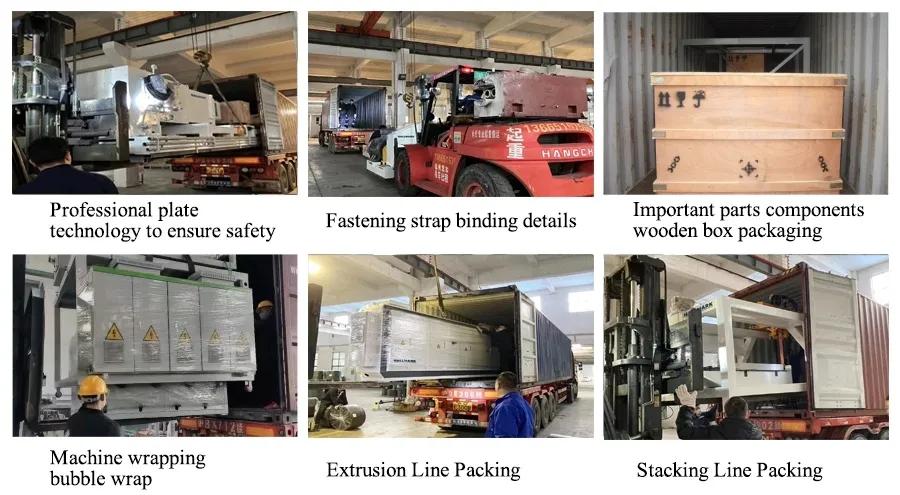

Packaging & Shipping

❓

Frequently Asked Questions

What click systems can the slotting machine process?

The slotting line is compatible with major click systems including Unilin, Valinge, and I4F profiles using precision PCD cutters.

What is the production capacity of this line?

The standard capacity is approximately 200,000 square meters per month based on two shifts for standard 1220*180mm planks.

Is the machinery automated?

Yes, the production line features automatic and computerized controls for high precision and efficiency during the extrusion and slotting processes.

Do you provide technical support and training?

We provide comprehensive technical guidance, factory layout design, machine operation training, and 12-month warranty coverage on machinery.

Can you supply the raw materials required for SPC flooring?

Yes, we can supply all necessary chemicals (PVC, stabilizers, ACR), wear layers, decor films, and underlayments, often shipped together to save costs.

What are the key advantages of SPC over traditional LVT?

SPC flooring offers superior stability, 100% waterproof performance, better indentation resistance, and is completely formaldehyde-free.
