Raised Floor System Guide for Office Datacenter Workplant Telecommunications Facilities

i

Overview & Basic Info

Model NO.

1250

Material

Steel and Foamed Cement

Size

600X600mm, 610X610mm, 500X500mm

Function

Thermal Insulation, Fireproof, Anti-static

Surface Treatment

Epoxy Powder Coating

Certification

CE, ISO, ASTM, Cisca

Fire Resistance

Class A

Service Life

15~20 Years

P

Product Description

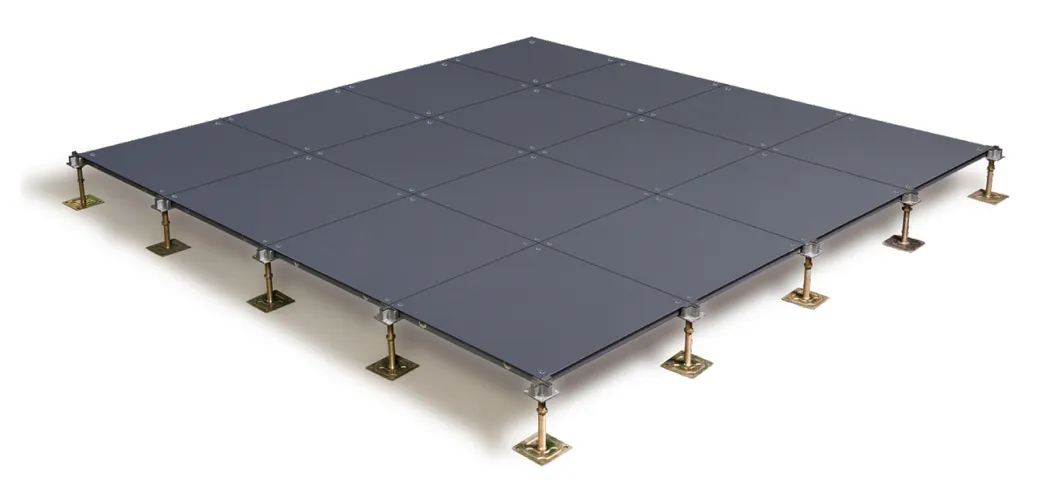

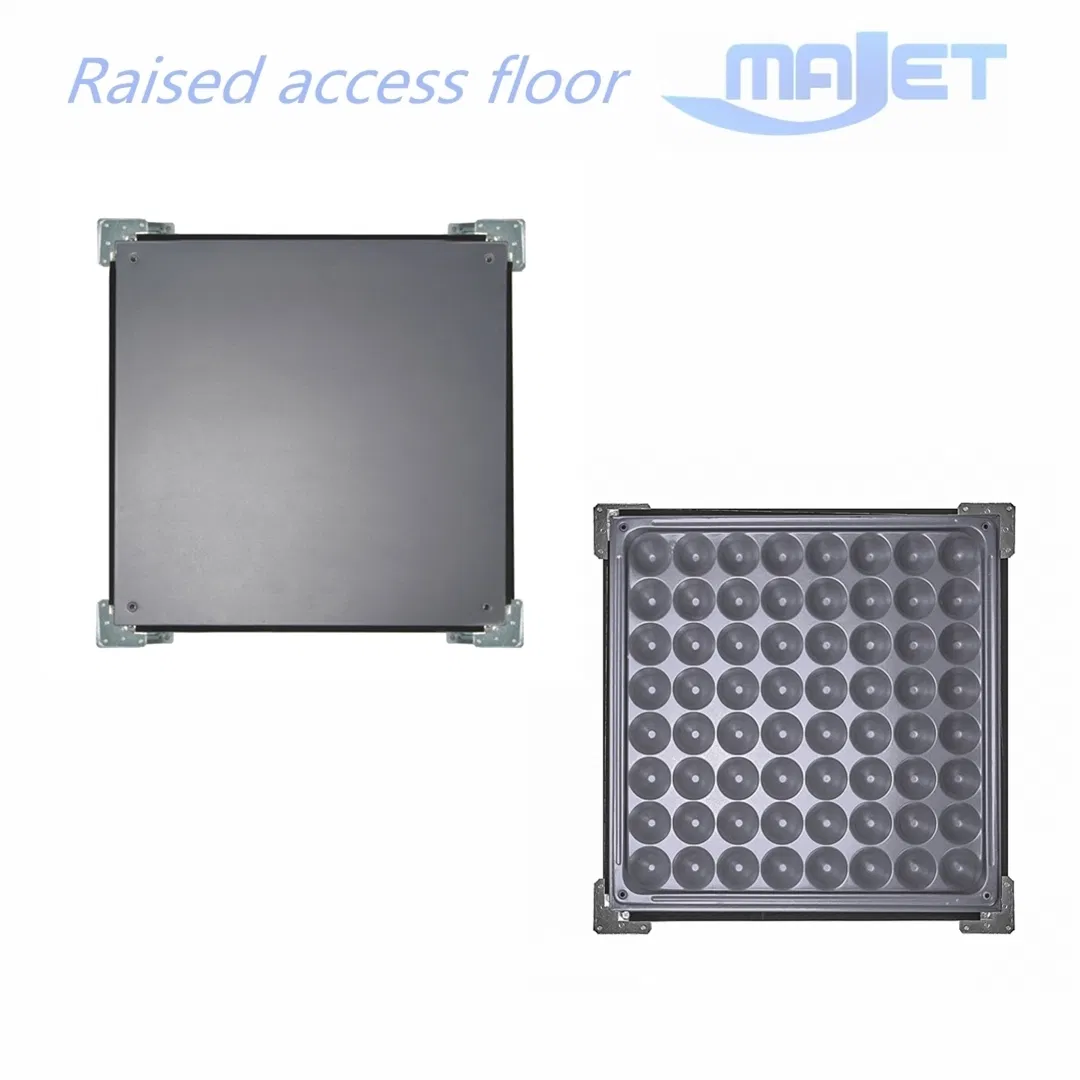

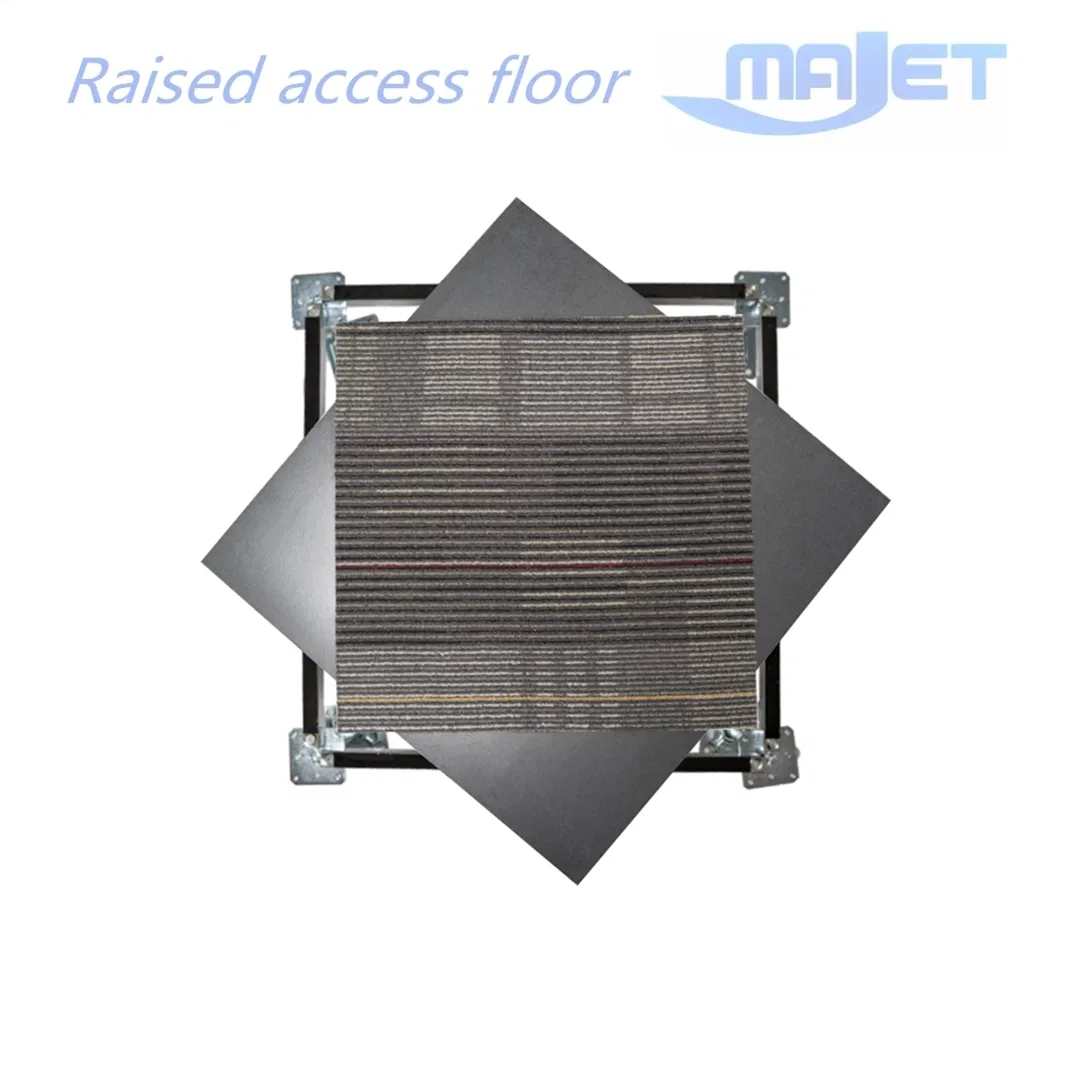

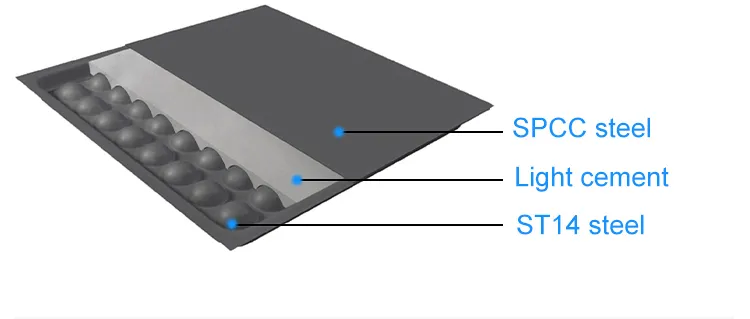

Steel Raised Floor System is mainly assembled with the durable bare steel heavy-duty OA access flooring panel made from a combination of steel sheet outer shell and lightweight concrete core. A significant high resistance to fire and loads as well as its acoustic absorption level and inalterability under moisture guarantee its suitability for all kind of areas of use.

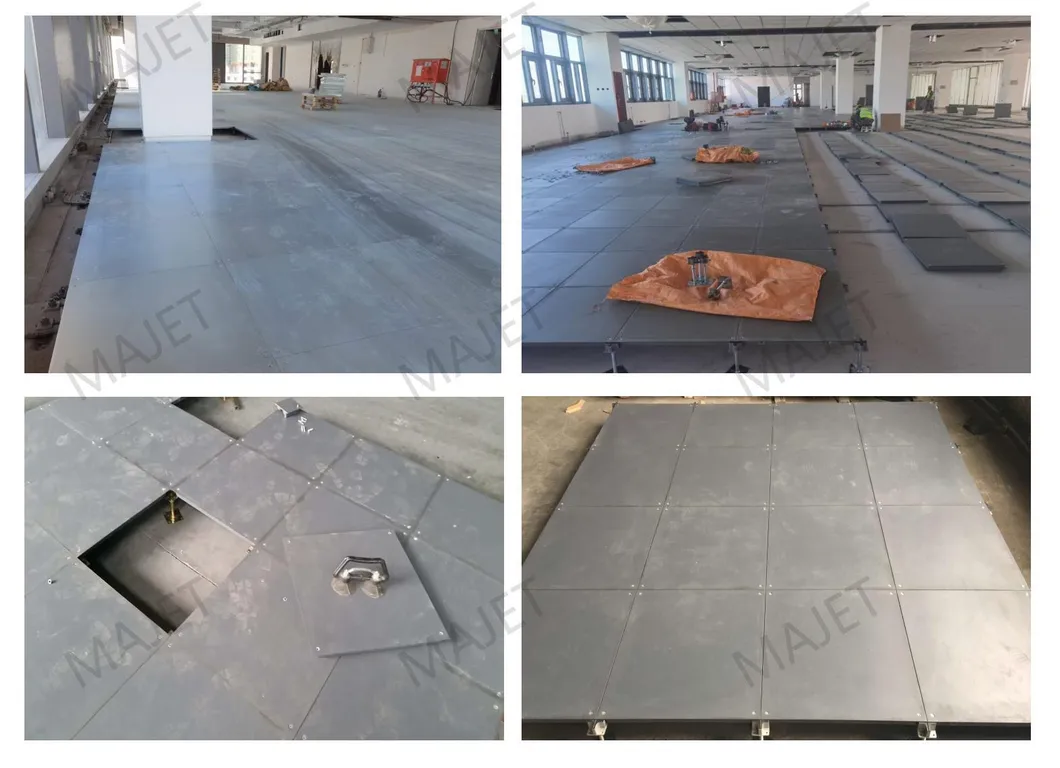

Support Systems

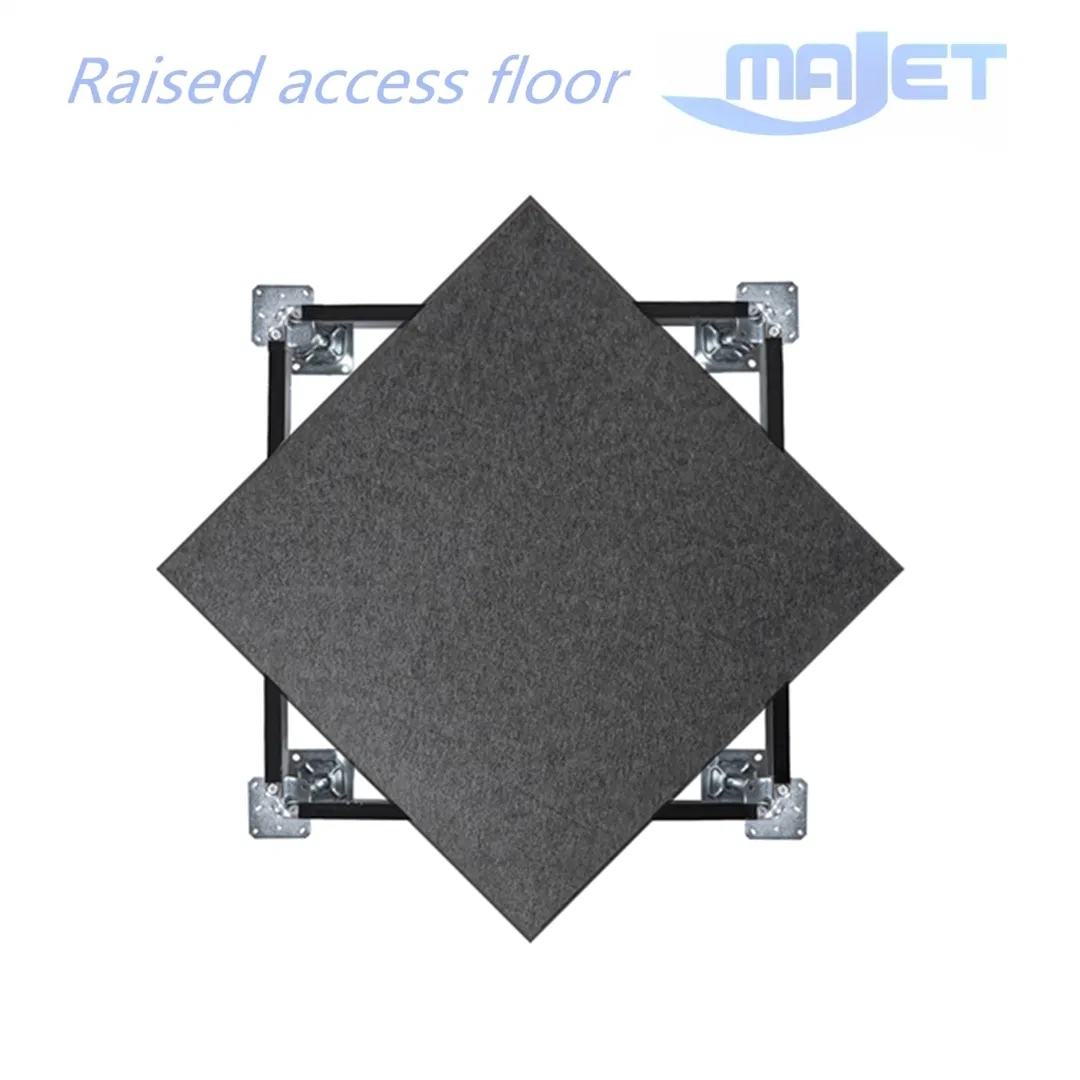

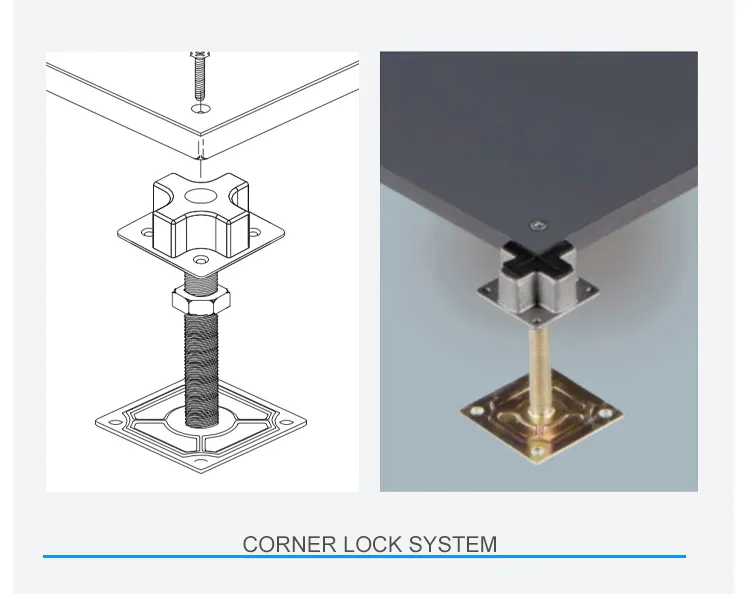

1. Corner-locked system: Uses aluminum head pedestals, suitable for normal offices with heights below 300mm.

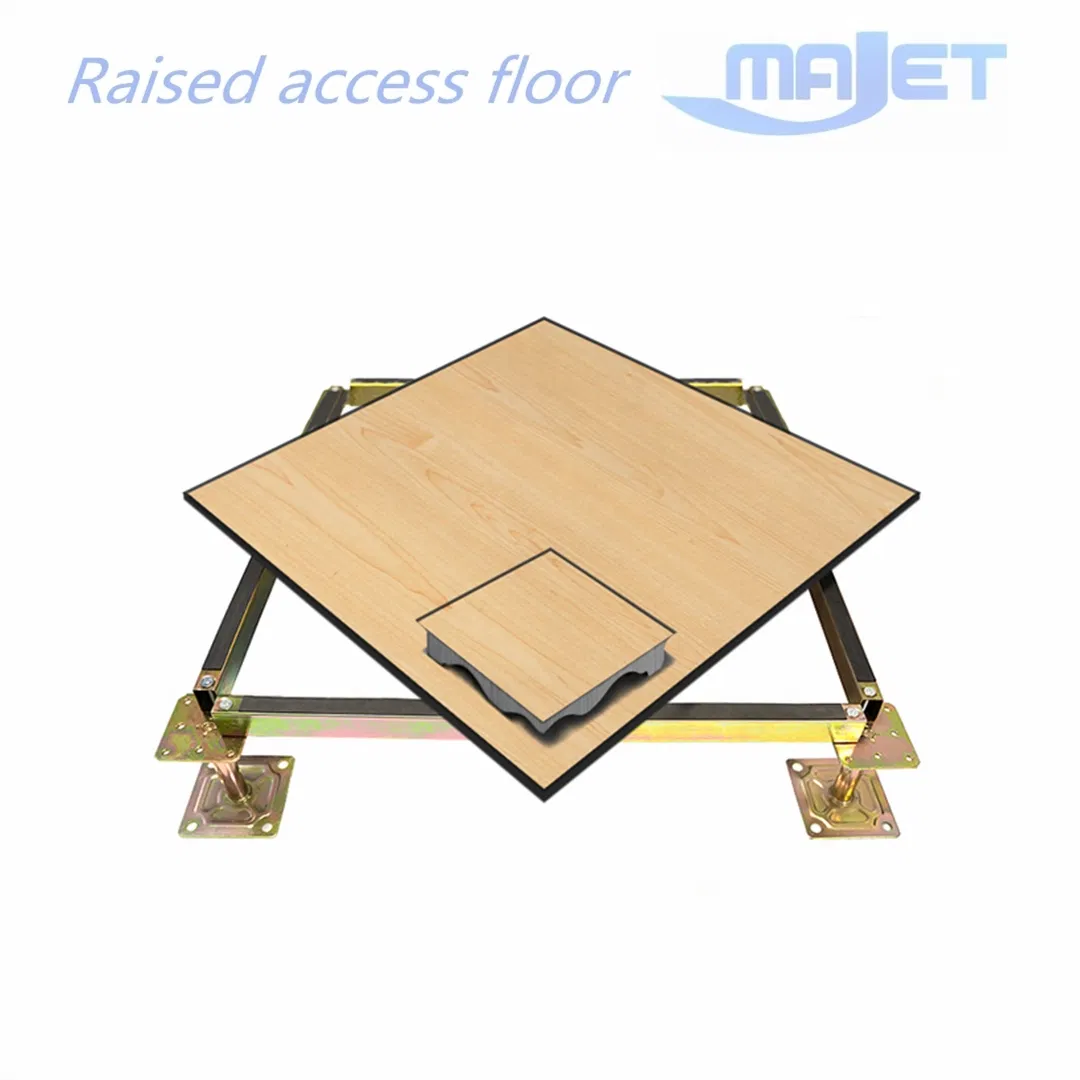

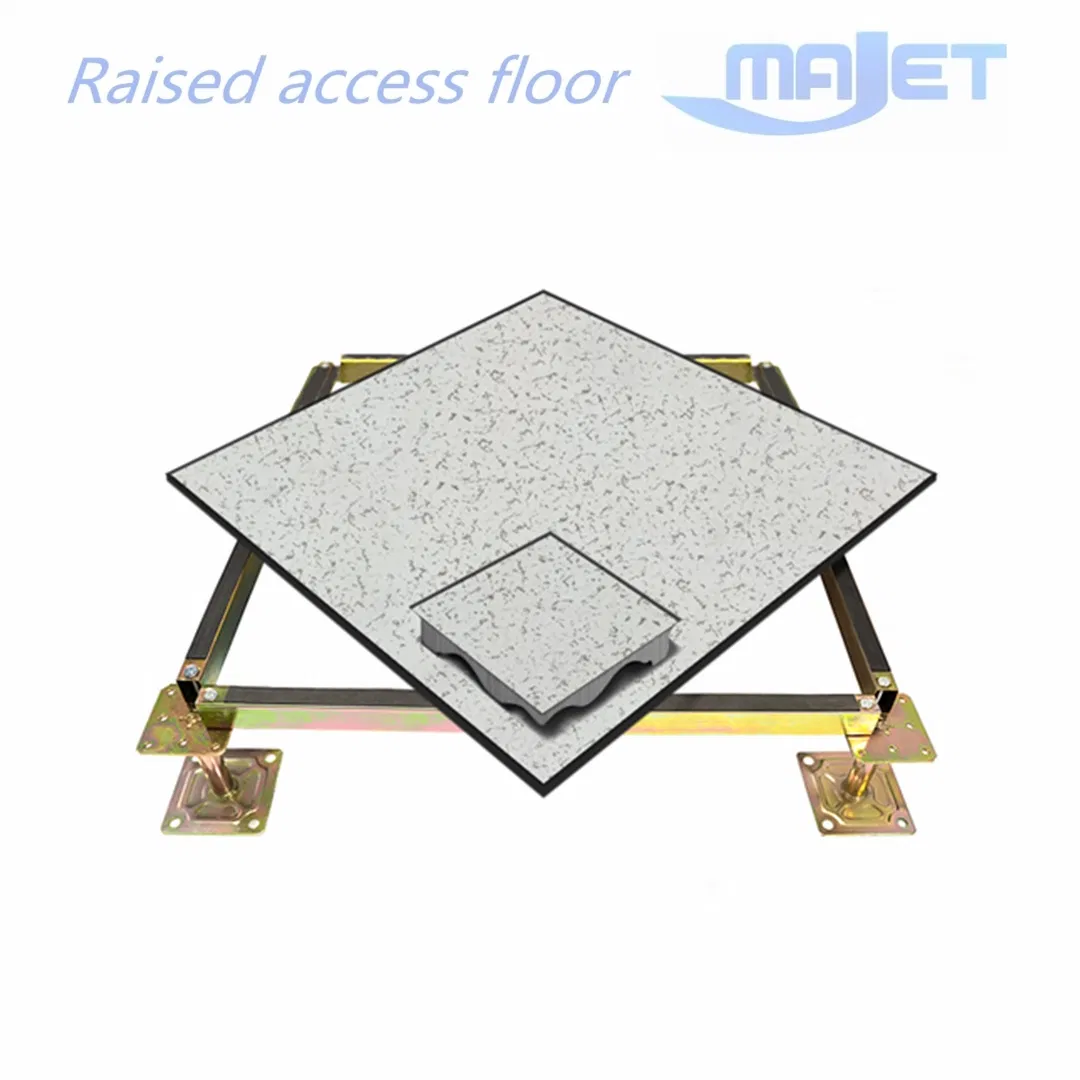

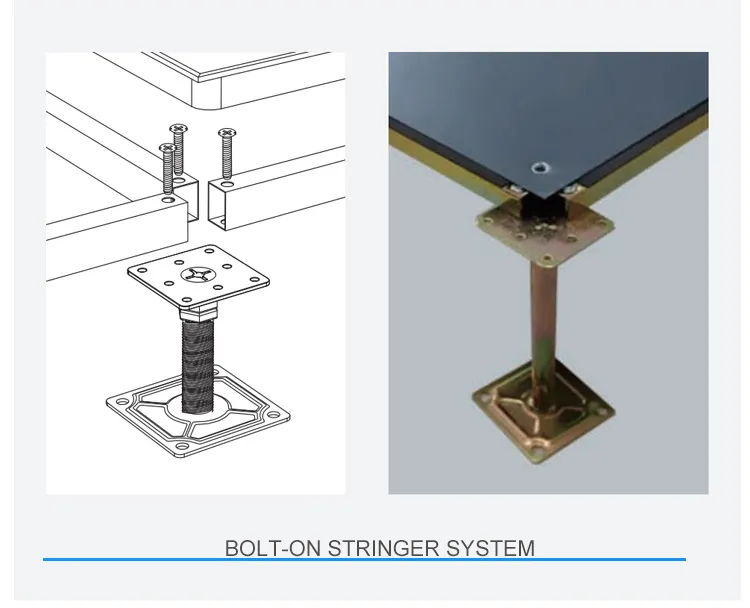

2. Stringers and pedestal system: Uses both stringers and pedestals, suitable for heavy duty or extra heavy duty sites, or heights over 300mm.

S

Load Bearing Specifications

Our raised floor follows the CISCA standard for load-bearing classification. Use the table below to select the appropriate level for your facility.

Model	Concentrated (N)	Impact (N)	Ultimate (N)	Uniform (N/m2)
SC668	≥2990	670	≥8890	≥12500
SC800	≥3590	670	≥10799	≥19796
SC1000	≥4498	670	≥13494	≥23294
SC1250	≥5595	670	≥16797	≥33084
SC1500	≥6693	670	≥20090	≥42581
SC2000	≥8898	670	≥26685	≥49784

A

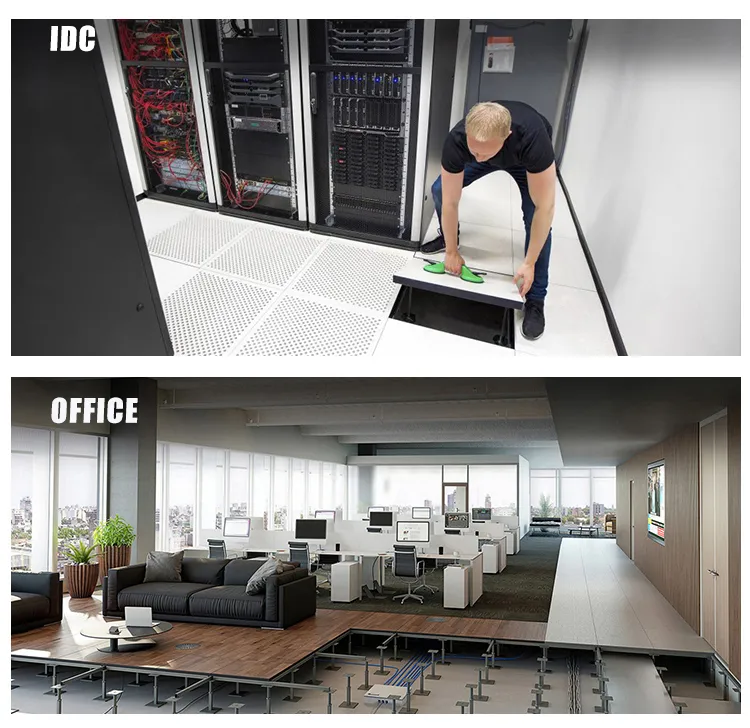

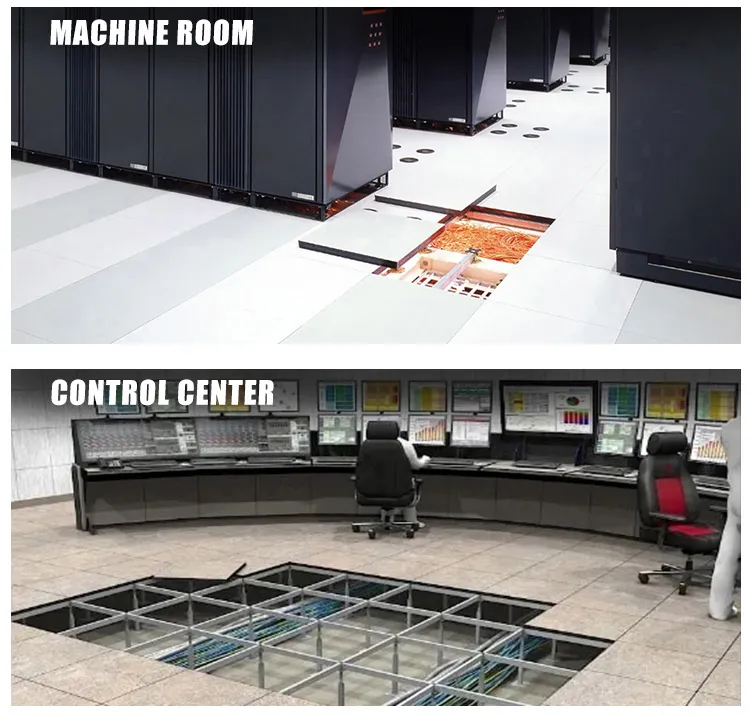

Applications

Common environments include:

Data Centers and Server Rooms (Temperature control & cable management)
Modern Office Spaces (Adaptability & infrastructure access)
Cleanrooms and Laboratories (Sterile conditions & utility routing)
Industrial Settings (Safety walkways & equipment access)
Museums and Galleries (Aesthetics & security wiring concealment)

M

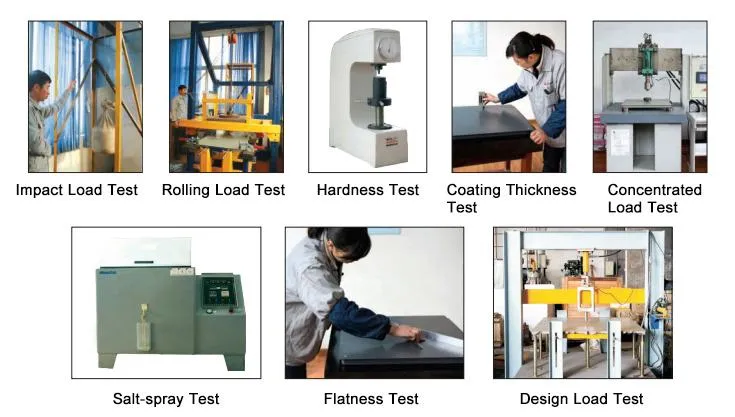

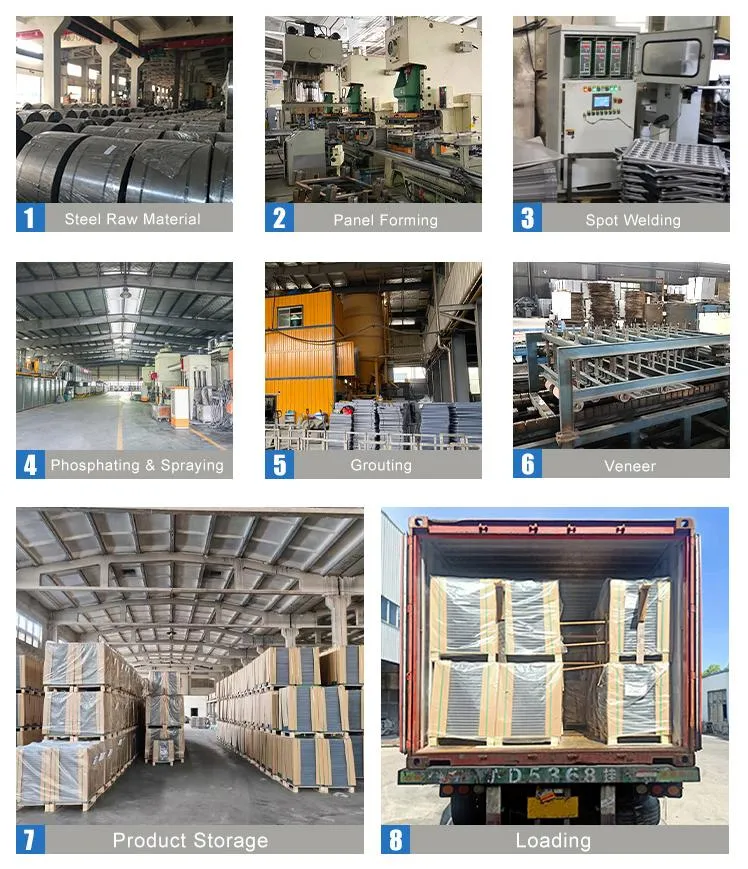

Manufacturing & Quality

?

Frequently Asked Questions

Q1: What are the advantages of steel raised floors for office applications?

Steel flooring is the most cost-effective choice. It is lightweight compared to calcium sulfate floors but offers high load-bearing capacity. It is highly convenient for overseas shipping and is the most widely used variety in modern offices.

Q2: How can I achieve different office designs with veneer materials?

Diversified designs are achieved using carpet (for noise reduction and comfort), ceramic tiles (for durability and easy cleaning), or HPL (for anti-static properties and varied patterns like wood grain or marble).

Q3: What is the long-term effect of different floor types?

Calcium sulfate boards offer excellent long-term durability and corrosion resistance. Steel floors, while not naturally rust-resistant, are protected by high-quality epoxy coatings to ensure a long service life.

Q4: Can these floors be used with other equipment?

Yes, the modular design facilitates use with air conditioning units, floor boxes, diffusers, and fans. Surface holes can be customized for specific equipment installation.

Q5: What is your product range?

Our range includes bare steel, laminated steel, calcium sulfate, aluminum, and wood core raised floors, along with accessories like airflow panels, stringers, and outlet boxes.

Q6: What certifications do your products hold?

Our products are backed by ISO certification, KS certification, and comprehensive reports including Static, QAS, VOC, CISCA, MOB, and SGS.
