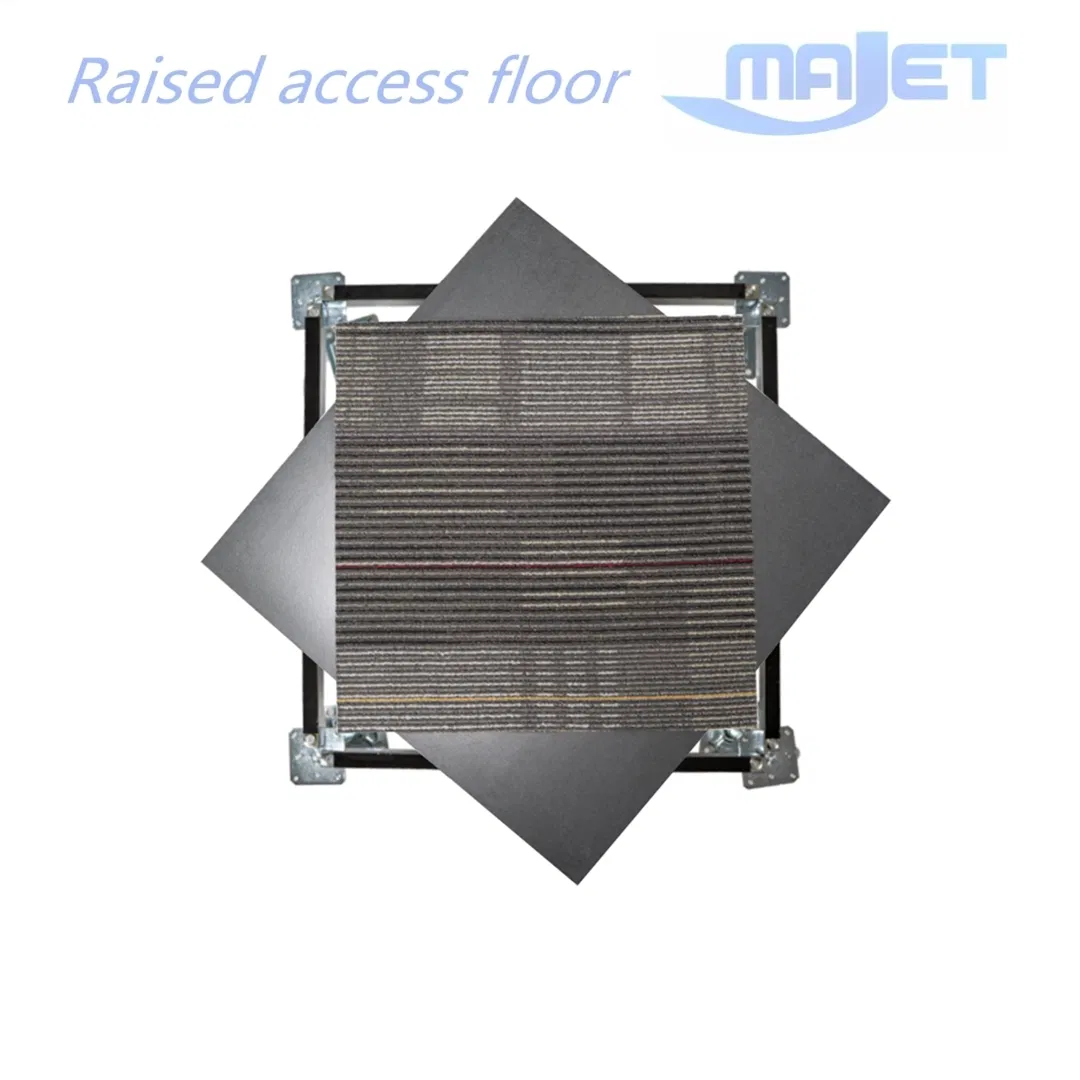

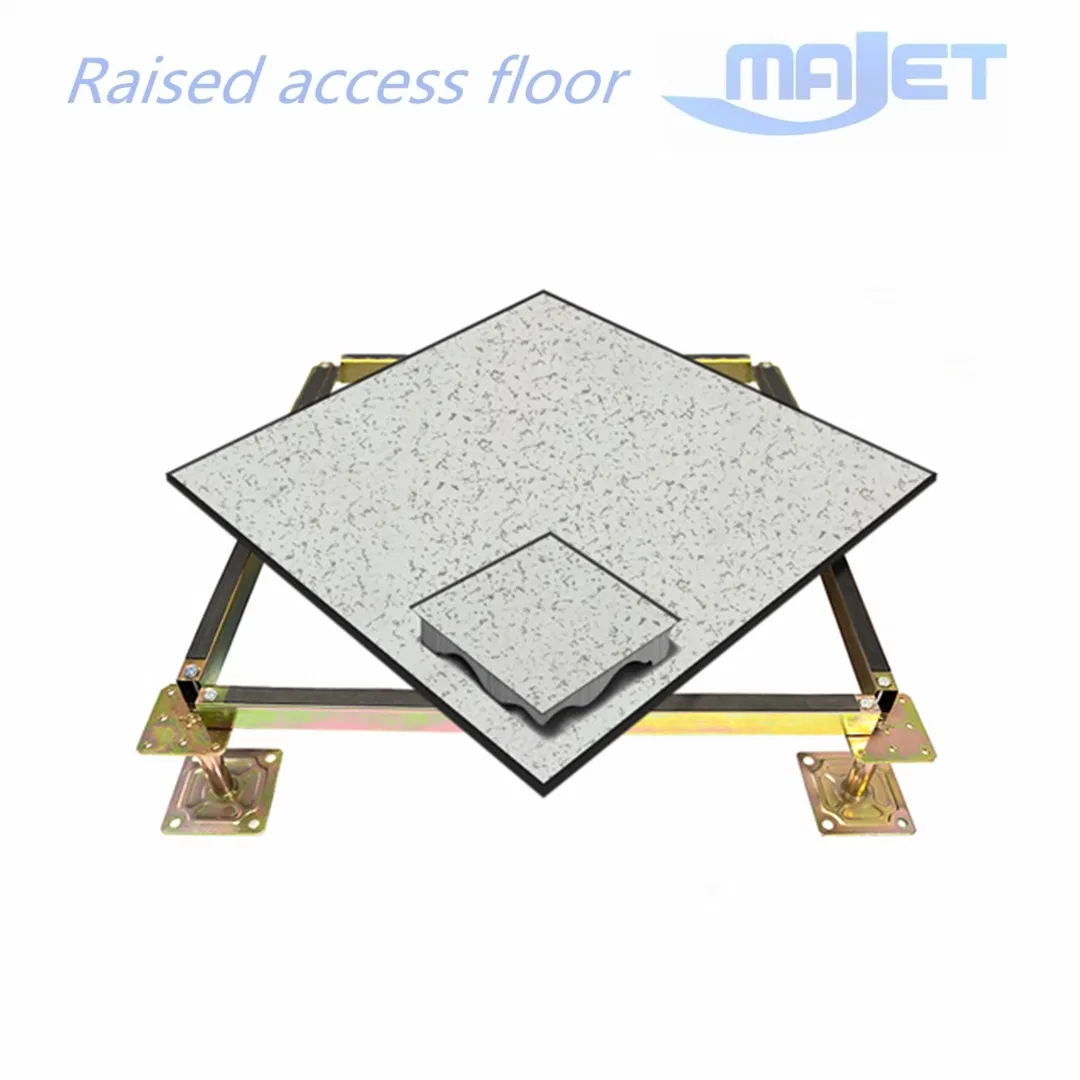

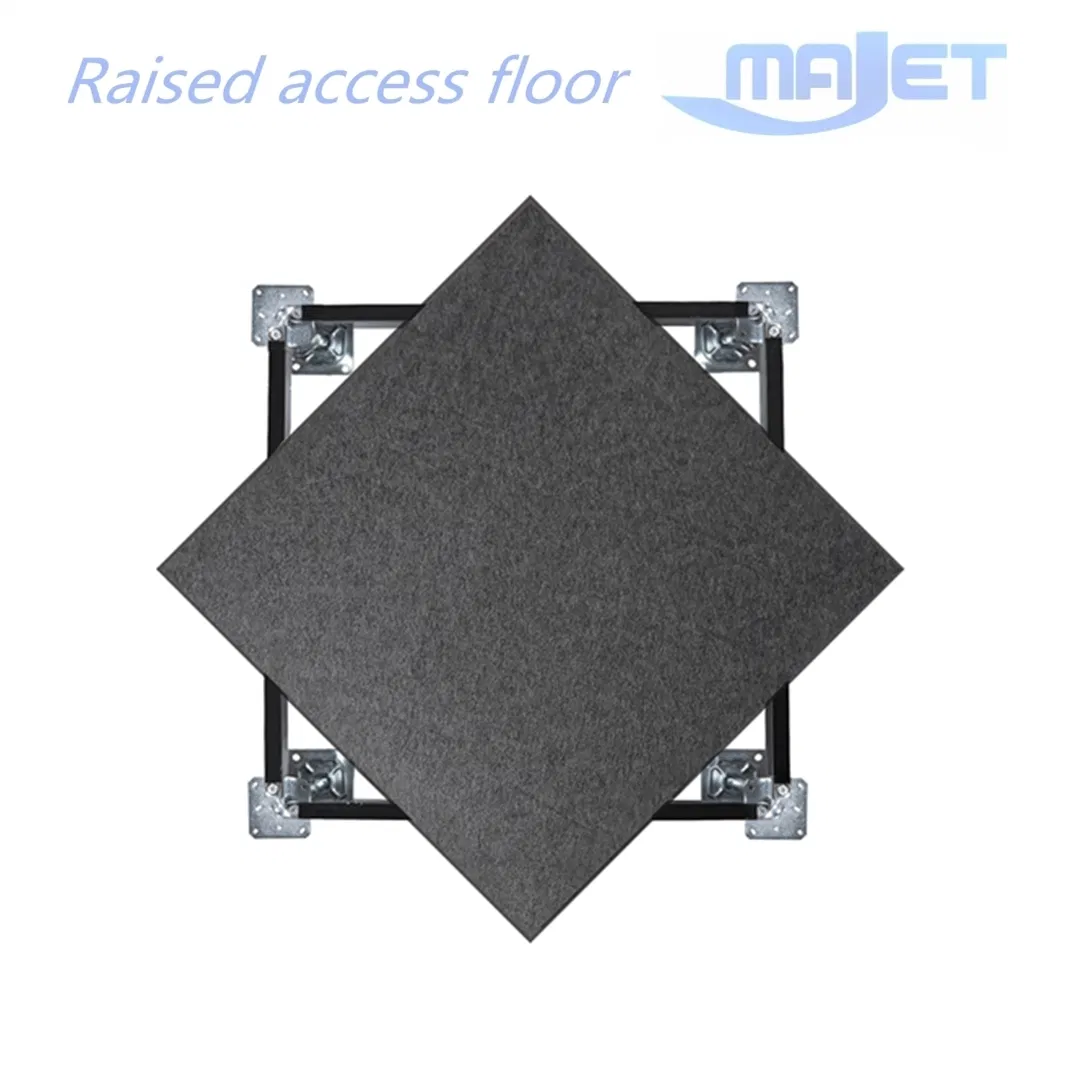

Raised Access Flooring System 600X600 China Manufacturer
Product Description
ℹ
Basic Specifications
Model NO.FS668/FS800/FS1000/FS1250/FS1500
MaterialSteel and Foamed Cement
Size600X600mm, 610X610mm, 500X500mm
FunctionThermal Insulation, Fireproof, Soundproof, Anti-static
Fire ResistanceClass A
Service Life15 - 20 Years
⚙
Product Description
Steel Raised Flooring Systems are ideal for computer rooms and areas with extensive cabling. These panels are made of galvanized steel for exceptional strength, providing superior stability, rigidity, and impressive load capacity.

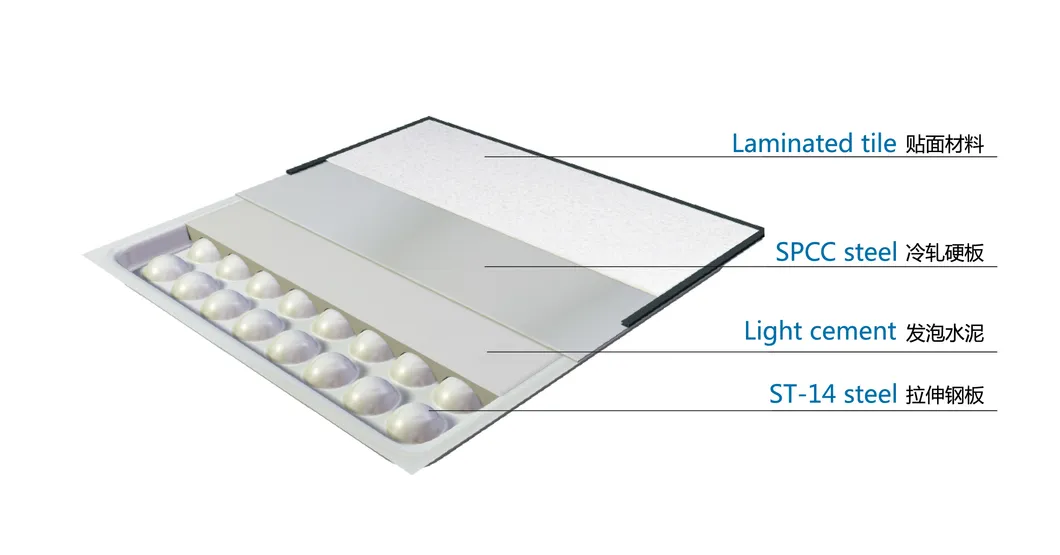

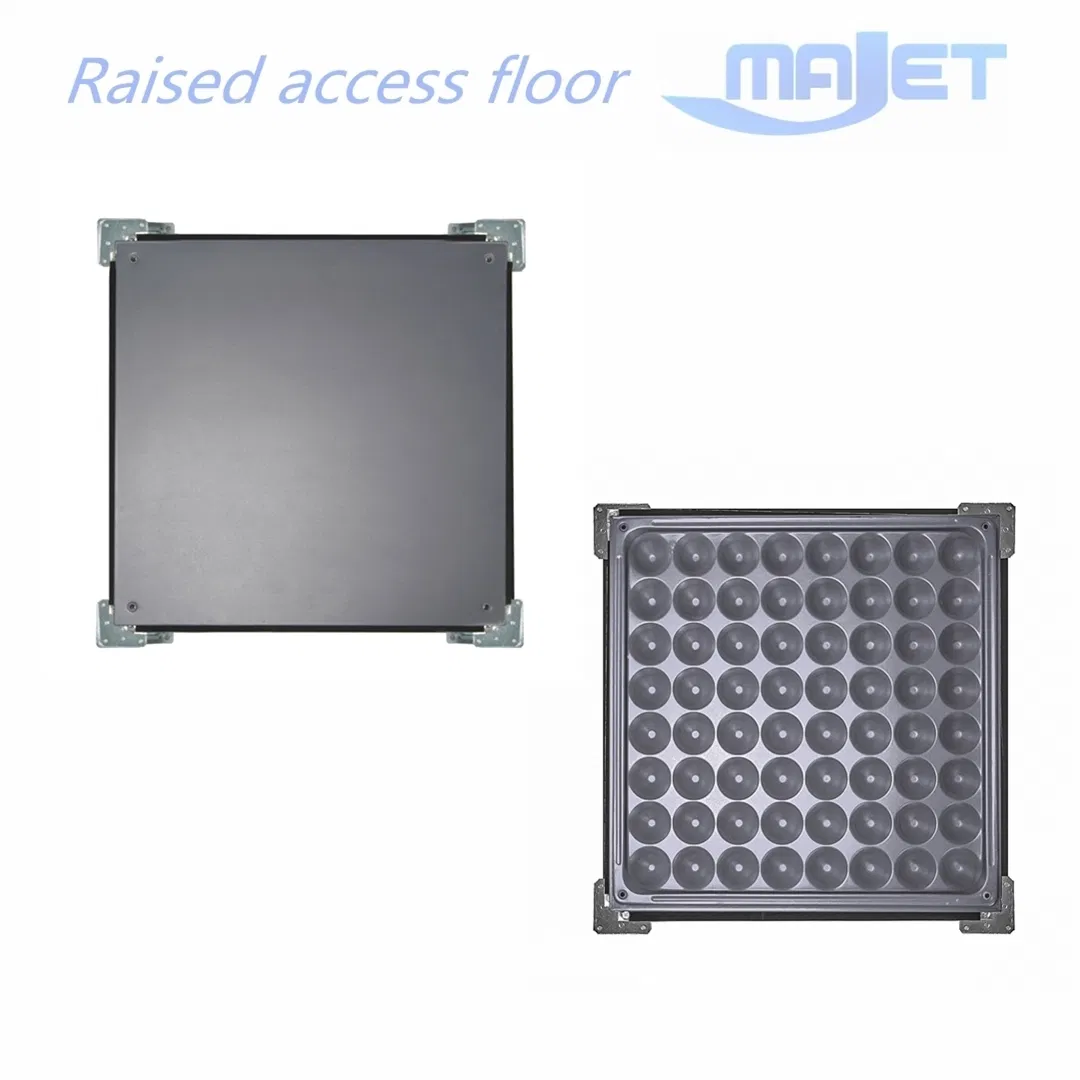

Anti-static steel raised floors are fabricated with SPCC steel welded to a formed steel bottom pan, filled with lightweight cement. The shell is protected by anti-corrosive epoxy paint. Top coverings include conductive vinyl, high-pressure laminate (HPL), or ESD carpet tiles for controlled static dissipation.

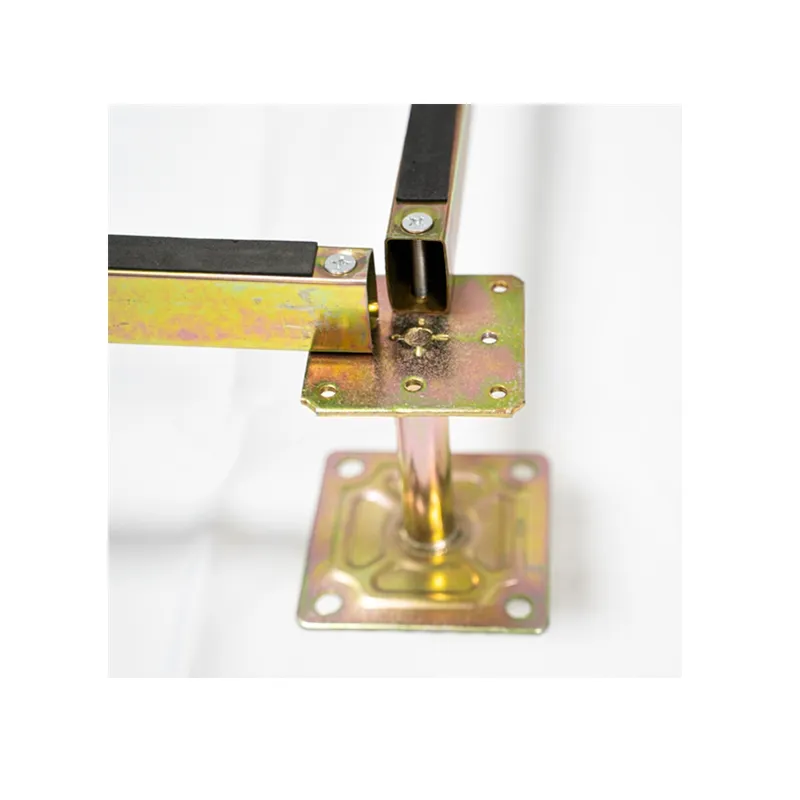

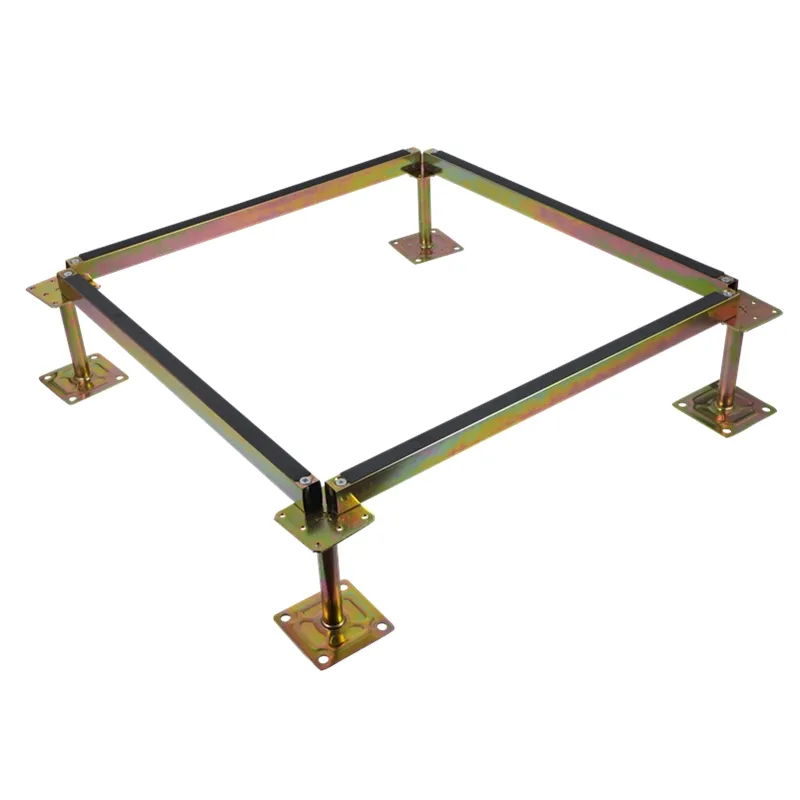

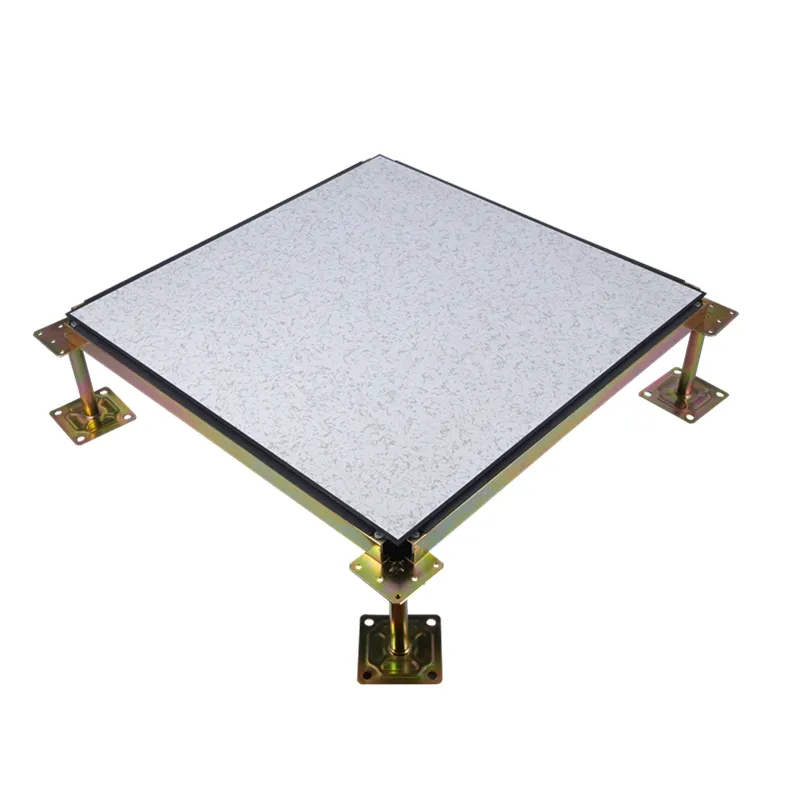

Support System
Our stringer and pedestal system is designed for heavy-duty environments like server rooms and data centers, providing high transverse tension and stability.
📊
Technical Load Performance
| Model | Concentrated (N) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load | |
|---|---|---|---|---|---|---|
| 10 Times | 10,000 Times | |||||
| SC668 | ≥2990 | 670 | ≥8890 | ≥12500 | 2215 | 1548 |
| SC800 | ≥3590 | 670 | ≥10799 | ≥19796 | 2959 | 2215 |
| SC1000 | ≥4498 | 670 | ≥13494 | ≥23294 | 3596 | 2959 |
| SC1250 | ≥5595 | 670 | ≥16797 | ≥33084 | 4498 | 3596 |
| SC1500 | ≥6693 | 670 | ≥20090 | ≥42581 | 5595 | 4498 |
🌟
Key Advantages
- Waterproof and moisture-resistant core material.
- Environmentally friendly: No pollution or radiation.
- High fire prevention rating, increasing safety escape time.
- Adjustable height with high stability stringer supports.
- Precision cutting-edge structure for superior adhesive force.
🏢

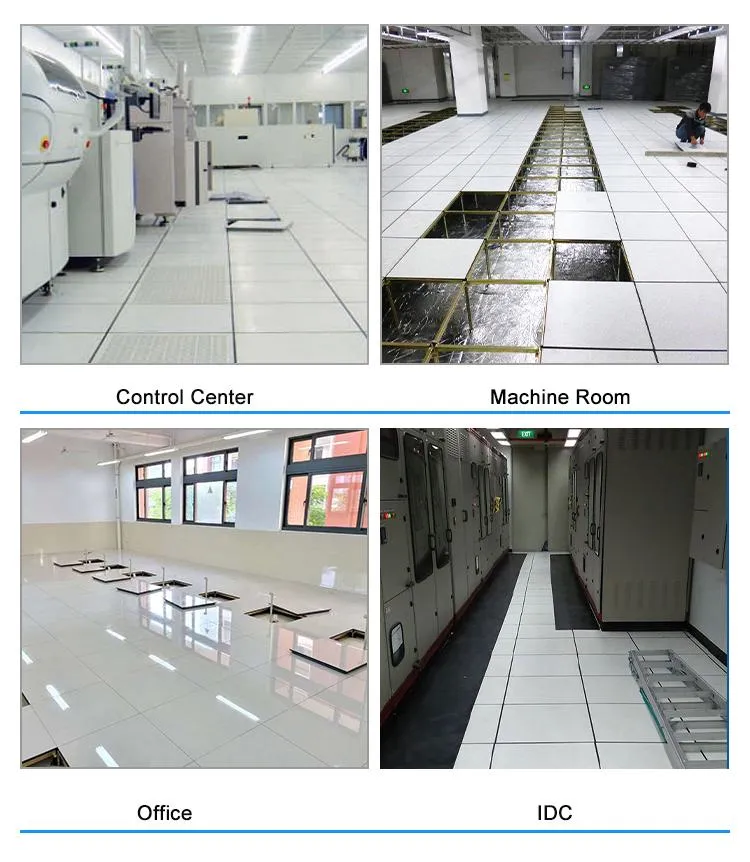

Industry Applications

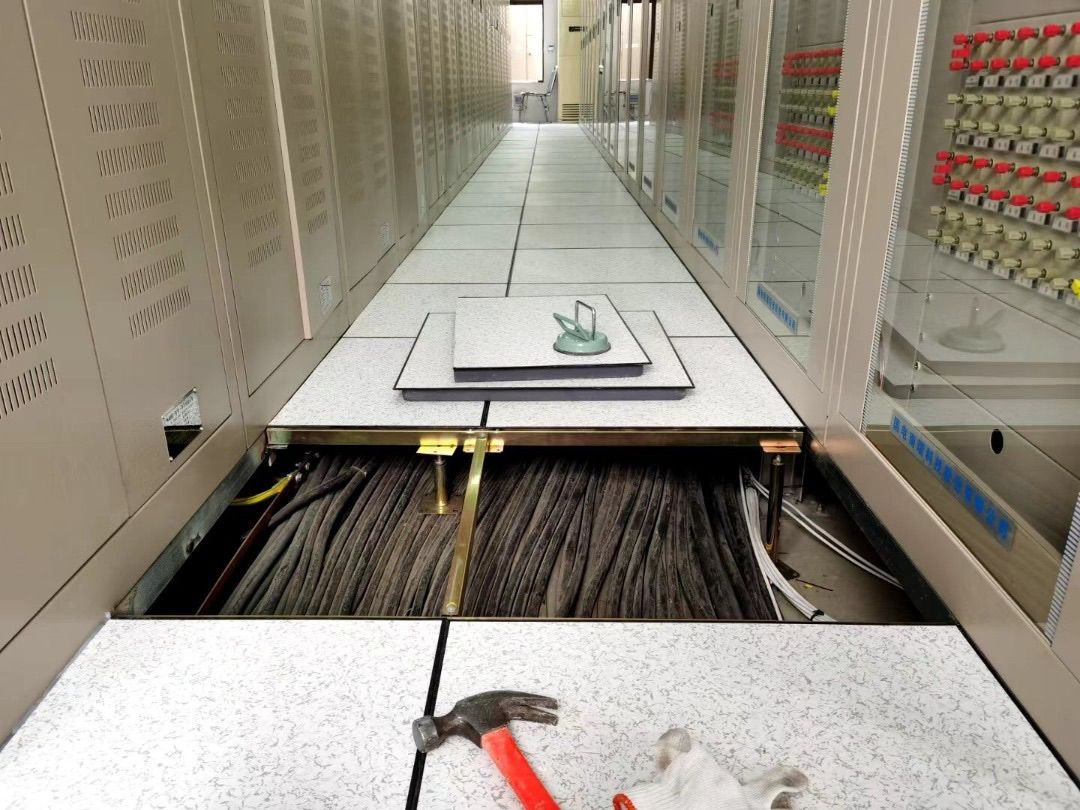

Data Centers & Server Rooms: Controls static electricity to protect delicate components.
Laboratories: Prevents interference with sensitive research experiments.
Healthcare: Protects electronic medical equipment from ESD.
Broadcasting Studios: Safeguards audio/video equipment from static noise.
🏭

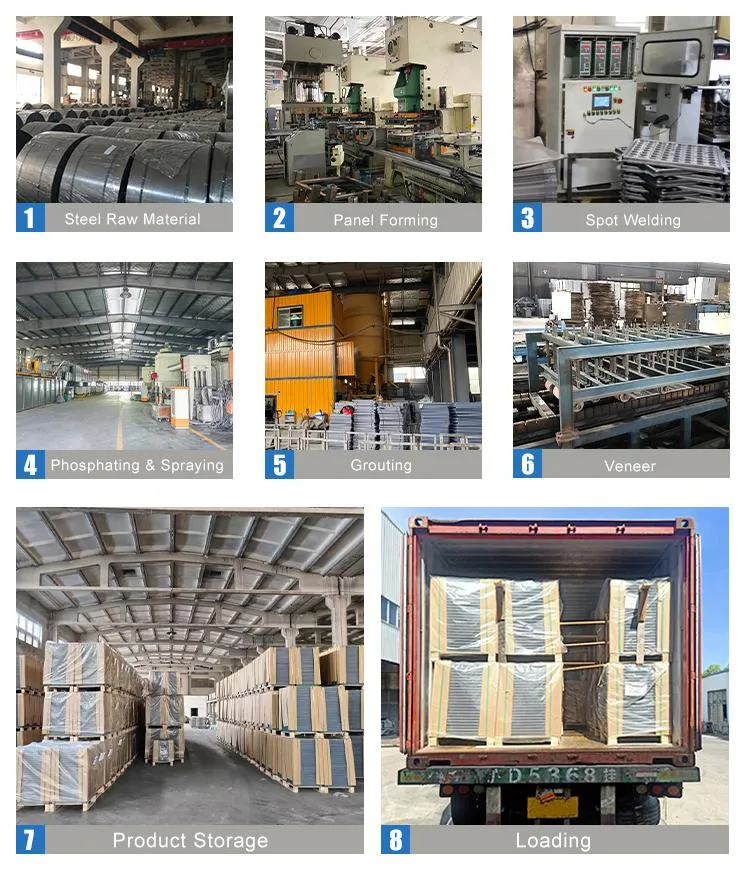

Production Process
❓
Frequently Asked Questions
Q1: Which type of flooring is most cost-effective for offices?
Steel flooring is the most cost-effective choice. It is lighter than calcium sulfate floors but offers higher load-bearing capacity than wood core boards, saving on shipping and installation.
Q2: How do I choose the finish material for anti-static floors?
HPL is ideal for laboratories and computer rooms due to its wear resistance. PVC is great for clean workshops with its long-lasting antistatic properties. Conductive ceramic tiles offer the best durability and aesthetic appeal for high-end facilities.
Q3: Are samples available before bulk ordering?
Yes, free samples are typically provided based on your detailed requirements to ensure the product meets your project specifications.
Q4: What is the expected delivery time?
Standard production and delivery time is approximately 30 days after receiving the prepayment, depending on the order volume.
Q5: What certifications do your raised floors carry?
Our products meet international standards including ISO, CE, ASTM, CISCA, and various VOC and static performance reports.
Q6: Can these floors be used with underfloor air distribution?
Yes, the modular design allows for the installation of floor boxes, diffusers, and fans, making them perfect for modern air conditioning circulation systems.
