ceiling tile veneer Nano 2/2/0.5mm micro perforated acoustic wall panels soundproofing board

1 / 5

ceiling tile veneer Nano 2/2/0.5mm micro perforated acoustic wall panels soundproofing board

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.2/2/0.5mm

ColorOak Veneer

EnvironmentalE0

Fire RatingClass A/B

InstallationClip System

Thickness15mm MDF

FormaldehydeEN717

Core MaterialMDF

🎯 Product Highlights

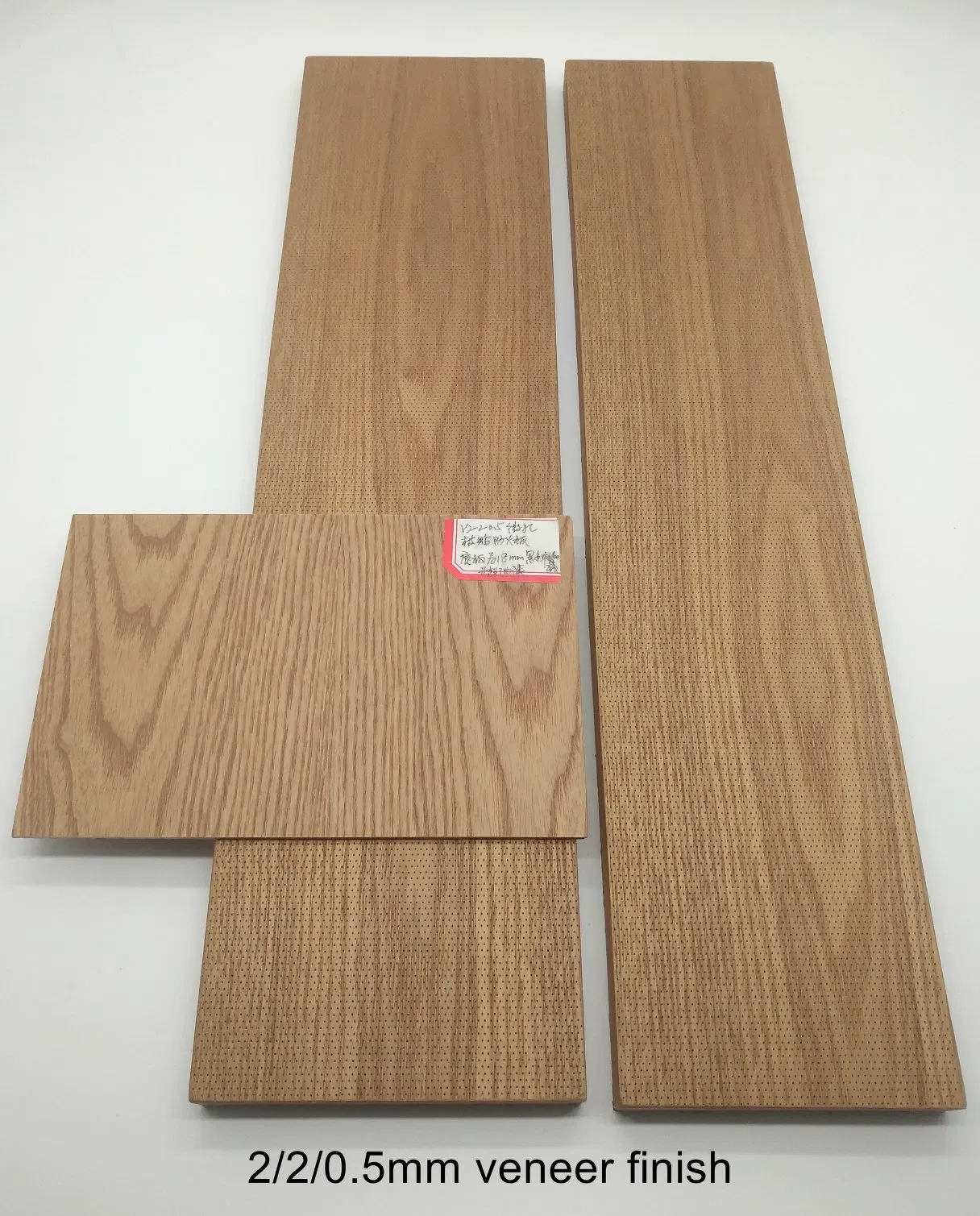

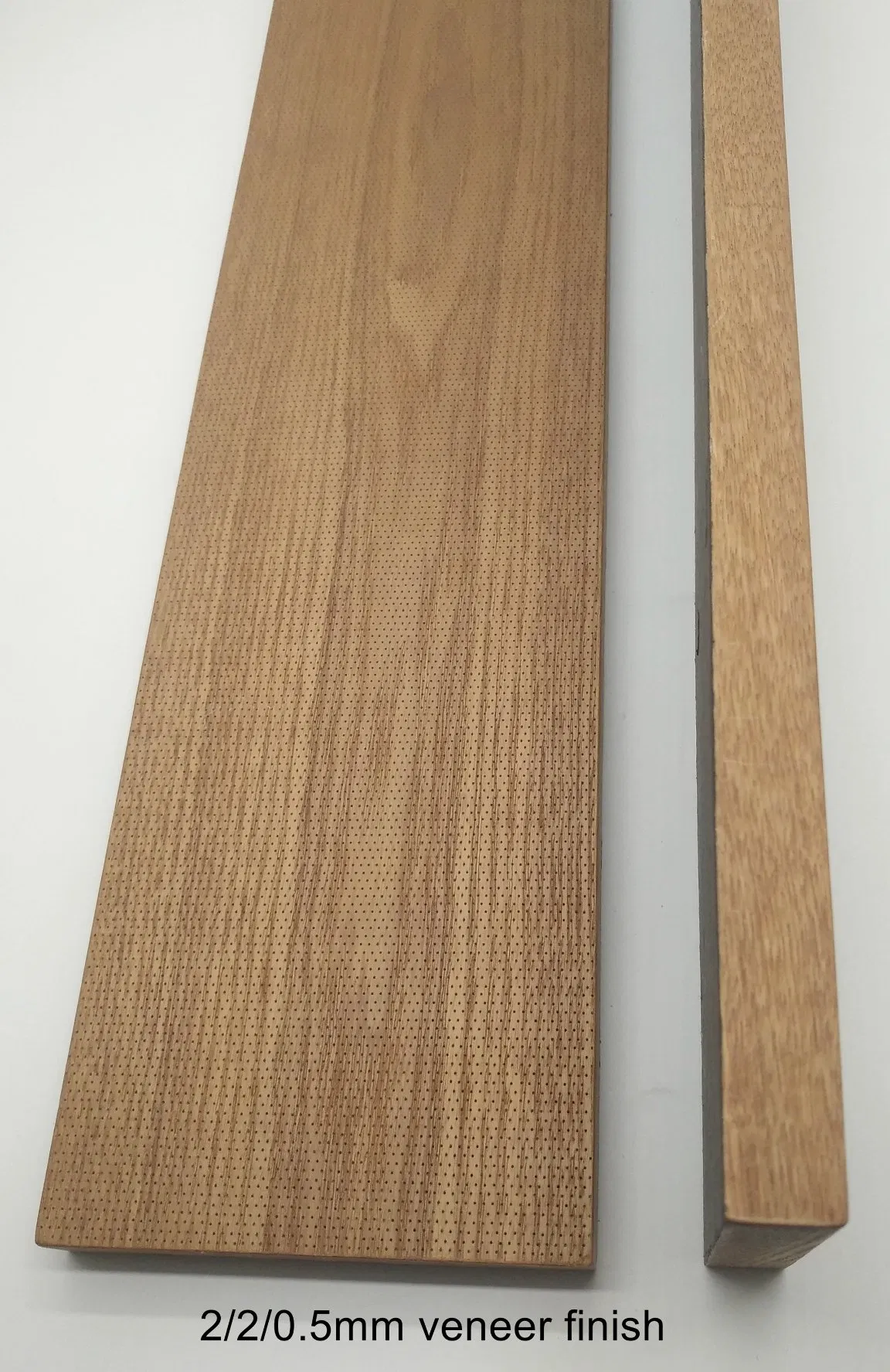

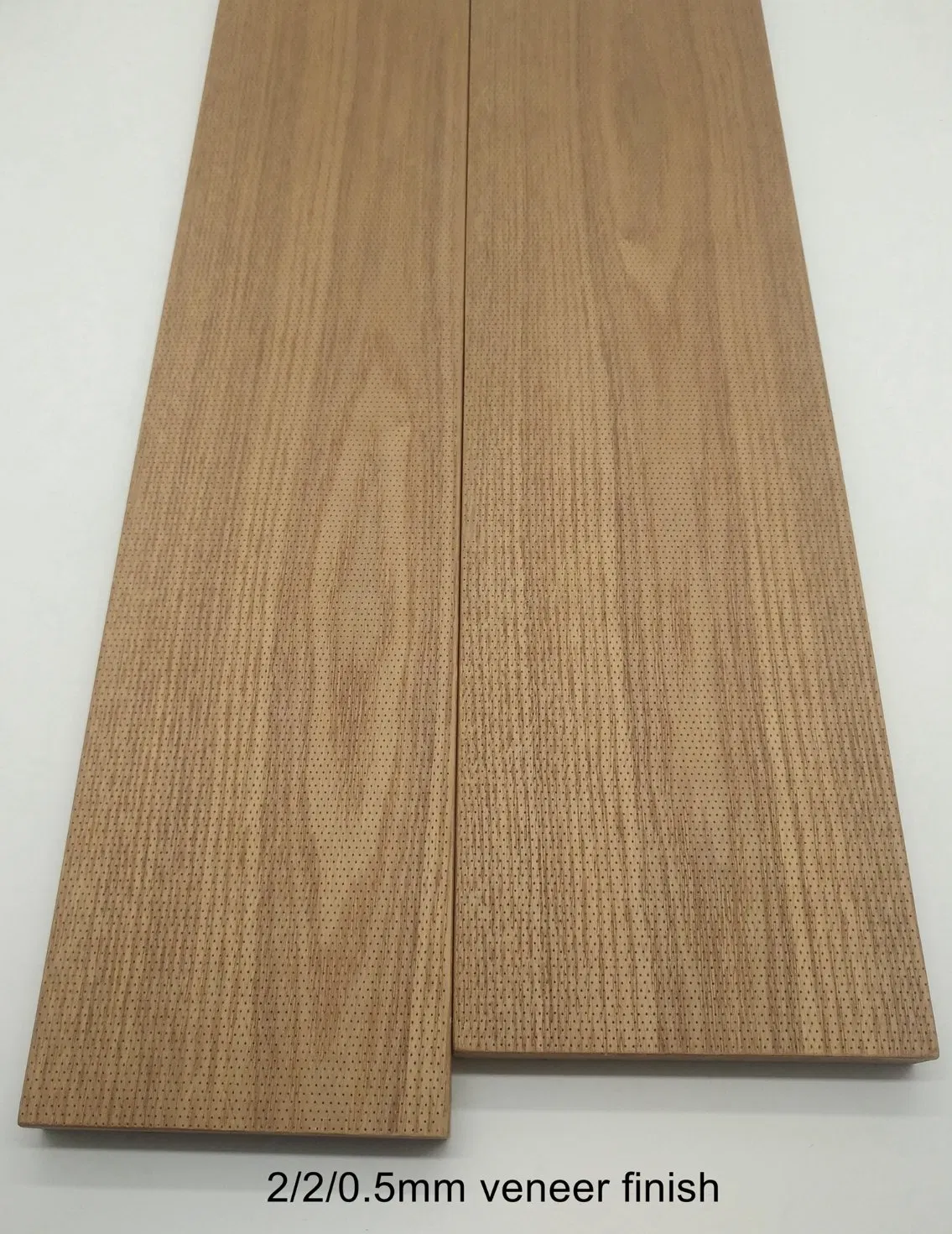

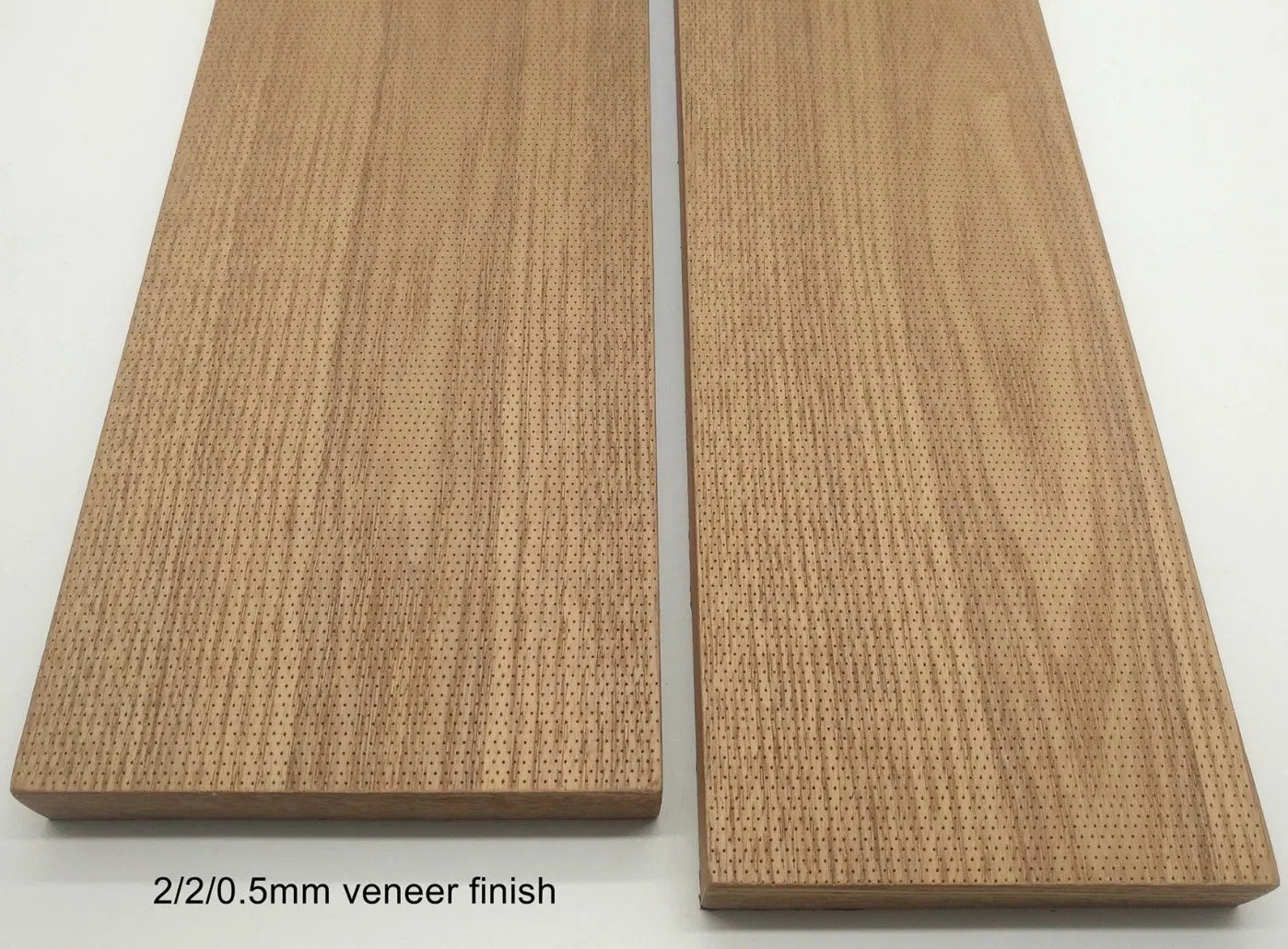

2/2/0.5mm Micro Perforated Acoustic Panel

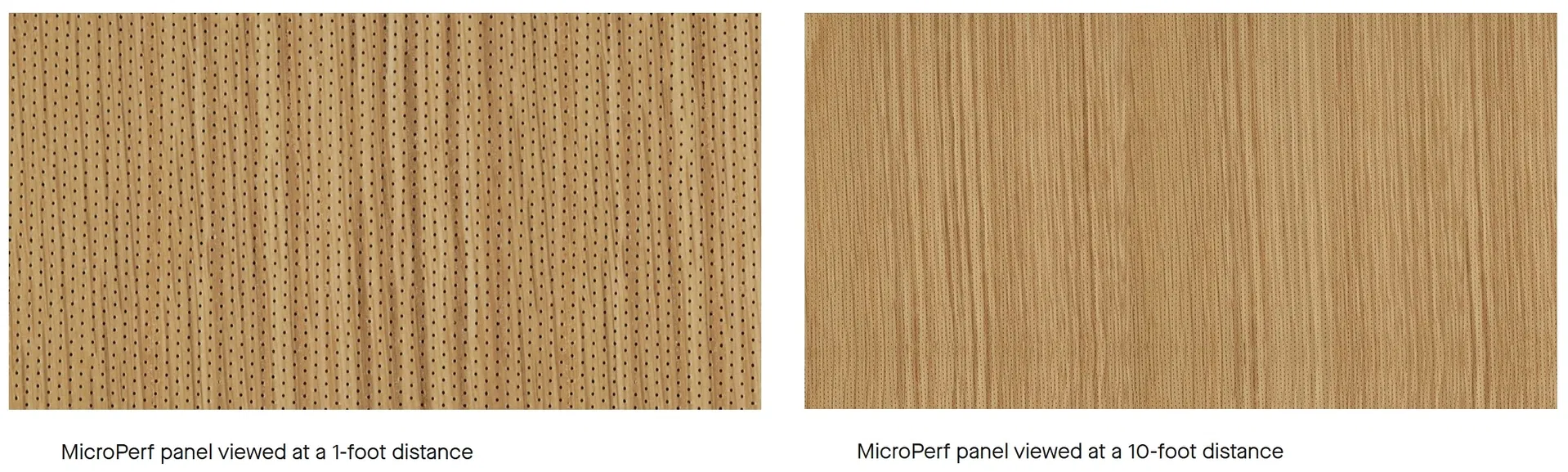

Featuring precision micro-perforation, these panels are designed with ultra-fine holes that are nearly invisible to the eye. This discreet detailing enhances aesthetic appeal while delivering excellent sound absorption, combining effective acoustic performance with a refined decorative finish for modern interiors.

⚙️ Technical Specifications

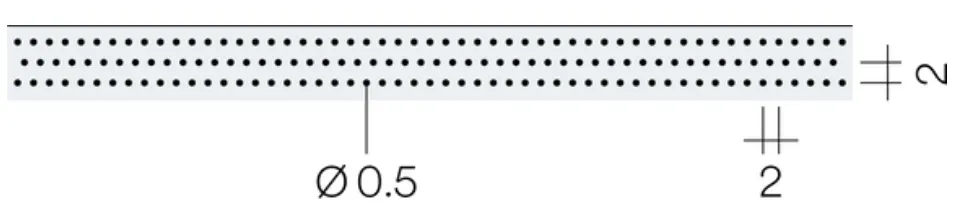

Hole Pattern	2/2/0.5mm (2mm gap, 0.5mm micro hole diameter)

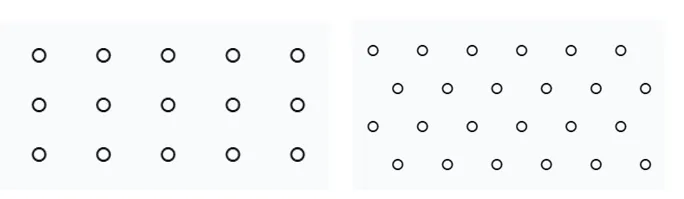

Perforation Pattern	1. Staggered hole arrangement 2. Straight hole arrangement

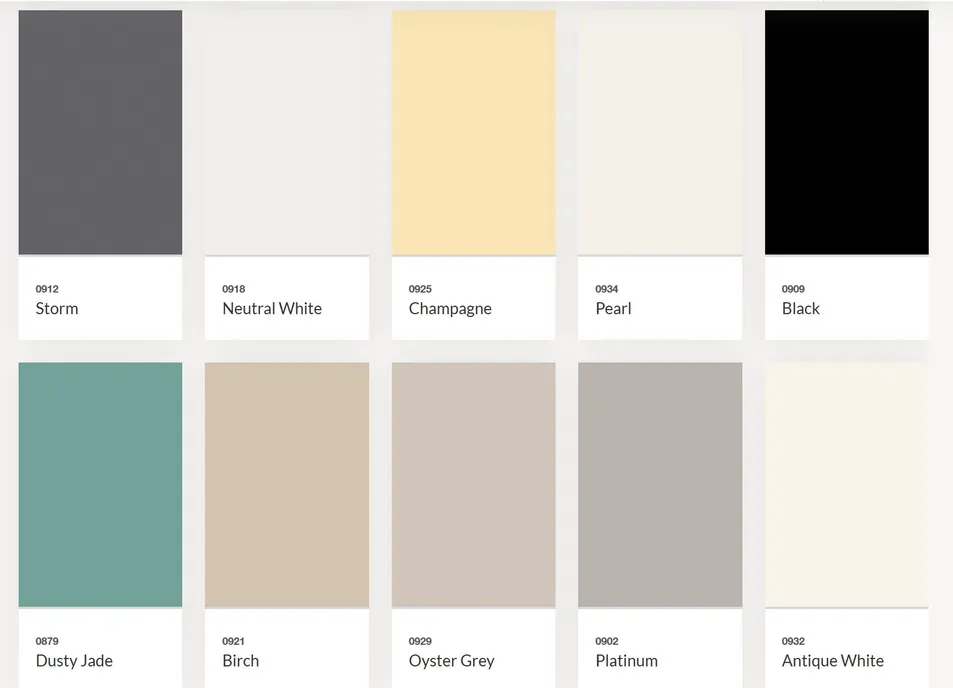

Finish Options	Laminate, Veneer, or RAL colors
Core Colors	MDF in Red or Black
Core Thickness	15mm, 18mm, 21mm
Panel Size	Standard: 24001200mm \| Custom: Max 30201220mm

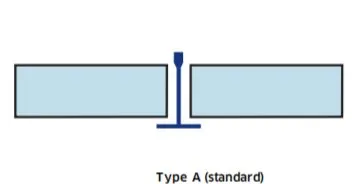

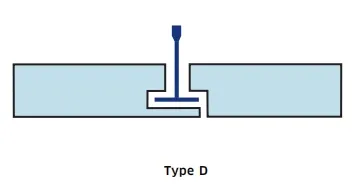

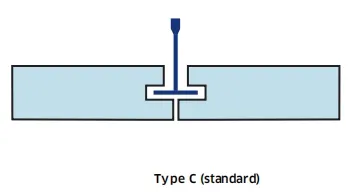

Edge Profiles	Type A (90° cut), Type C (grooved), Type D (tongue & grooved)
NRC Rating	0.9 (According to ISO354-2003)

🛡️ Certified Performance

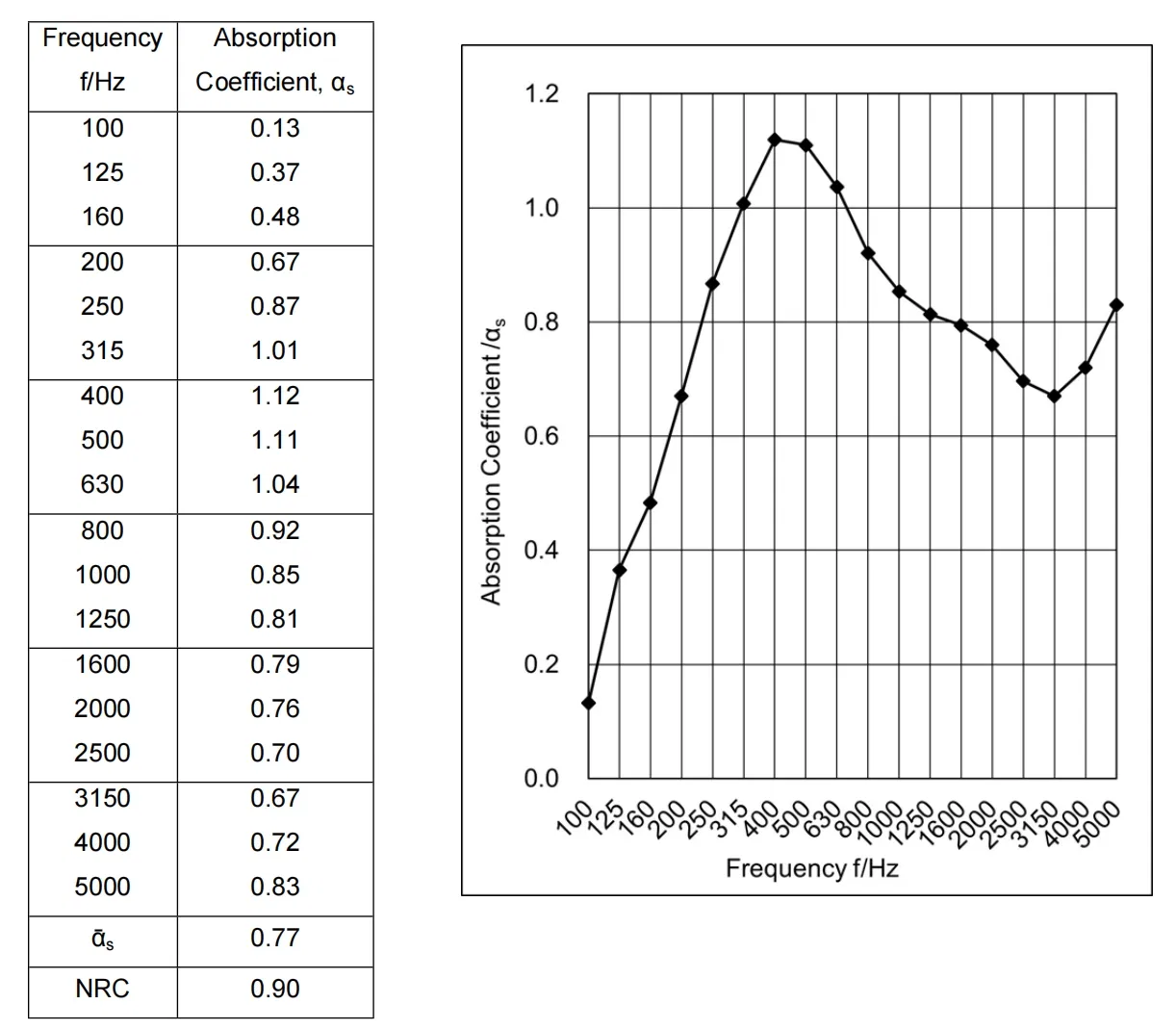

1. Acoustic Absorption (NRC 0.9)

Tested according to ISO354:2003 acoustics measurement in a reverberation room.

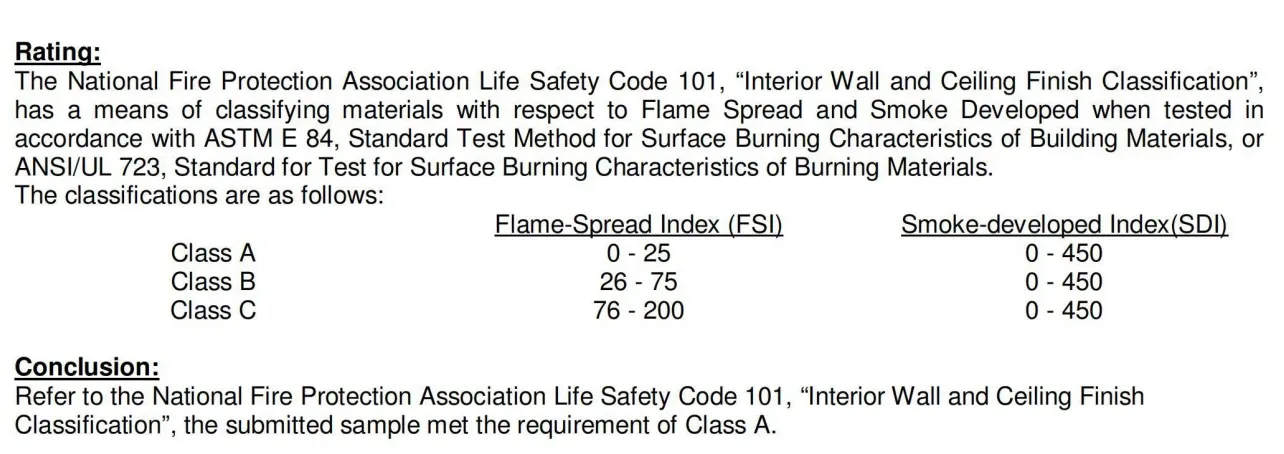

2. Fireproof Result - Class A

Tested in accordance with ASTM E84 Standard test method for surface burning characteristics of building materials.

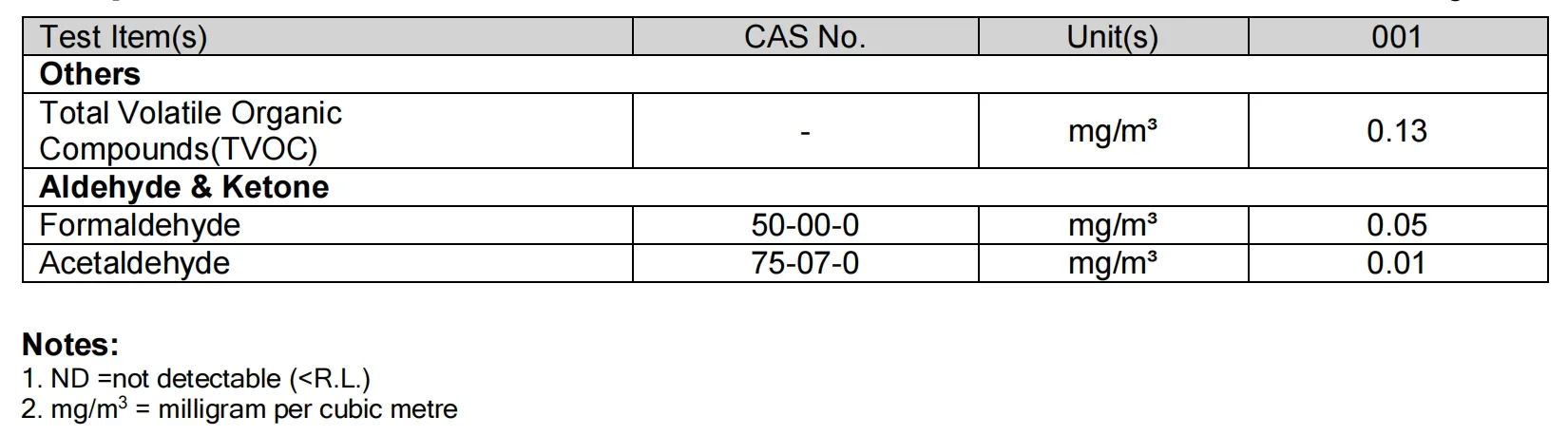

3. Eco-Friendly - Low Formaldehyde

Formaldehyde levels tested at 0.05mg/m³ following ISO16000 standards, ensuring safe indoor air quality.

🎨 Aesthetics & Installation

Edge Options

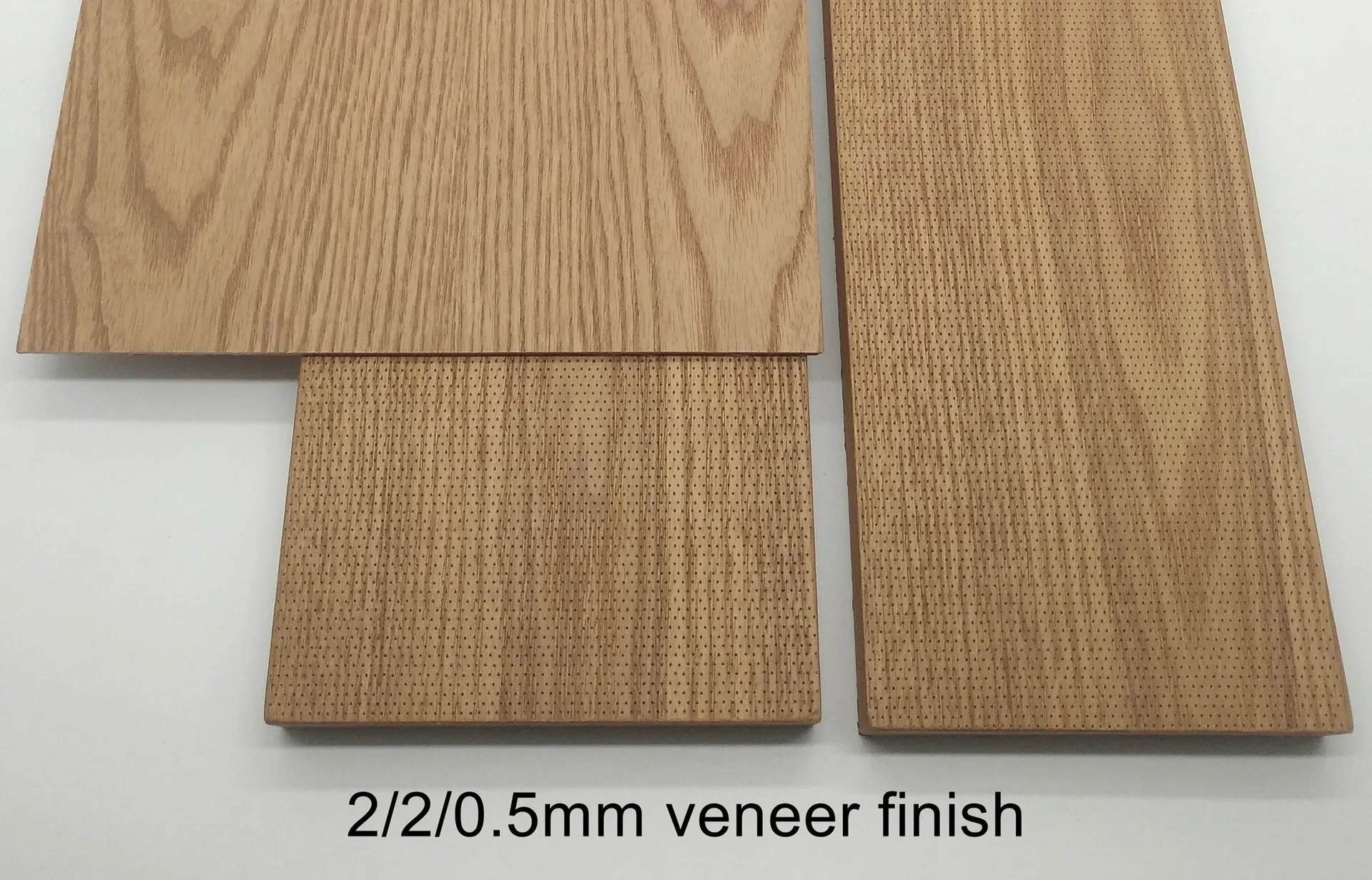

Finish Options (Laminate & Natural Veneer)

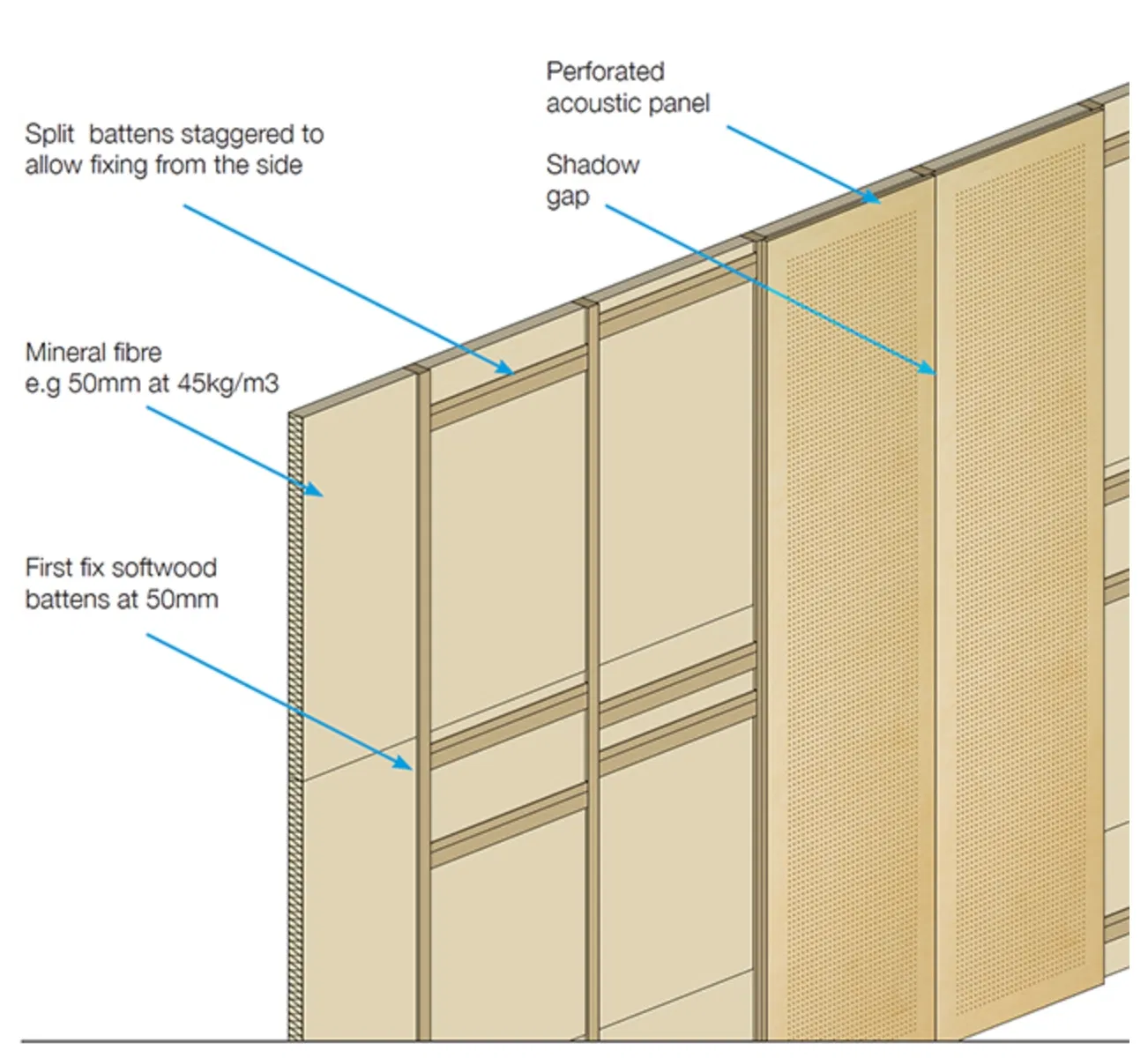

Installation Guidance

Mounted on fireproofing wooden frame with invisible split battens.
Frame filled with sound-absorbing material (e.g., Rockwool 45kg/m³).
Recommended 2.5mm expansion gap per meter in height and width.

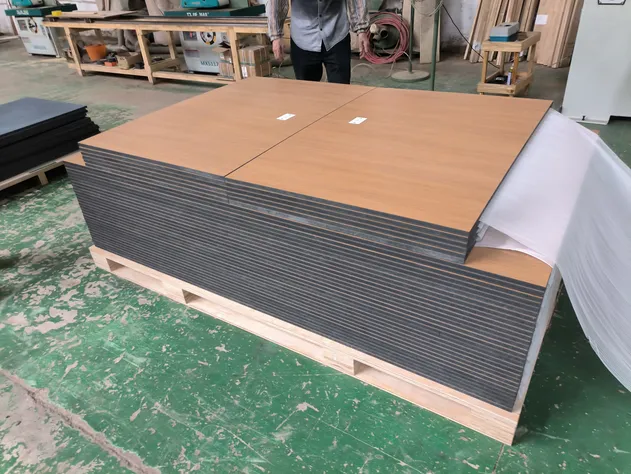

📦 Packaging Details

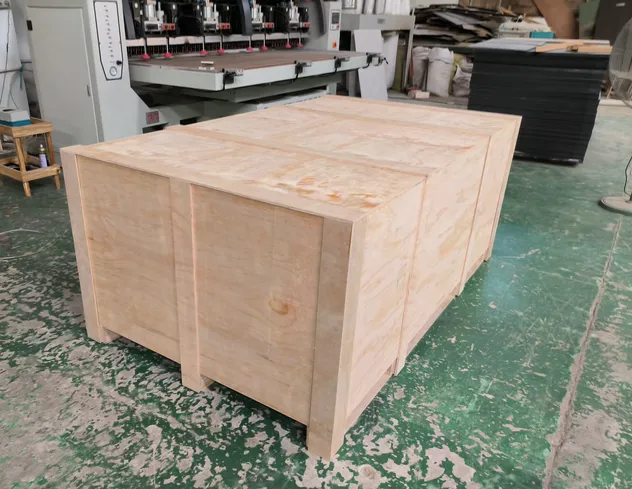

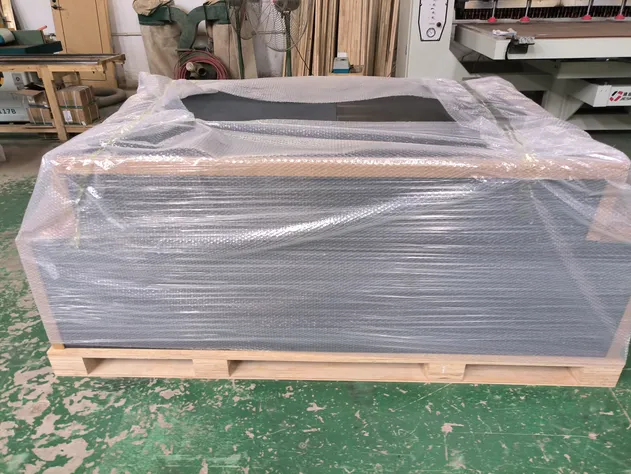

Products are wrapped in protective bubble film to shield from moisture and scratches, then secured inside high-strength wooden cartons designed to withstand rough handling and stacking.

❓ FAQ

How do wooden perforated acoustic panels reduce noise?

They function based on the Helmholtz resonator principle. Sound waves enter through precision holes, get trapped in the rear air cavity (filled with absorption material), and convert sound energy into heat energy through friction, effectively reducing echoes.

How many panels do I need for a room?

Generally, covering 25-30% of reflective wall surfaces is a good starting point. For critical environments like home theaters or recording studios, 40% or more coverage may be required, focusing on "first reflection points."

How do I clean and maintain these panels?

Maintenance is simple: dust or wipe slats with a slightly damp cloth a few times a year. Avoid getting the felt backing wet. You can apply wood maintenance oil to natural veneer panels to revitalize them.

What is the fire resistance rating of the panels?

The panels are tested according to ASTM E84 standards and achieve a Class A rating for flame spread and smoke development, making them suitable for high-safety requirement projects.

Are the materials environmentally friendly?

Yes, the panels meet E0 environmental certification with formaldehyde emissions as low as 0.05mg/m³, ensuring they are safe for indoor use in homes and offices.

What are the standard and maximum sizes available?

The standard maximum size is 2400*1200mm. However, we can accommodate customized projects with a maximum size of up to 3020*1220mm depending on the finish and core choice.
