Laminate Floor Warming Heating Mat 150W Heating System with OEM Factory
Product Description
Overview & Basic Info
Model NO.
F-MAT
Origin Place
China
Insulation
FEP
Covering
Aluminium Foil
Package
Carton
Capacity
100000sqm/Month
Package Size
145.00cm * 28.00cm * 35.00cm
Gross Weight
5.000kg
Product Description

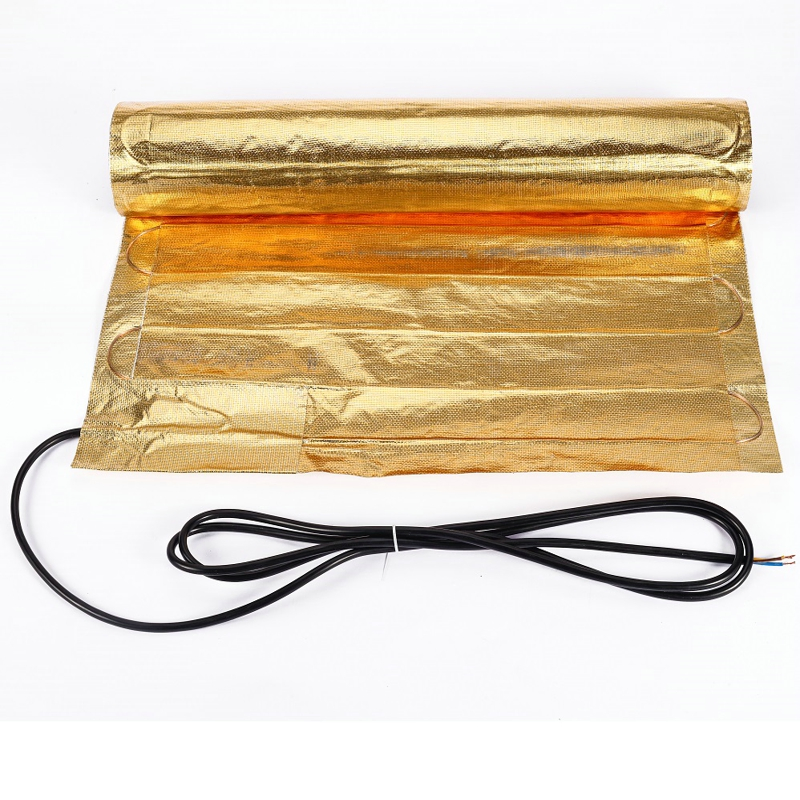

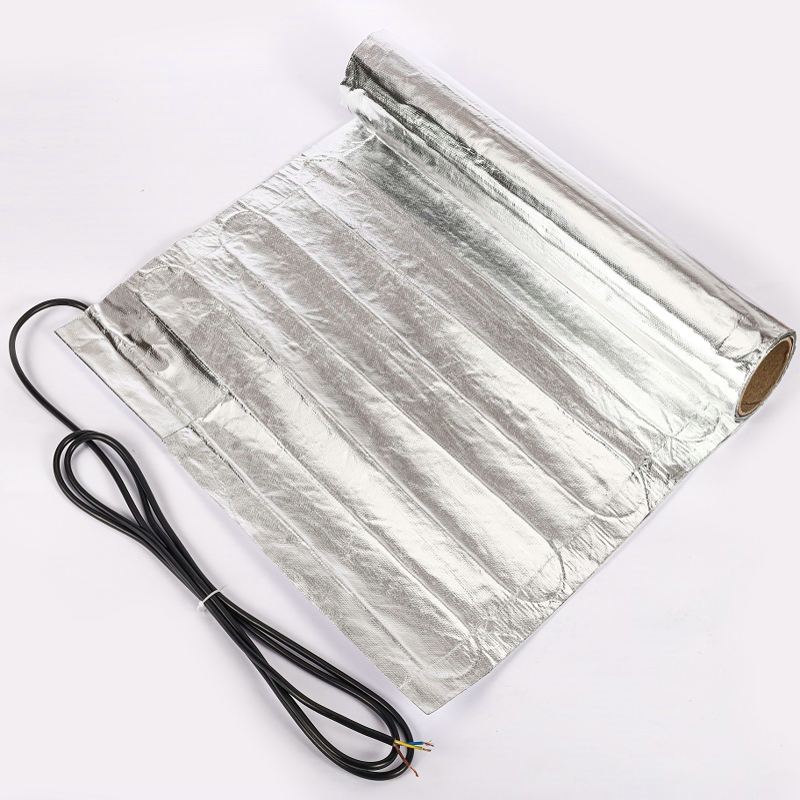

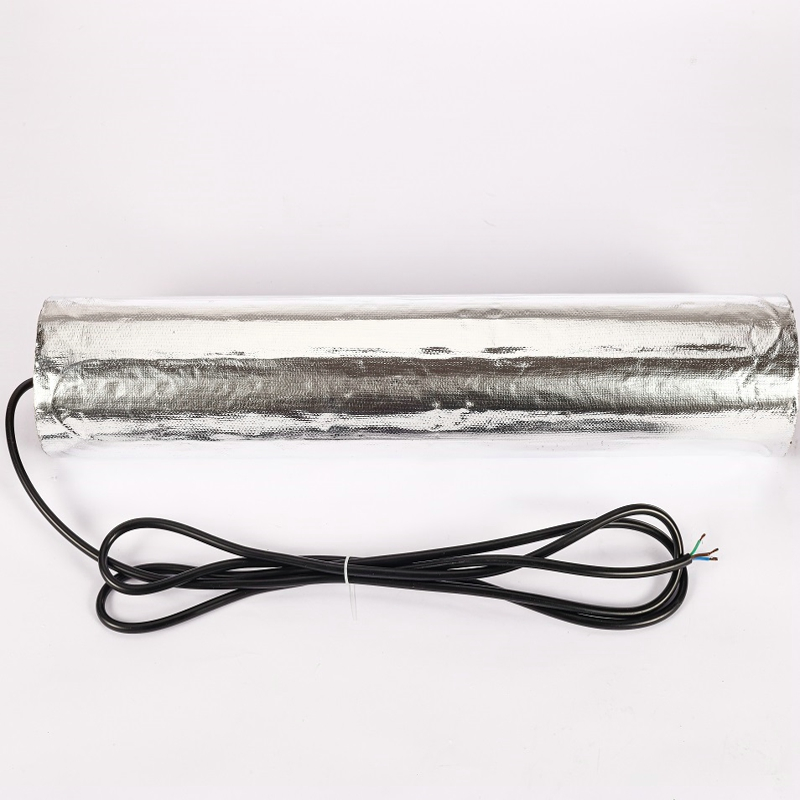

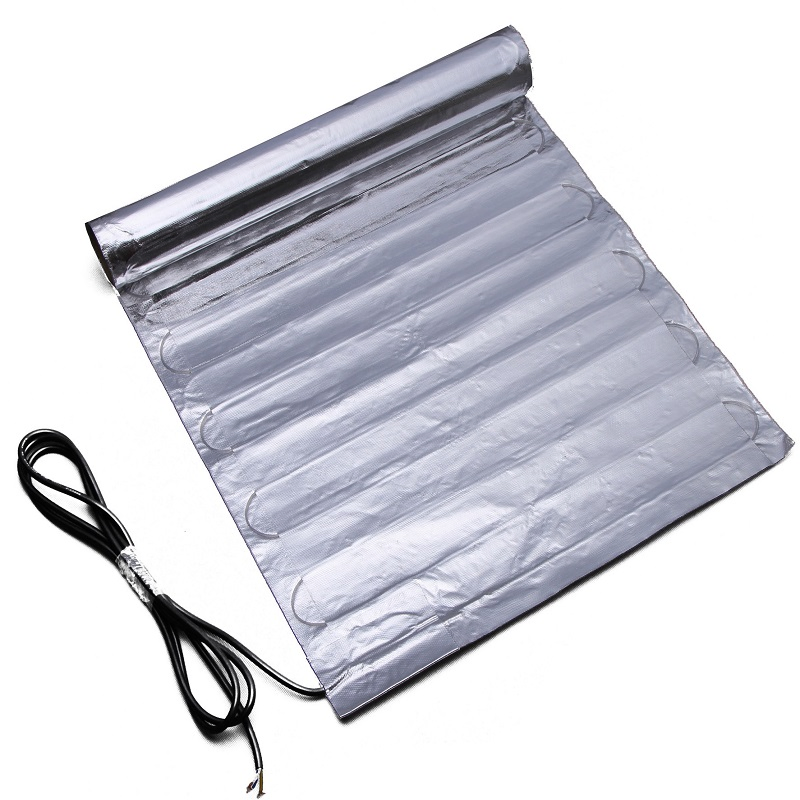

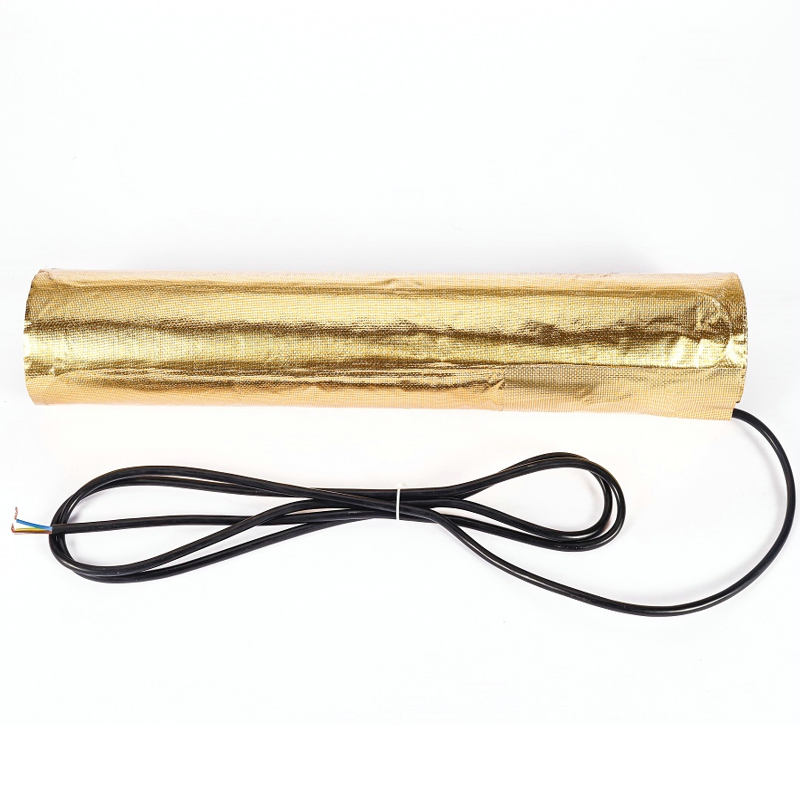

F-mat is designed for use under laminate, under carpet, engineered and most solid wood floors, having the heating cable pre-spaced onto an Aluminum foil. Very thin and very easy for installation, increasing floor level by only 1.2mm.
Ultra-thin structure
Overall thickness of only 1.2mm with fire resistance materials.
Overall thickness of only 1.2mm with fire resistance materials.
Even Heating
Eliminates heat accumulation or uneven heating, saving material and labor.
Eliminates heat accumulation or uneven heating, saving material and labor.
Zero EMR
100% AI tape braid ensures safety and zero electromagnetic radiation.
100% AI tape braid ensures safety and zero electromagnetic radiation.
Waterproof IP68
High durability and safety in all conditions.
High durability and safety in all conditions.
Technical Specification
|

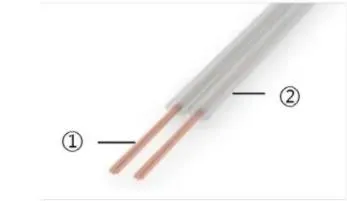

Conductor | Solid heating core |
|---|---|---|
| Insulation | Fluoroplastic | |
| Thickness | 1.2mm | |
| Rated Voltage | 220V | |
| Cable Spacing | 50mm | |
| Cold Lead | 2.5m length | |
| Power Output | 150w/m² |
Technical Data (150w/m²)
| Part NO. | Heat Area (m²) | Dimensions (m) | Wattage (W) | Resistance (Ω) |
|---|---|---|---|---|
| F-MAT150-1.0 | 1.0 | 0.5×2 | 150 | 322.67 |
| F-MAT150-2.0 | 2.0 | 0.5×4 | 300 | 161.33 |
| F-MAT150-3.0 | 3.0 | 0.5×6 | 450 | 107.56 |
| F-MAT150-5.0 | 5.0 | 0.5×10 | 750 | 64.50 |
| F-MAT150-10.0 | 10.0 | 0.5×20 | 1500 | 32.27 |
Installation Instructions

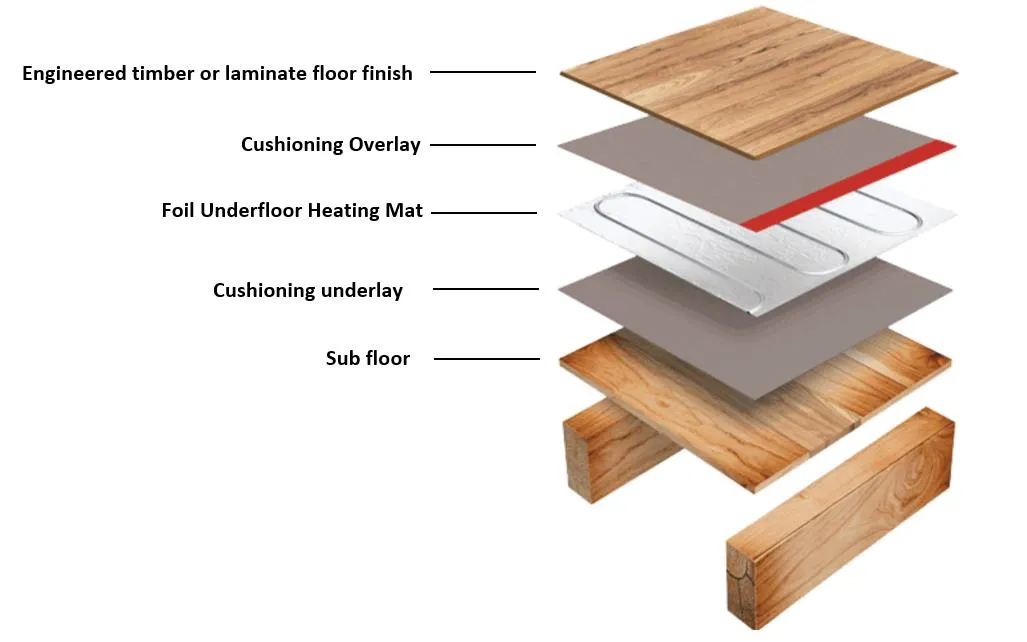

Layer Structure:
- Engineered timber or laminate floor finish.
- Cushioning Overlay.
- Foil Underfloor Heating Mat.
- Cushioning underlay.
- Sub floor.

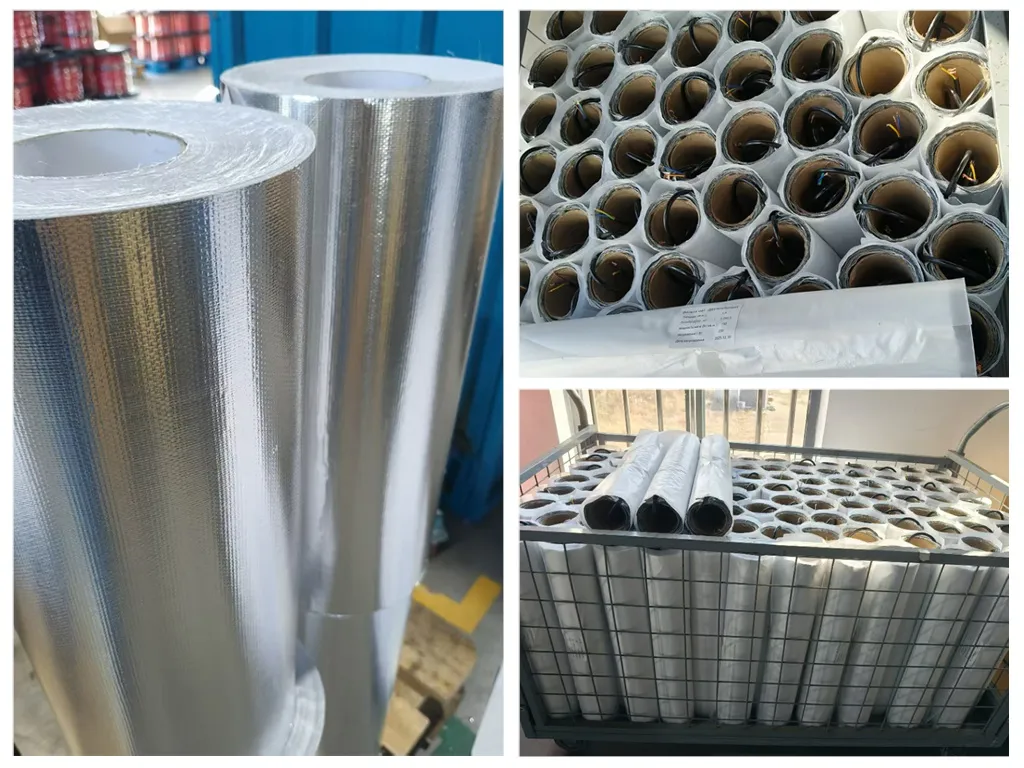

Packaging & Shipping

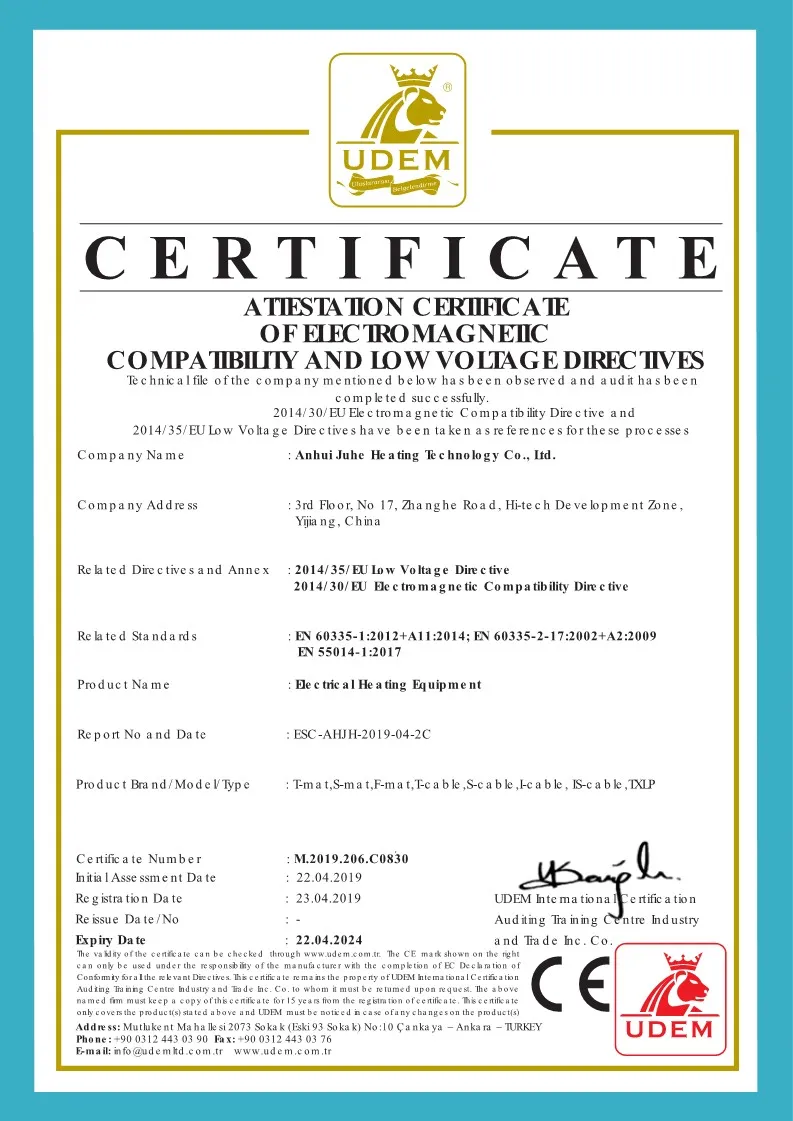

Certifications
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional ISO 9001:2015 certificated heating cable manufacturer specializing in providing all kinds of electric heating cables and heating mats along with accessories. Welcome to visit our factory!
Can you make the products as per client's requirements?
Yes, we can manufacture products strictly according to your exact technical requirements and specifications.
Do you accept small quantity orders?
Yes, we welcome sample orders to test and check quality. Please contact us for more details regarding minimum order quantities.
Can I place a sample order first?
Yes, sample orders are available for quality testing. Some samples are free of charge, while delivery costs are generally covered by the buyer.
Why choose us?
As a professional ISO 9001:2005 certificated supplier, we offer high-quality underfloor heating products backed by exceptional guarantees and expert technical support.
What is the warranty of your product?
We provide a 25-year warranty for our heating cables and heating mats, ensuring long-term reliability for your heating system.
