Frameless Accordion Terrace Sliding Aluminum Doors Glass Curtain Folding Doors Interior Partition Wall Aluminium Glass Door

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Information

Model NO.
IH-BF05
Surface Finishing
Finished
Glass Type
Tempered Glass
Certification
RoHS, CE, CCC, ISO
Open Style
Folding
Position
Interior
Applications
Villa, Residential, Office
Advantage
Waterproof
📝

Product Description

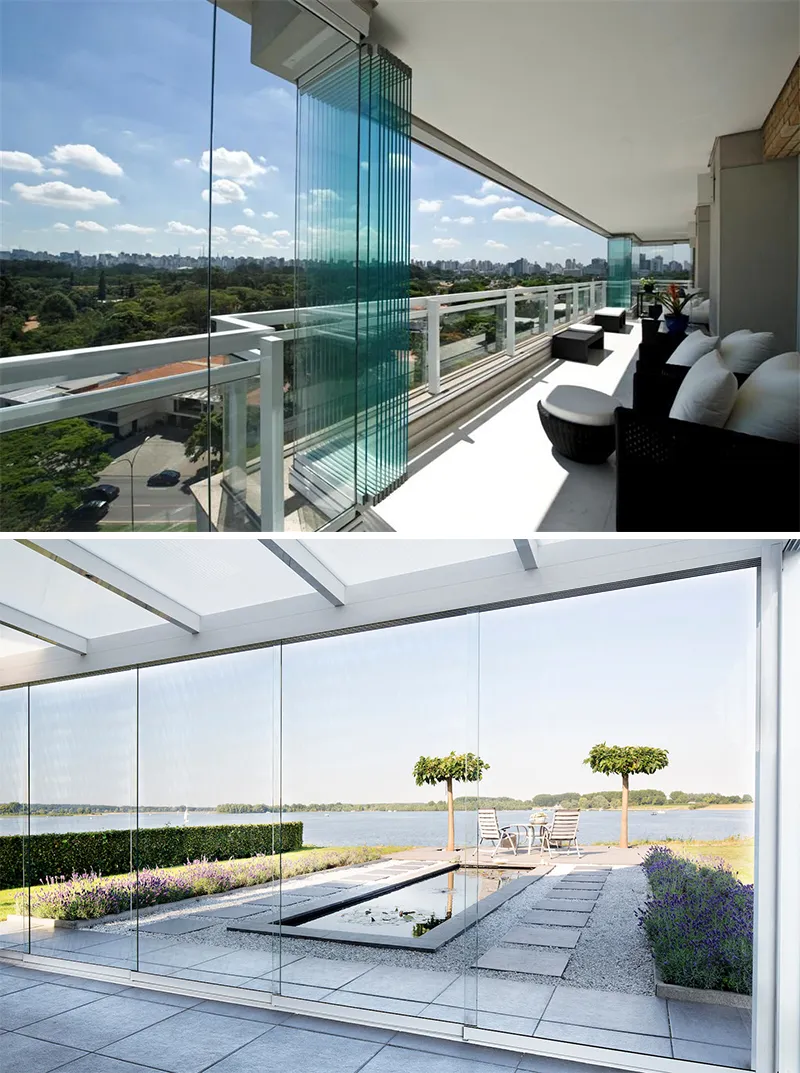

Frameless Folding Door
Frameless glass folding door system designed for spaces which need a minimalistic and elegant design at both the front and the inside of that space; without glass-board framing, its thin, elegantly designed clamps maximize the glass surface, reducing the construction cost at the same time. Every pane is secured with lock or floor latches. All aluminum profiles can be painted in a wide range of electrostatic RAL colors, anodized or made to look like stainless steel others. Sealing between panes is achieved with transparent polycarbonate or aluminum fitments, while sealing between the side-panes and the walls is provided by aluminum lathes bearing synthetic insulative brushes.
🔍

Product Details

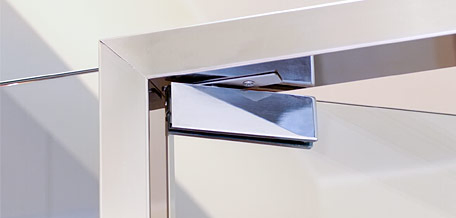

Detail 1

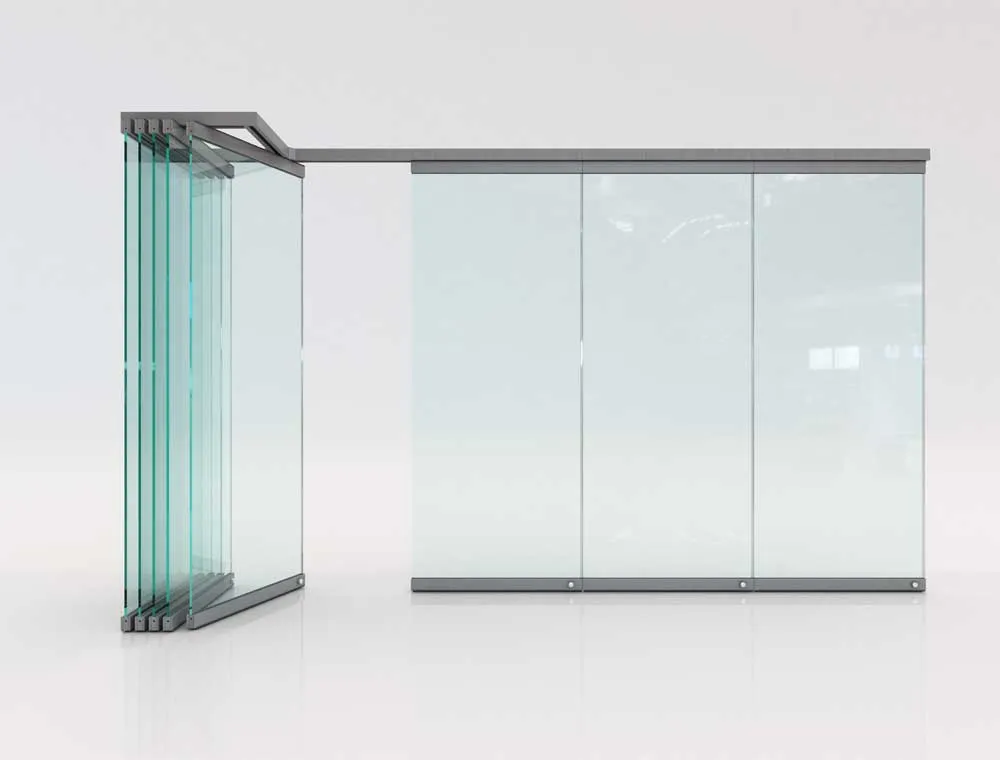

Detail 2

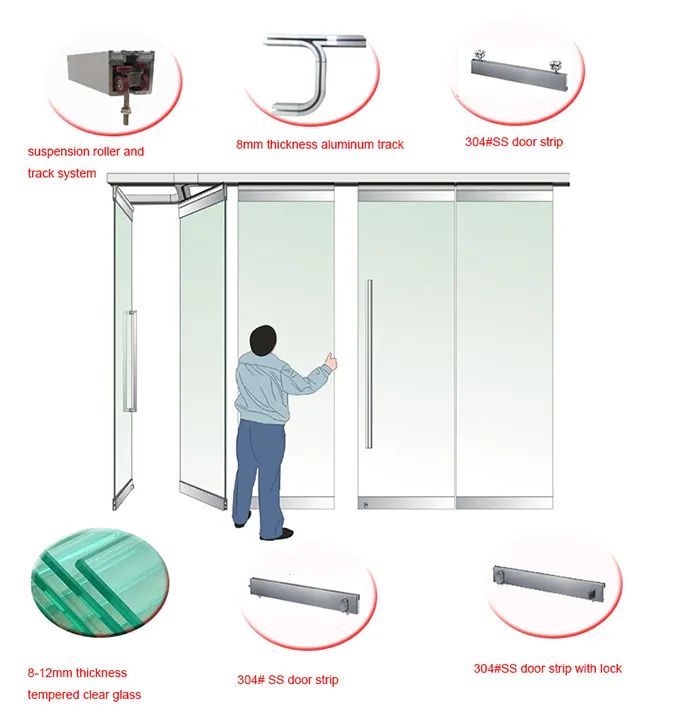

Detail 3
System nameFrameless glass folding door
MaterialAluminium + Stainless steel
FinishedPolished and stain
Glass thickness8-12mm single clear tempered glass
Max. capacity for roller45kg
PackageStandard packaging, wooden case plywood etc.
ApplicationSuitable for glass partition
FunctionMiddle folding, each door width is same except the first fixed door
Glass clamp materialAluminium 6063-T5 & 304 stainless steel
Glass clamp finishesPolished stainless steel, Satin stainless steel, Titanium
Top track materialAluminum 6063-T5
Top track finishAnodizing matt silver

Products Advantages

Minimalistic aesthetics: Very small glass clamping profiles, without framing, maximized glazing coverage.
📐
Design Flexibility: Total flexibility regarding the configuration of the parking area, as well as the number and dimension of panes.
💰
Low cost: Its thin horizontal profiles considerably reduce the construction cost of this system.
📦

Packaging & Shipping

Packaging
🏢

Project Cases

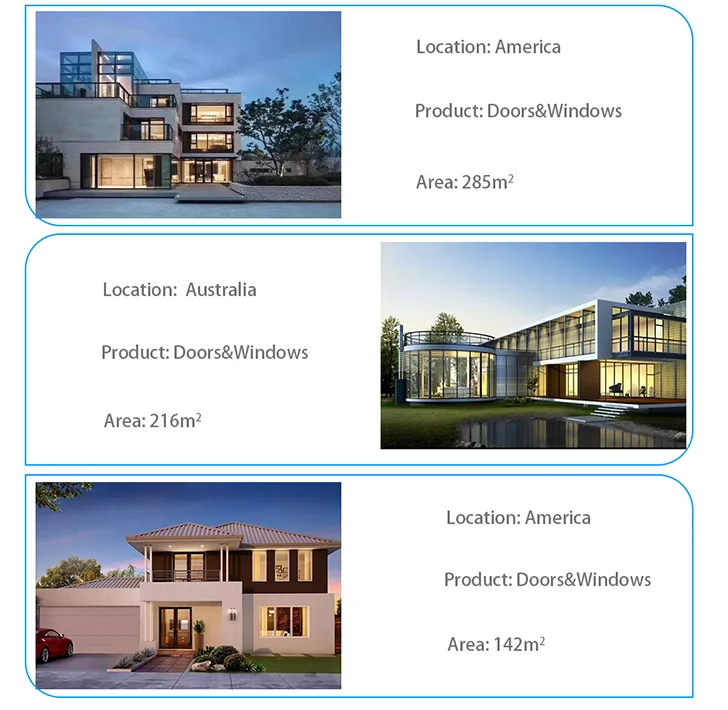

Project Case
📜

Certifications

Certifications

Frequently Asked Questions

Are you a factory?
Yes, we are a professional manufacturing factory.
What's your payment term?
T/T 30% deposit, full balance against delivery.
Can you help with delivery?
Yes, we can provide FOB, CFR, CIF, and DDU shipping terms.
What's your period of production time?
Normally it is 25-30 days, which can be negotiable based on order requirements.
Will you check the products' quality before delivery?
Yes, we have a dedicated QC department ensuring all products are 100% inspected before shipment.
What color can you do for the products?
We have standard colors for every product and can also provide customized colors to meet your needs.
