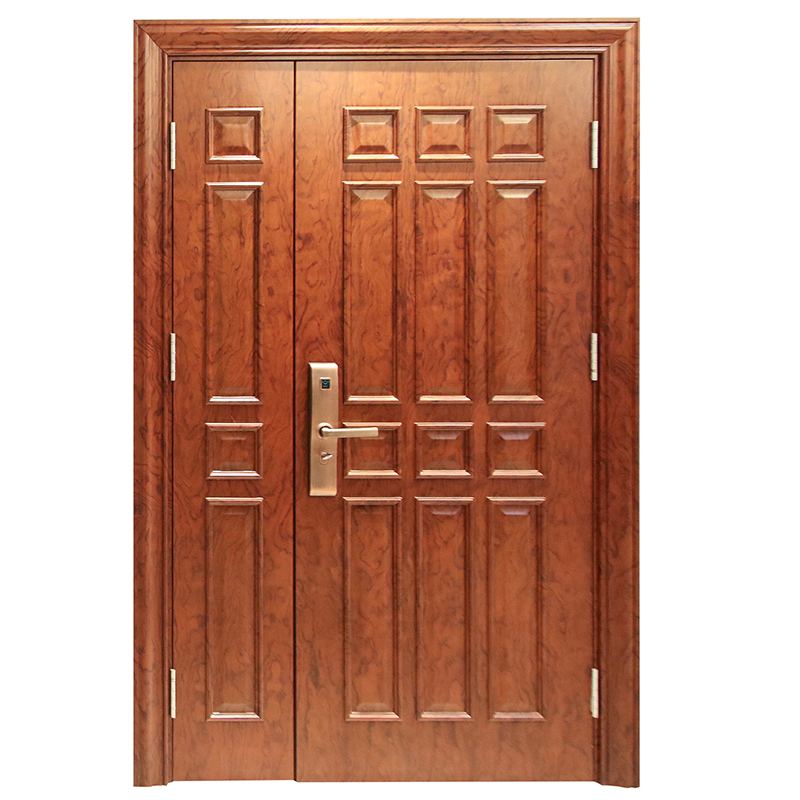

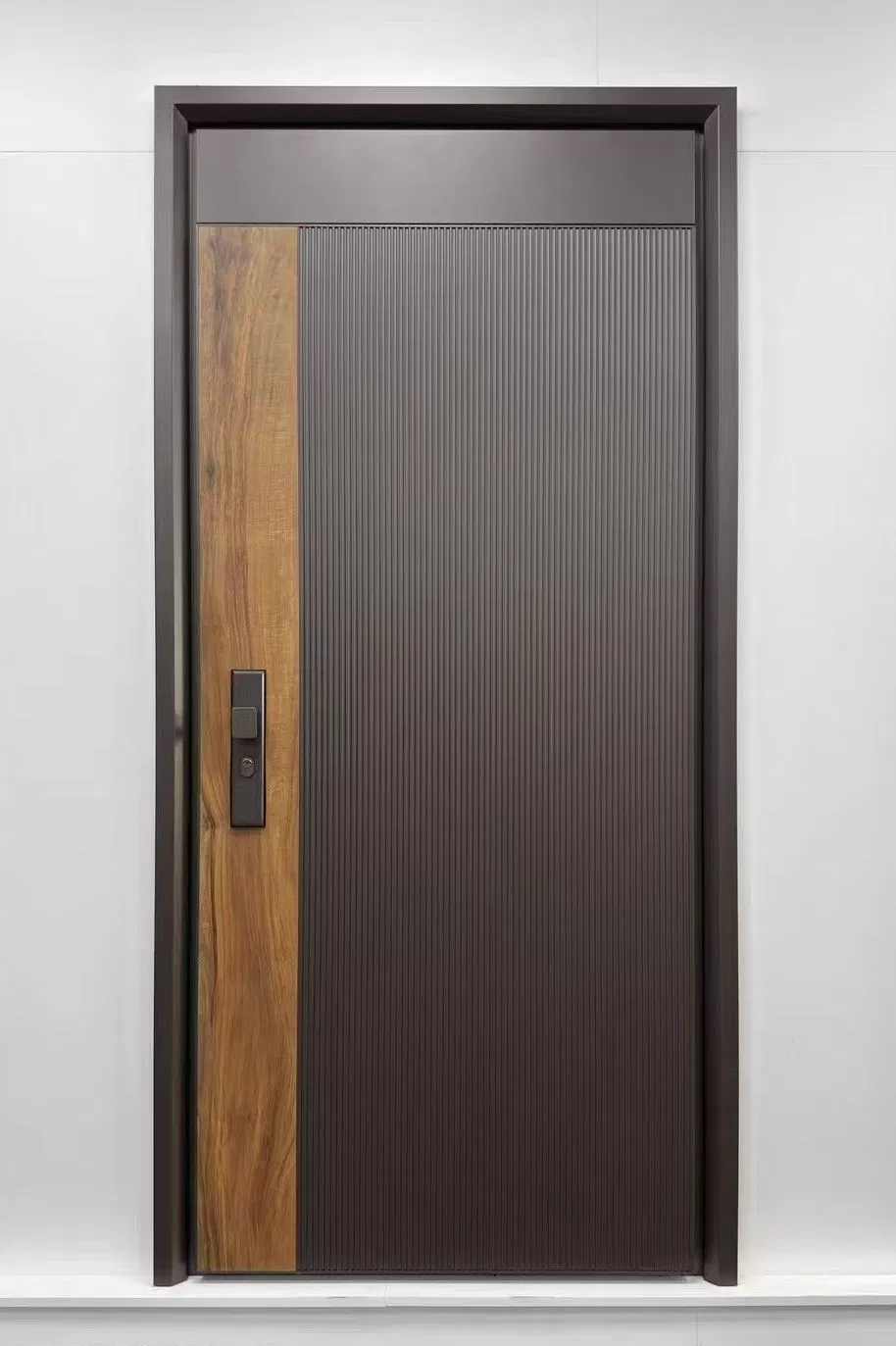

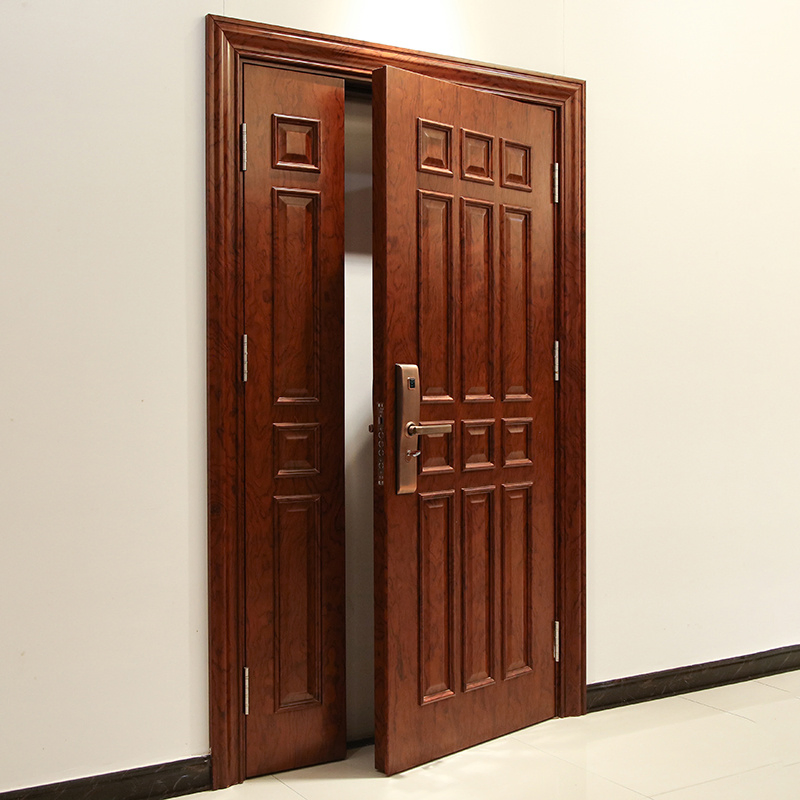

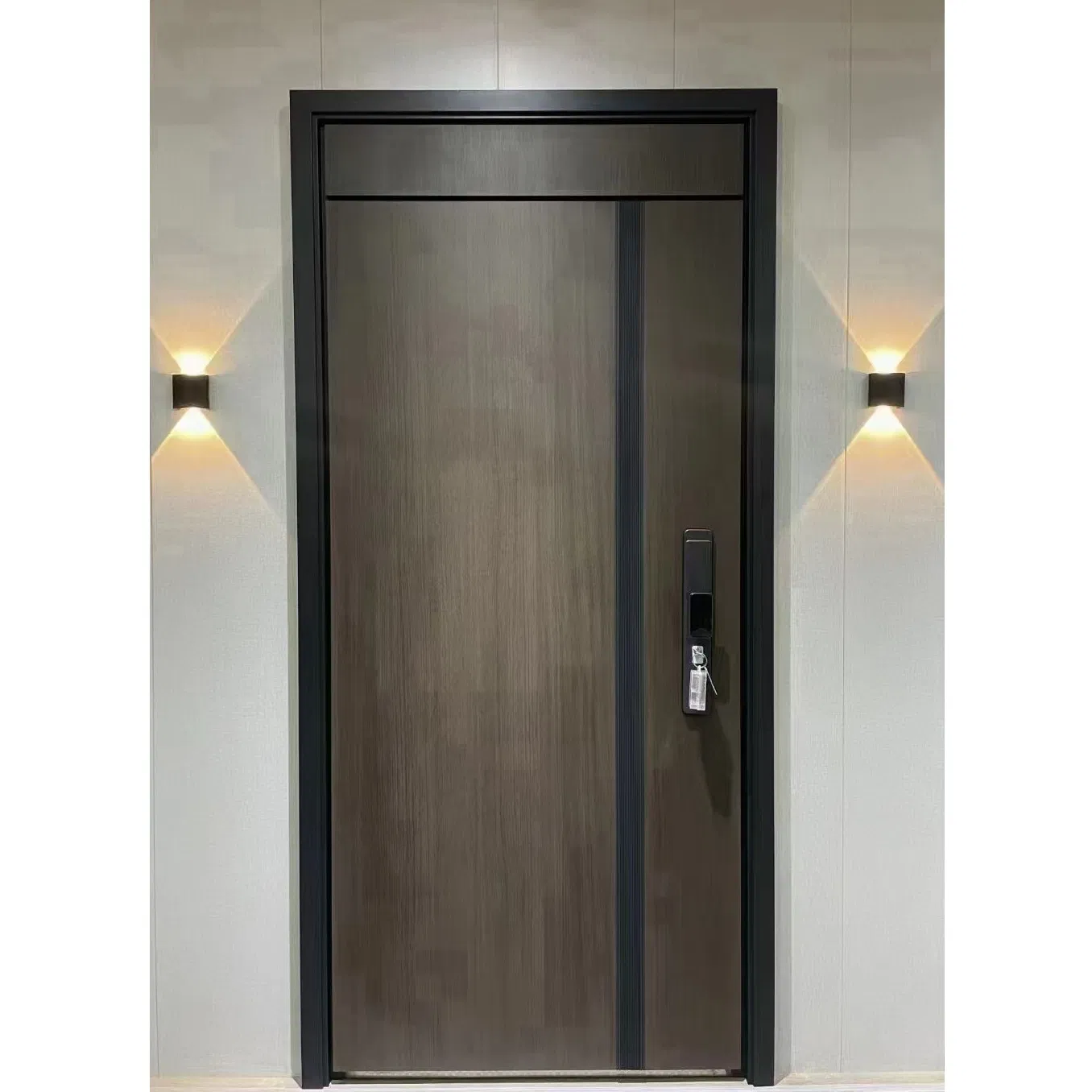

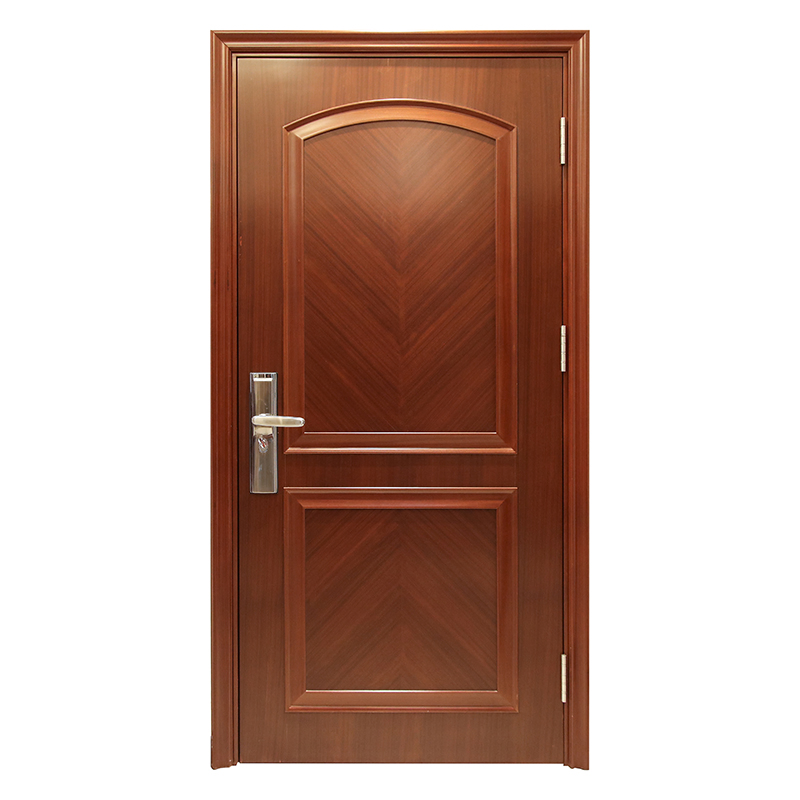

Exterior Residential Hotel Apartment Fireproof Soundproof House Main Entrance Fire Resistance Teak Wood Melamine Wood Fire-Rated Log Solid Timber Wooden Door
Product Description
📋
Basic Specifications
Model NO.
XF-W-1500
Product Material
Solid Wood
Open Style
Swing
Glass
With Glass
Surface Finishing
Finished
Handle Position
Right
Fire Resistance
90 Minutes
Specification
2100*1000mm
Origin
Made in China
Capacity
500,000 Units
🖼️
Product Presentation
⚙️

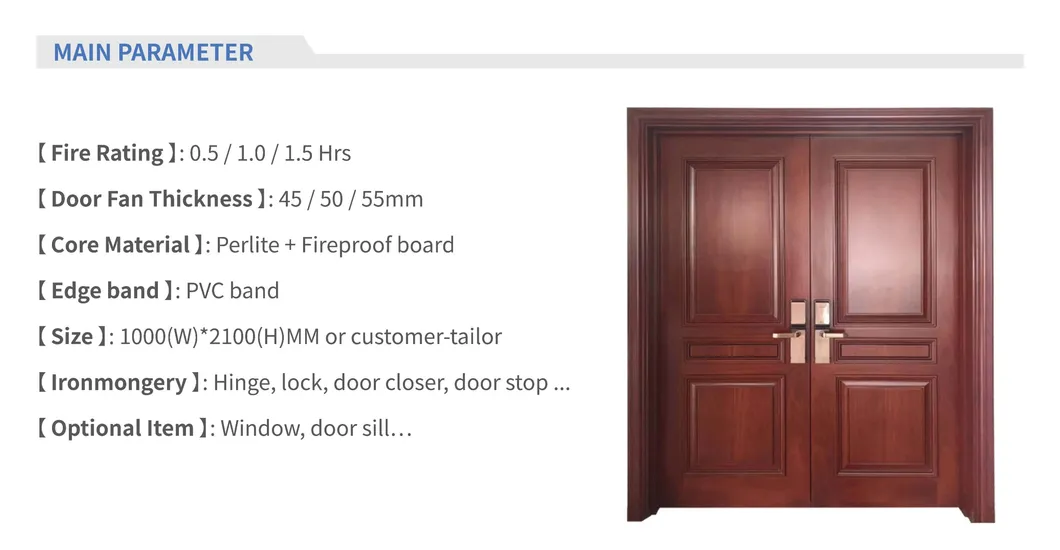

Technical Parameters
| More Detailed Parameters | |
|---|---|

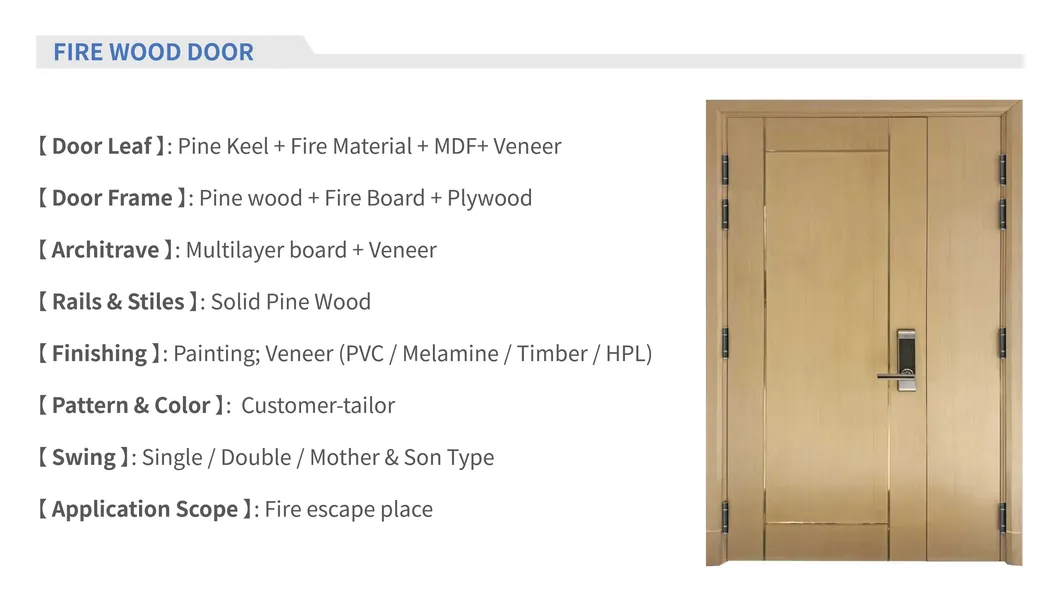

| Product Name | Fire Wood Door |
| Fire Rating Time | 30mins / 60mins / 90mins / 120mins |
| Max. Size | Single: 1200x2500mm / Double: 2100x2300mm |

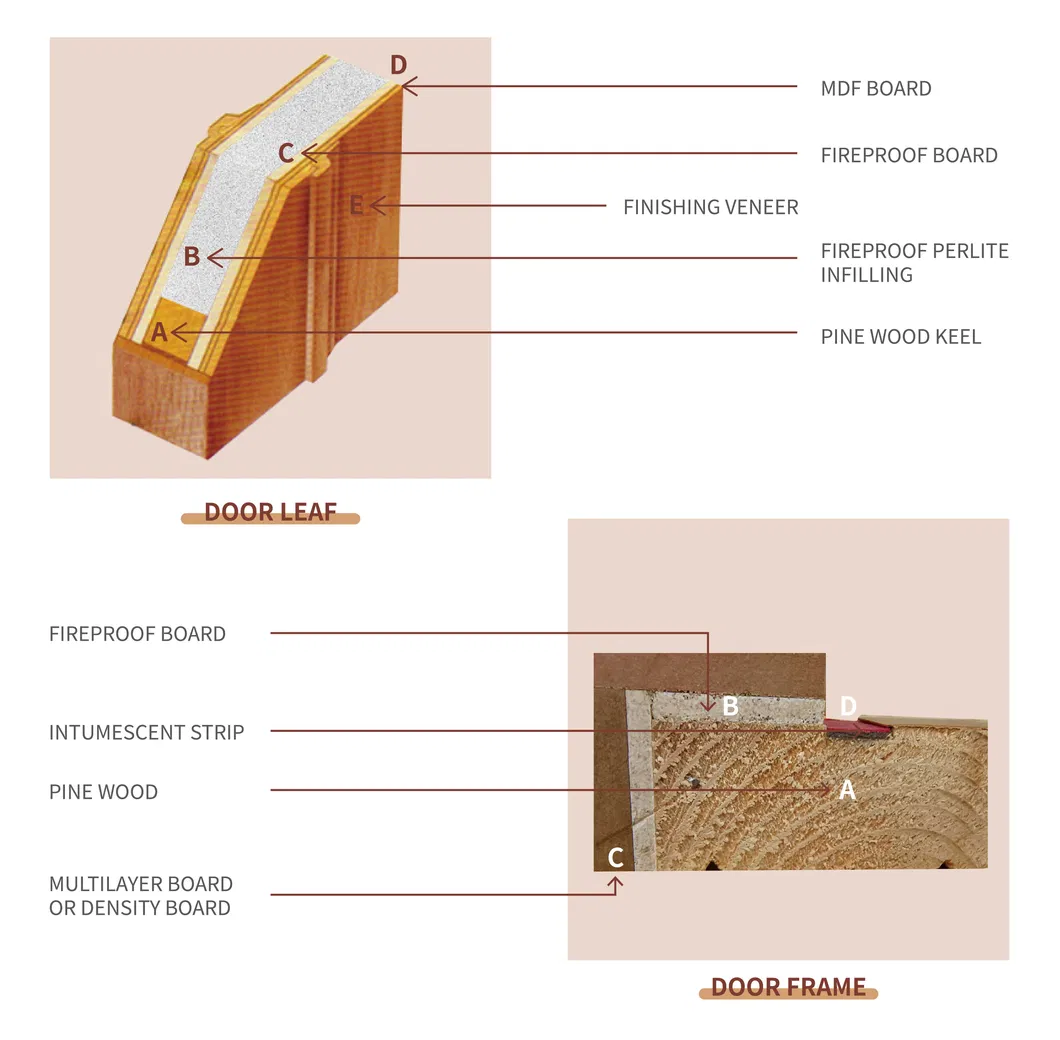

| Door Leaf Structure | Skeleton with Perlite + Fireproof Board + MDF + Finish |

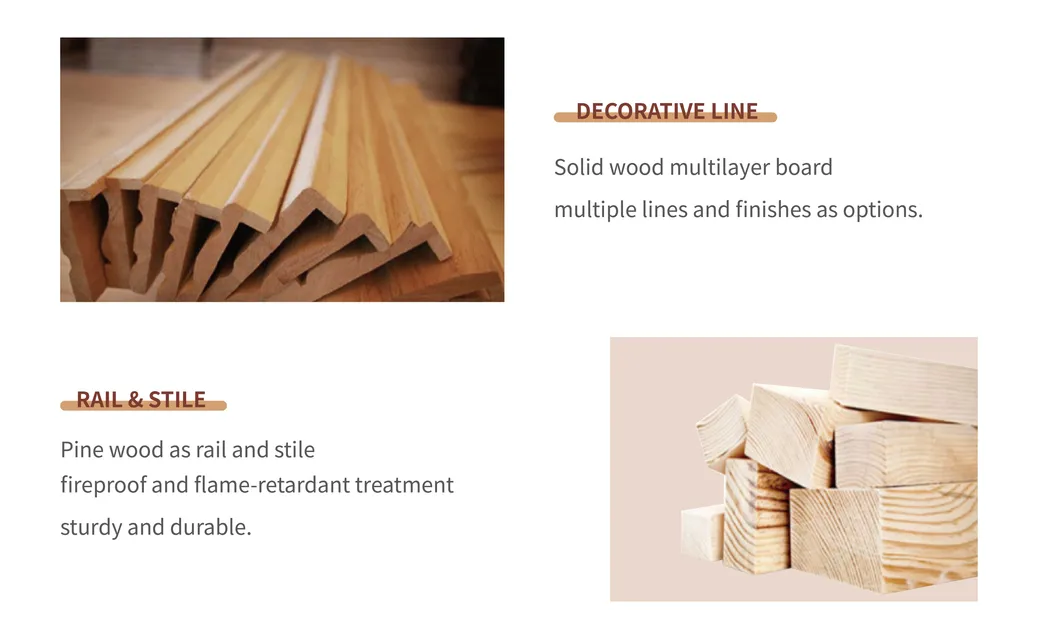

| Door Frame | Solid pine wood + fireproof board, Depth: 100mm - 240mm |
| Moisture Content | 8% ~ 12% |
| Finishing Options | Painting; Veneer (PVC / Melamine / Timber / HPL) |

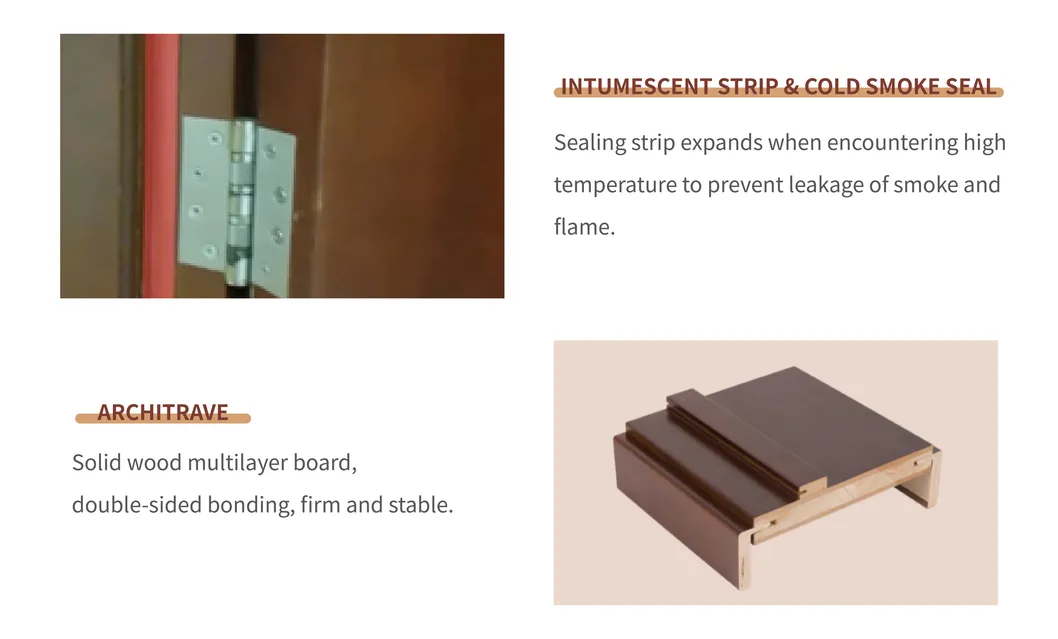

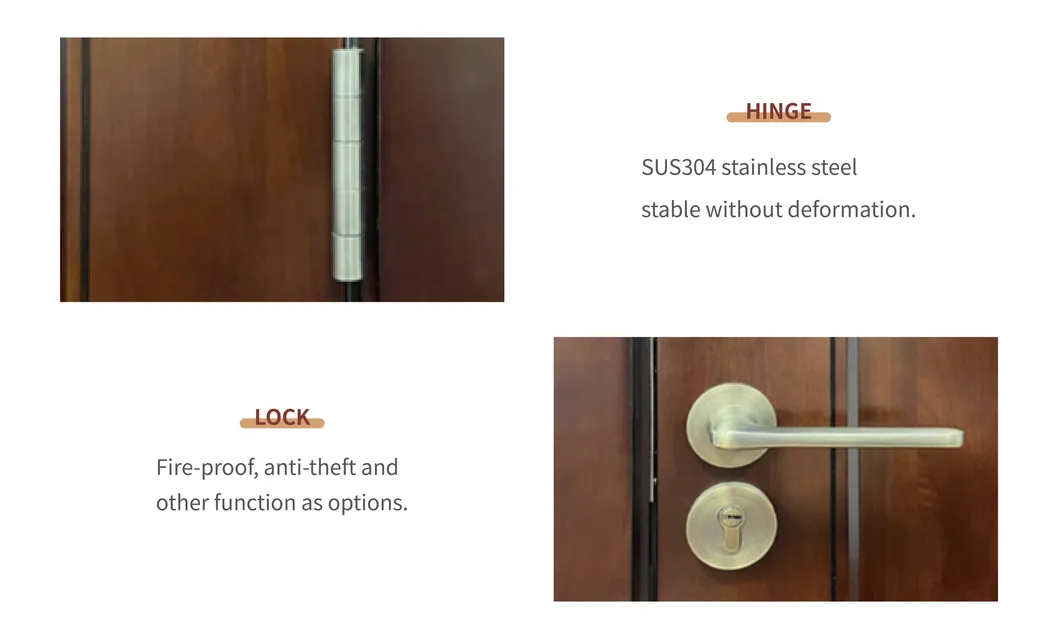

| Ironmongery | Hinge, handle lock, panic escape lock, door closer, peephole |
| Function | Fireproof, thermal insulation, sound insulation, waterproof |
| Application | Corridors or partitions in buildings requiring fire ratings |
🏆
Quality & Certifications
✔️
Standard Compliance
ISO9001: 2000 Management Certification
ISO9001: 2000 Management Certification
✔️
Safety Standards
CE Certification for European Markets
CE Certification for European Markets
✔️
Professional Solutions
High-quality products designed for custom industrial needs.
High-quality products designed for custom industrial needs.
❓
Frequently Asked Questions
What is the fire rating duration of these wooden doors?
Our fire doors offer various protection levels, including 30, 60, 90, and 120 minutes of fire resistance, depending on the specific model and material thickness chosen.
Can the door size be customized for hotel projects?
Yes, we provide customer-tailored sizes. For single doors, the maximum width is 1200mm and height is 2500mm. For double doors, dimensions can go up to 2100mm by 2300mm.
What materials are used in the core of the fire door?
The door leaf structure typically consists of a solid pine wood skeleton combined with fireproof perlite board and high-density MDF for maximum safety and stability.
What surface finishes are available?
We offer a wide range of finishes including professional painting, PVC, Melamine, Timber Veneer, and HPL (High-Pressure Laminate) to match your interior design.
Do the doors come with necessary hardware?
Yes, we provide full ironmongery sets including fire-rated hinges, handle locks, panic escape locks, door closers, and optional features like vision panels or kick plates.
Are these doors suitable for soundproofing?
Absolutely. Due to the high-density materials like solid wood and perlite used for fire resistance, these doors also provide excellent sound insulation and thermal performance.
