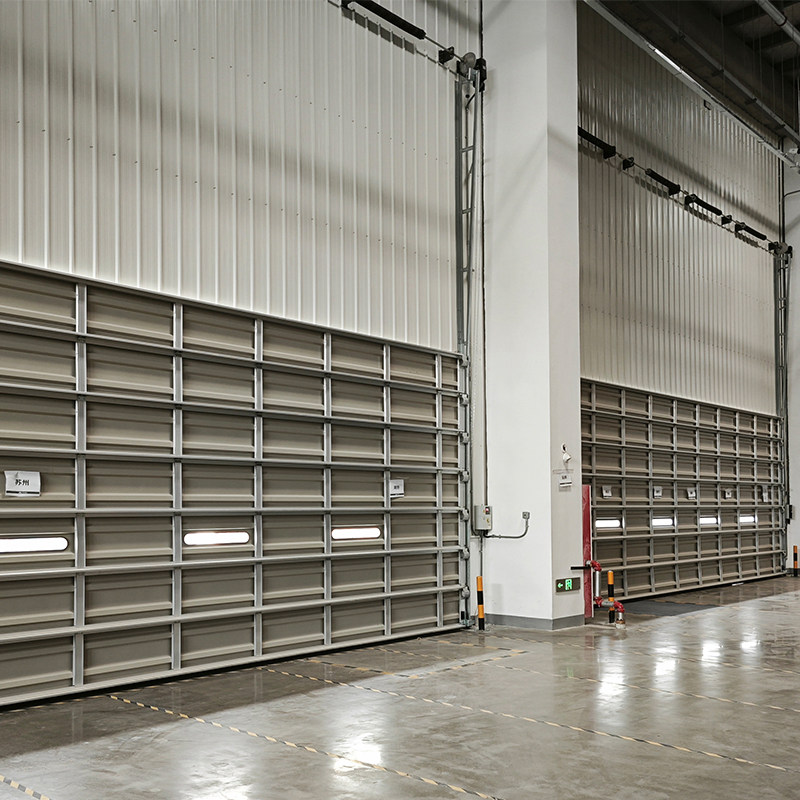

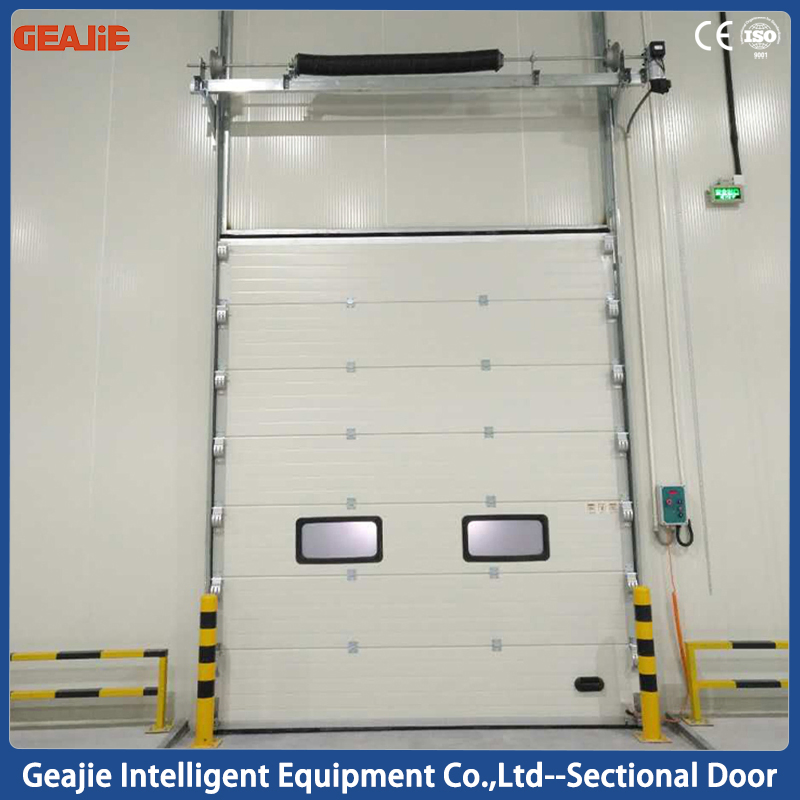

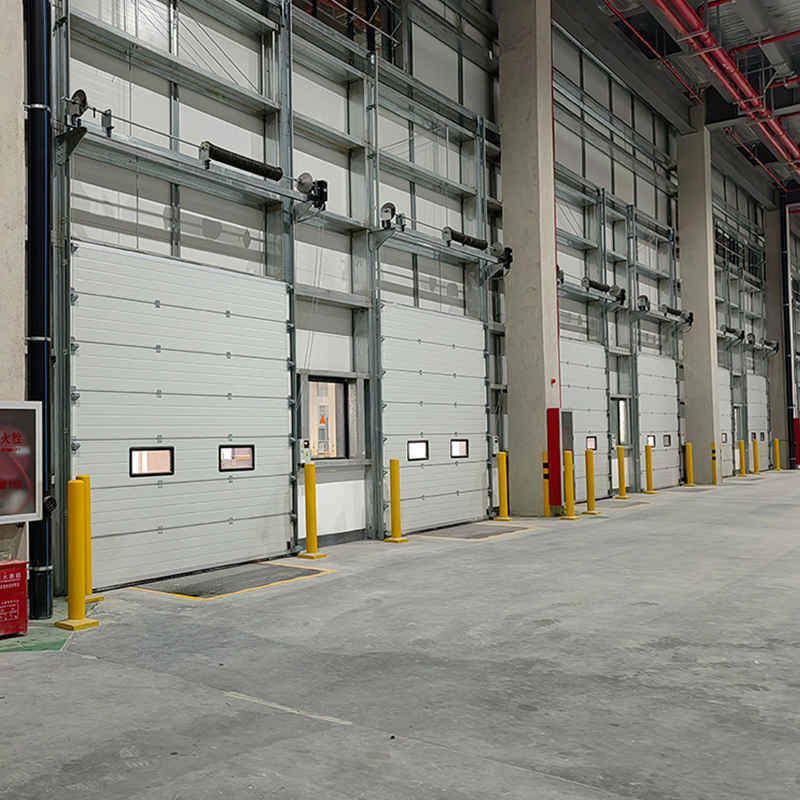

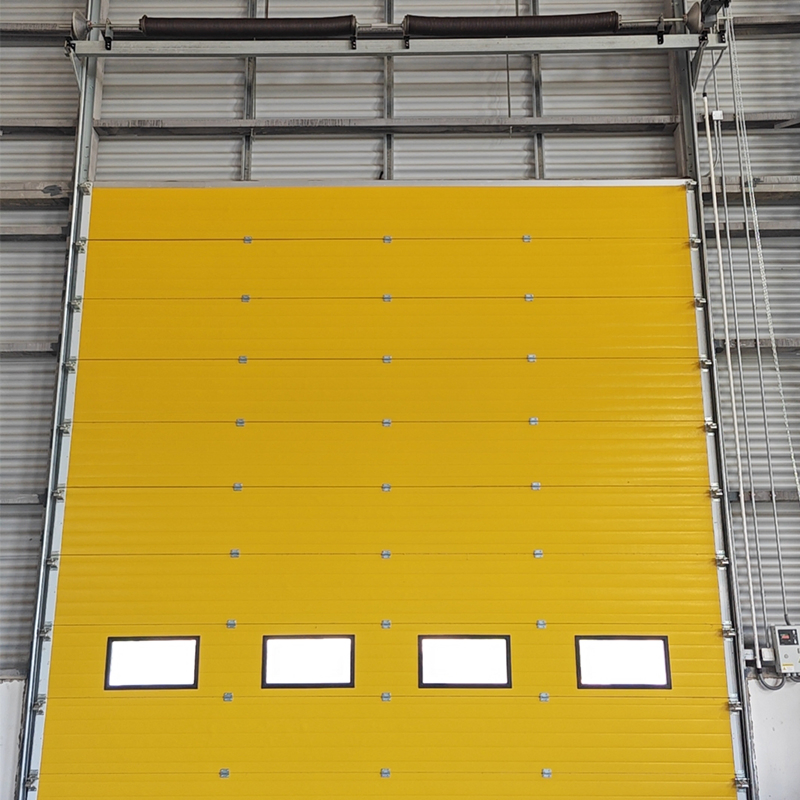

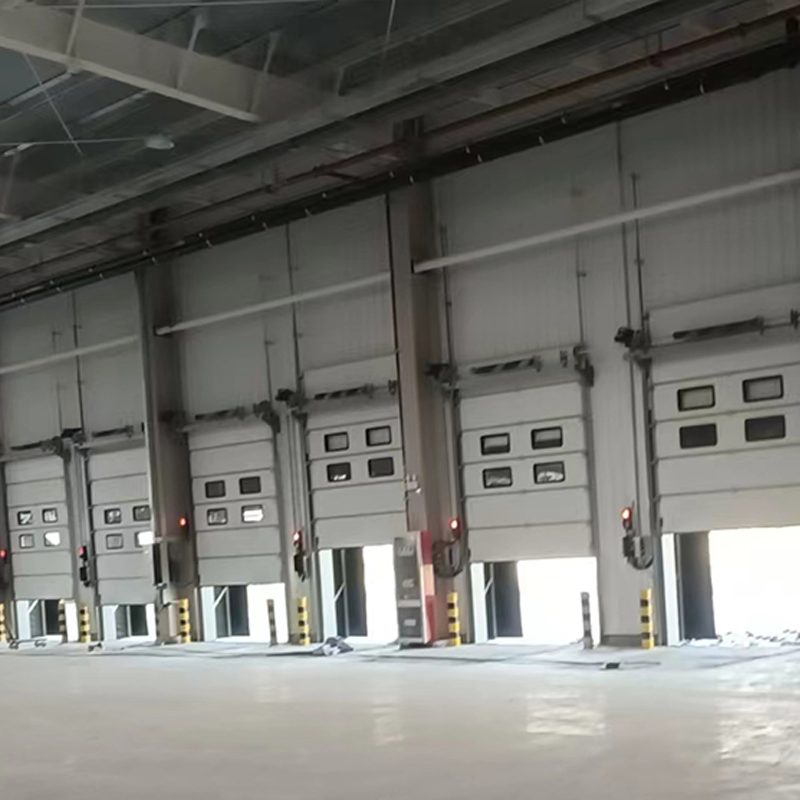

China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
Product Description
Basic Info.
Model NO.
ISD-21
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Insulated and Cold Storage
Certification
TUV, CCC, ISO9001, RoHS, CE
Wind Resistant
Standard 450PA, Higher to 700PA
Door Panel Thickness
Anti-Pinch Door Panel:40mm
Opening Speed
0.25m/S
Size Range
W:1500-6000mm H:2000-6000mm
Application
Factory, Garage, Hotel, Warehouse etc
Packaging & Delivery
Package Size
200.00cm * 300.00cm * 150.00cm
Gross Weight
500.000kg
Product Description
Industrial Sectional Door

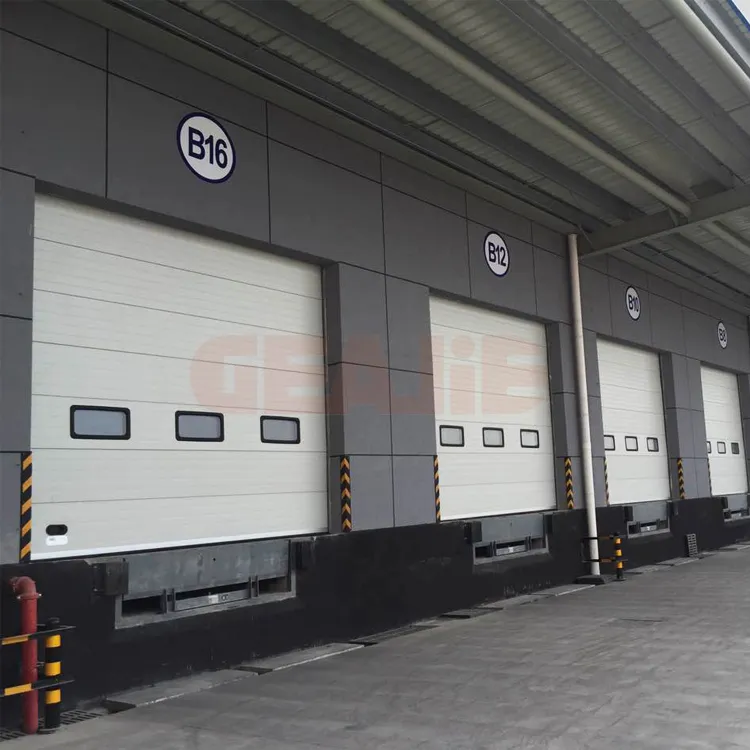

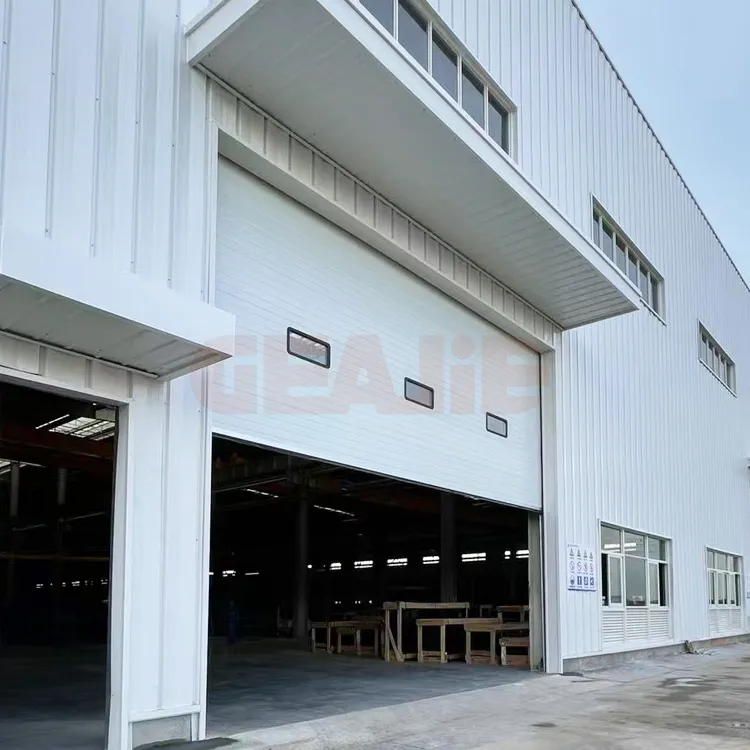

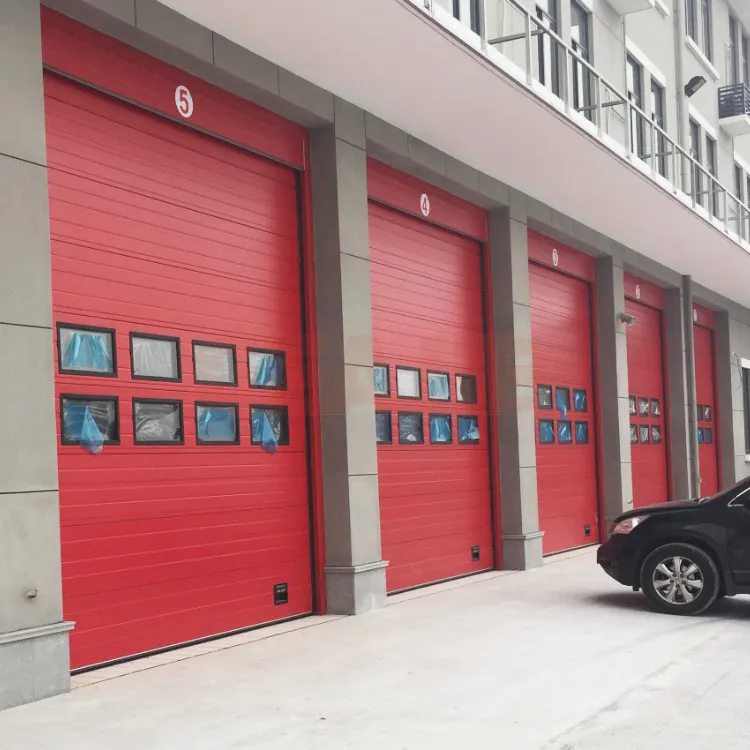

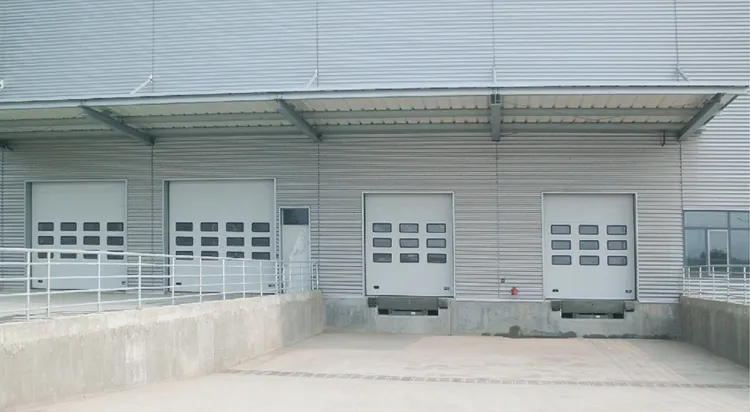

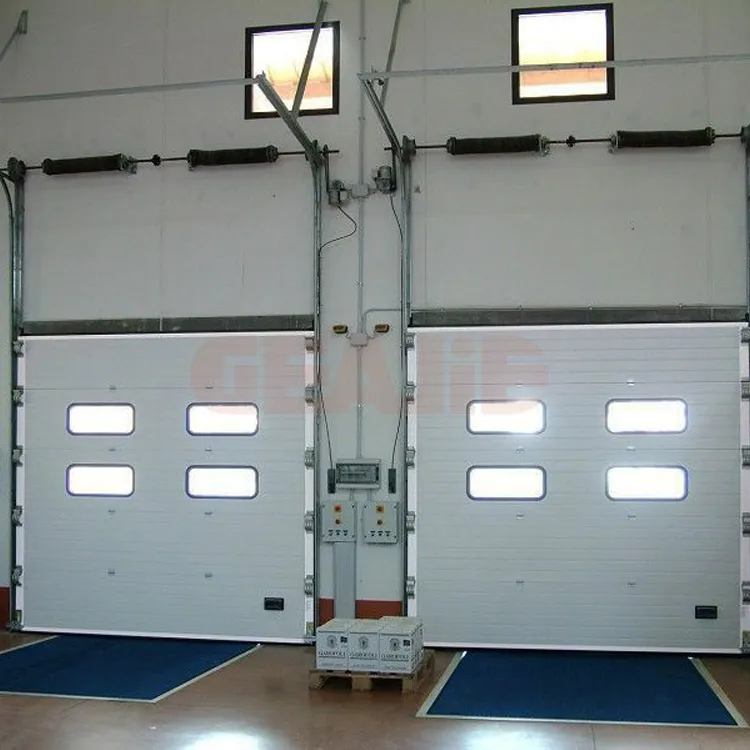

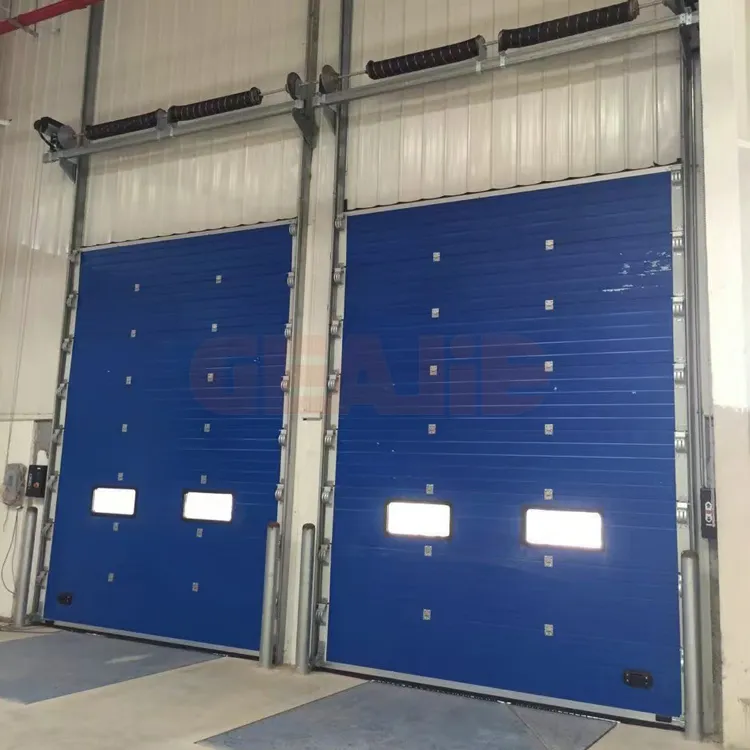

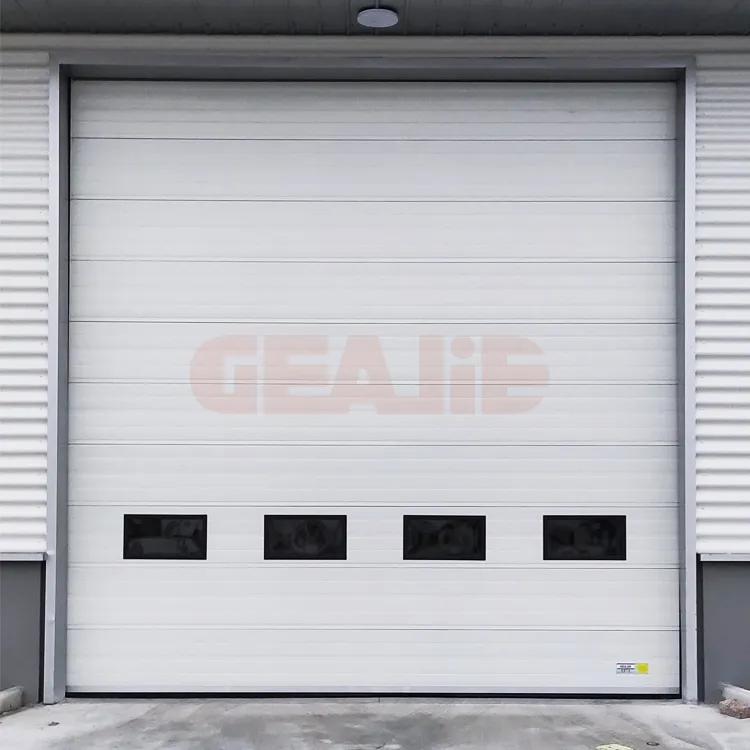

Product Show
| Material Description | |
|---|---|
| Size range | W:6000-12000mm, H:2000-8000mm |
| Opening and closing speed | 0.25m/s |
| Door panel material | Galvanized steel or aluminum plate |
| Door panel thickness | Anti-pinch: 40mm / Insulated bridge: 43mm |
| Safety devices | Wire rope breakage protection, torsion spring breakage protection, wireless airbag |
| Wind resistant | Standard 450Pa, higher to 700Pa |

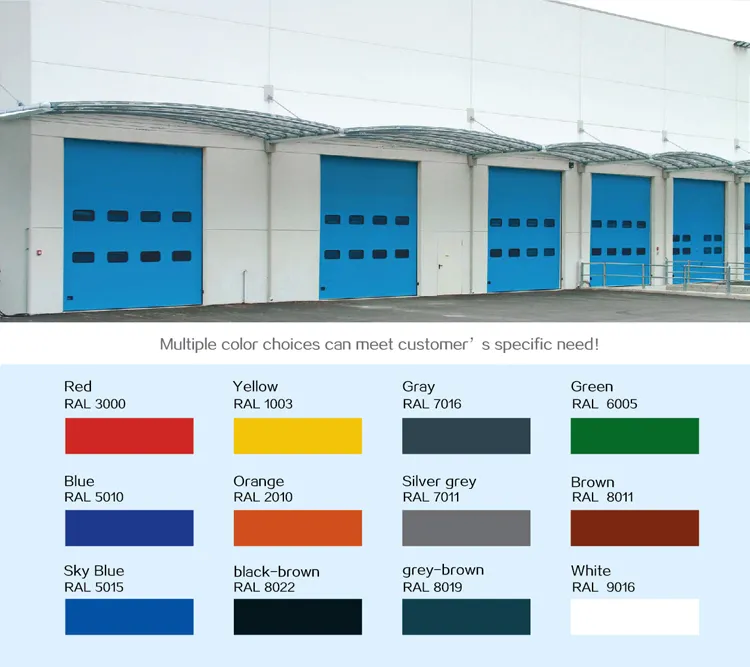

| Color | RAL9002, RAL9016, RAL1023, RAL5005, RAL3002, customizable |
Excellent insulation and closeness performance, good anti-wind structure, safe and reliable operation guarantee!

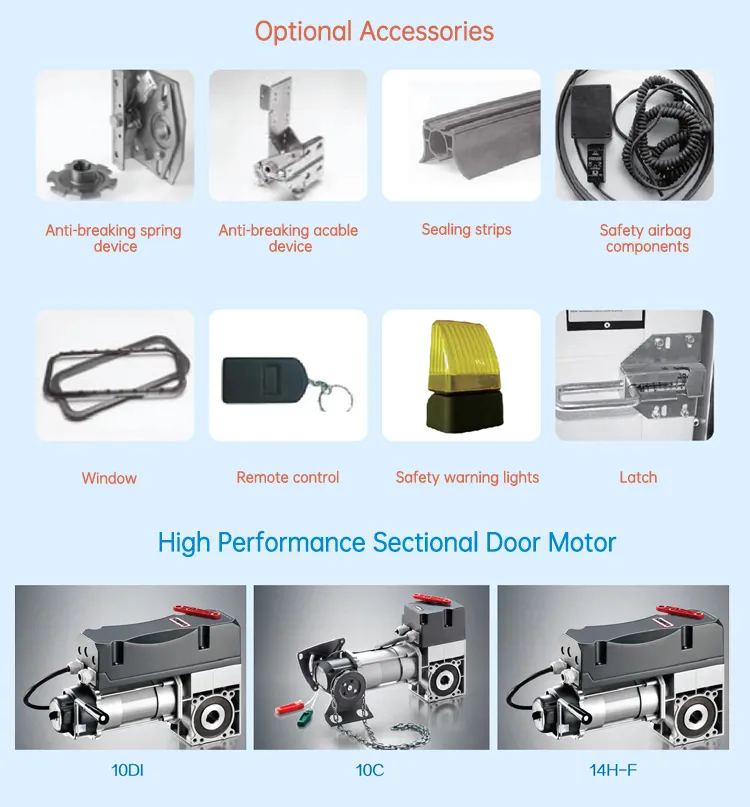

Motor Technical Parameters
| Parameter | 10DI | 10C | 14 H-F |
|---|---|---|---|
| Output torque | 100Nm | 100Nm | 140Nm |
| Output shaft speed | 24 rpm | 24 rpm | 14 rpm |
| Rated power | 0.37KW | 0.37KW | 0.55KW |
| Rated voltage | 1*AC 230/440V | 3*AC 230/440V | 1*AC 230V |
| Protective level | IP 54 | IP 54 | IP 54 |

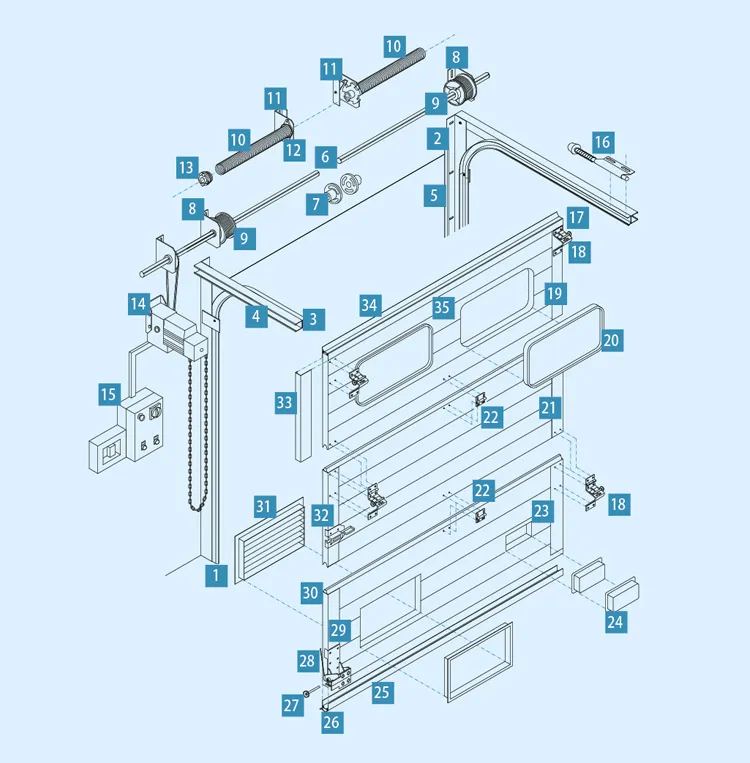

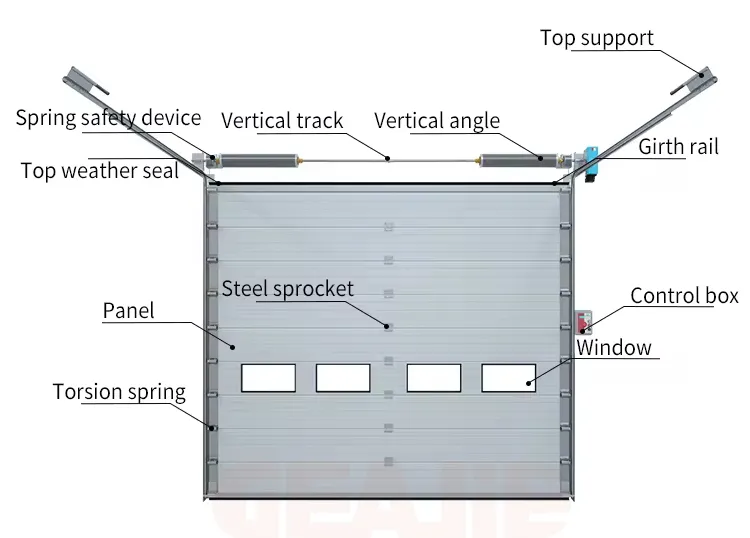

Structural Drawing
Product Advantages
Multiple lifting methods (straight, standard, high lintel, low lintel) to customize your building space.
Unique roller shaft design distributes force to hinges and wheels for gentle operation and long service life.
Sturdy double-sided hot-dip galvanized steel with high-density polyurethane insulation and anti-pinch function.
Equipped with EPDM sealing rubber on all sides for superior weather resistance and corrosion protection.
Safety devices including spring brake devices and bottom wireless airbags that reverse door movement upon contact.

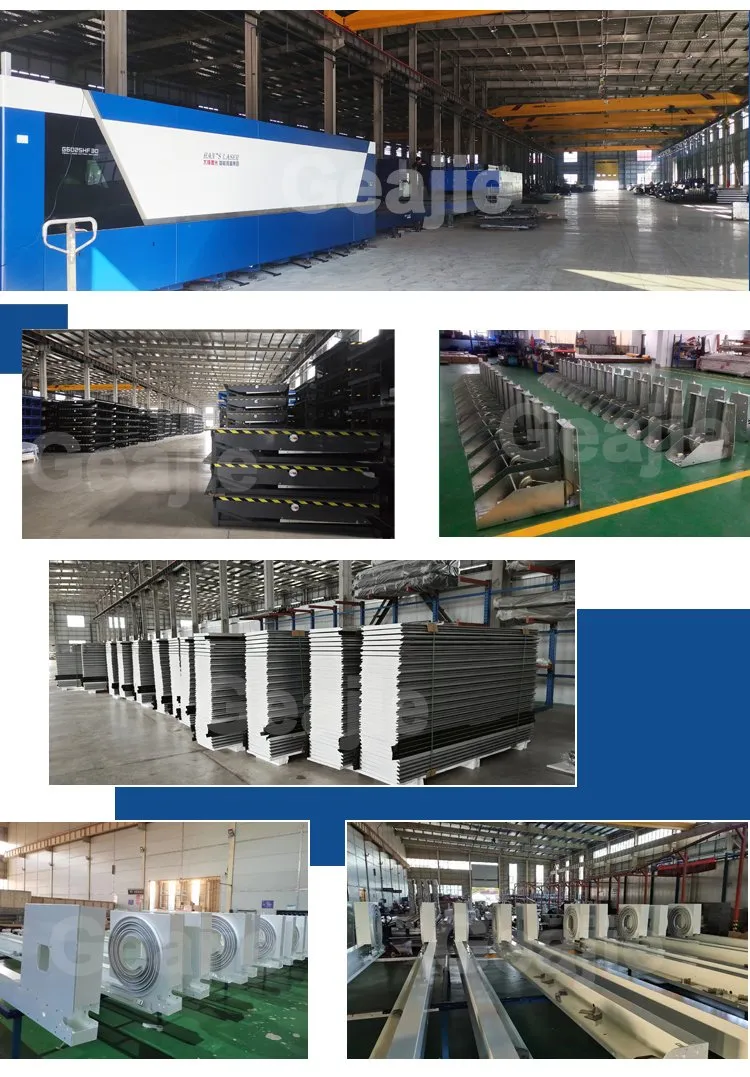

Production Environment
Frequently Asked Questions
Q1: What is your MOQ?
A: 1 set is OK.
Q2: What is the max available size of the doors?
A: The max length can be 6.5M. The max width is 6M, adjustable.
Q3: Do you produce other products?
A: Yes, we also produce sliding doors, rapid doors, garage doors, rolling shutter doors, cold storage doors, and loading platforms. We produce parts in-house to control quality and cost.
Q4: How to install your product, is it difficult?
A: It is very easy to install.
Q5: Which place will use the dock leveler?
A: Factory outlets and outgoing ports of logistics parks.
Q6: What's the effect of the dock leveler?
A: It improves the efficiency of cargo handling, making unloading and loading goods easy.
