Automatic Click Slotting System for Spc Laminate Wood Flooring
Product Description
Basic Info.
| Product Type | Plastic Sheet |
| Screw | Double-Screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE |
| Customized | Customized |
| Key Selling Points | Long Service Life |
| Temperature Control | Omron Brand |
| Standard | 200,000m2/Month( Two Shifts )for 1220*180mm |
| Power | 200kw |
| Production Capacity | 1000-1200kg/H |
| HS Code | 84778000 |
Product Description

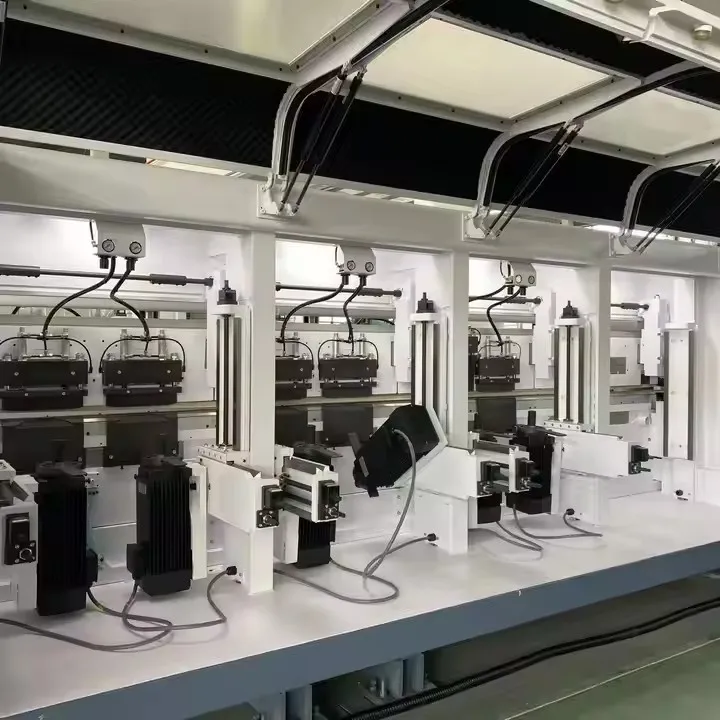

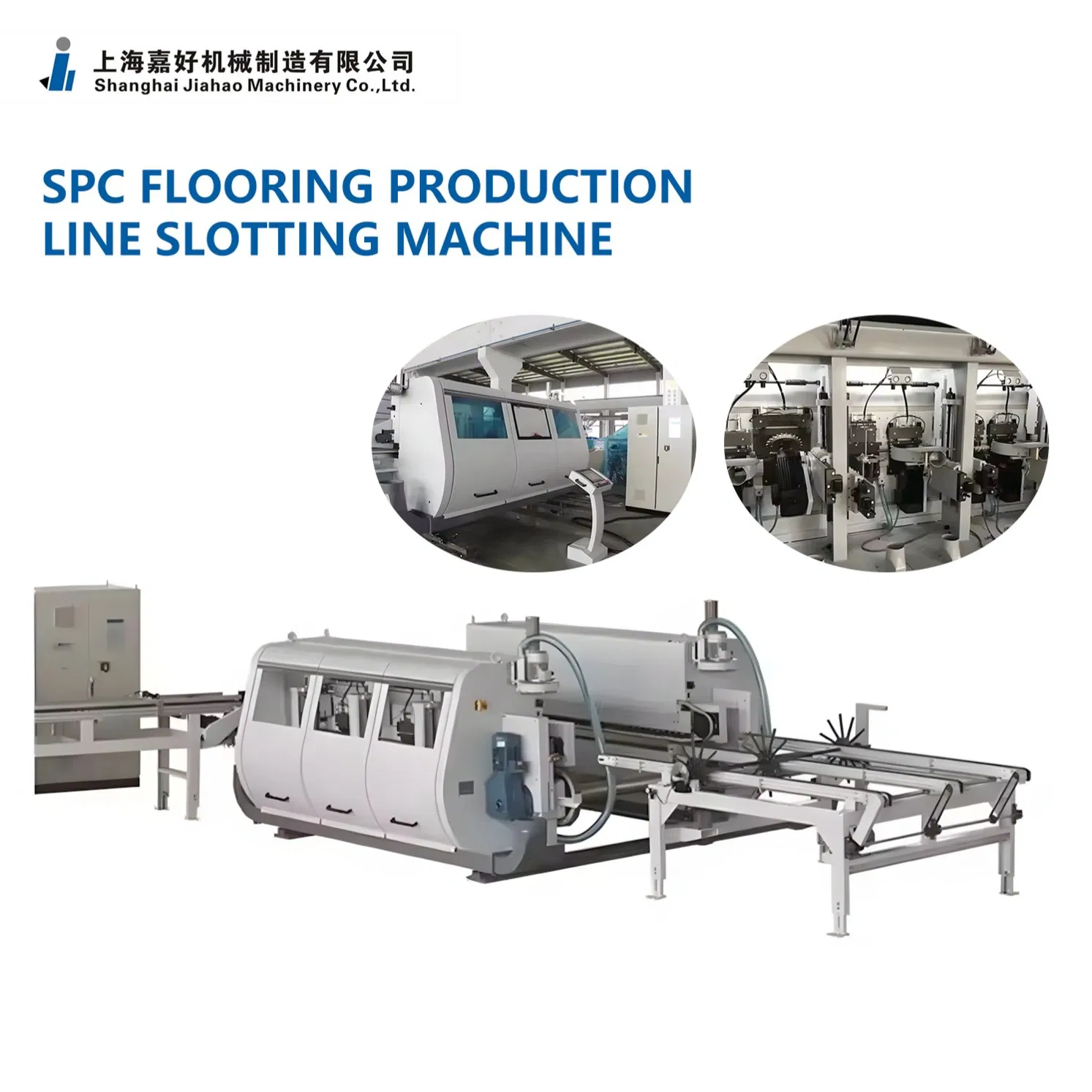

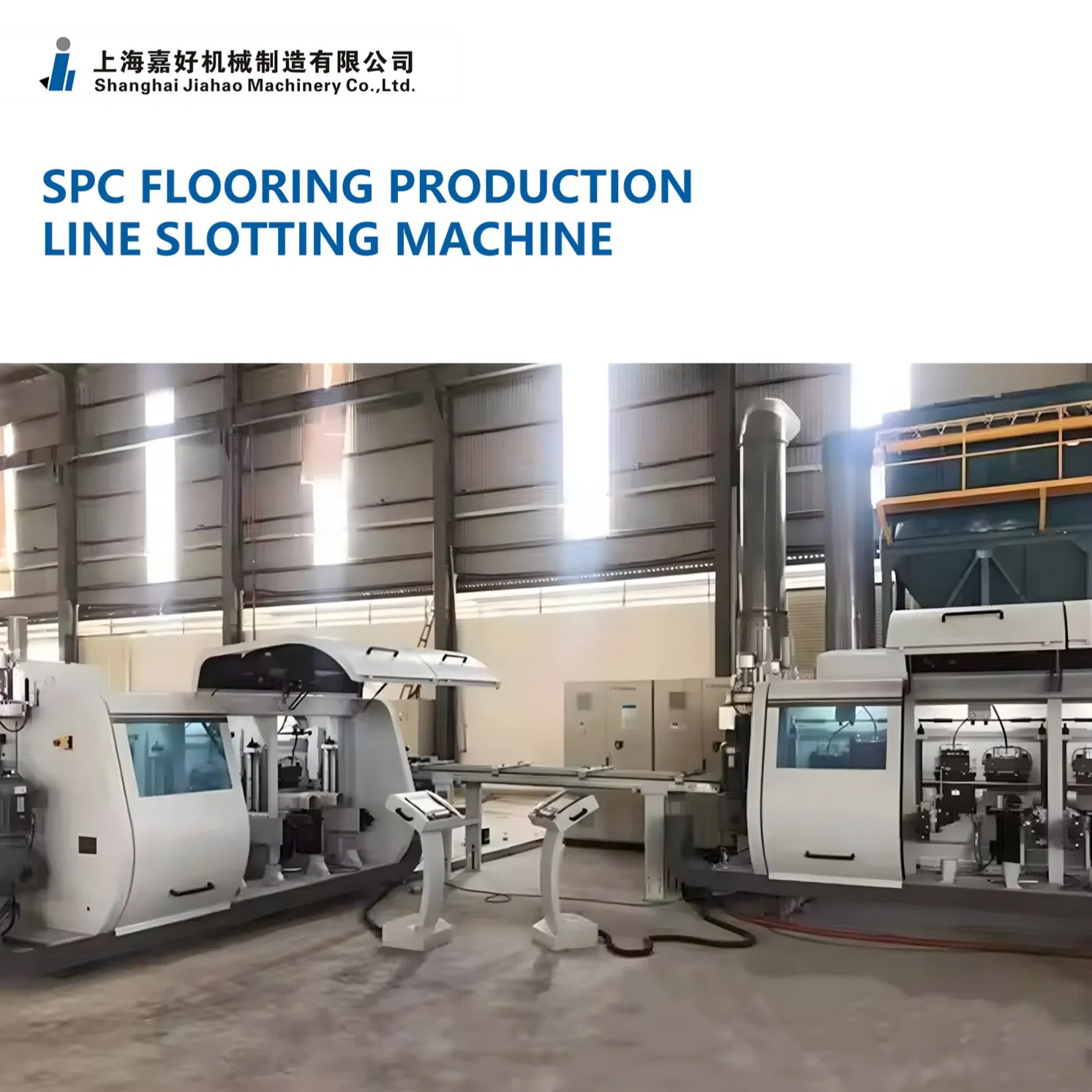

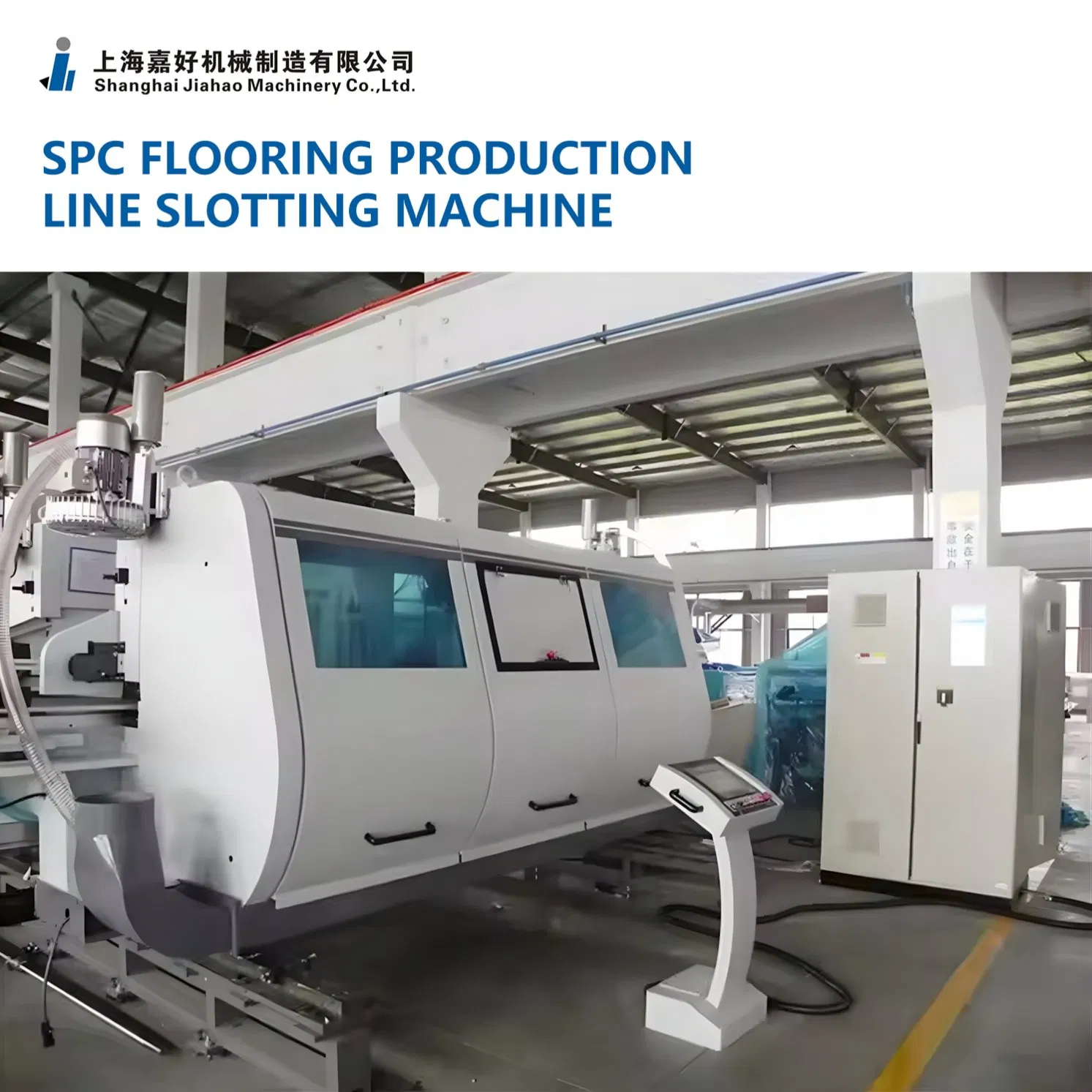

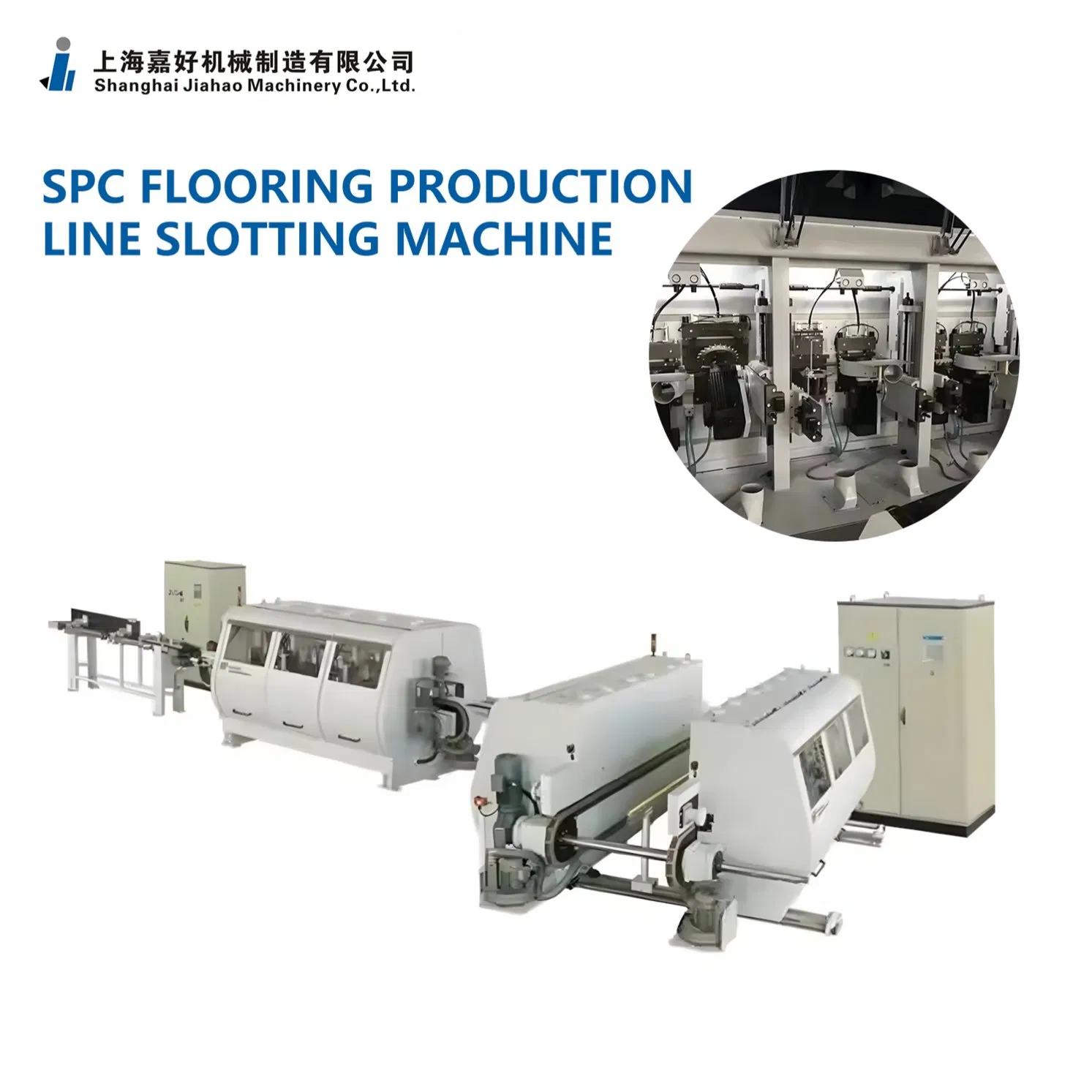

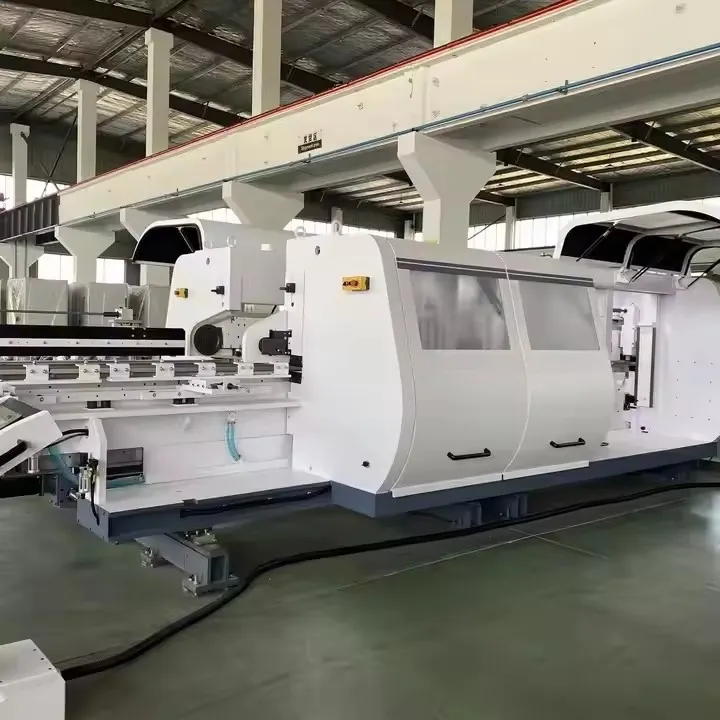

SPC Flooring Production Line Slotting Machine
The Double End Tenoner slotting machine is designed with German high technology. This DET line is applied for SPC flooring, LVT flooring, and laminate flooring production line. There are 6+6 stations (including scrape cutter) and 6+8 stations (including scrape cutter). With precision tools, the slotting line can process Unilin, Valinge and I4F click systems. The flooring click profile machine has the advantages of wide adaptability, simple and fast regulation, and high precision.
SLOTTING MACHINE INFORMATION
Product Parameters
| Floor Length | 600~1800MM |
| Floor Width | 125~300MM |
| Floor Thickness | 3~25MM |
| Speed | 40~120M / Min |
| Working Voltage | 380V / 50Hz |
| Total Power | 200KW |
| Air Pressure | 0.6~0.8Mpa |
| Capacity | 200,000M2/month (two shifts) |

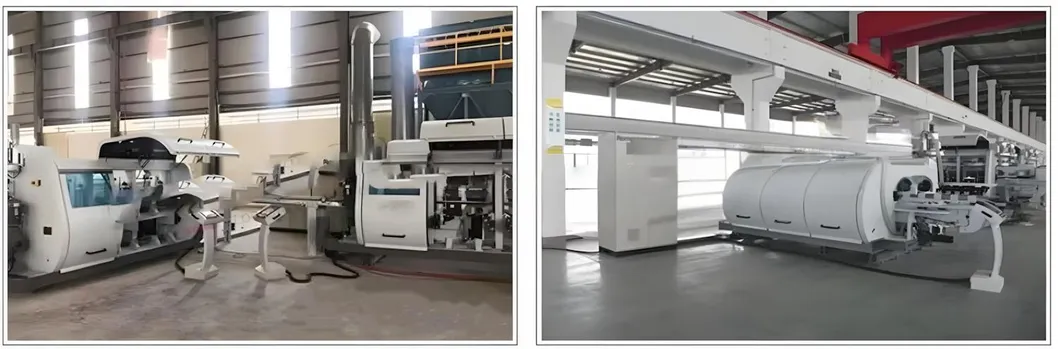

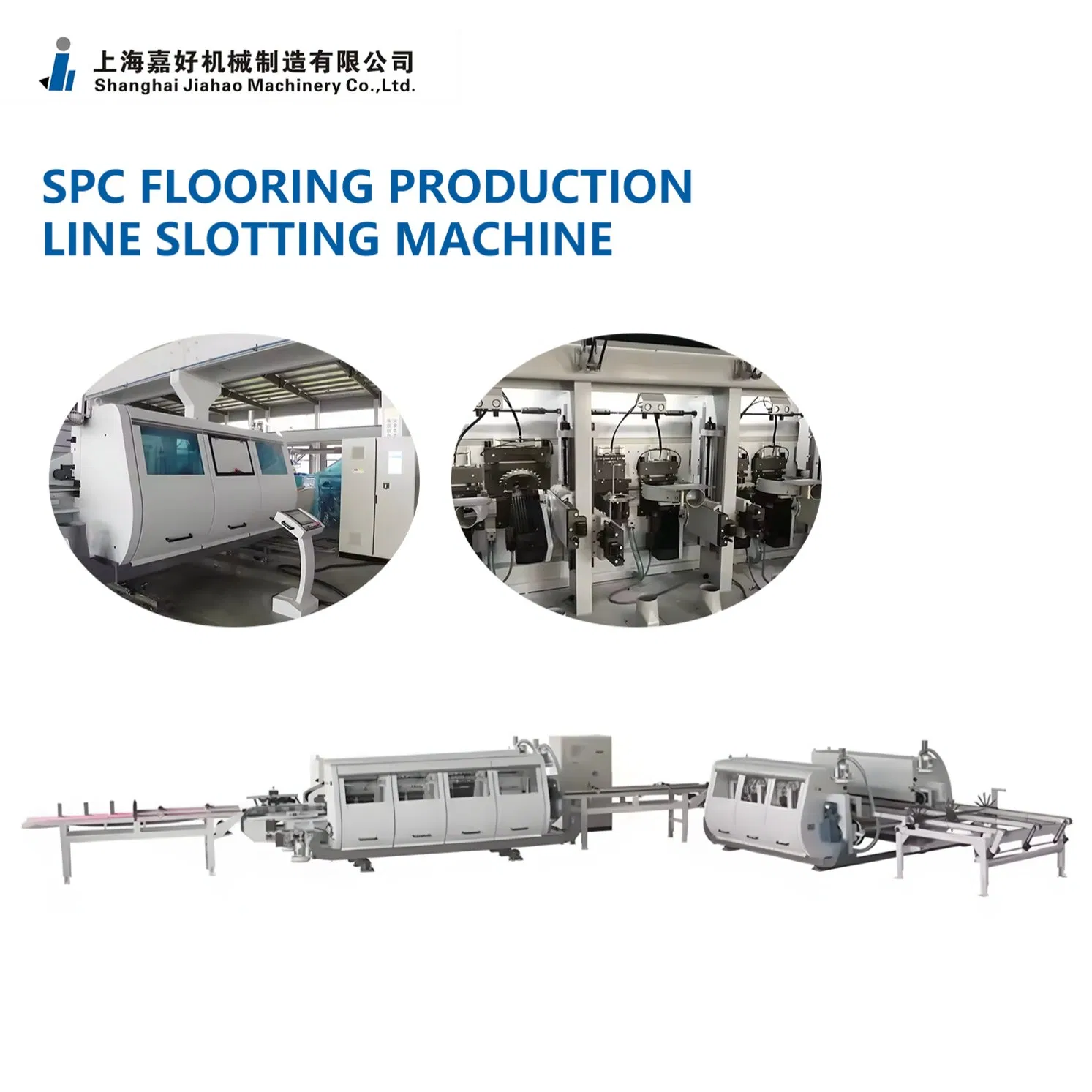

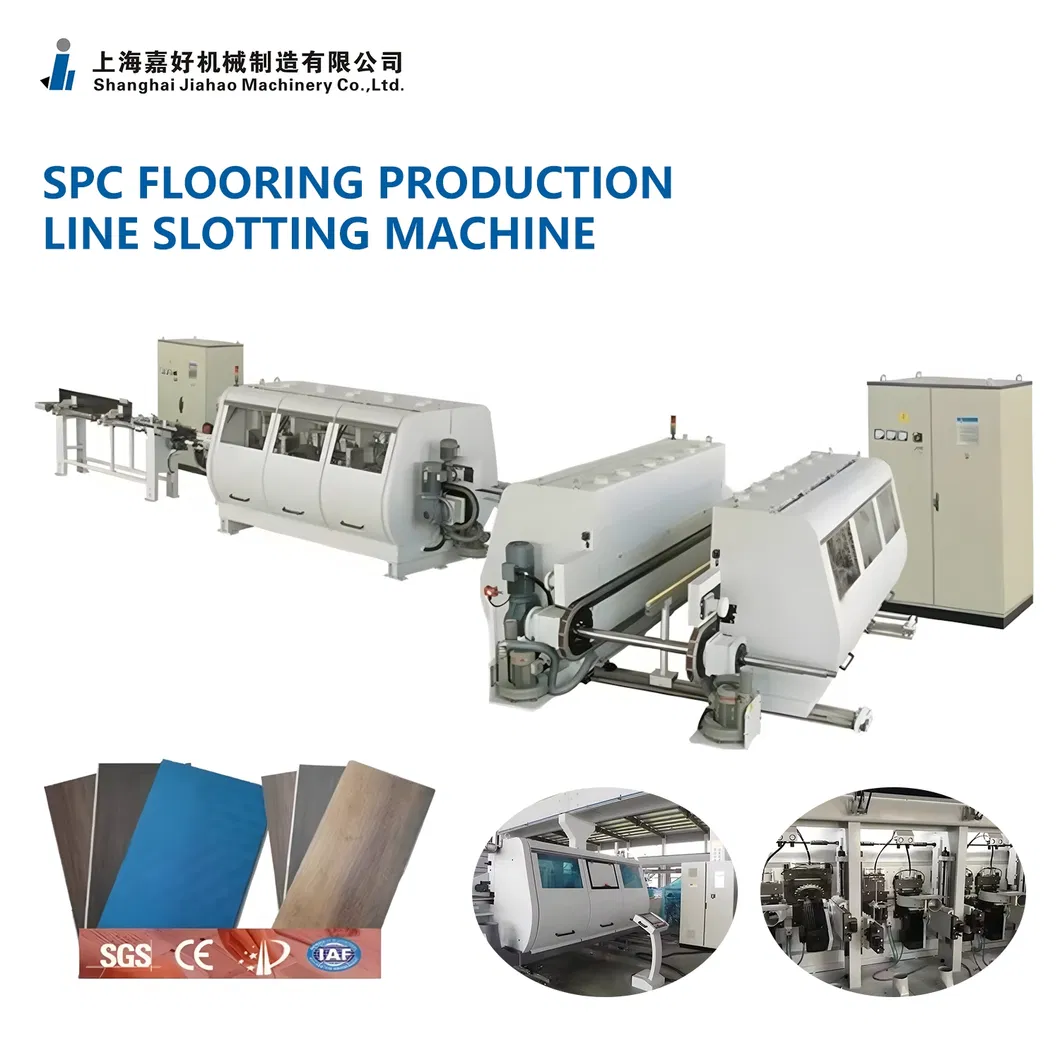

List of the machine for Double End Tenoner production line
| Feeding Rolling Table | 1 set |
| Longwise Double End Tenoner Machine | 1 set |
| Turning Roller Conveyor | 1 set |
| Crosswise Double End Tenoner Machine | 1 set |

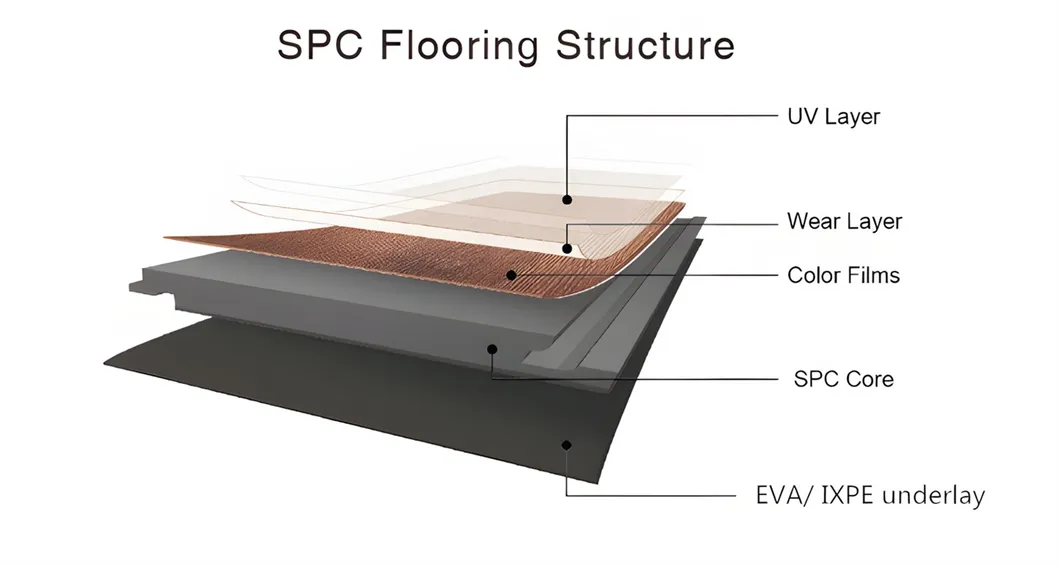

SPC stands for stone plastic composite (or stone polymer composite). SPC flooring is an upgrade and improvement of regular luxury vinyl tiles (LVT). The main contents of SPC are natural limestone powder, polyvinyl chloride, and stabilizer combined by a certain ratio to provide a very stable composite material.
SPC flooring is considered the new generation of floor covering, featuring extreme stability, high performance, complete waterproofness, high-density solid core, and indentation resistance. It is formaldehyde-free and safe for both residential and commercial areas.

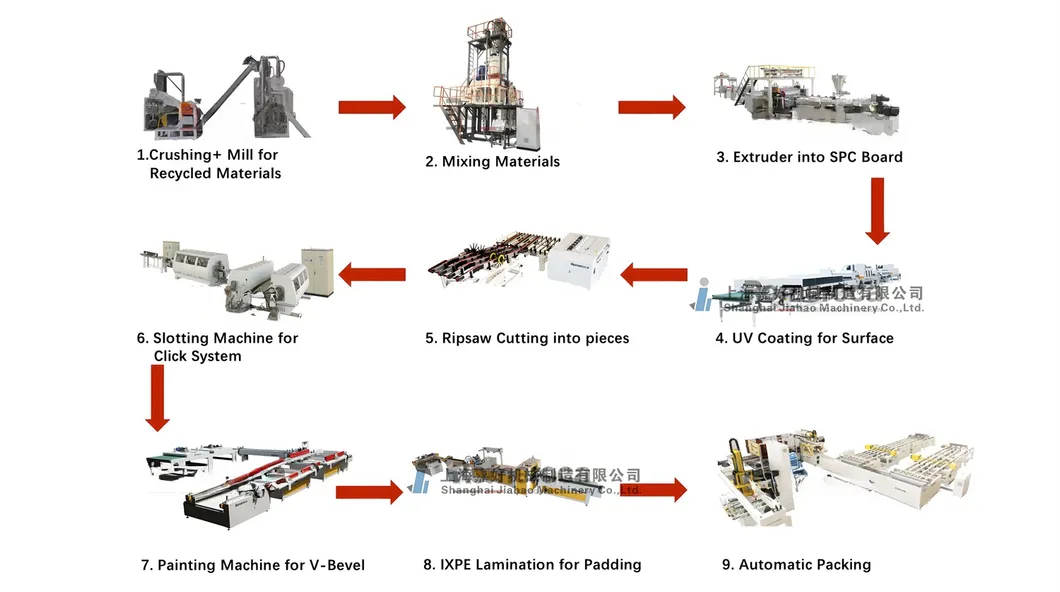

Full production processes of SPC flooring
1. Crushing + Milling
Recycle SPC waste materials into powder to be reused in the raw material ratio.
2. Mixing
Uniformly mix raw materials in a high-speed mixer and cool them to prevent discoloration.
3. Extrusion
Extrude materials through a twin cone screw and laminate the wear-resistant layer and color film by heat.
4. UV Coating
Apply UV paint to prevent dust and scratching while increasing abrasion resistance.
5. Cutting
Automatic multiple ripsaw cuts the big board into required plank sizes.
6. Slotting
Process four sides into certain lock shapes using longitudinal and transverse double-end tenoner machines.
7. IXPE/ EVA underlay laminating
Apply underlay to the back for better sound insulation and walking comfort.
What we are offering?
1. SPC flooring full production line: Extruder, Mixer, Crushing & Milling, UV coating, Slotting, Cutting, V-groove painting, IXPE/EVA lamination, and Packing machines.
2. Raw materials: PVC SG5, stabilizer, ACR, CPE, PVC lubricant, PE wax, Wear-resisting layer, PVC decor Film, UV paint.
3. Spare parts: PCD cutters, saw blades, Extruder moulds, surface rollers, Screw & barrel, UV rollers, and lamps.
4. Test equipments: Drying Oven, Tensile tester, Wear tester, Scratch Tester, Click Strengthen tester, and Click Projector.
• 12-months warranty on all machines (excluding wear parts).
• 36-months tracking service with prompt response within 24 hours.
• Factory production process and machine layout design.
• Technical guidance, training, and supply support for spare parts.

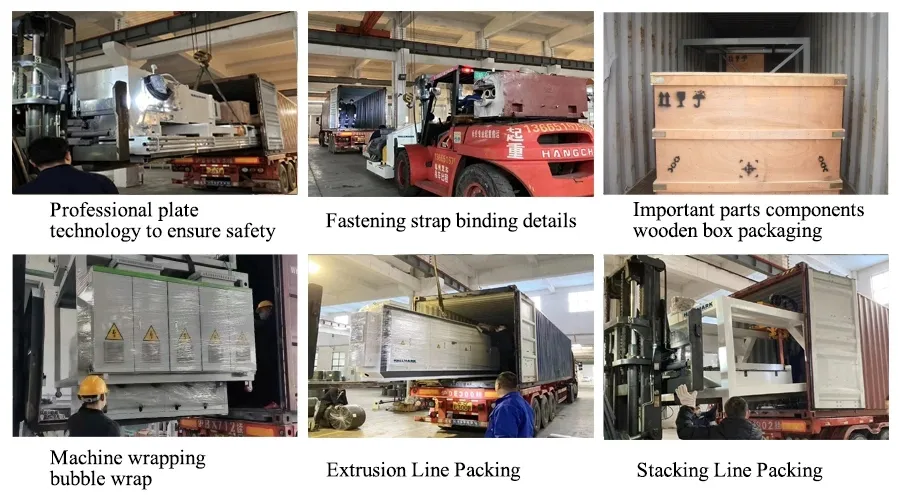

Packaging & Shipping
