Auto Engineering Spc Floor Click Slotting System for Laminates
Product Description
📊
Basic Information
| Product Type | Plastic Sheet | Screw | Double-Screw |
| Automation | Automatic | Computerized | Computerized |
| Certification | CE | Customized | Customized |
| Voltage | OEM | Capacity | Standard |
| Key Selling Points | Long Service Life | Color | Customer Choice |
| Temperature Control | Omron Brand | Power | 200kw |
| Production Capacity | 1000-1200kg/H | HS Code | 84778000 |
⚙️
Product Description

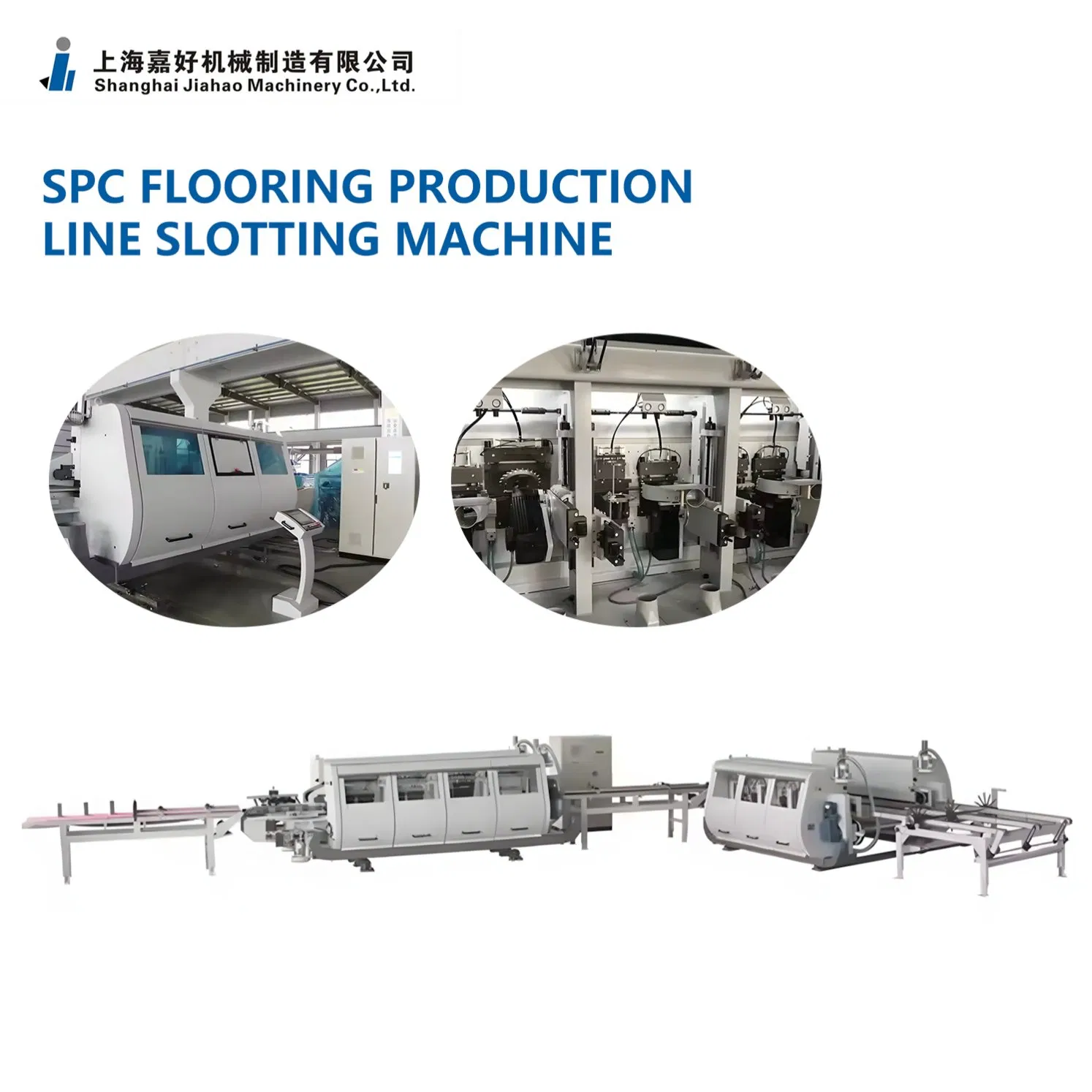

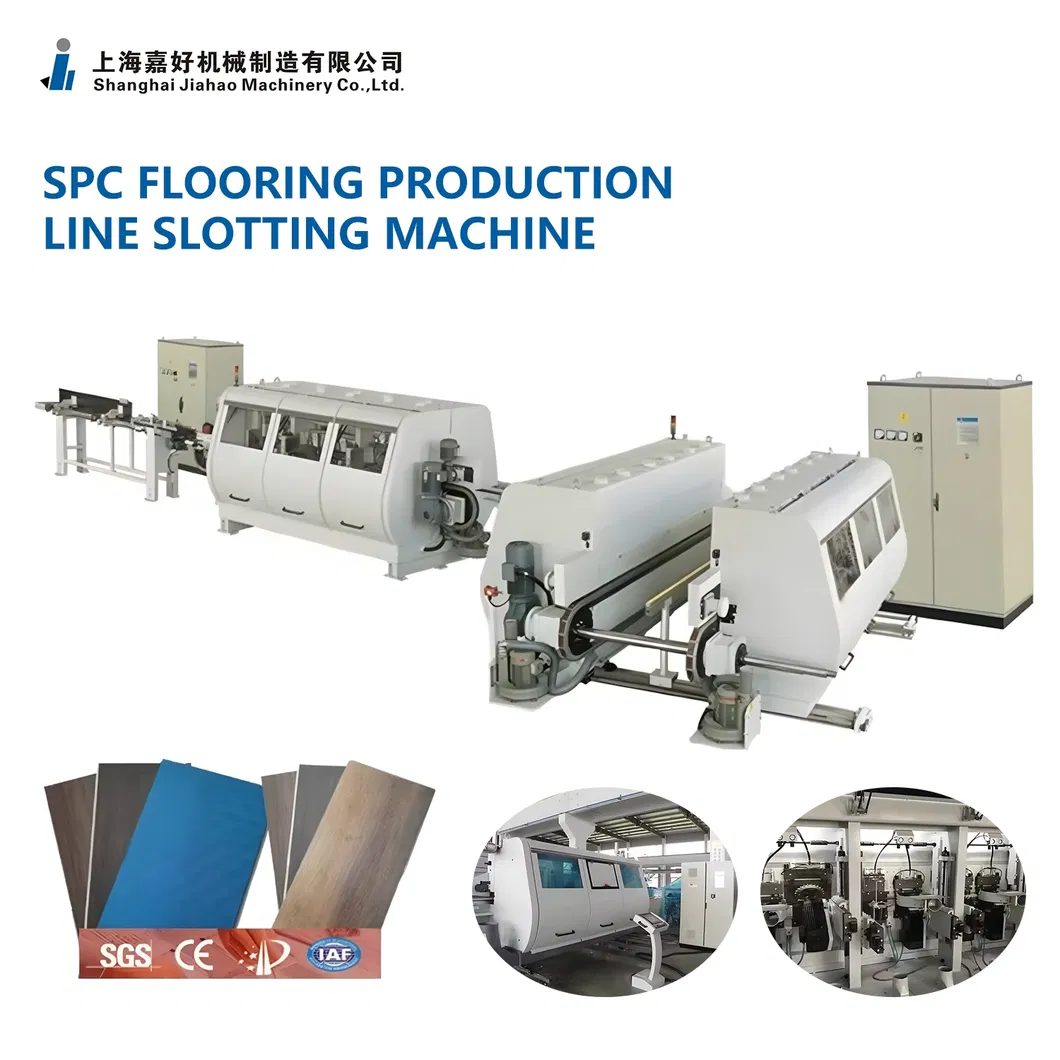

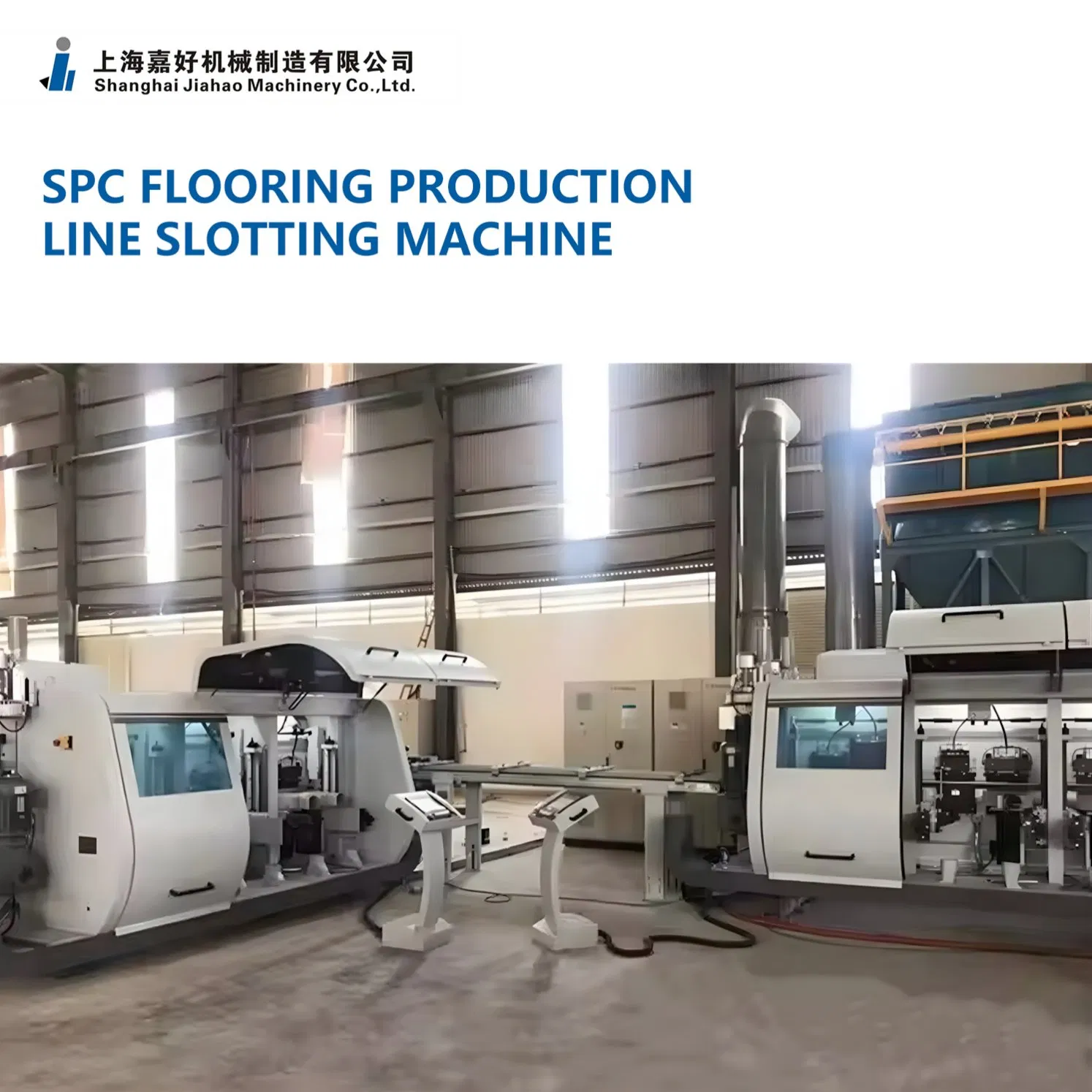

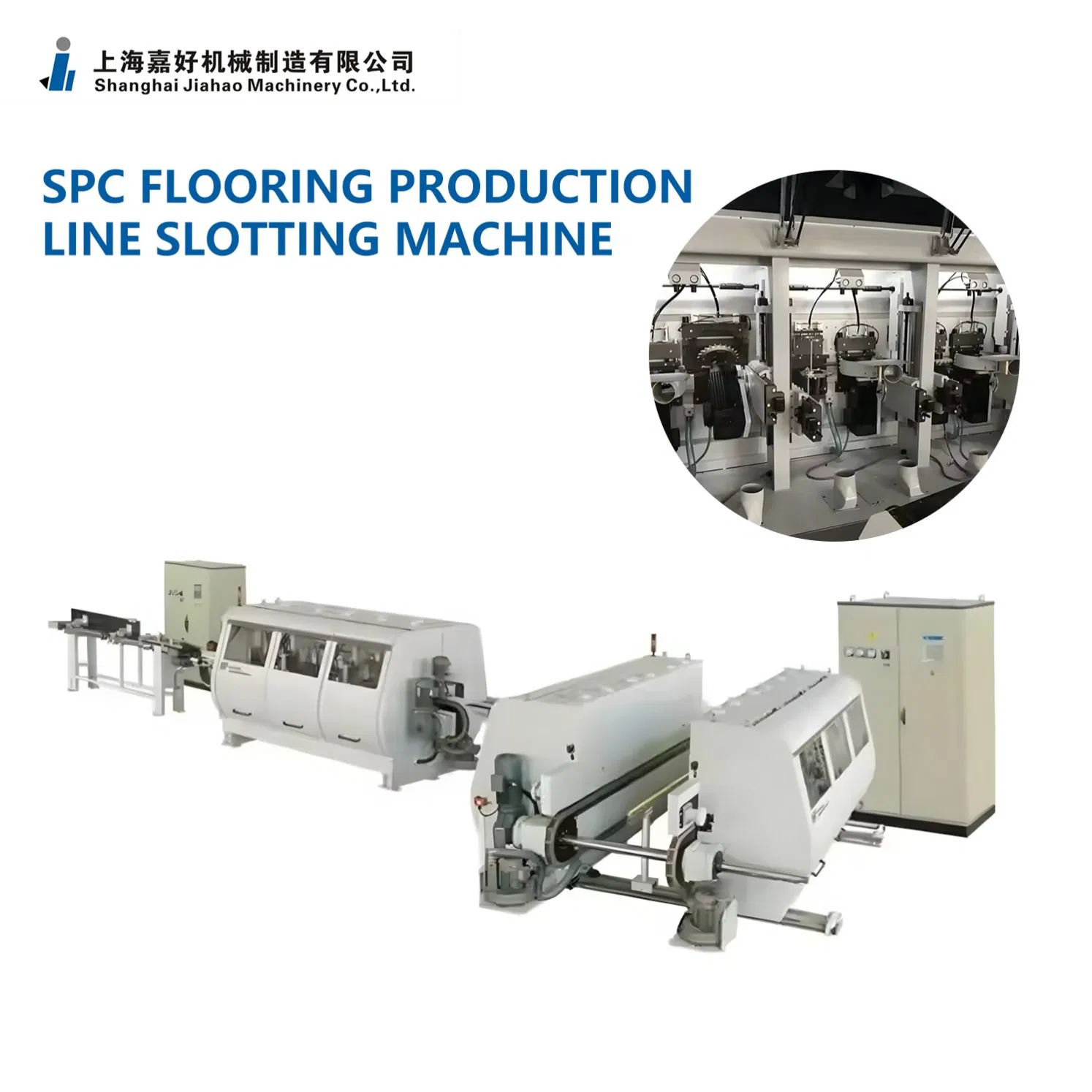

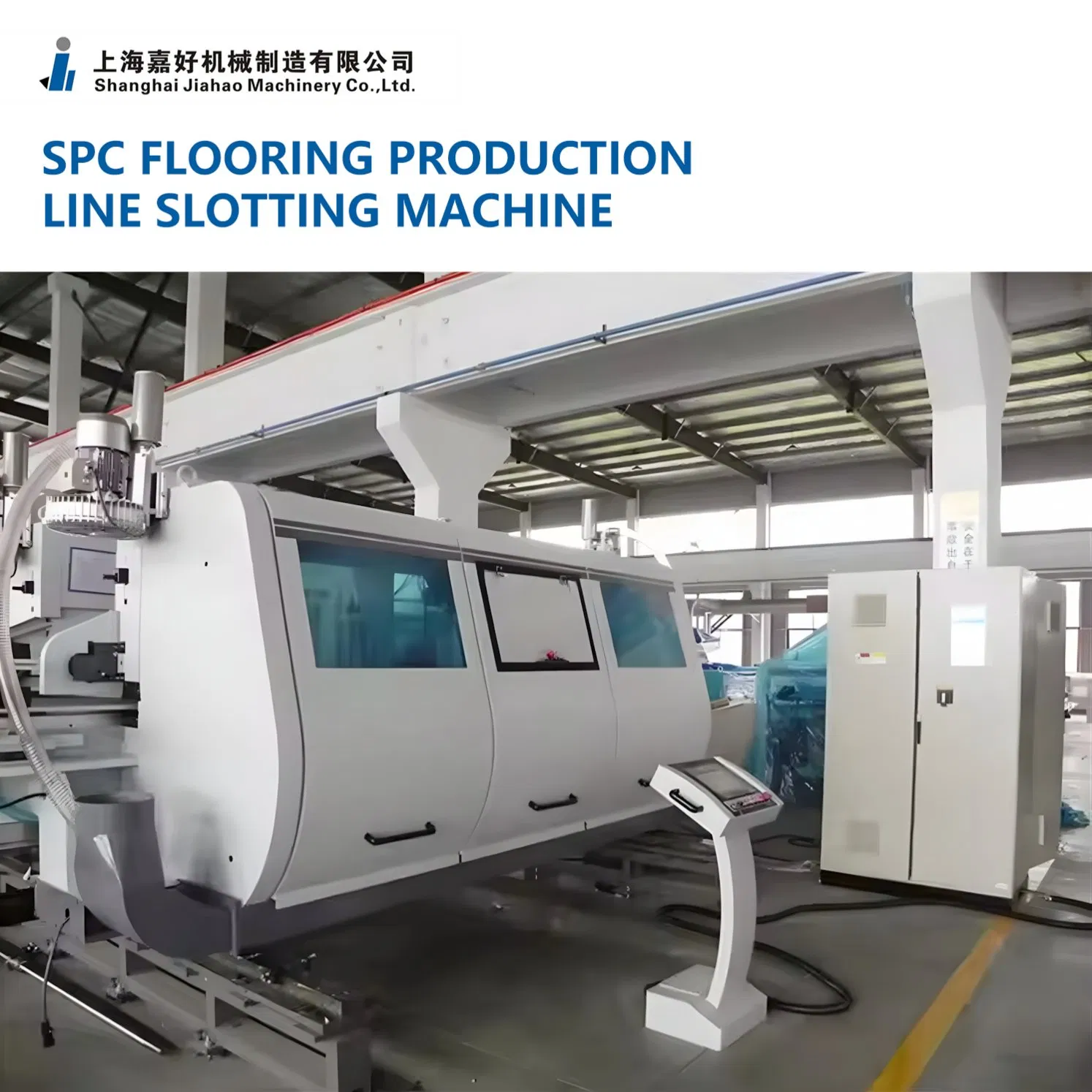

SPC Flooring Production Line Slotting Machine

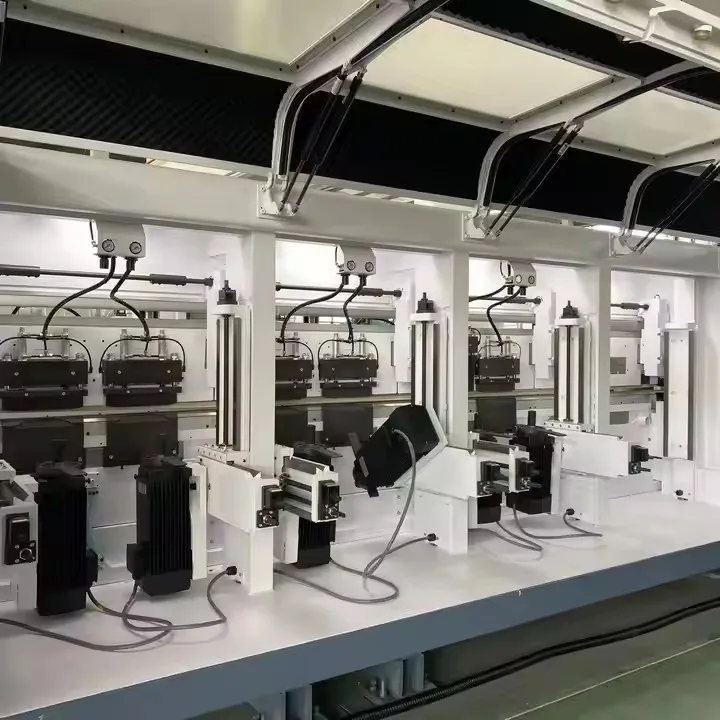

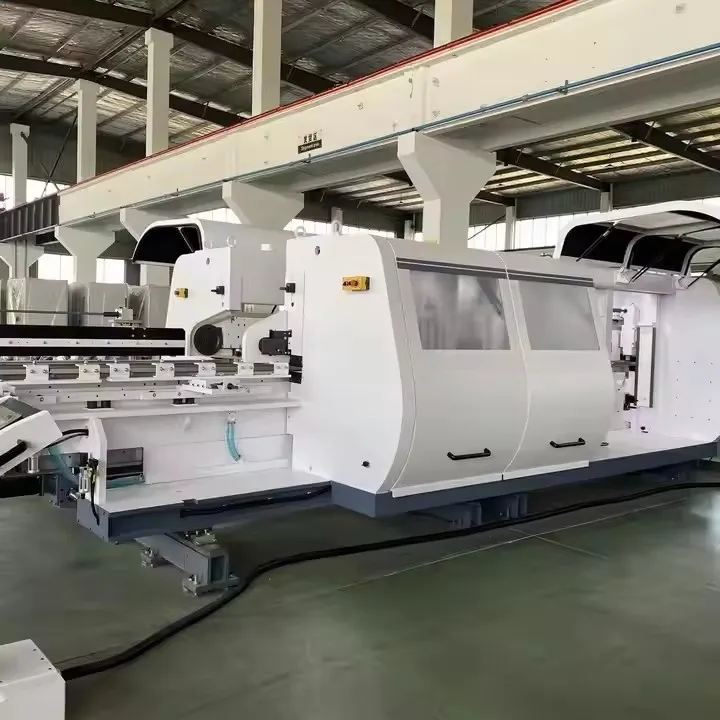

Double End Tenoner slotting machine is designed with advanced technology. This DET line is applied for SPC flooring, LVT flooring, and laminate flooring production lines. Available in 6+6 stations or 6+8 stations (including scrape cutter). Equipped with high-precision tools, the slotting line can process Unilin, Valinge, and I4F click systems. The flooring click profile machine offers wide adaptability, simple regulation, and high precision.
📝
Product Parameters
| Parameter | Specification |
|---|---|
| Floor Length | 600~1800MM |
| Floor Width | 125~300MM |
| Floor Thickness | 3~25MM |
| Speed | 40~120M / Min |
| Working Voltage | 380V / 50Hz |
| Total Power | 200KW |
| Air Pressure | 0.6~0.8Mpa |
| Capacity | 200,000M2/month (two shifts) for 1220*180MM |
🔄
Full Production Process

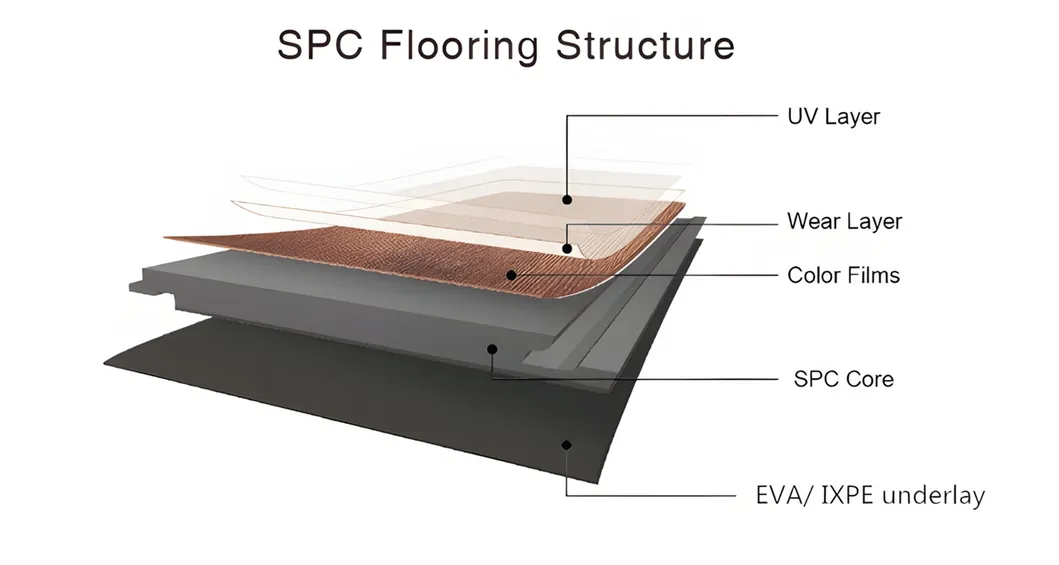

What is SPC? SPC stands for stone plastic composite. It is an upgrade of luxury vinyl tiles (LVT), combining natural limestone powder, polyvinyl chloride, and stabilizers for extreme stability and waterproof performance.

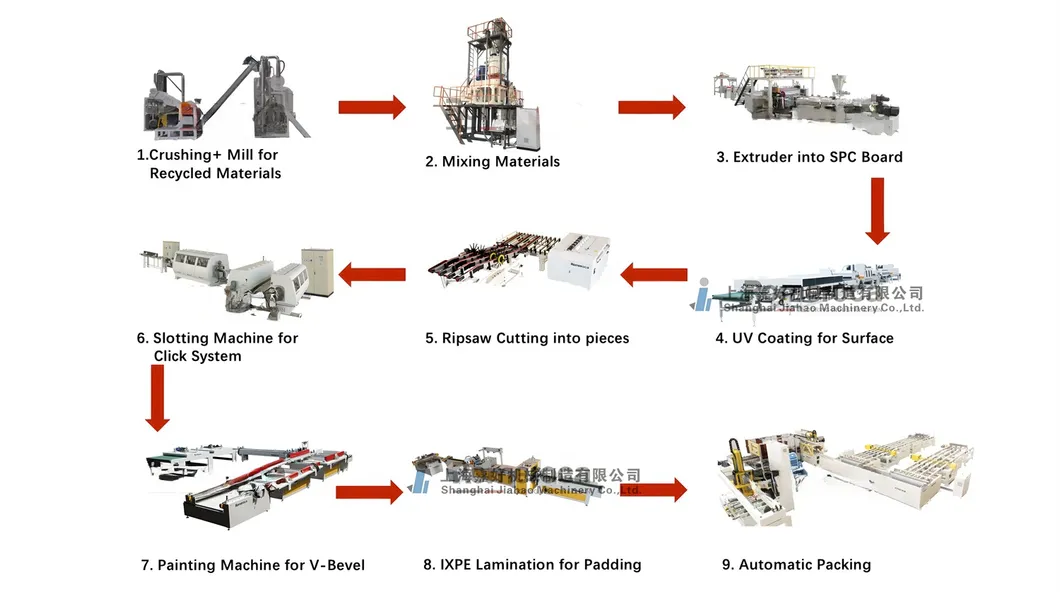

💡 Key Production Steps:
- Crushing + Milling: Recycles fragment waste into powder for raw material reuse.
- Mixing: Uniform high-speed hot and cold mixing to remove moisture and prevent discoloration.
- Extrusion: Twin cone screw extrusion laminating wear-resistant layers and color film by heat.
- UV Coating: Enhances abrasion resistance and ensures uniform gloss.
- Cutting: Automatic ripsaw cutting into required plank sizes.
- Slotting: Processing edges into precise lock shapes (Click System).
- V-groove Painting: Optional process for enhanced aesthetic appeal.
- IXPE/EVA Laminating: Adds sound insulation and improves underfoot comfort.
- Packing: Automatic or semi-automatic packaging solutions.
📦
What We Offer
1. Full Production Line: Extruders, Mixers, UV coating machines, Slotting machines, and Packing machines.
2. Raw Materials: PVC SG5, stabilizers, ACR, CPE, decor films, and UV paints.
3. Spare Parts: PCD cutters, saw blades, moulds, and UV lamps.
4. Test Equipment: Drying ovens, Tensile testers, and Click projectors.
2. Raw Materials: PVC SG5, stabilizers, ACR, CPE, decor films, and UV paints.
3. Spare Parts: PCD cutters, saw blades, moulds, and UV lamps.
4. Test Equipment: Drying ovens, Tensile testers, and Click projectors.
🚢
Packaging & Shipping
❓
Frequently Asked Questions
1. What click systems can the slotting machine process?
The machine is compatible with major industry standards including Unilin, Valinge, and I4F click systems.
2. What is the production capacity of the line?
The standard capacity is approximately 200,000 square meters per month based on two shifts for standard 1220*180mm planks.
3. Is the SPC flooring production process environmentally friendly?
Yes, the process includes crushing and milling steps that allow fragment waste to be recycled back into the raw material ratio.
4. What kind of warranty is provided for the machinery?
A 12-month warranty is provided on all machines, excluding wear parts, along with long-term tracking services.
5. Can you provide the raw materials needed for production?
Yes, we offer a full range of chemicals, wear layers, decor films, and UV paints required for rigid core PVC flooring manufacturing.
6. Does the line support IXPE or EVA underlayment?
Yes, the production line includes an optional lamination process to stick IXPE or EVA underlay to the back of the flooring for better sound insulation.
