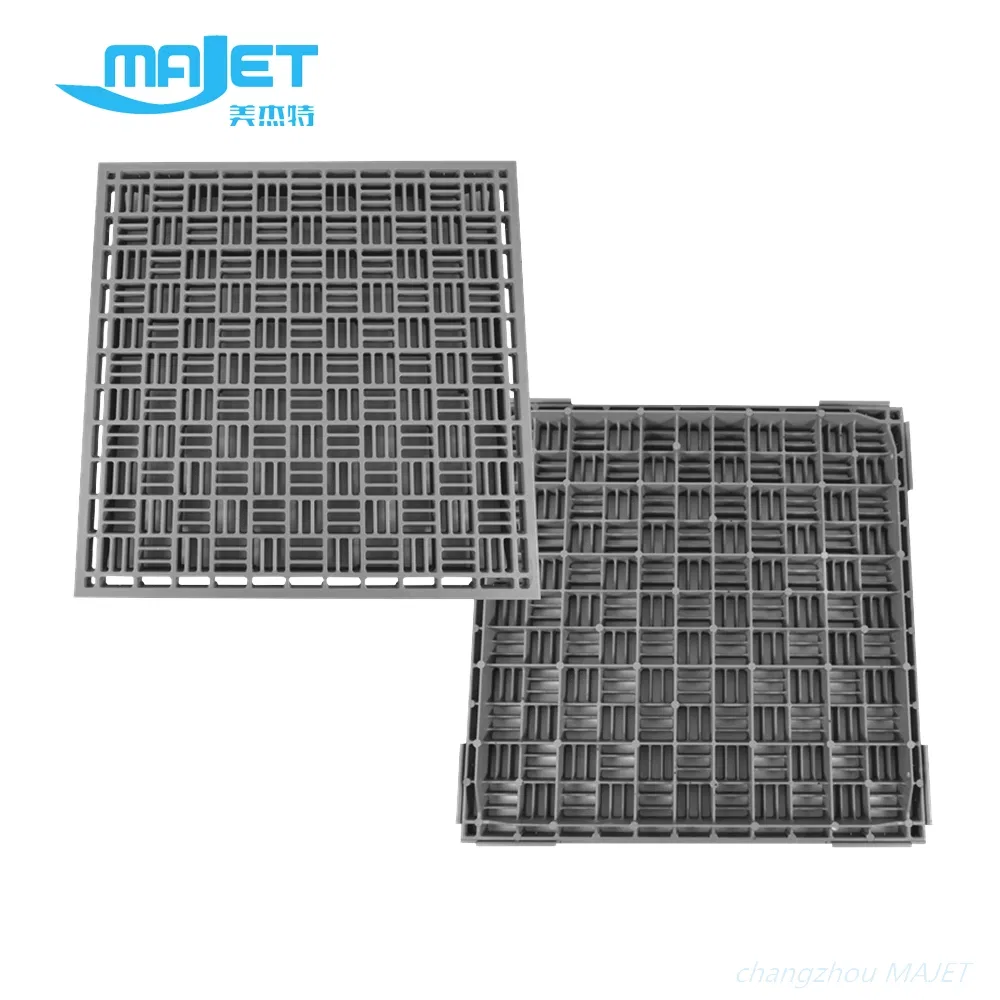

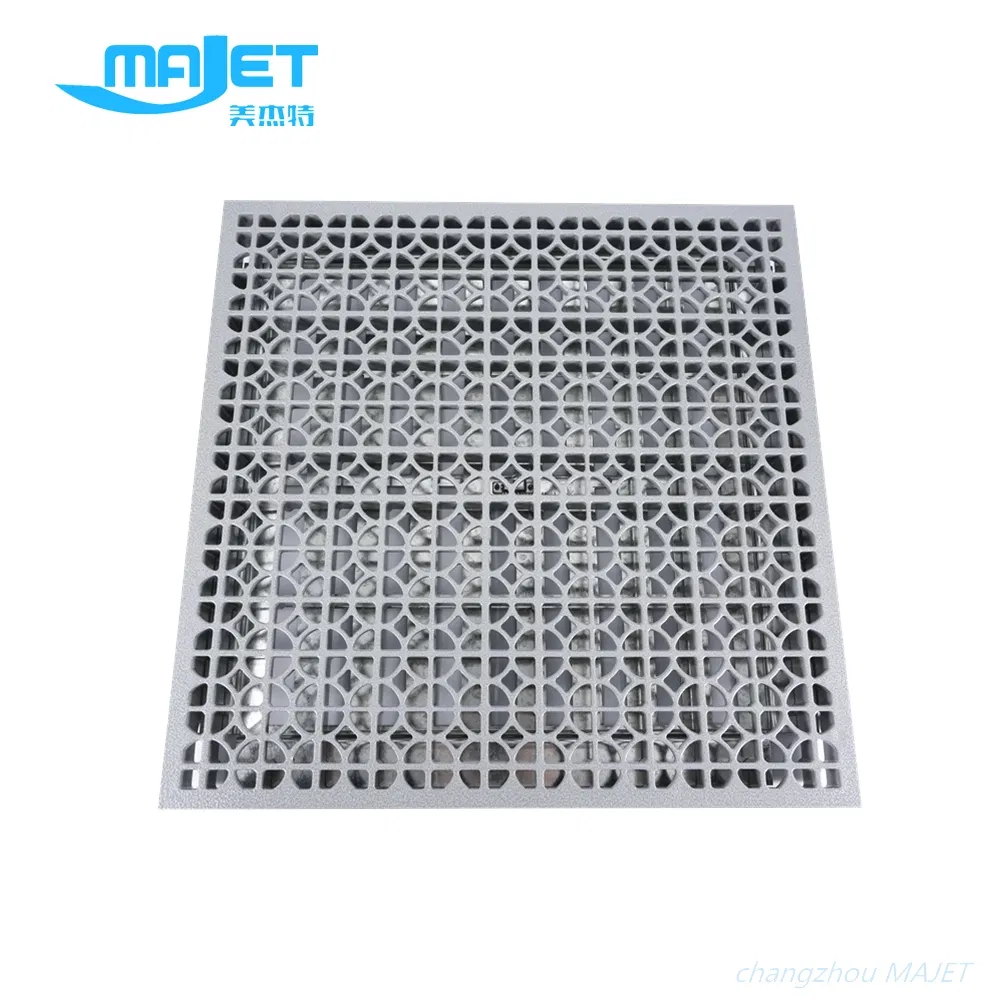

Chemical Room Aluminum Grating Raised Access Floor System 600X600 Clean Room
Product Description
ℹ
General Specifications
| Specification Item | Details |
|---|---|
| Material | Metal (Steel/Aluminum options) |
| Size | 600*600mm / 600x600x35mm |
| Functions | Thermal Insulation, Fireproof, Soundproof, Waterproof, Anti-static |
| Color | Grey / Customized |
| Certifications | CE, ISO, ASTM |
| Height Range | 50mm - 2000mm (Adjustable) |
| Concentrated Load | 2,990N - 11,093N |
| Top Finish | HPL, PVC Laminate |
| Structure | Pedestals and Stringers |
| Package | Wooden Pallets |
⚙
Product Description
Air Flow Raised Access Floor System
Perforated raised floors are essential components for data centers, computer rooms, and specialized equipment environments. Proper installation of perforated panels and airflow tiles significantly impacts energy efficiency by managing cooling distribution and reducing bypass air.
Perforated raised floors are essential components for data centers, computer rooms, and specialized equipment environments. Proper installation of perforated panels and airflow tiles significantly impacts energy efficiency by managing cooling distribution and reducing bypass air.
These systems are manufactured using high-precision stamping machinery, ensuring a perfect fit with hollow panels, stringers, pedestals, and locking screws.
Key Advantages
- Rapid and simplified installation process
- Lightweight design with high structural integrity
- Exceptional ultimate load-bearing capacity
- Completely non-combustible and fire-resistant
- High durability for long-term industrial use

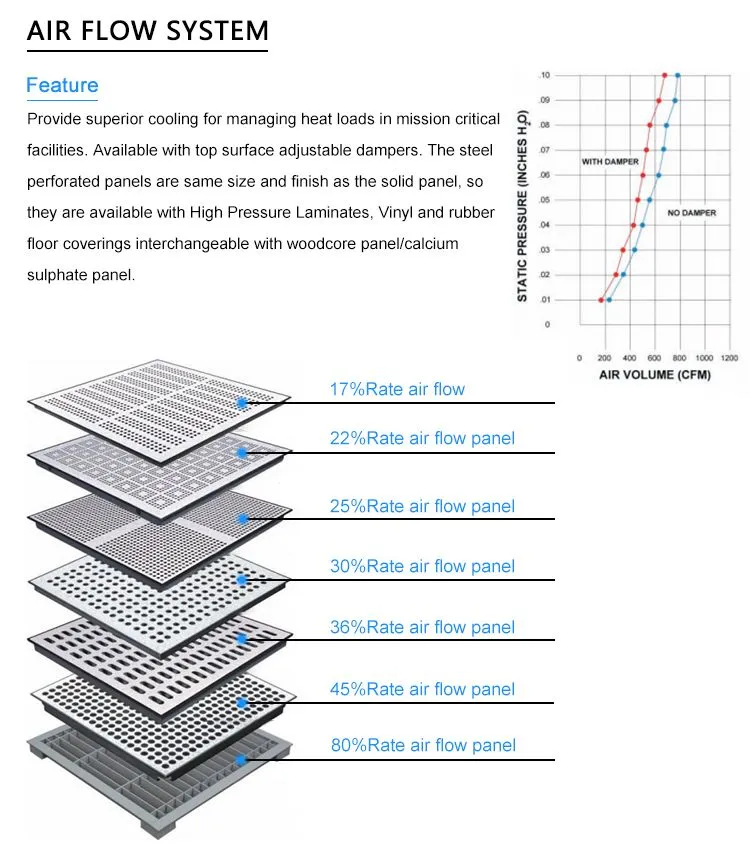

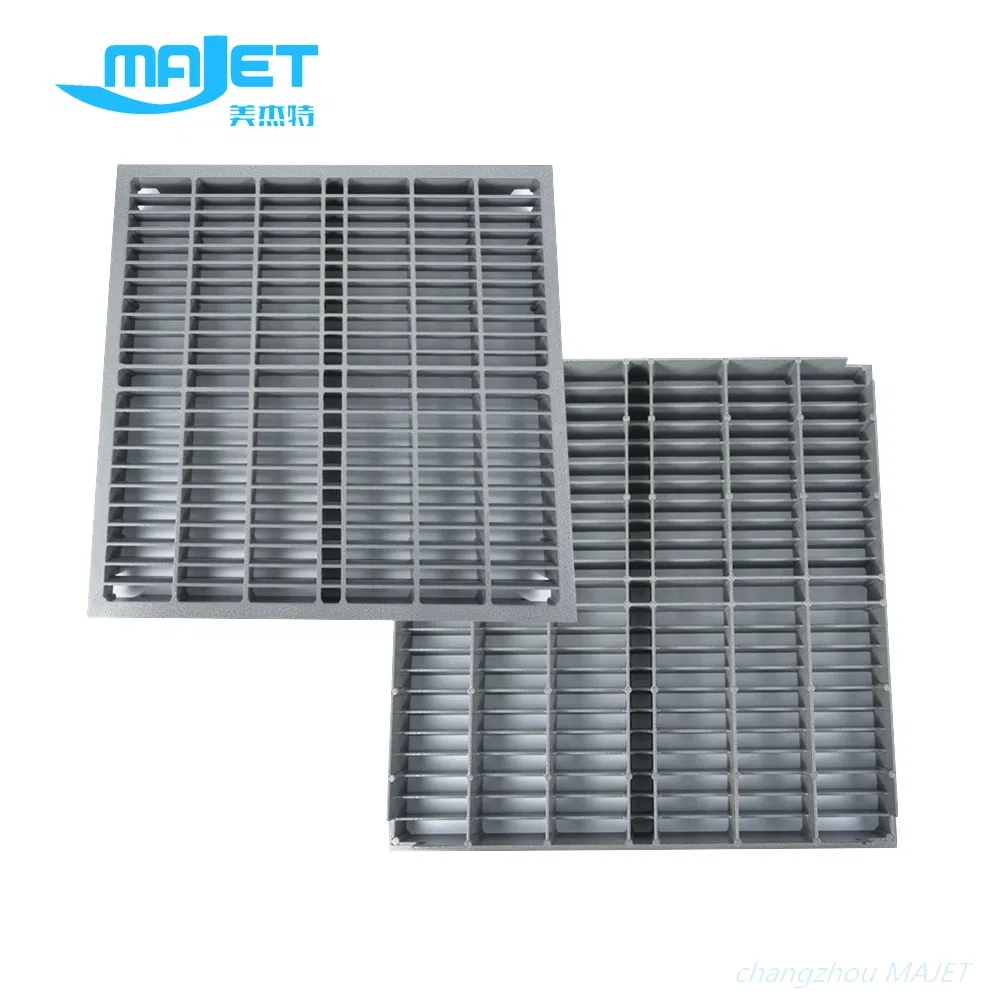

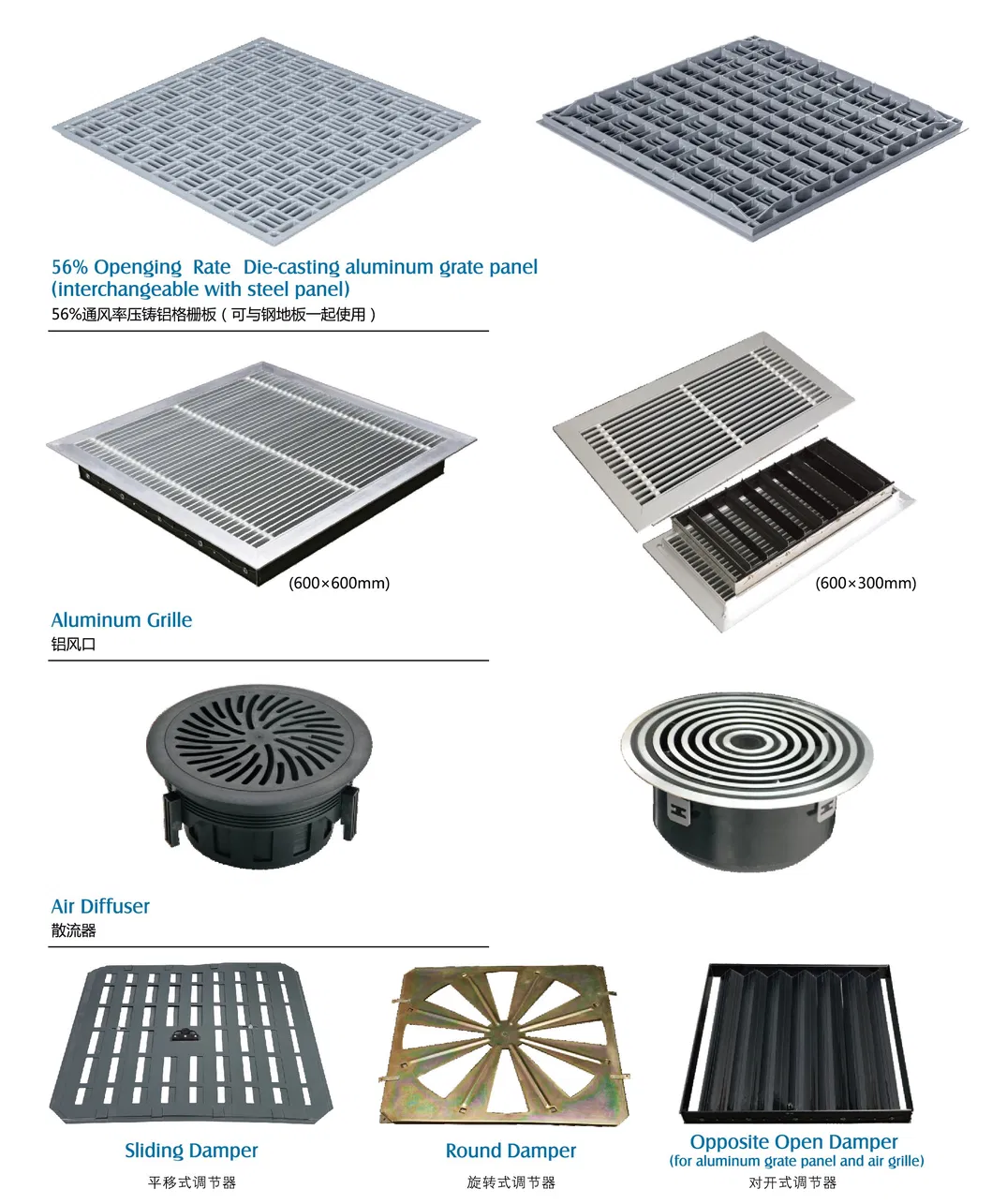

Available Perforation Rates: 17%, 22%, 25%, 30%, 36%, 45%, 56%, 80%. We also offer aluminum die-cast grate panels and adjustable air grilles/dampers for precision climate control.
📊
Technical Parameters (CISCA Standard)
Selecting the correct load-bearing level is critical. Consider the weight of server racks, office furniture, and peak foot traffic. Below is the performance classification table for your reference:
| Model | Concentrated Load (N) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m2) | Rolling Load (10k times) |
|---|---|---|---|---|---|
| SC668 | ≥2990 | 670 | ≥8890 | ≥12500 | 1548 |
| SC800 | ≥3590 | 670 | ≥10799 | ≥19796 | 2215 |
| SC1000 | ≥4498 | 670 | ≥13494 | ≥23294 | 2959 |
| SC1250 | ≥5595 | 670 | ≥16797 | ≥33084 | 3596 |
| SC1500 | ≥6693 | 670 | ≥20090 | ≥42581 | 4498 |
| SC2000 | ≥8898 | 670 | ≥26685 | ≥49784 | 5595 |
| SC2500 | ≥11093 | 670 | ≥33290 | ≥58280 | 6693 |
🏠

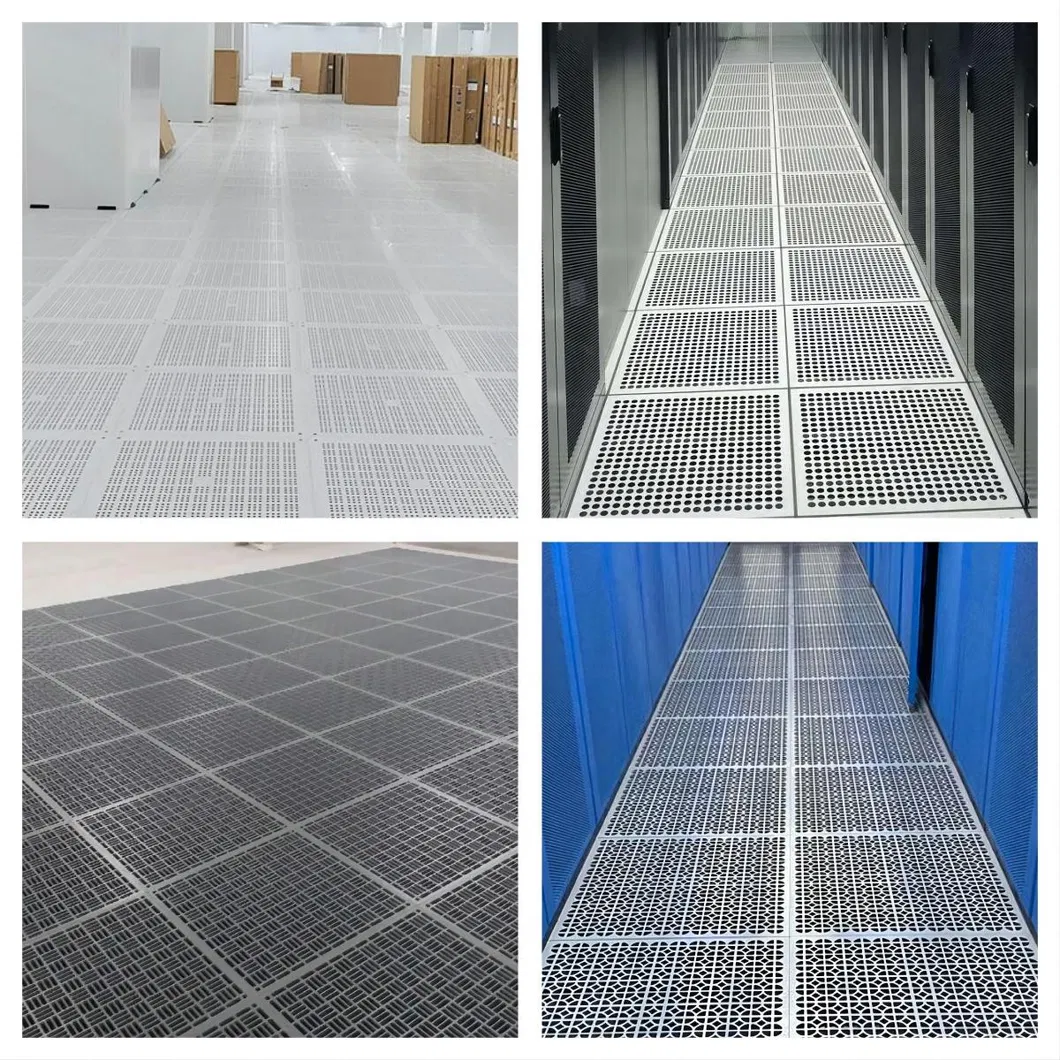

Common Applications

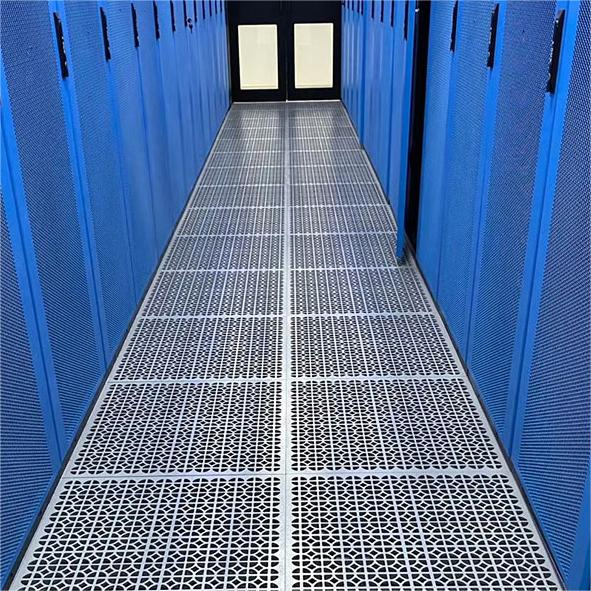

1. Data Centers & Server Rooms: Precision temperature control and massive cable management capacity.
2. Modern Office Spaces: Adaptable layouts for dynamic work environments with easy power access.

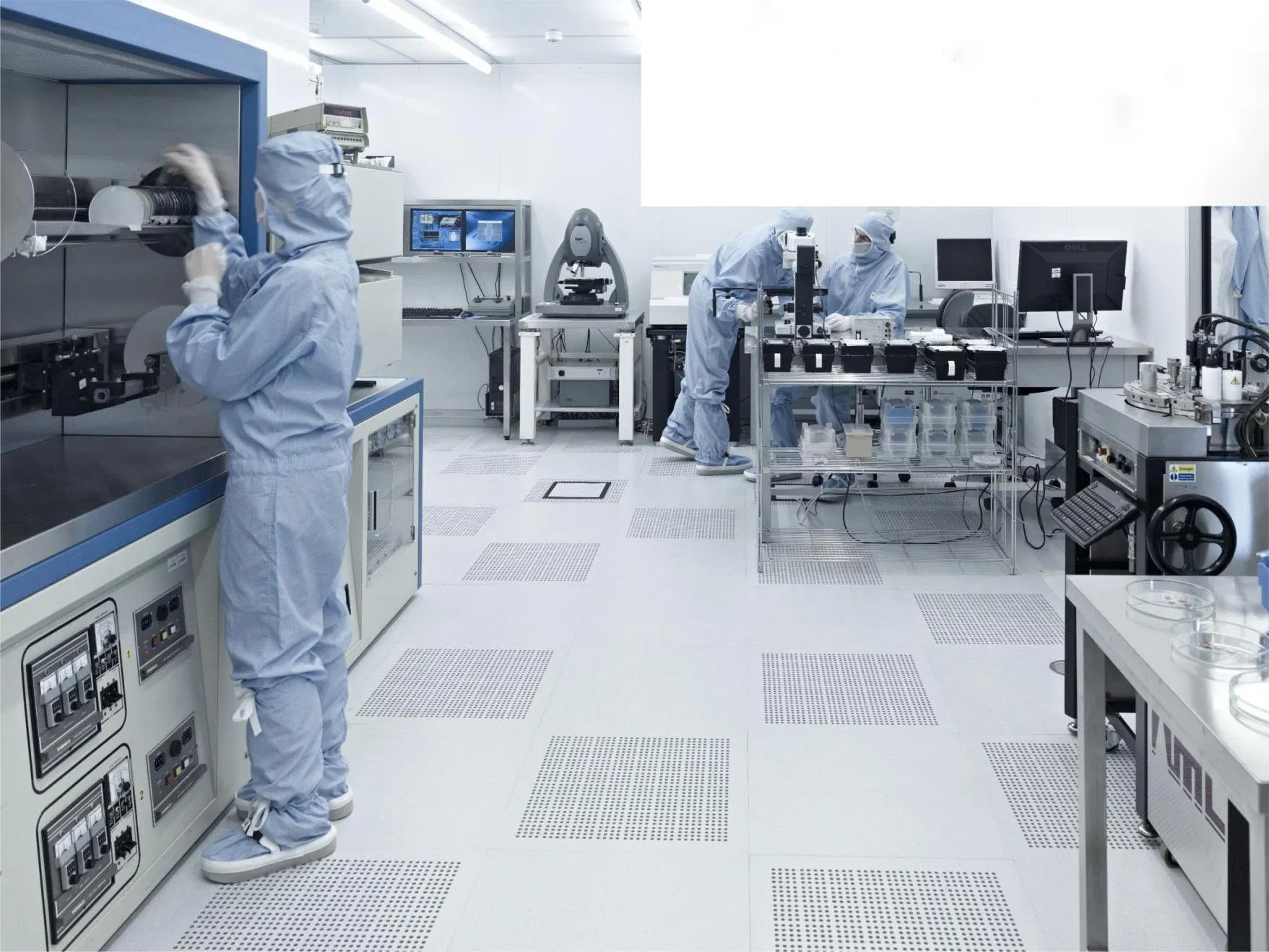

3. Cleanrooms & Laboratories: Stringent utility routing while maintaining sterile conditions.
4. Industrial Facilities: Safe, elevated walkways for maintenance around heavy machinery.
2. Modern Office Spaces: Adaptable layouts for dynamic work environments with easy power access.
3. Cleanrooms & Laboratories: Stringent utility routing while maintaining sterile conditions.
4. Industrial Facilities: Safe, elevated walkways for maintenance around heavy machinery.
🔗
Related Solutions
🛠
Manufacturing & Certification
🏢
Manufacturing Excellence

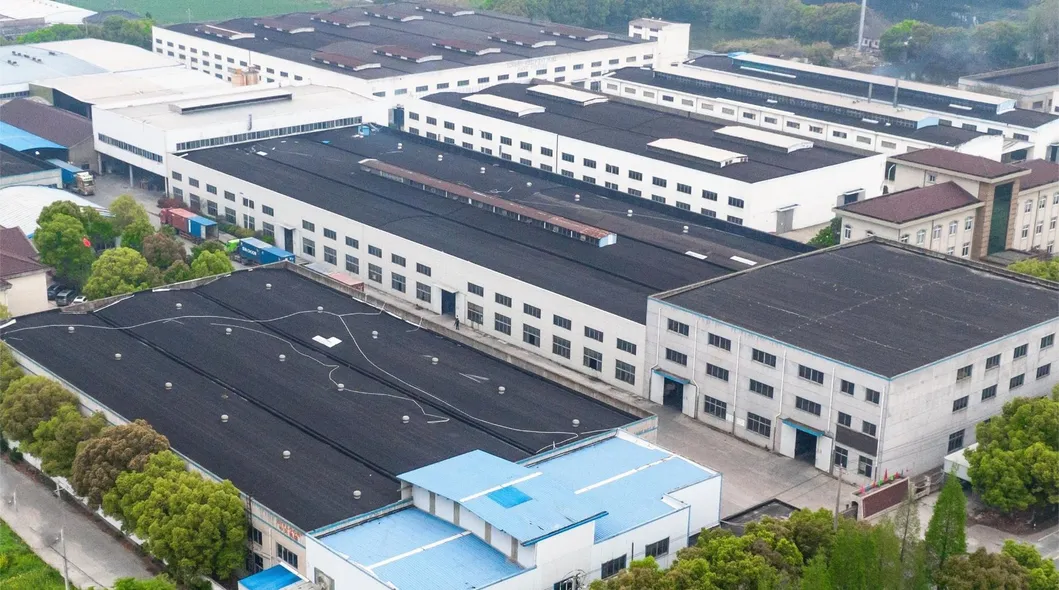

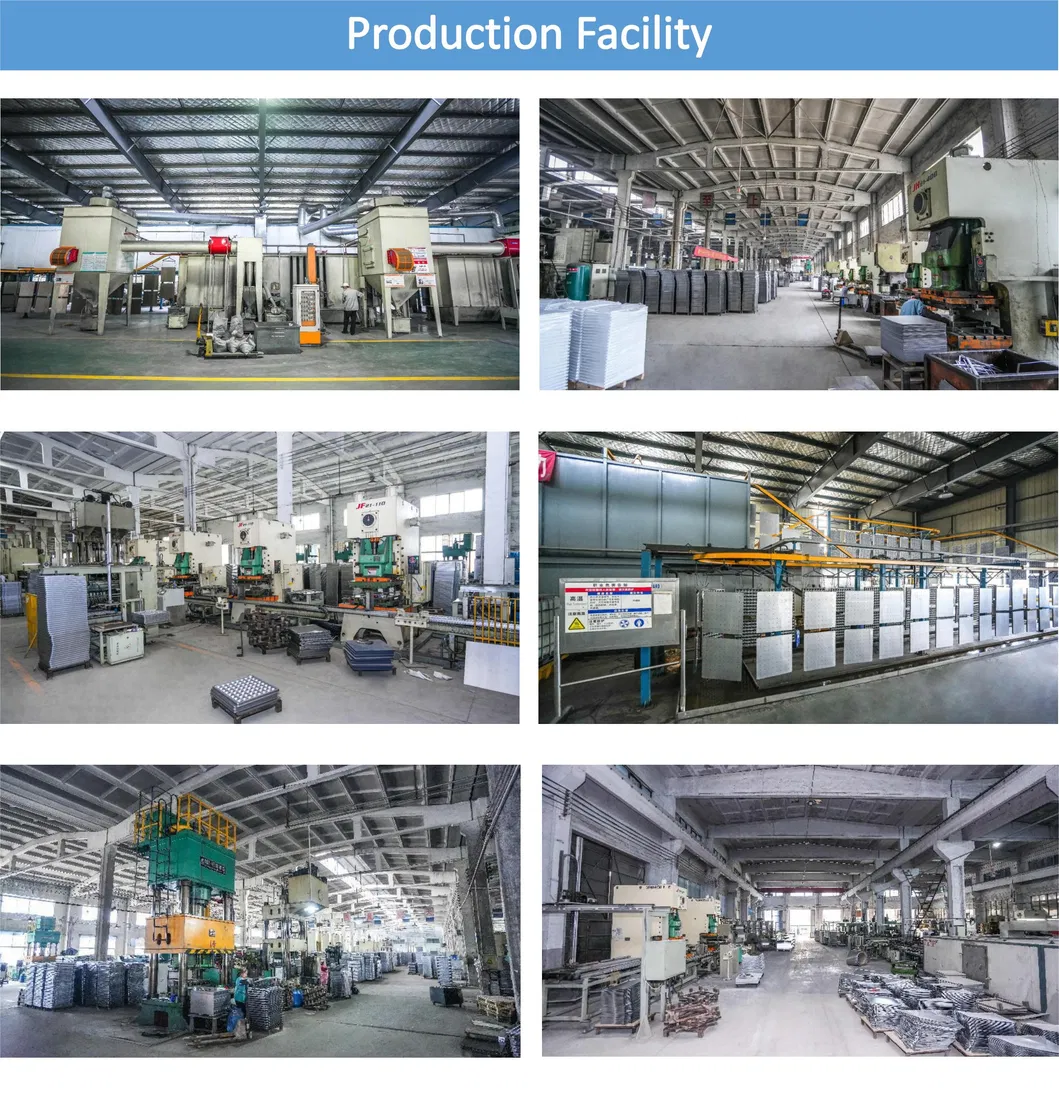

With over 35 years of specialized experience since 1988, we operate a 60,000 square meter facility equipped with advanced automated production lines. Our daily output reaches up to 5,000 square meters, covering steel, calcium sulfate, and aluminum access floor systems. Our dedicated export teams ensure professional logistical support for international projects.
❓
Frequently Asked Questions
Which raised floor is most cost-effective for general offices?
Steel raised flooring is the most cost-effective choice. It is lighter than calcium sulfate and offers higher load-bearing capacity than wood core options, making it ideal for standard commercial settings.
How do I choose the right surface finish for my floor?
Common choices include Carpet (best for sound reduction and comfort), Ceramic Tile (high durability and easy cleaning), and HPL (anti-static and wear-resistant for technical areas).
Can I request samples before placing a bulk order?
Yes, product samples can be provided based on your specific technical requirements to ensure the material meets your project standards.
What is the standard lead time for delivery?
Typically, orders are processed and ready for dispatch within 30 days following the confirmation of prepayment.
What certifications back your product quality?
Our systems are backed by ISO and KS certifications, alongside technical reports for Static loading, VOC emissions, and CISCA/MOB standard compliance.
How are the floors packaged for international shipping?
Panels are securely packed on reinforced wooden pallets and wrapped with protective plastic film to prevent moisture and damage during transit.
