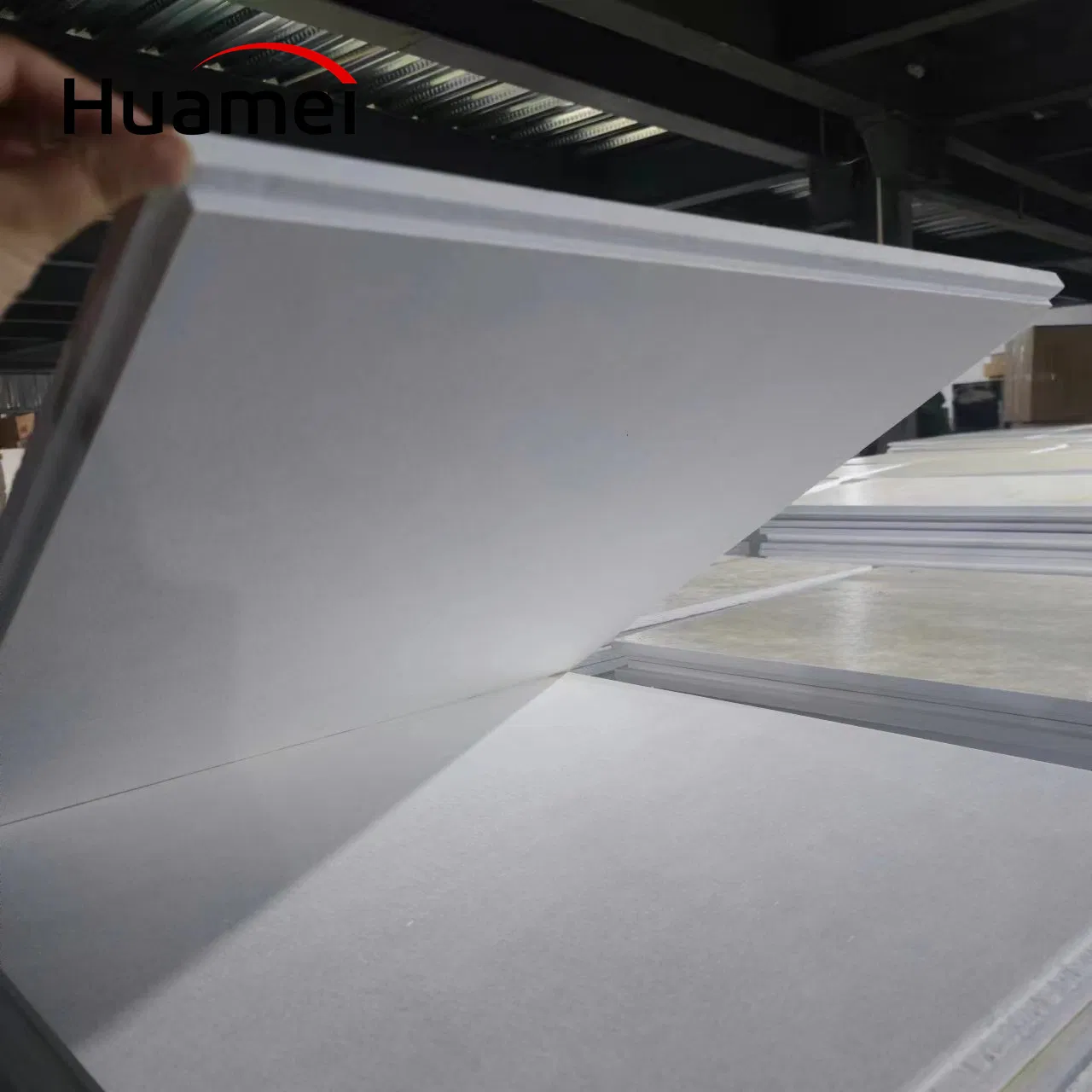

3D Wall Decoration Acoustic Board Environment Acoustic Insulation Panel
Product Description

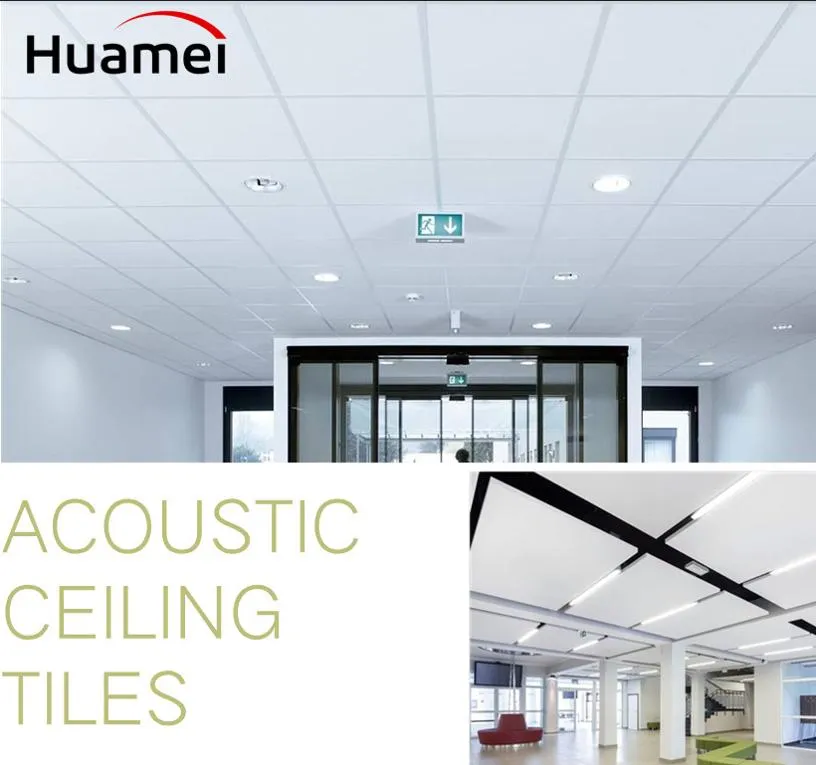

🔊 Fiberglass acoustic Ceiling panel has excellent fire-resistant (Fire-rated Grade A1) and excellent sound insulation (NRC>0.9). It is suitable for radio stations, television studios, schools, gyms, theaters, libraries, conference rooms, and concert halls where higher requirements for sound absorption quality are needed.
⭐ NRC (Noise Reduction Coefficient) > 0.9
Acoustic panels are designed and crafted to control echo and reverberation in a room. Most commonly used to control sound dampening from walls and echo reduction in home studios, home theaters, music rooms, and offices, helping with speech intelligibility issues in commercial areas.
Fiberglass is composed of rock fiber and belongs to incombustible material. The fiberglass ceiling has been tested from the base plate to the decorative surface, achieving a fire rating of Class A.
| Property | Details |
|---|---|

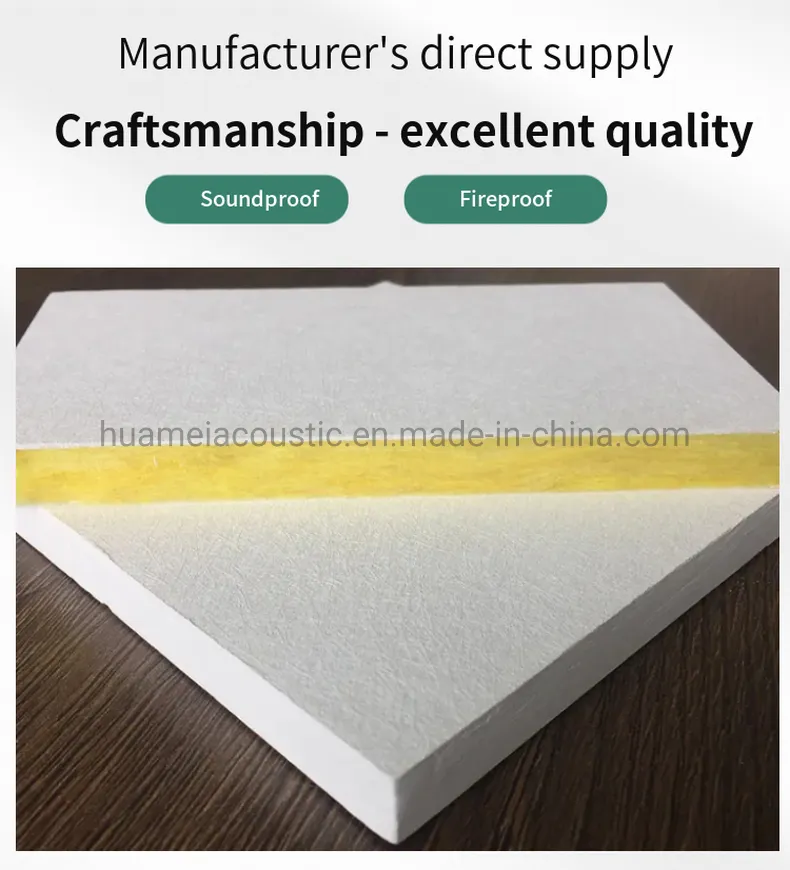

| Main Material | Torrefaction compounded high density fiberglass wool |
| Face | Special painted laminated with decorative fiberglass tissue |

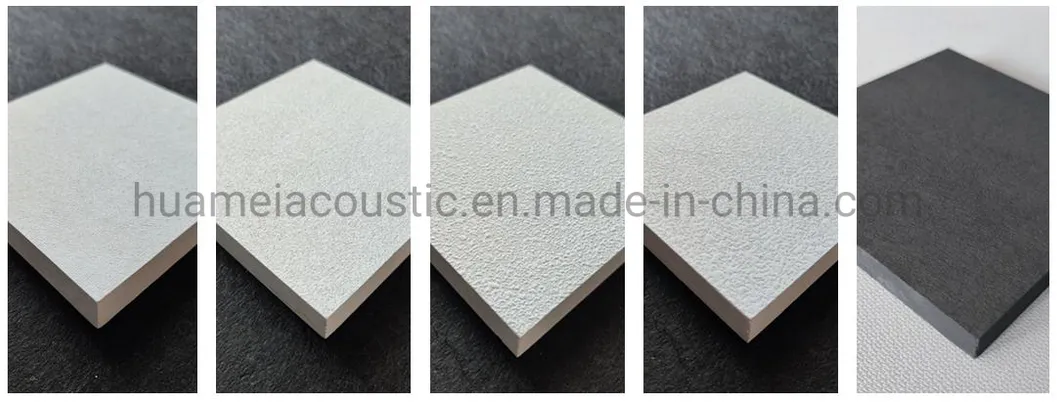

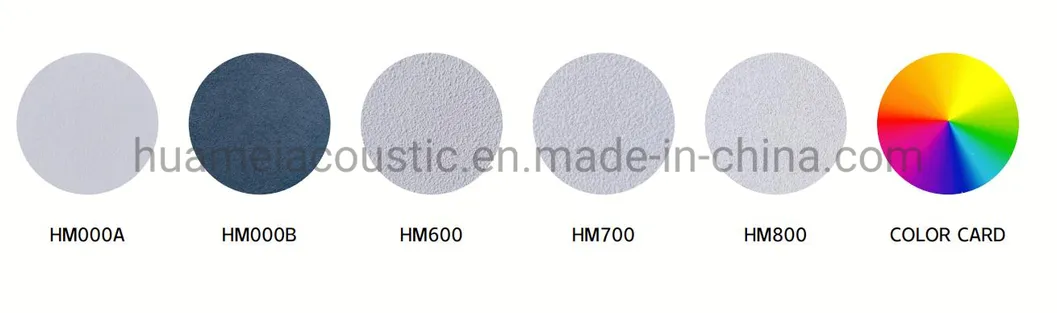

| Design | White spray/white paint/black spray/colorful as demanded |
| NRC | 0.8-0.9 (SGS Tested) / 0.9-1.0 (National authoritative departments) |
| Fire-Resistant | Class A (EN13501-1 / GB8624-2012) |
| Thermal-Resistant | ≥0.4(m2.k)/W |
| Humidity | Stable with RH up to 95% at 40°C |
| Environmental | Tiles and packings are fully recyclable |
| Density | 100kg/m3 (Special density available) |
| Size (mm) | Thickness | Packing (pcs/ctn) | Loading Qty (sqm) |
|---|---|---|---|
| 600*600mm | 12mm | 25 | 4788 SQM |
| 600*1200mm | 12mm | 25 | 4788 SQM |
| 600*600mm | 15mm | 20 | 3830.4 SQM |
| 600*1200mm | 15mm | 20 | 3830.4 SQM |
| 600*600mm | 20mm | 15 | 2872.8 SQM |
| 600*1200mm | 20mm | 15 | 2872.8 SQM |
*Other special sizes can be customized.

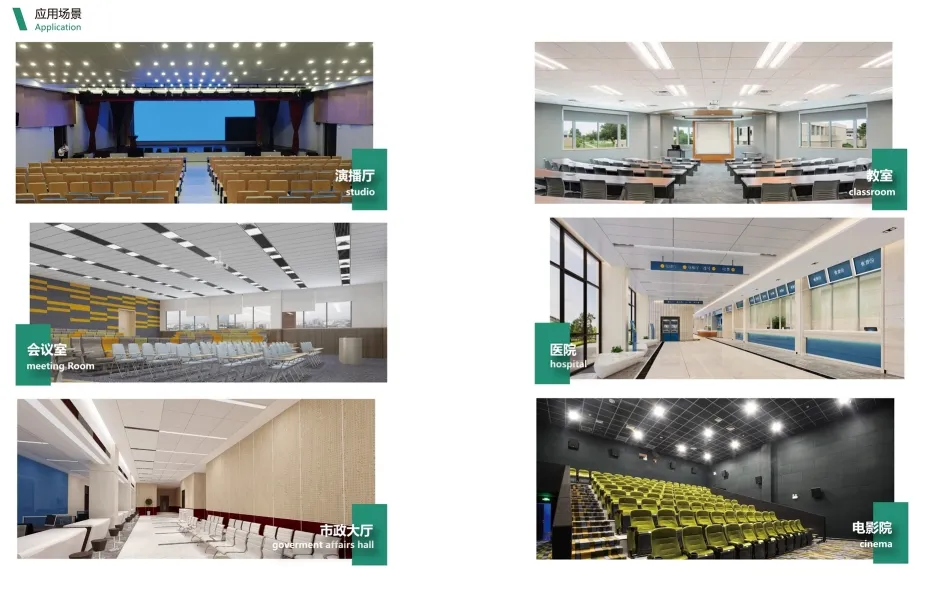

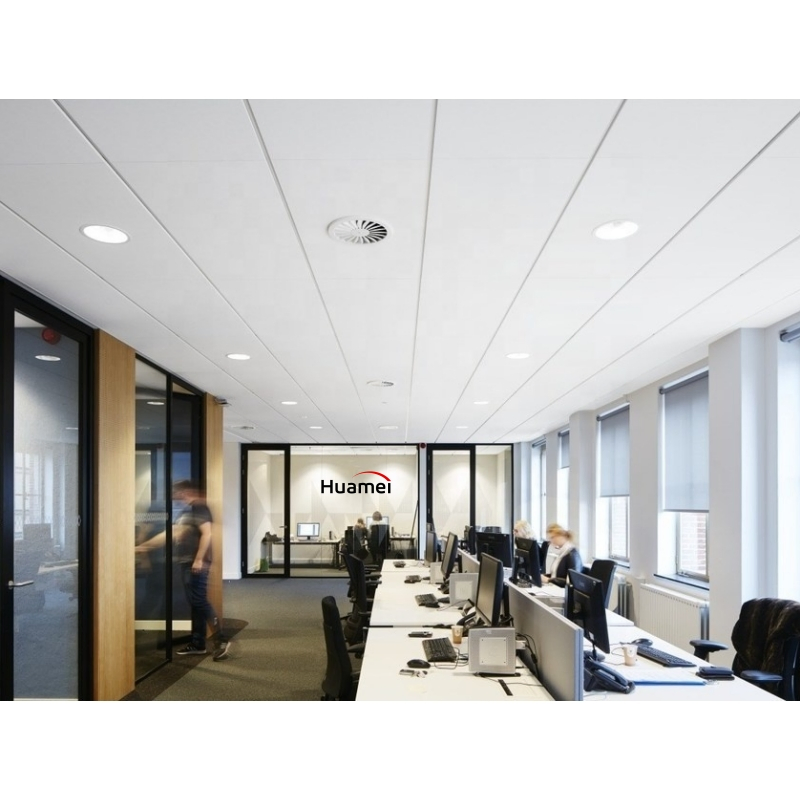

Fiberglass ceiling tile is widely used in office buildings, hospitals, lecture halls, studios, TV stations, supermarkets, and shopping malls where fire protection and sound absorption are strictly required.
Our production integrates research, development, and sales of ceiling and wall decoration products. With a production history of nearly 20 years, we have an annual capacity of 5 million square meters.
Products are exported globally to Europe, America, the Middle East, and Southeast Asia. We maintain strong technical strength with independent production lines ensuring high appearance quality and accurate dimensions.
