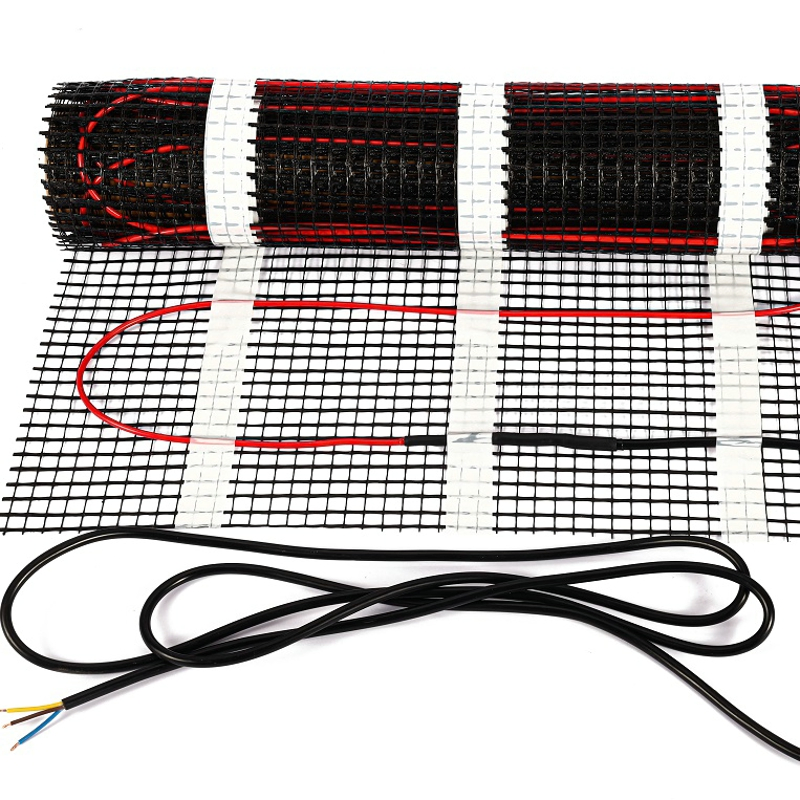

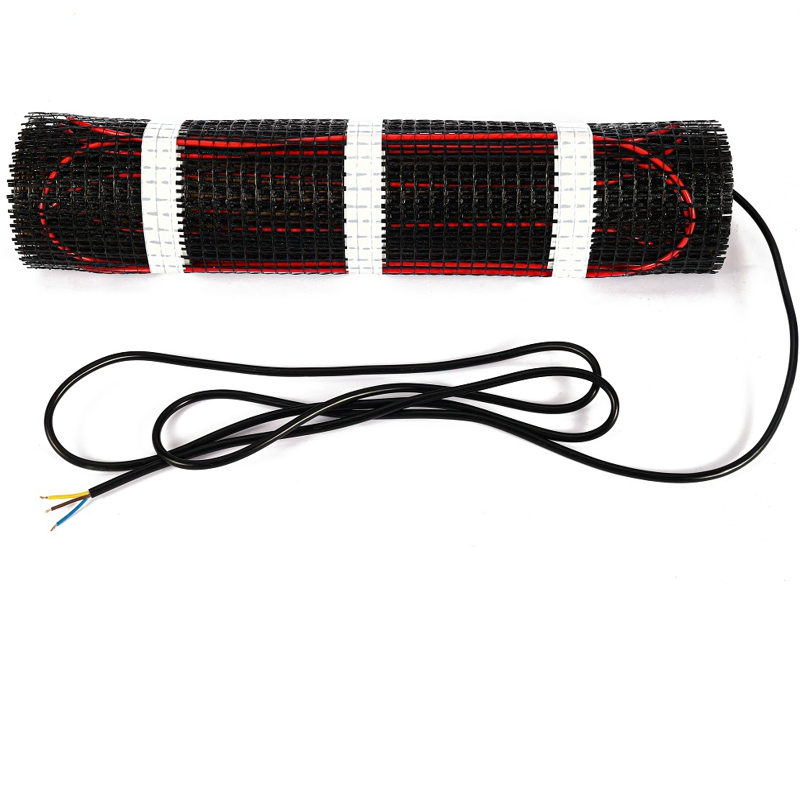

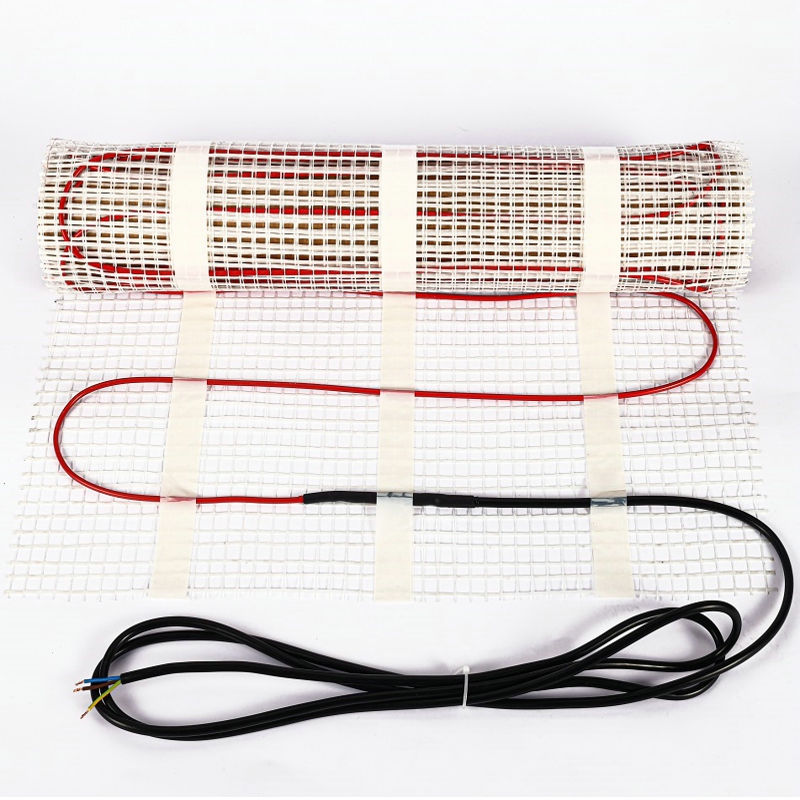

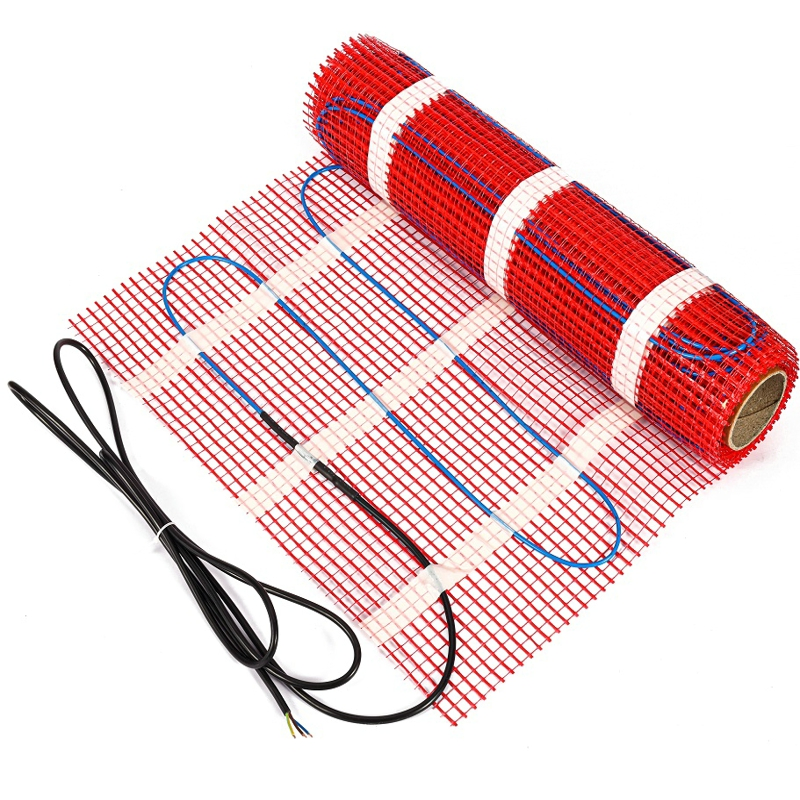

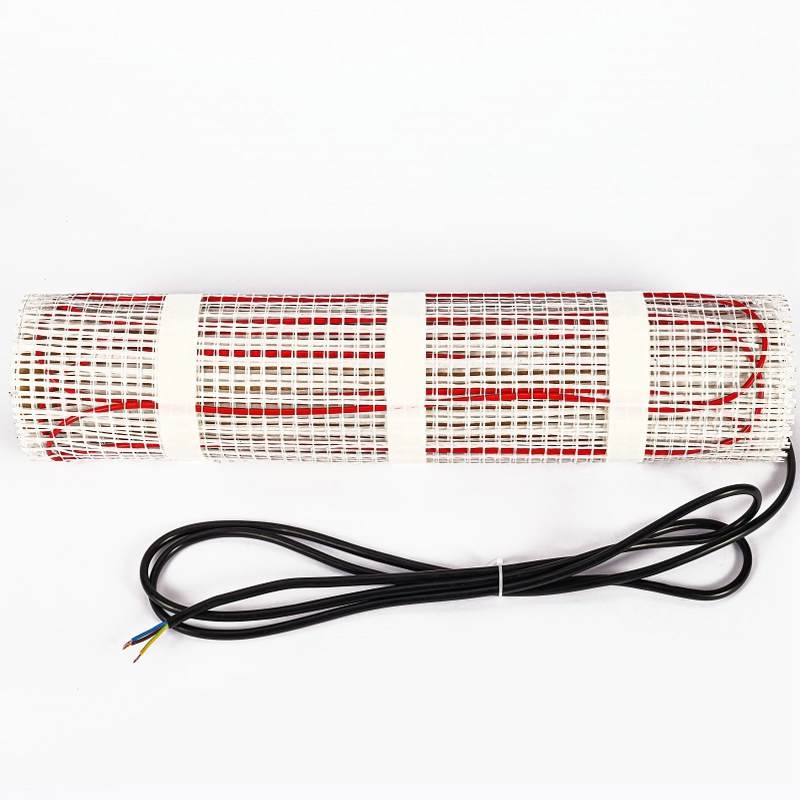

2025 Electric Under Laminate Heating Mats Floor Heating System
Product Description
Basic Specifications
Model NO.
UFH-MAT
Outside Diameter
3.6mm
Insulation
Fluoroplastic
Protective Jacket
PVC
Power Output
150W/M2 & 200W/M2
HS Code
8516800000
Capacity
100,000 sqm/Month
Origin
China
Product Description

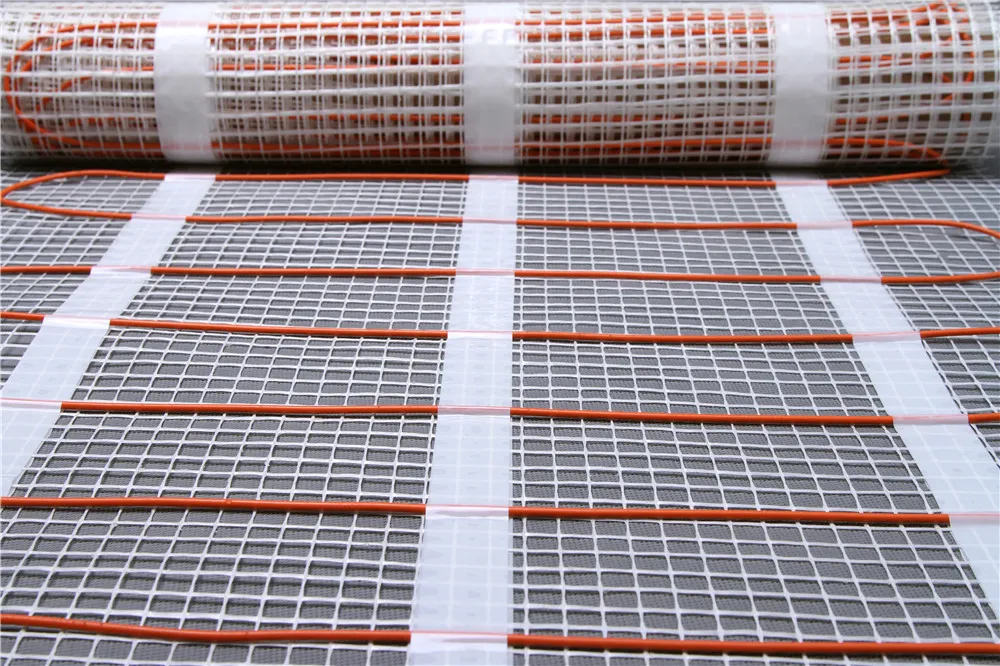

The UFH-MAT utilizes a advanced twin conductor heating cable designed for simplified installation and exceptionally low EMF (Electromagnetic Fields). With a ultra-thin profile of only 3.6mm, this heating mat allows for seamless integration into floor adhesives with minimal impact on total floor height.
Key Features & Advantages
- Low Profile: 3.6mm thickness keeps floor height increases to a minimum.
- Durable Construction: Fluoropolymer conductor insulation with resilient PVC outer jacket.
- Zero Maintenance: Once installed, no bleeding, cleaning, or servicing is required.
- Safety Design: 100% AI tape braid for zero EMR and metal ground wire for protection.
- Waterproof: IP68 rated, suitable for wet areas like kitchens and bathrooms.
- Quality Tested: Each cable undergoes 13 rigorous tests before delivery.
Technical Data
150W/m² Series
| Part NO. | Heat Area (m²) | Dimensions (m) | Wattage (W) | Resistance (Ω) |
|---|---|---|---|---|
| UFH-MAT150-1.0 | 1.0 | 0.5 x 2 | 150 | 322.67 |
| UFH-MAT150-2.0 | 2.0 | 0.5 x 4 | 300 | 161.33 |
| UFH-MAT150-3.0 | 3.0 | 0.5 x 6 | 450 | 107.56 |
| UFH-MAT150-5.0 | 5.0 | 0.5 x 10 | 750 | 64.53 |
| UFH-MAT150-10.0 | 10.0 | 0.5 x 20 | 1500 | 32.27 |
200W/m² Series
| Part NO. | Heat Area (m²) | Dimensions (m) | Wattage (W) | Resistance (Ω) |
|---|---|---|---|---|
| UFH-MAT200-1.0 | 1.0 | 0.5 x 2 | 200 | 242.00 |
| UFH-MAT200-2.0 | 2.0 | 0.5 x 4 | 400 | 121.00 |
| UFH-MAT200-3.0 | 3.0 | 0.5 x 6 | 600 | 80.67 |
| UFH-MAT200-5.0 | 5.0 | 0.5 x 10 | 1000 | 48.40 |
| UFH-MAT200-10.0 | 10.0 | 0.5 x 20 | 2000 | 24.20 |

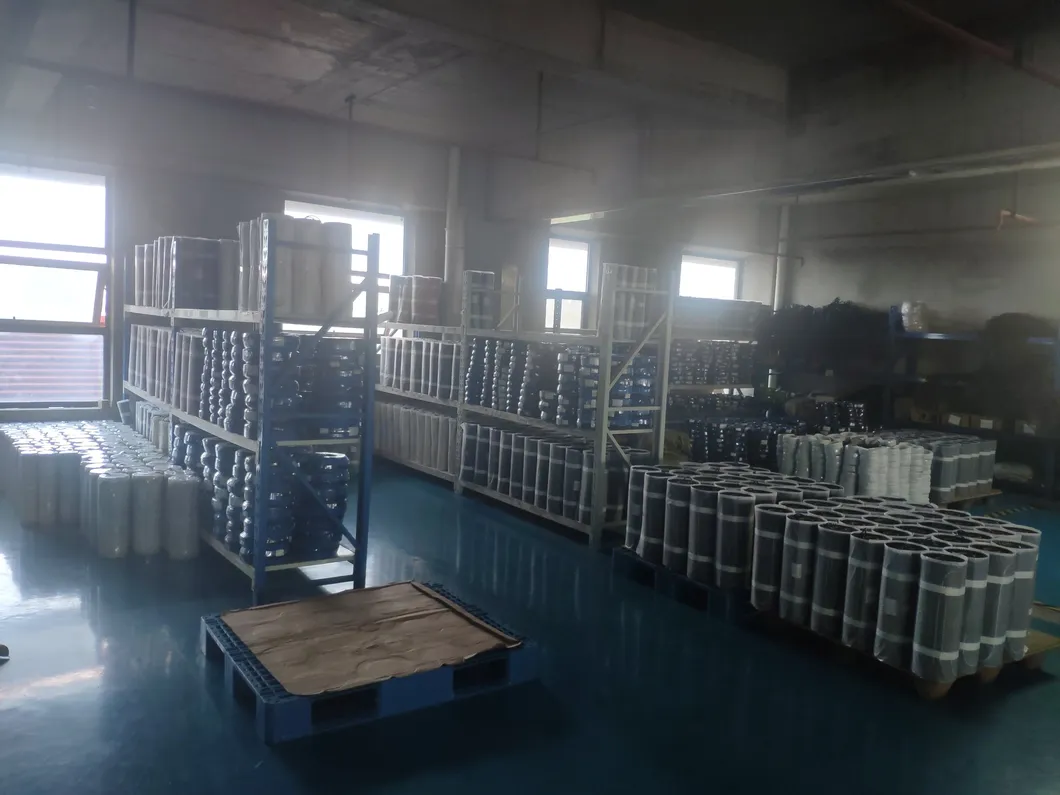

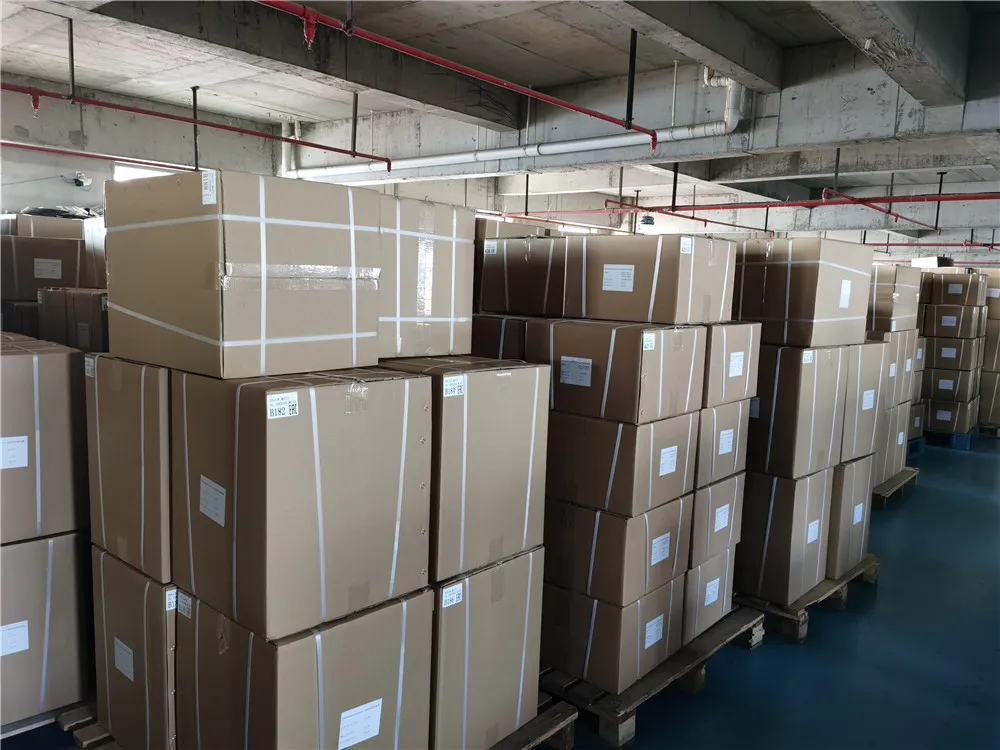

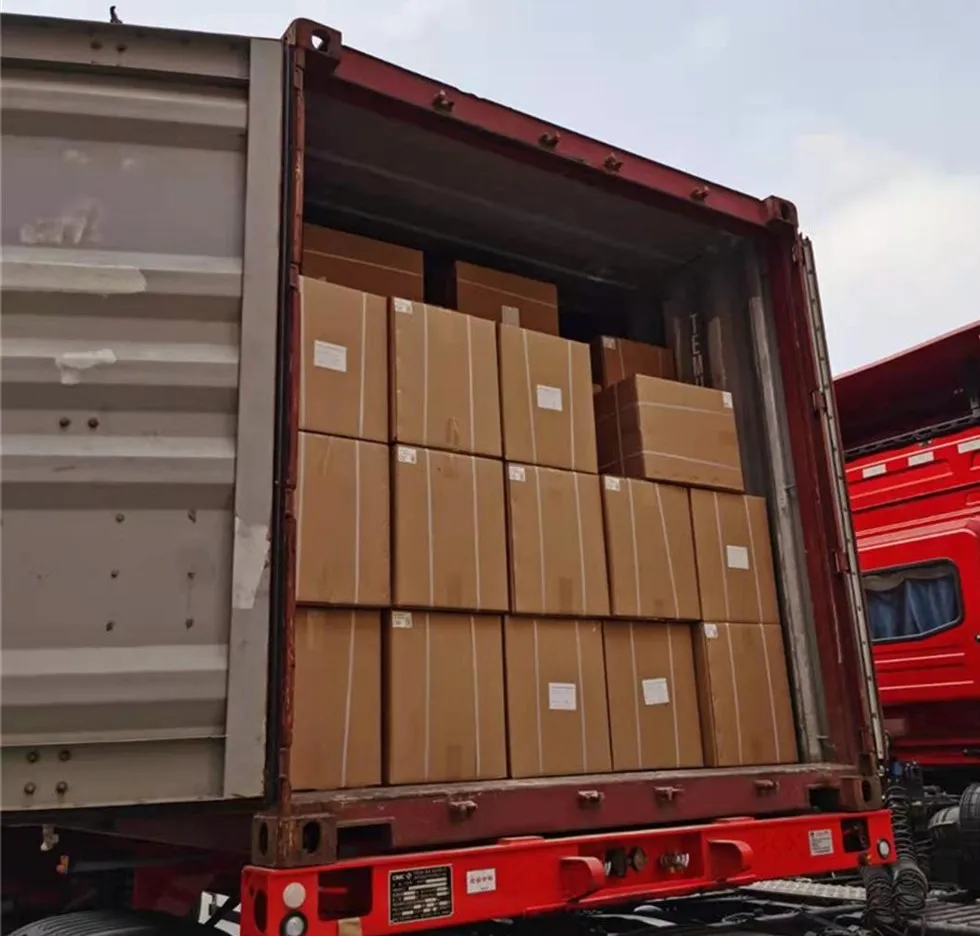

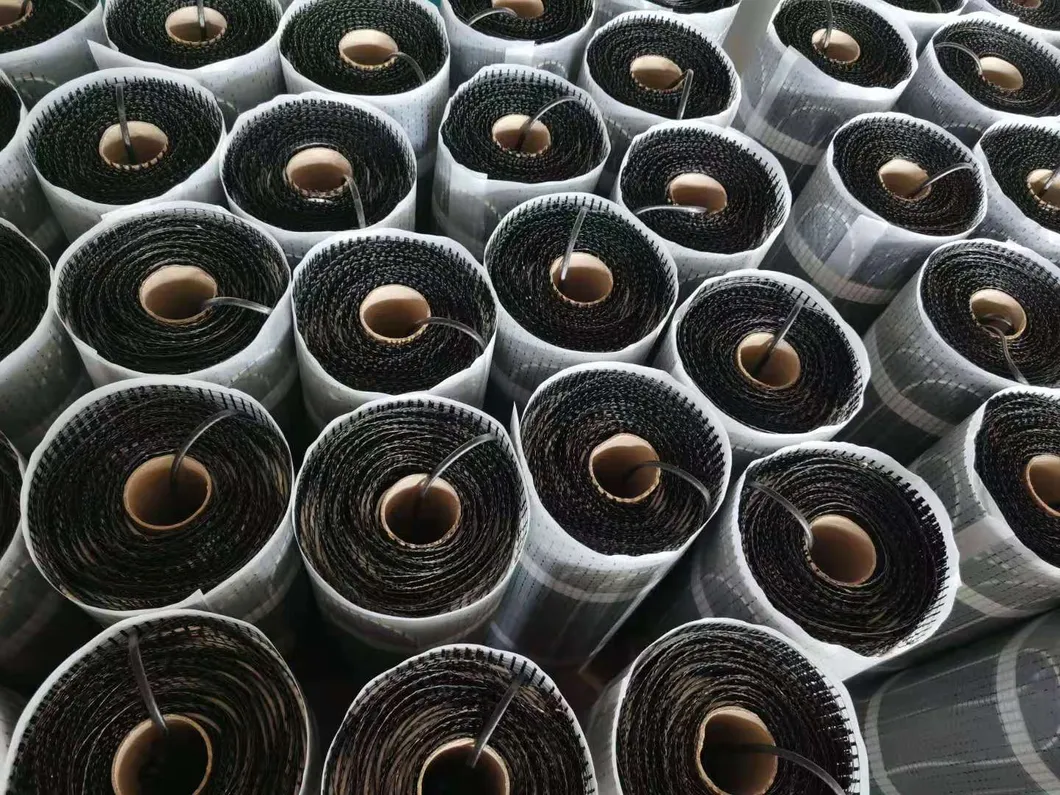

Packaging & Warehouse

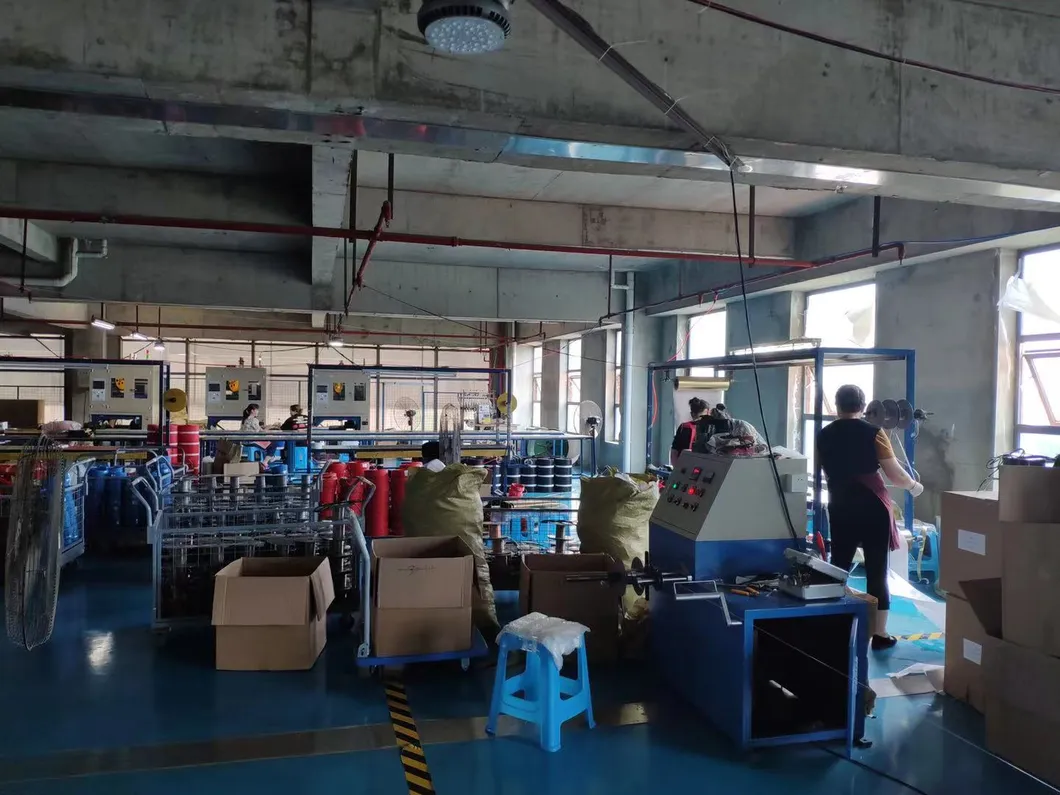

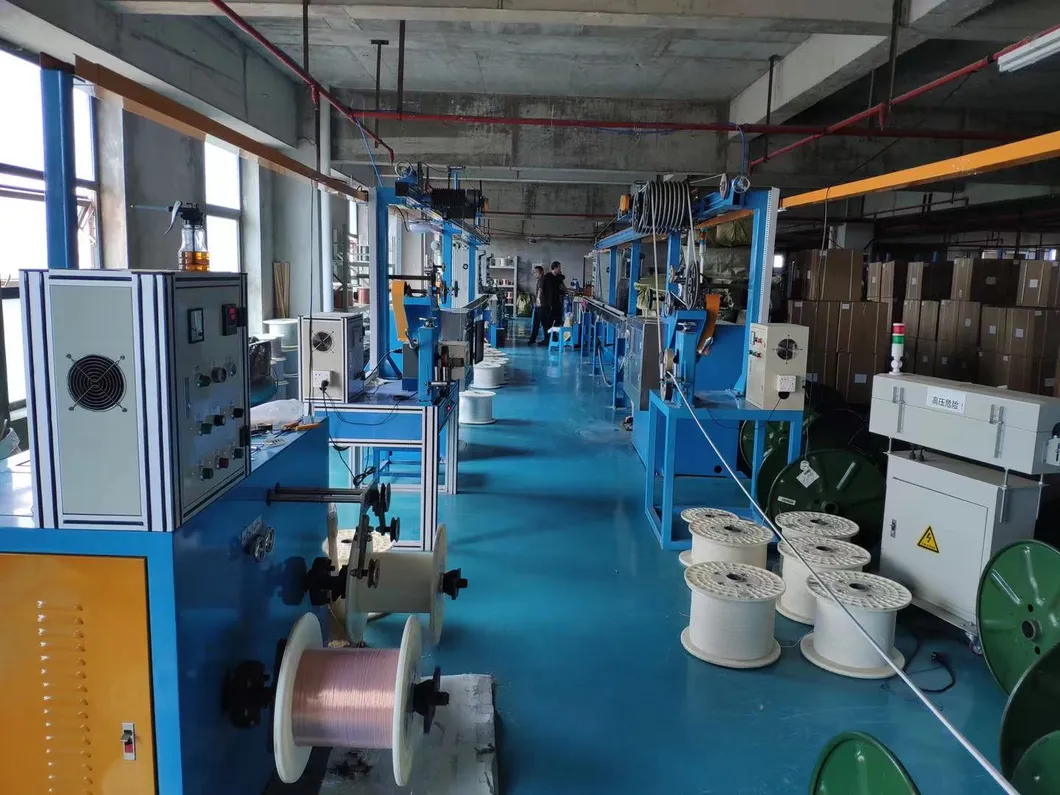

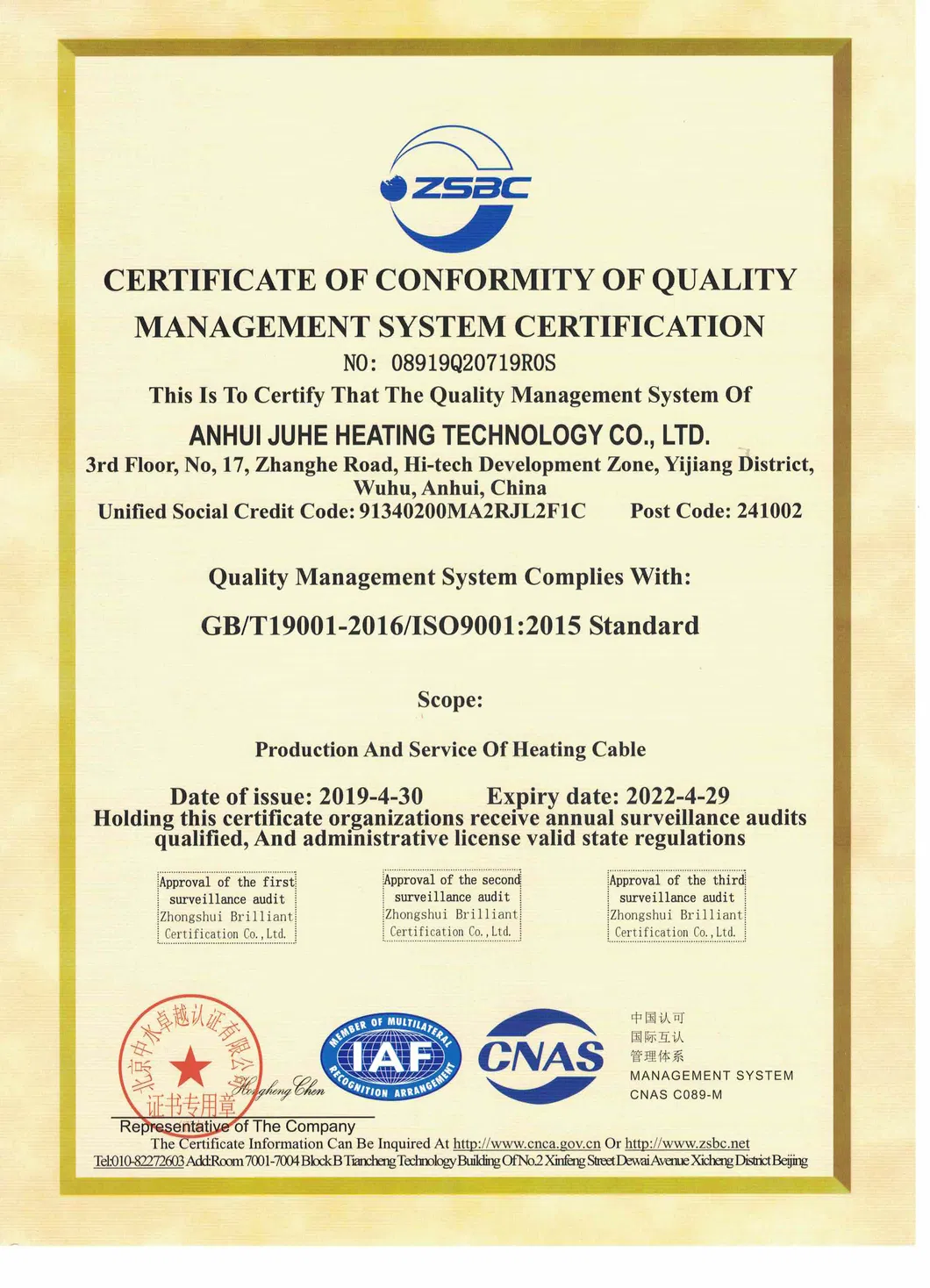

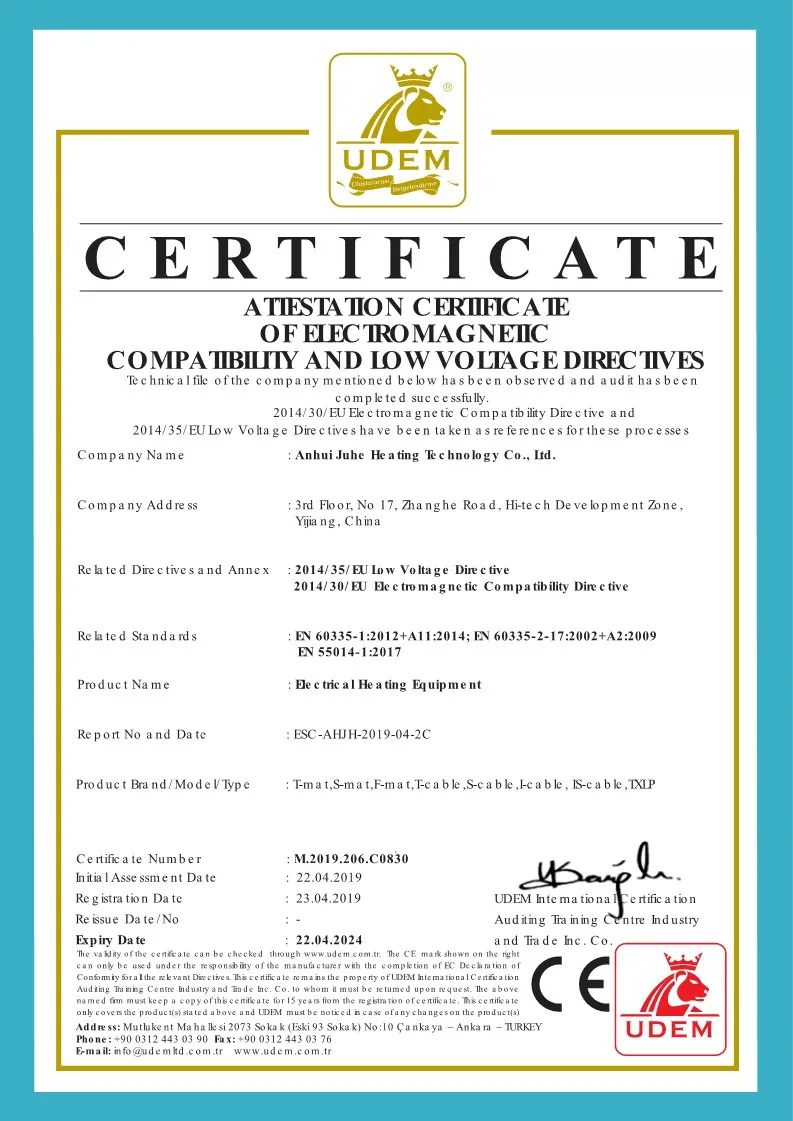

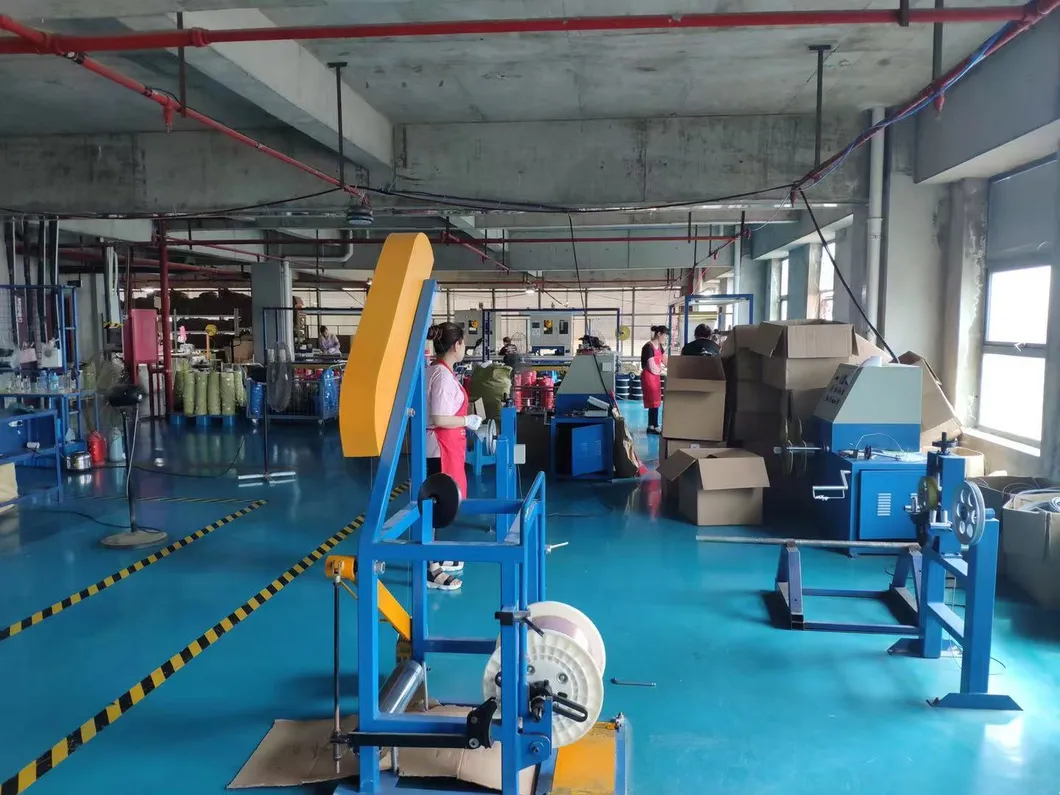

Certifications & Factory
Frequently Asked Questions
What are the advantages of a twin conductor heating cable?
Twin conductor designs only require a single cold lead connection to the thermostat, making installation significantly easier. They also produce virtually zero electromagnetic interference (EMR).
Is the 150W/m² mat suitable as a primary heat source?
Yes, the 150W/m² heating mats are specifically designed to serve as a primary heating source in high-use areas such as kitchens, dining rooms, and large bathrooms with tiled floors.
How does the 3.6mm thickness affect my floor installation?
The ultra-thin 3.6mm profile is designed to sit within the tile adhesive layer, meaning there is minimal increase to the total floor height, making it ideal for renovation projects.
What kind of quality testing do the products undergo?
Every single heating cable is tested 13 times during the manufacturing process before delivery to ensure 100% reliability and performance.
What is the warranty period for these heating systems?
We offer a 25-year limited warranty, providing long-term peace of mind regarding the durability and longevity of our underfloor heating products.
Are these mats waterproof for bathroom use?
Yes, the cables are rated IP68 waterproof and feature FEP insulation with high heat resistance, ensuring safe operation in wet environments.
